Din rail roll forming machine
Develivery time:30-45 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
Din rail roll forming machine

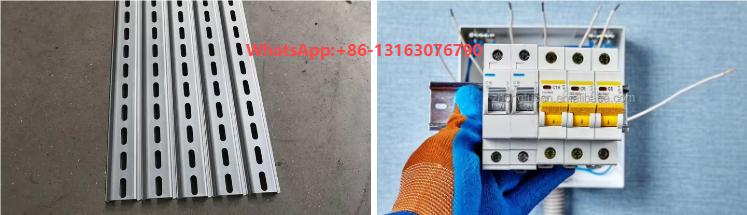

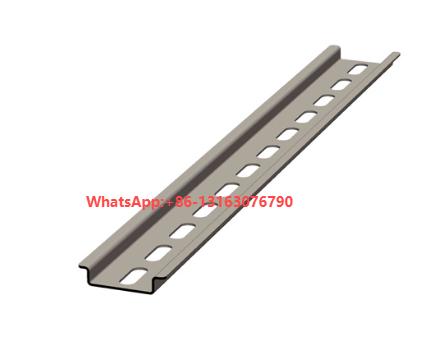

Din rail roll forming machine widely used for making the din rail for cross truss for Circuit Breaker and industrial control equipment inside equipment racks. Machinable materials usually are Zinc-plated steel, Aluminum, Stainless steel etc with sheet thickness 1 - 1.5mm.

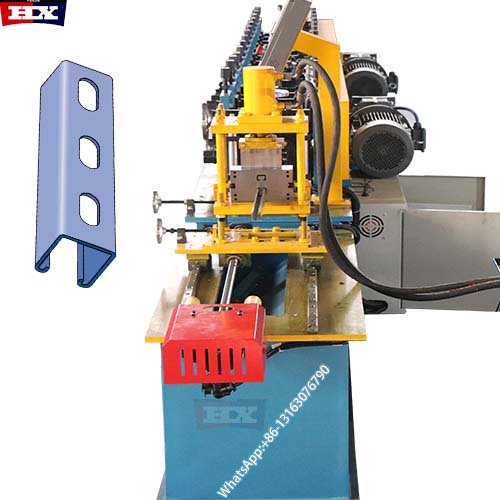

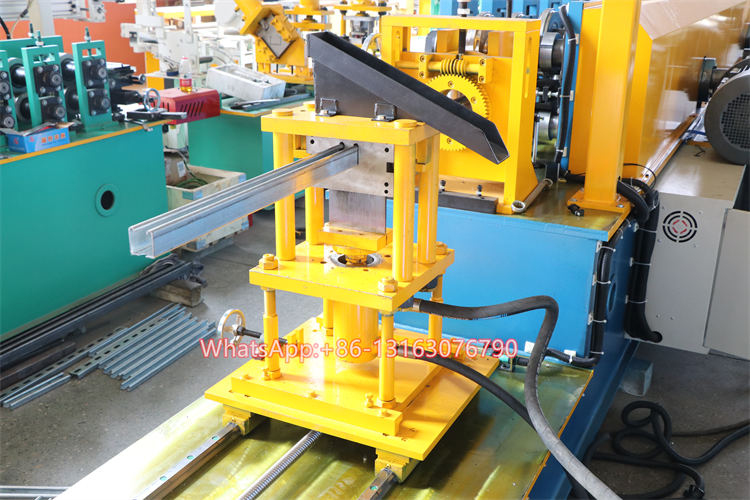

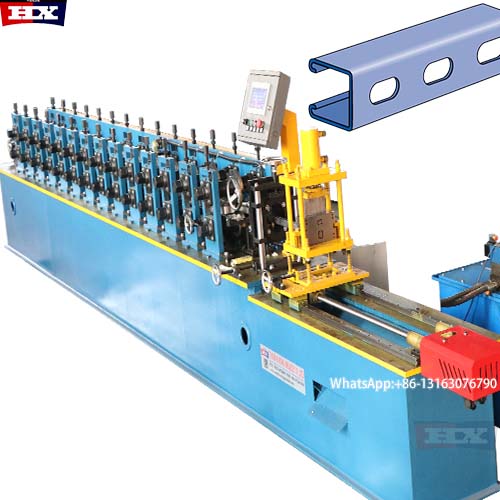

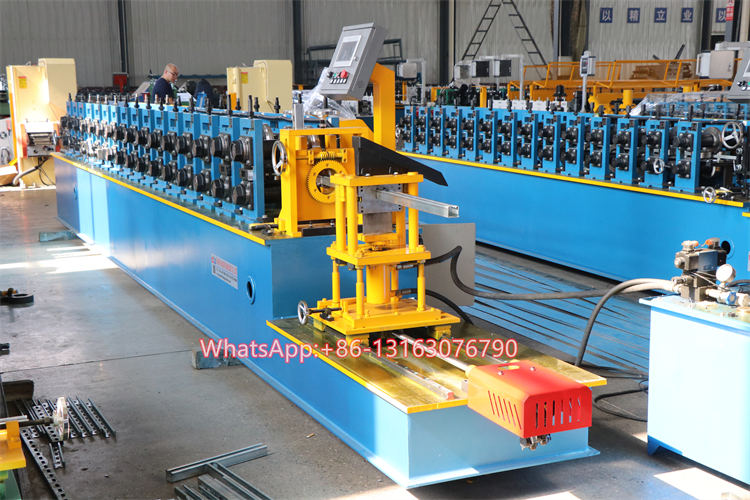

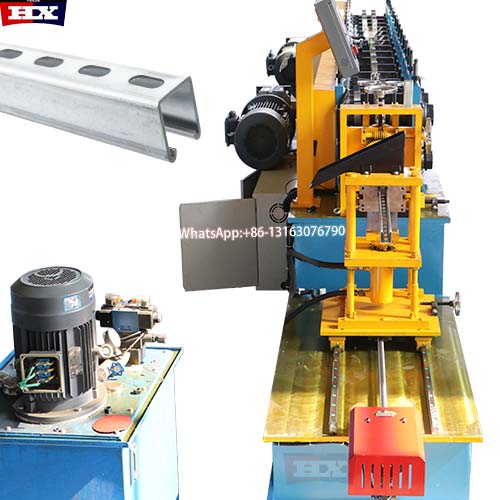

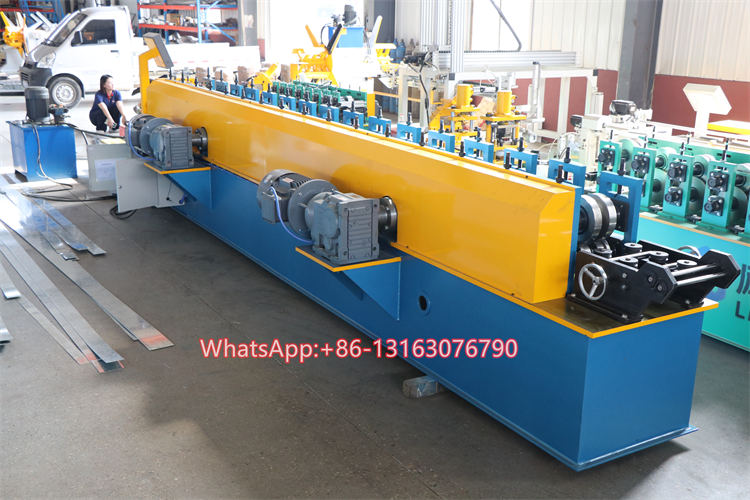

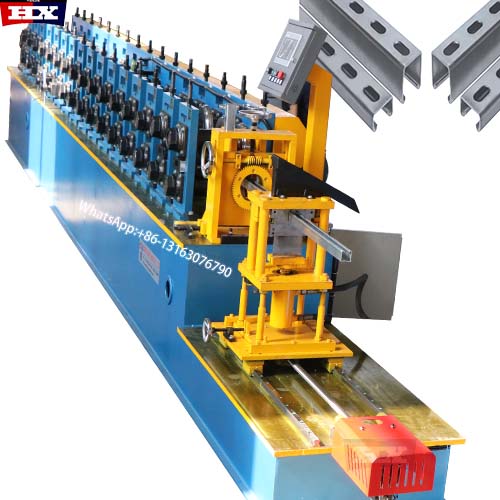

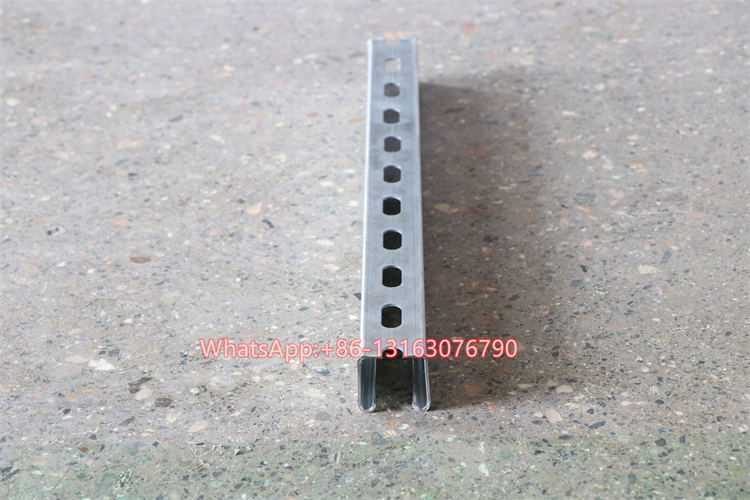

Din rail roll forming machine photo for reference
Din rail roll forming machine parameters
| Raw material | GI GL PPGI PPGL |
| Thickness | up tp 2.5mm |
| Machine size | around 6.5*1.1 *1.6m |
| Machine weight | around 3 ton |

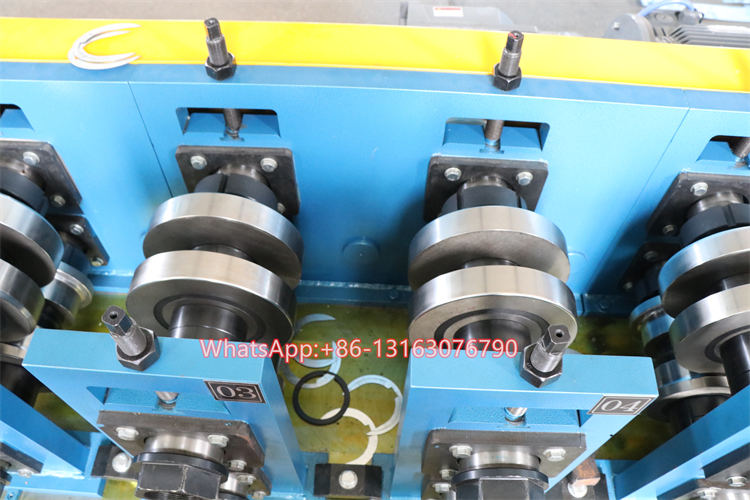

| Rollers | around 12 rollers, it depends on the profile drawing |
| Roller material | CR12 Steel ,Quenched treatment |
| Maine motor | 5.5kw |
| Pump motot | 5.5kw |
| Shaft diameter | 50mm |
| Maine structure | Arch structure |
| Transmission | Gear/ gear box |
| Control systerm | PLC control |
| Punch hole | High speed Punch machine |
Din rail roll forming machine production Line composition
it include decoiler machine 3Ton, leveling device, high speed punch machine, roll forming machine, PLC, Touch screen, servo cut, output table 3meters
Din rail roll forming machine package
1.Nude package with film package and loading to one 40ft full container
2.Spare parts in carton box.
3.Manual unwinder is installed naked.
4. Put the output form into the box.
Din rail roll forming machine after sales services
1. 2 years warranty on BL date
2. Installation and debugging: Professional technicians go to the site to install the equipment and ensure that it can operate normally and be debugged to the best condition.
3.Technical support: Provide technical consultation and support to users at any time to answer problems encountered by users during use.
