Drywall profile machine u c
Drywall profile machine u c Drywall profile machine u c Drywall profile machine u c

Drywall profile machine u c

Product ID : HAIXING-Profile UC
Product Attributes :

Develivery time:30-45 working days

Model:HAIXING-CU

Payment:30% T/T deposit,70% balance before shipping

Warranty :2 years for machinery warranty

Voltage:Standard 380V 50HZ 3Phase or customized.

Product Description

Drywall profile machine u c machine

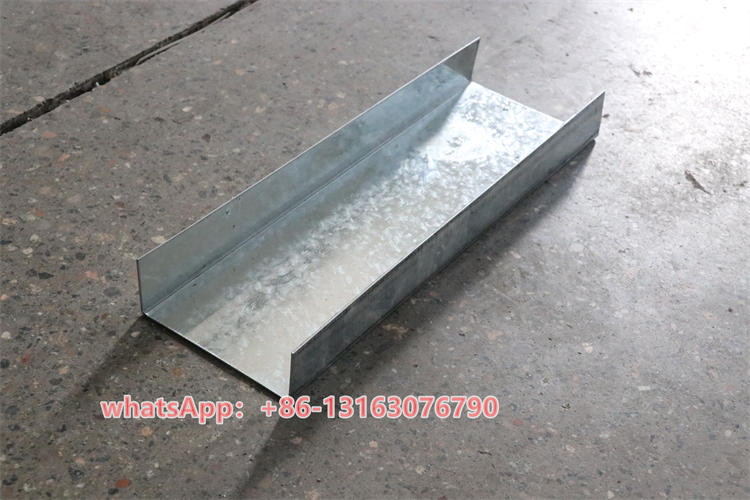

Haixing drywall profile machine u c can produce different size of C and U (Stud and track). Our machine is high quality standard, we usually export to America, Canada, Mexico, Guayana, England, German, Franch.

, our drywall profile machine u c has the following significant advantages:

1.. High degree of automation: It reduces the dependence on manual operations, reduces labor costs, and also improves the stability of production.

2.. Strong adaptability: able to flexibly adjust production parameters according to different design requirements and specifications to produce various types of light steel keels.

3.. Reliable quality: Using high-quality materials and advanced technology ensures the quality and durability of the keel.

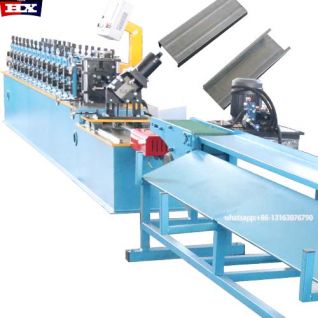

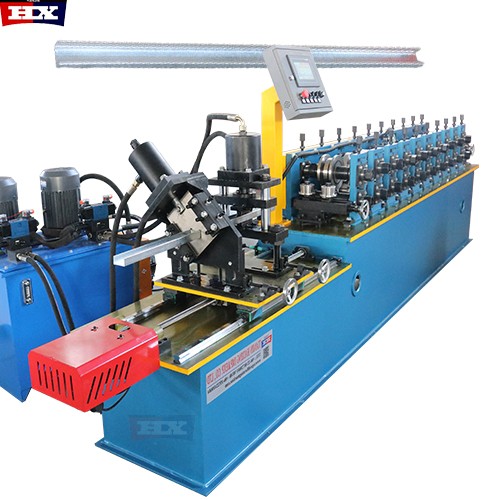

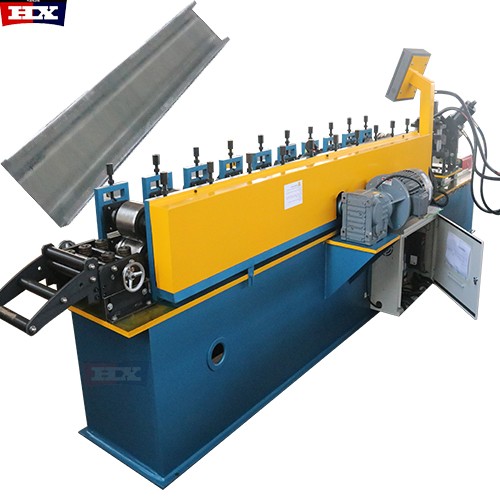

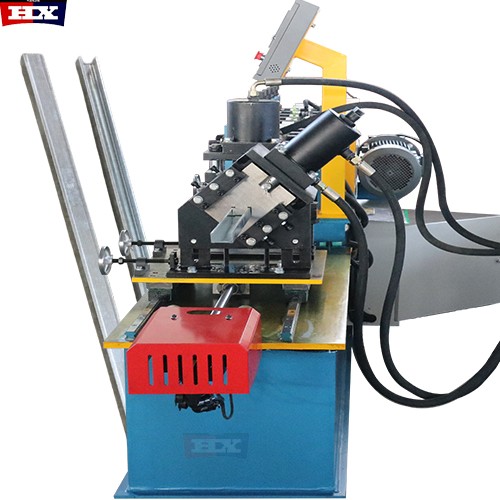

Drywall profile machine u c photo for reference

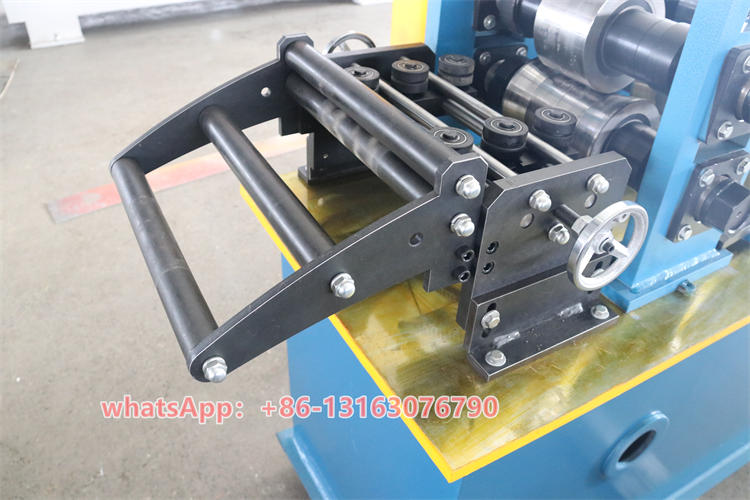

Feeding table

Drywall profile machine u c parameters

Raw material GI GL PPGI PPGL
Thickness standard 0.3-0.8 or other thickness also can do up to 1.5mm
Machine size around 6*1.2 *1.6m
Machine weight around 2.8 ton

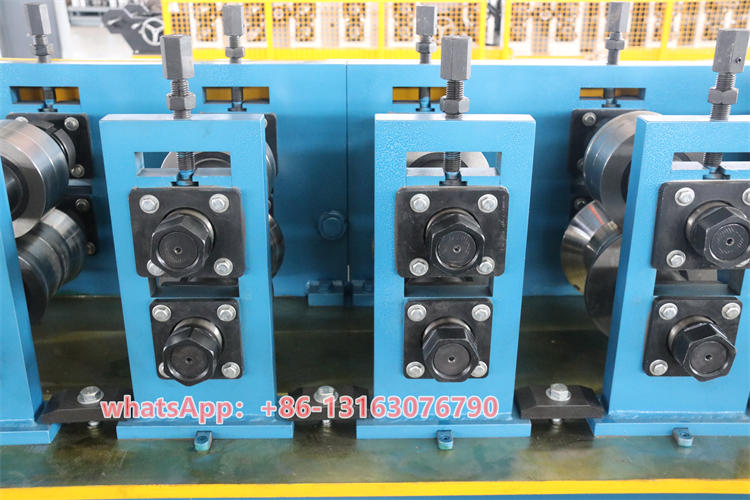

Rollers around 14 rollers, it depends on the profile drawing
Roller material CR12 Steel ,Quenched treatment
Maine motor 7.5kw
Pump motot 4kw
Shaft diameter 50mm
Maine structure Arch structure
Transmission Gear/ gear box
Control systerm PLC control
Production 30-60 meters/minutes
Punch hole it depend on customer need
Press word or logo it depend on customer need

Drywall profile machine u c production Line composition

1.Decoiler machine 2.5Ton-manual decoiler/ hydraulic decoiler

2.Stud and track roll forming machine roll forming machine

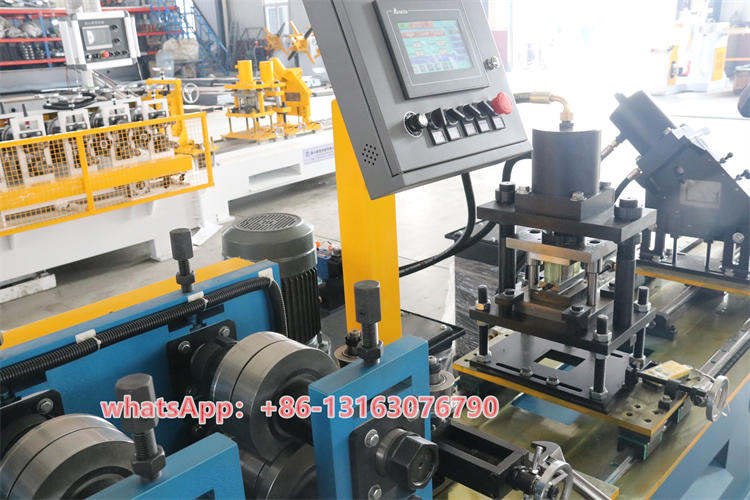

3.PLC, Touch screen

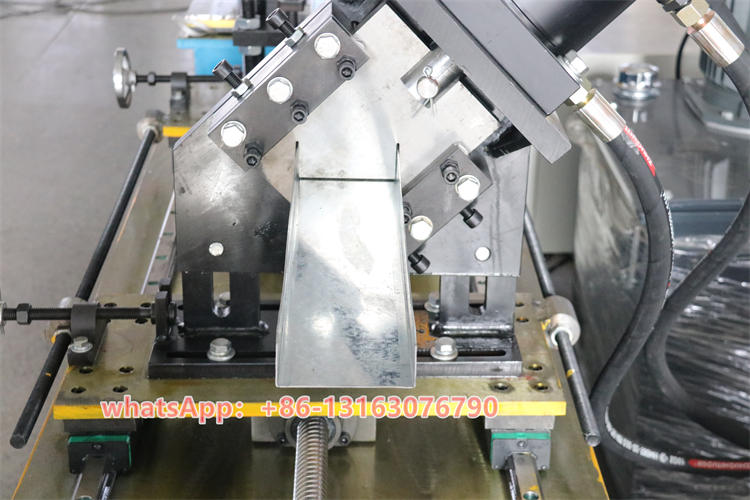

4.servo cut

5.output table 3meters-manual output table/electric out put table

Drywall profile machine u c package

1.Loading to 20ft container

2. Plastic film package, and water proof package

3. Reinforce with rope

Drywall profile machine u c after sales services

1.Multilingual technical support: Provide after-sales technical consultation and guidance services in multiple languages ​​to facilitate communication with customers from different countries.

2. Twenty four month warranty on BL date

3.Localized parts warehouse: Set up localized parts warehouses in some key areas to speed up the delivery of parts.

4.Cooperation with local maintenance services: Establish cooperative relationships with local professional maintenance service agencies to ensure timely door-to-door maintenance services.

5.Regular cross-border return visits: Arrange after-sales personnel to conduct regular cross-border return visits to understand customer usage and needs.
