Metal framing machine
Metal framing machine Metal framing machine Metal framing machine Metal framing machine

Metal framing machine

Product ID : HAIXING-C89
Product Attributes :

Develivery time:30-45 working days

Model:HAIXING-CU

Payment:30% T/T deposit,70% balance before shipping

Warranty :2 years for machinery warranty

Voltage:Standard 380V 50HZ 3Phase or customized.

Product Description

Metal framing machine

Metal framing machine another name is Light steel villa machine, it is an automated equipment used to produce light steel villa keels. It manufactures profiles for building light steel villas through a series of process flows. One machine to produce the whole light steel villa.

Composition and process flow of light steel villa machine

Equipment composition: Light steel villa production line usually includes unloading machine, leveling machine, punching machine, forming machine, cutting machine, receiving table and other parts. These equipment work together to complete the entire production process from raw materials to finished products.

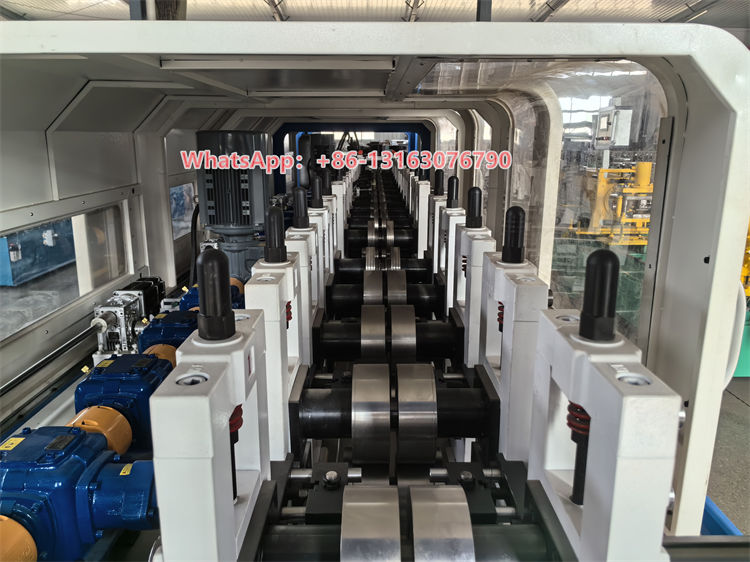

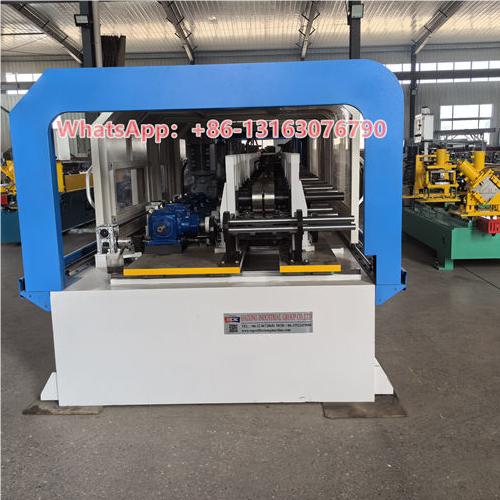

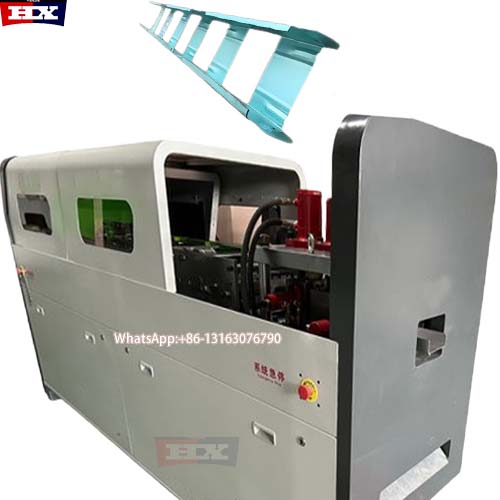

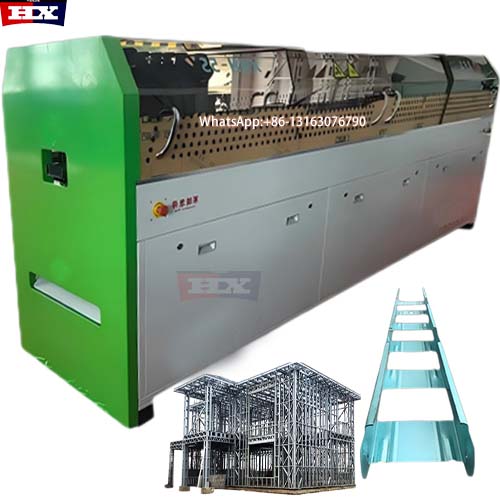

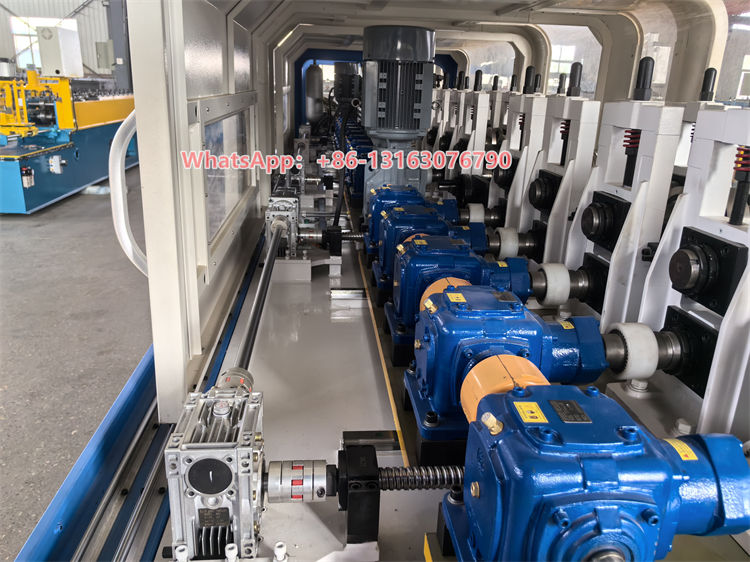

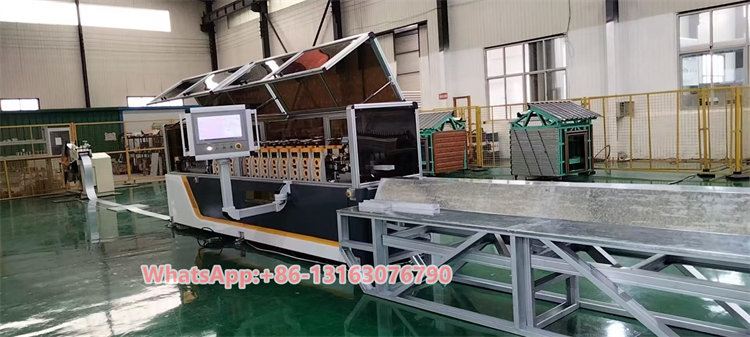

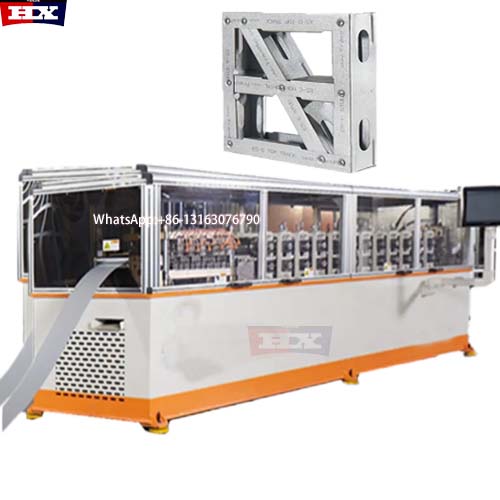

Photo of metal framing machine for reference

Maine parameters of metal framing machine

Raw material Galvanized steel coil
Thickness standard 0.8-2mm
Uncoiler

5 TonX500mm hydraulic unloading machine

Punch

Hydraulic front punching and front shearing device

Roller 16 rows of roller
Shaft diameter 75mm
Total power 75kw
Speed 30m/min
Precission 1mm
Control systerm PLC control
Out put table 1 set

Production Line composition of metal framing machine

it include decoiler machine 5Ton, roll forming machine, PLC, Touch screen, cut, output table 3meters

Export package of metal framing machine

1.standard export package,and reinforce with strong rope

2. Plastic film package, and water proof package , and loaded in 40 ft container

After sales services of metal framing machine

1. 2 years warranty on BL date

2.Equipment relocation assistance: When customers need to relocate equipment, we provide professional guidance and assistance to ensure that the equipment can operate normally in the new location.

3.24-hour emergency response: Ensure that we can respond to emergency failures encountered by customers at any time.

Our customers of metal framing machine
