roof tile machine for sale in south africa
Delivery time:25-35 days

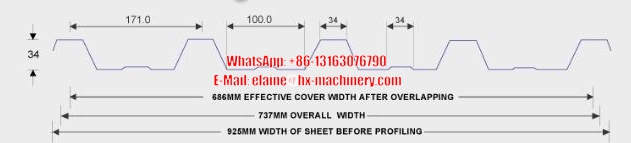

Model: IBR686 and Corrugated 762
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Roof tile machine for sale in south africa
Roof tile making machine prices in south Africa , we are professional roof roll forming machine factory in China, we export lots machine to south Africa, include the IBR 688 and corrugated 762, and Q tile machine.

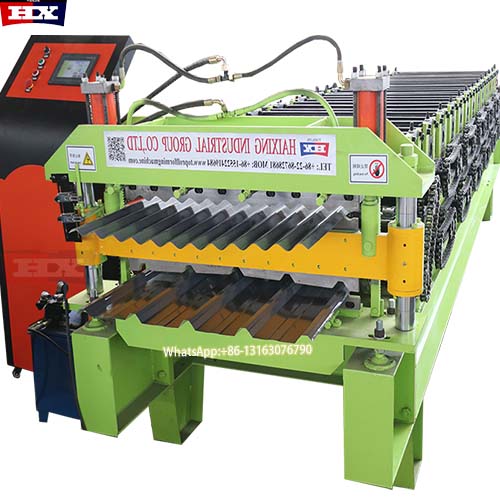

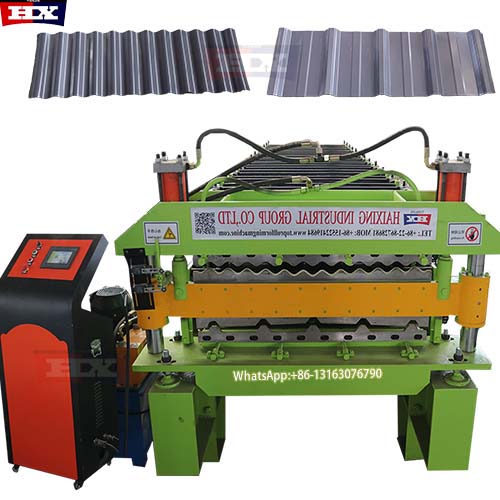

the double layer machine can process two roof sheet, it will save your space and save your money, if you need the machine, please contact us.
Main parameters of roof tile machine for sale in south africa
| Raw material | Color steel coil, aluminum steel coil, galvanized steel coil |
| Thickness | standard 0.3-0.8 mm for Roof tile making machine prices in south Africa |
| Raw material feeding width | 925mm |
| Machine size | around 9*1.5 *1.8m |
| Machine weight | around 5ton |
| Rollers | around 18 rollers, it depends on the profile drawing |
| Roller material | number 45 steel |
| Maine motor | 5.5kw |
| Pump motot | 4kw |
| Shaft diameter | 75mm |
| Control systerm | PLC control, automatic produce |
| Decoiler | 7ton manual decoiler for free. And hydraulic decoiler is your option |
| Out put table | 3meter no power out put table for free. Auto stacker is your option |

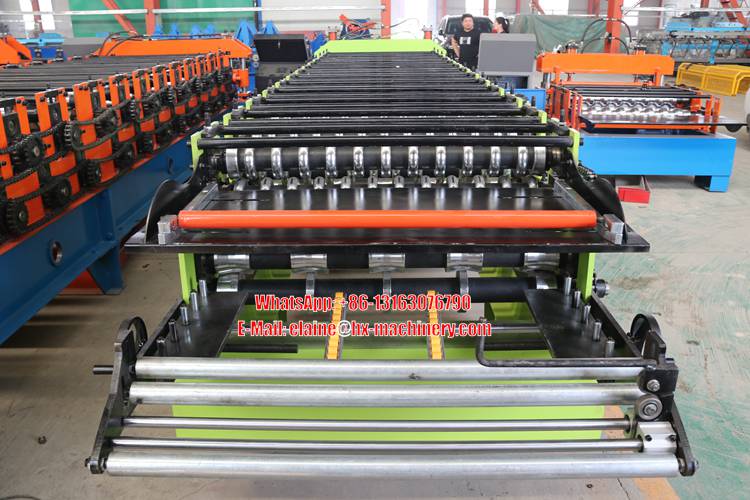

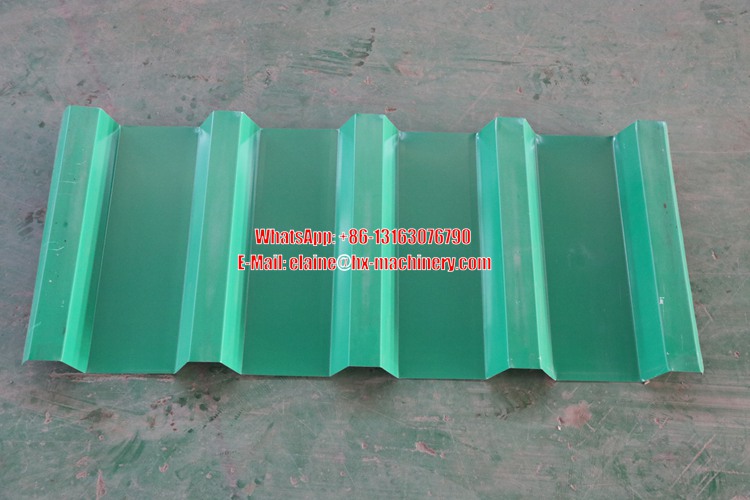

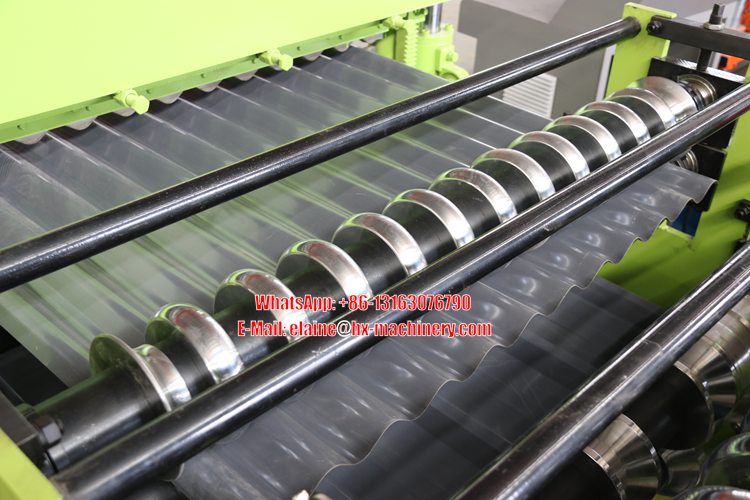

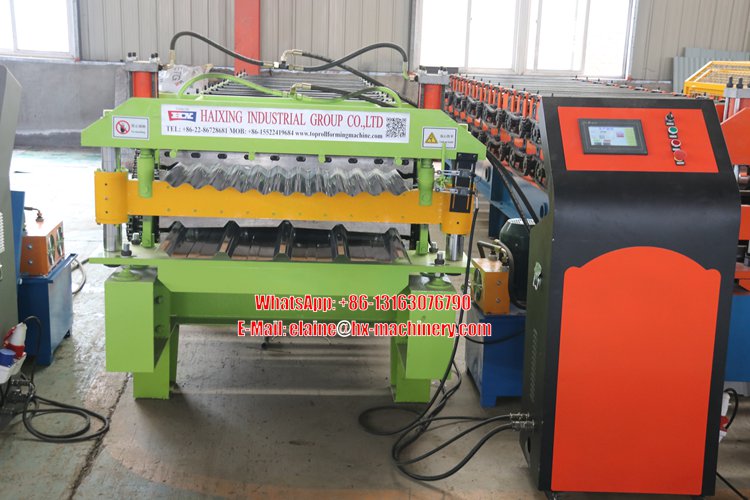

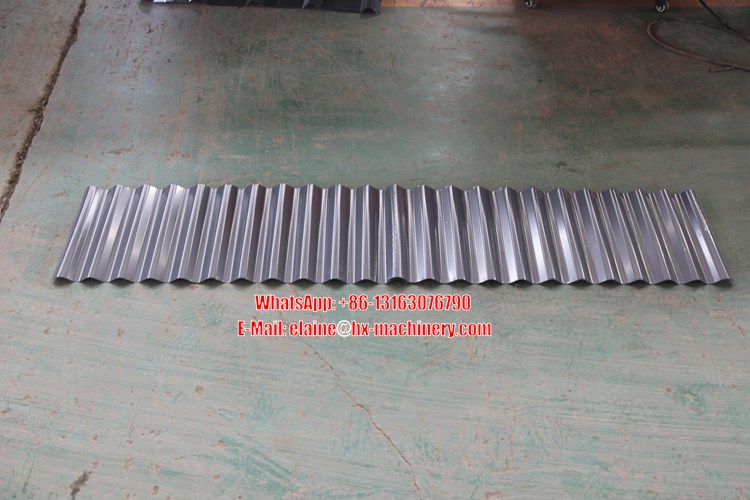

roof tile machine for sale in south africa photo for reference
Composition of roof tile machine for sale in south africa
The package comprises a 7-ton decoiler machine, a roll forming machine, a programmable logic controller (PLC), a touch screen, a Hydraulic cutting mechanism, an electrical control system, and a 3-meter output table.
Package of roof tile machine for sale in south africa
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
After sales services of roof tile machine for sale in south africa
Warranty Terms: We provide a 24-month limited warranty. During this period, all components and parts will be replaced free of charge in case of any malfunction or defect.
