ibr roof sheeting machine
Delivery time:25-35 days
Model: IBR686 and Corrugated 762
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
ibr roof sheeting machine

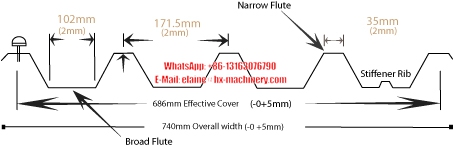

ibr steel roofing machine is easy operation, we supply guide book and machine operation guide video. Equipment installation and commissioning, we supply free online technology support, and if customer need our engineer can go to customer factory to installation and commissioning, the following is the ibr roof sheeting machine profile drawing.
Main parameters of ibr roof sheeting machine
| Raw material | Color steel coil, aluminum steel coil, galvanized steel coil |
| Thickness | standard 0.3-0.8 mm for ibr steel roofing machine |
| Raw material feeding width | 925mm |
| Machine size | around 9*1.5 *1.8m |
| Machine weight | around 5ton |
| Rollers | around 18 rollers, it depends on the profile drawing |
| Maine motor | 5.5kw |
| Pump motot | 4kw |
| Shaft diameter | 70mm |
| Maine structure | Middle plate 16mm |
| Control systerm | PLC control, automatic produce |

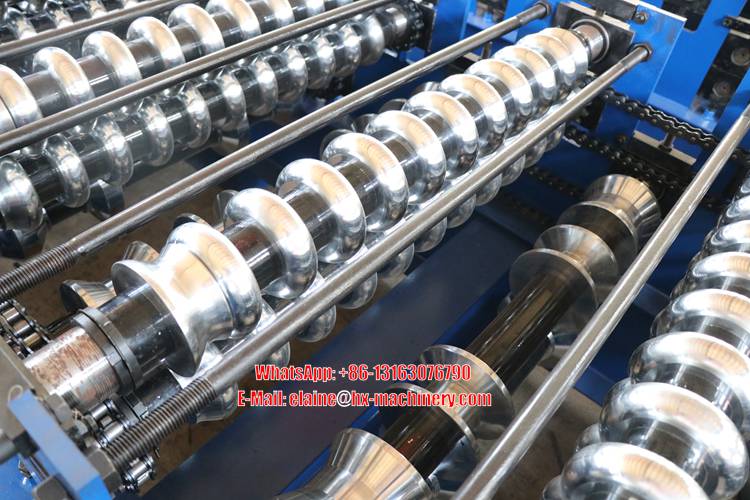

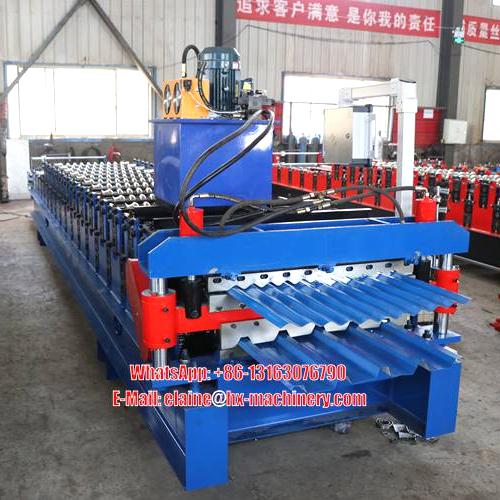

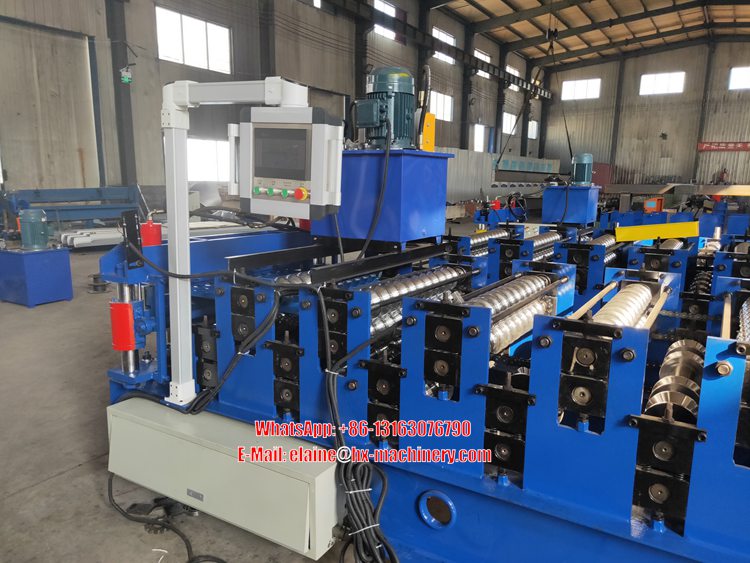

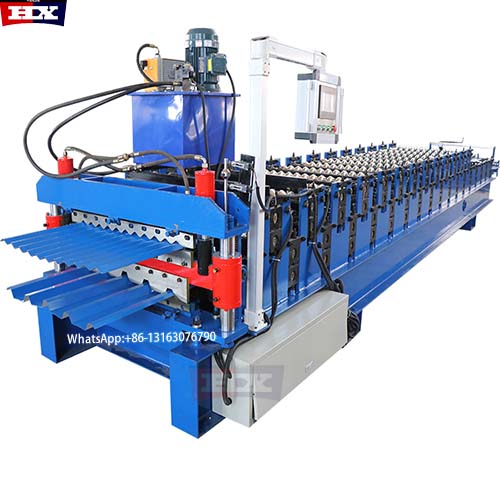

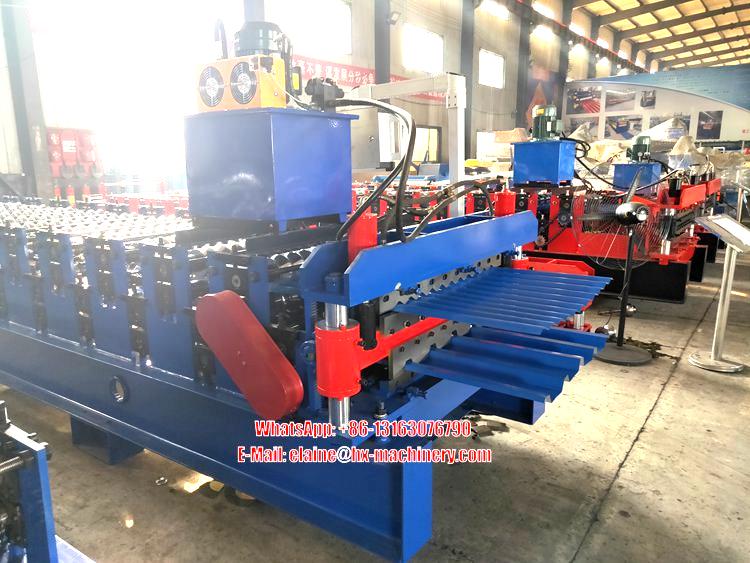

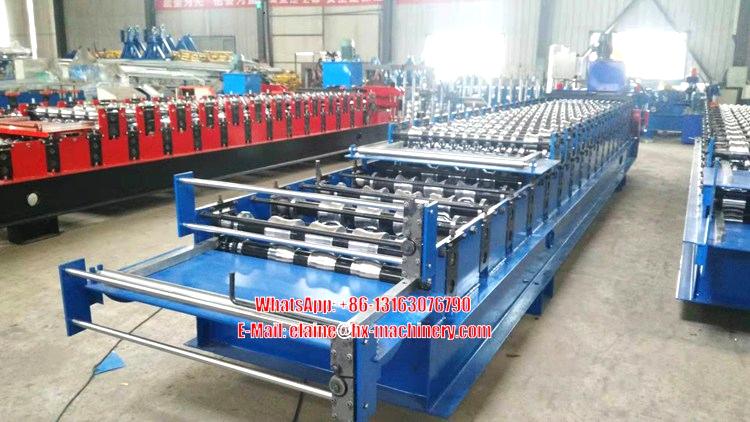

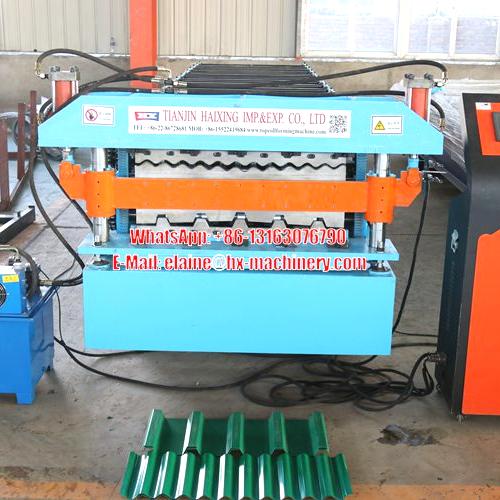

ibr roof sheeting machine photo for reference
Composition of ibr roof sheeting machine
It include decoiler machine 7Ton, roll forming machine, PLC control systerm, Touch screen, Hydraulic cut, electric control system, output table 3meters
Package of ibr roof sheeting machine
For the double layer ibr making machine price in south africa, they will be provided with nude packing as the standard option and pack them with waterproof plastic to safeguard the equipment during transportation and storage.
After sales services of ibr roof sheeting machine
1. 2 years warranty on BL date
2. 24 hours on line service, to give you free technology support
3. Enough easy ware spare parts supply free
4. We supply manual book and machine operation guide video
5.Machine is connected well and test well before delivery, you can use it directly when connect your factory power to the machine
