c channel rolling machine
Develivery time:50-60 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
HAIXING c channel rolling machine are widely used in steel structure buildings, factories, warehouses, large public places and other fields to meet various construction needs.
Leading the innovation of the construction industry, HAIXING c channel rolling machine, your smart production partner
In today's pursuit of construction efficiency and quality, HAIXING c channel rolling machine has become the preferred equipment in the construction industry with its excellent performance and innovative technology. The following is the unique value our purlin machine brings to you:
Efficient production, accelerated project progress ——Fully automatic production line, high-speed continuous operation, greatly improving production efficiency.Intelligent operation interface, simplified process, reduced manual intervention, saving time.

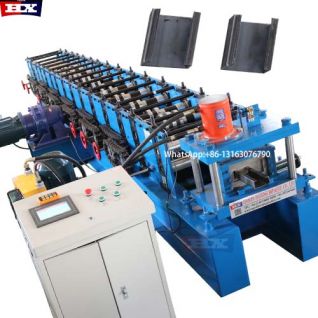

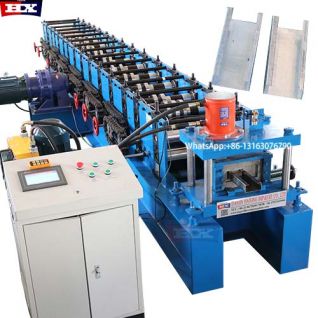

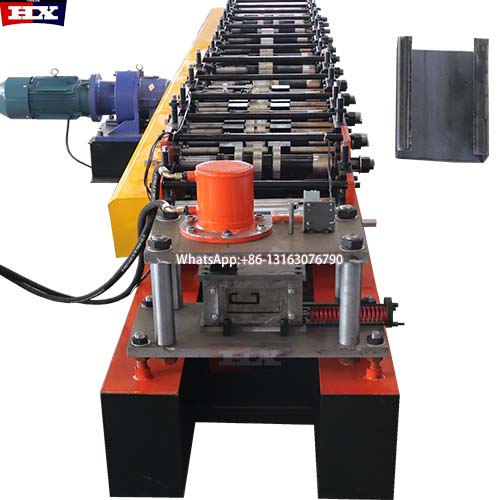

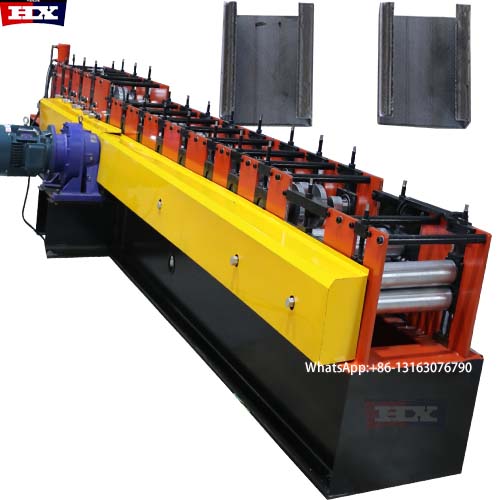

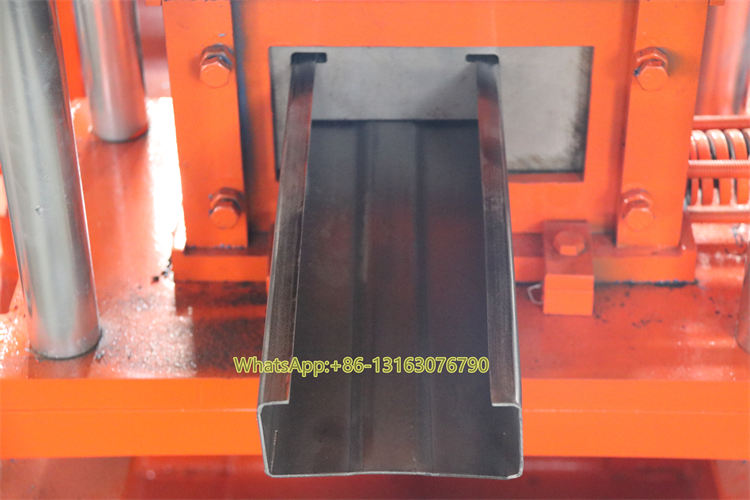

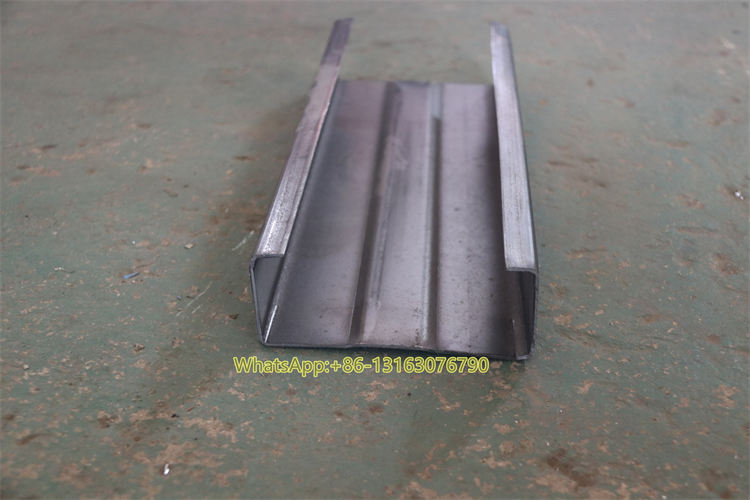

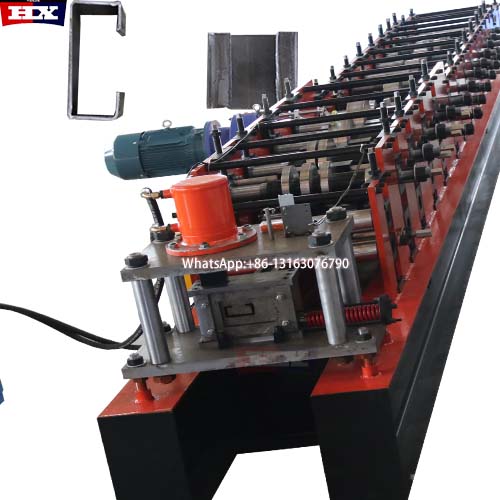

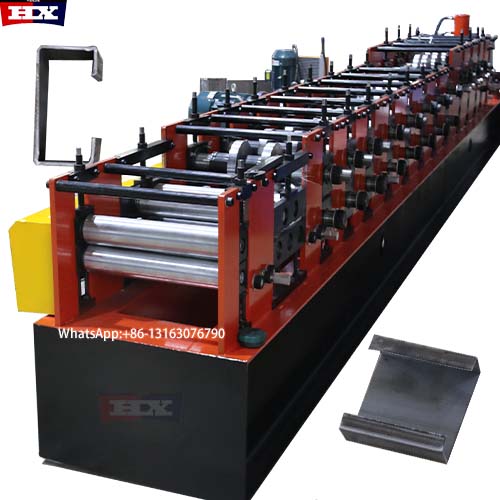

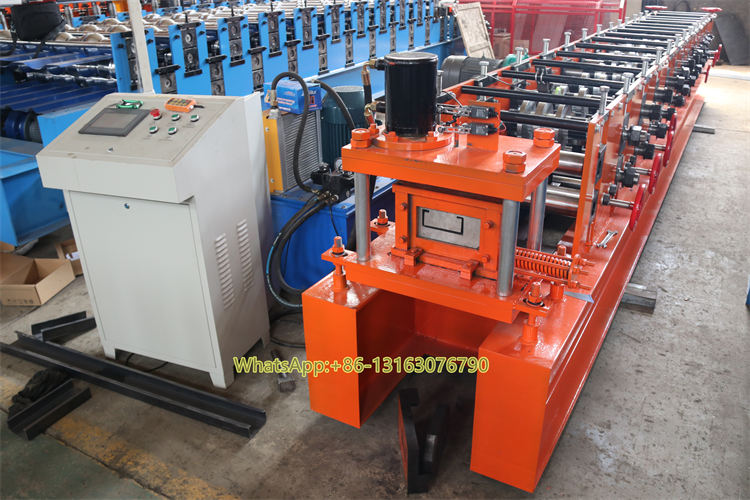

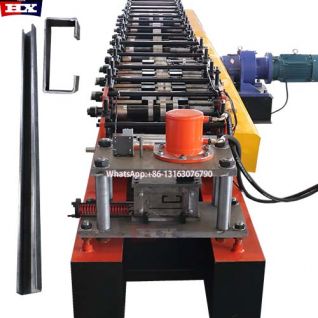

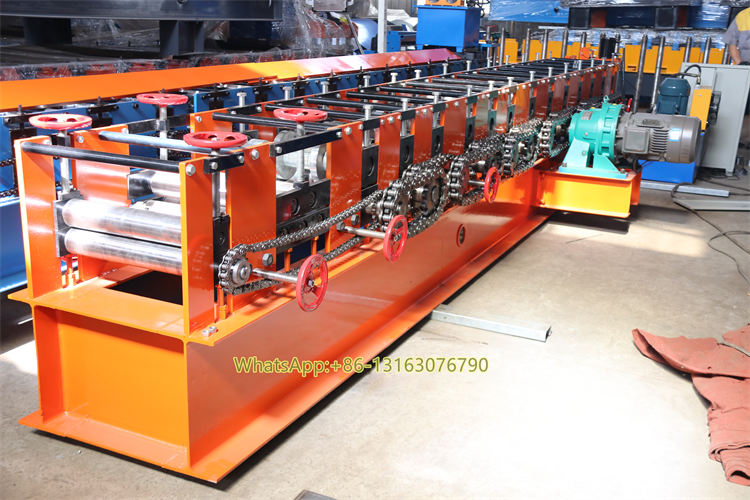

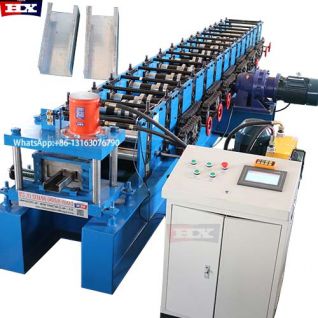

Photo of c channel rolling machine for reference
Parameter of c channel rolling machine
|
Name
|
c channel rolling machine
|
|
Suitable to process
|
Galvanized steel strips/cold rolled strips
|
|
Roller
|
12Rows
|
|
Dimensions
|
6*1.3*1.5m
|
|
Motor Power
|
5.5kw
|
|
Pump Station Motor
|
5.5Kw.Lichao Brand
|
|
Thickness of the plate
|
1.0mm-3.0mm
|
|
Productivity
|
10-15m/min
|
|
Side wall
|
20mm
|
|
Material of the cutting blade
|
Cr12MoV,Quenched treatment 58ºC-60ºC
|
|
Diameter of the roller
|
80mm
|
|
Weight
|
About 5000Kgs
|
|
Main structure of the machine
|
450 H steel
|
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
Control system
|
PLC control
|
|
Drive mode
|
Motor drive
|
|
Rolling materials
|
GCr15(bearing steel)
|
Package of c channel rolling machine
standard export c channel rolling machine packaging, nude packaing with plastic film wrapping , load in 20ft container。
The c channel rolling machine is wrapped without additional covering to prevent dust or moisture accumulation during transit
After-sales service of c channel rolling machine
24 month warranty
Technical support: Provide technical consultation and support to users at any time to answer problems encountered by users during use.
Accessories supply: Ensure timely supply of various accessories required for equipment to meet maintenance and replacement needs.
