Channel rolling machine
Channel rolling machine Channel rolling machine Channel rolling machine Channel rolling machine Channel rolling machine

Channel rolling machine

Product ID : HAIXING-C90
Product Attributes :

Develivery time:50-60 working days

Model:HAIXING-CU

Payment:30% T/T deposit,70% balance before shipping

Warranty :2 years for machinery warranty

Voltage:Standard 380V 50HZ 3Phase or customized.

Product Description

Channel rolling machine.With the vigorous development of my country's construction industry, purlins, as an important part of building structures, are increasingly valued for their production efficiency and quality. To this end, we have developed a new generation of purlin machinery and equipment that integrates high efficiency, precision and environmental protection, bringing you an unprecedented production experience.

This Channel rolling machine can produce C channel automatically, it can press thickness from 1.2-2mm or 3mm. please tell me your request, let me give you good quality machine, welcome to contact us.

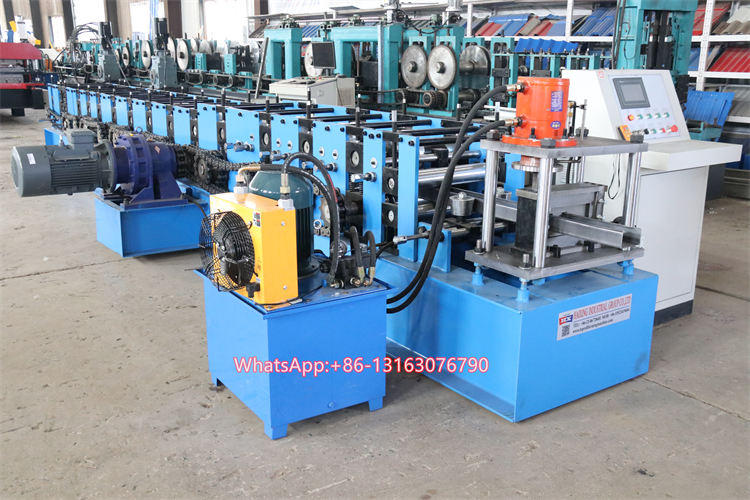

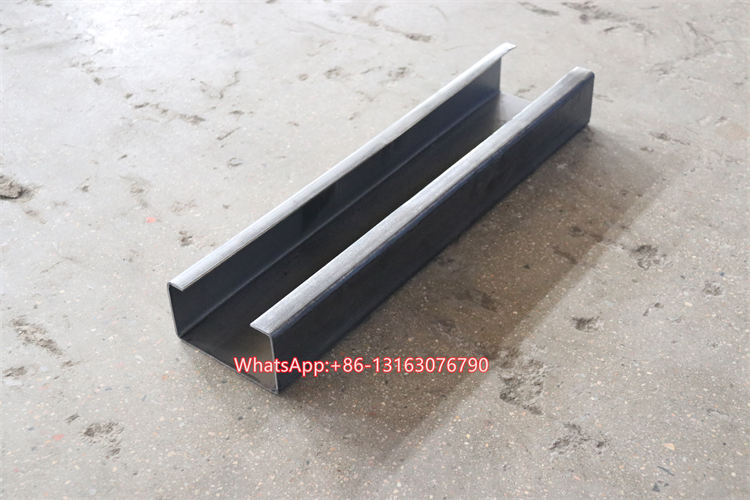

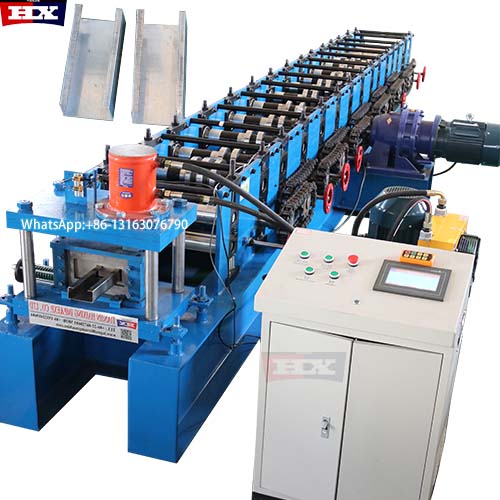

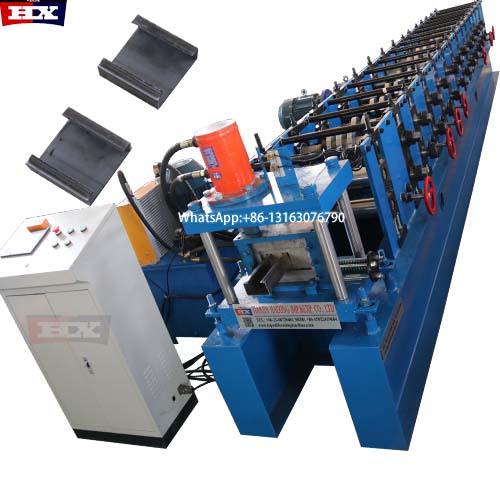

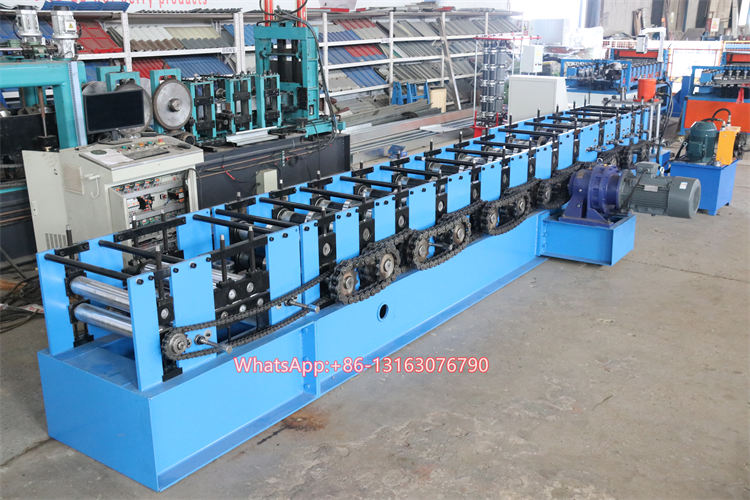

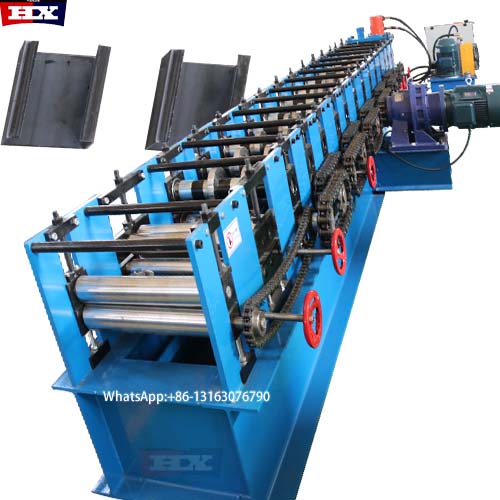

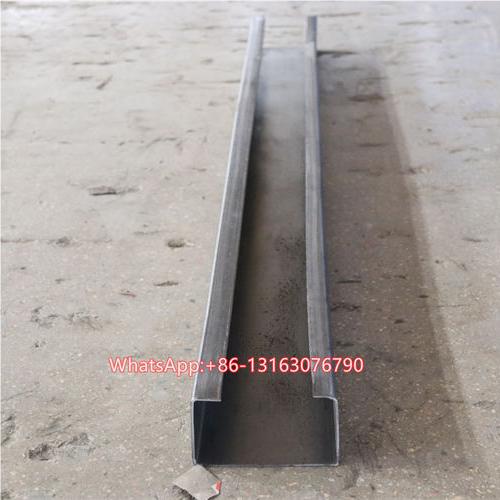

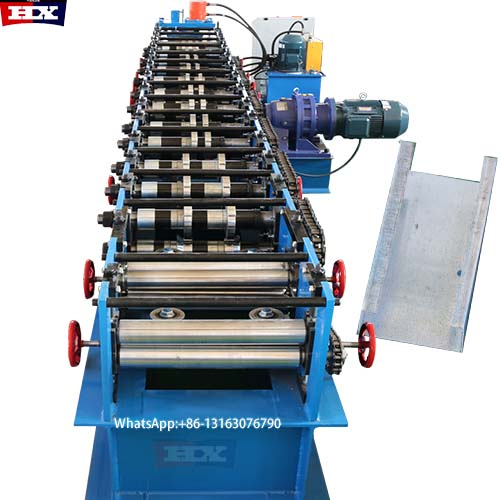

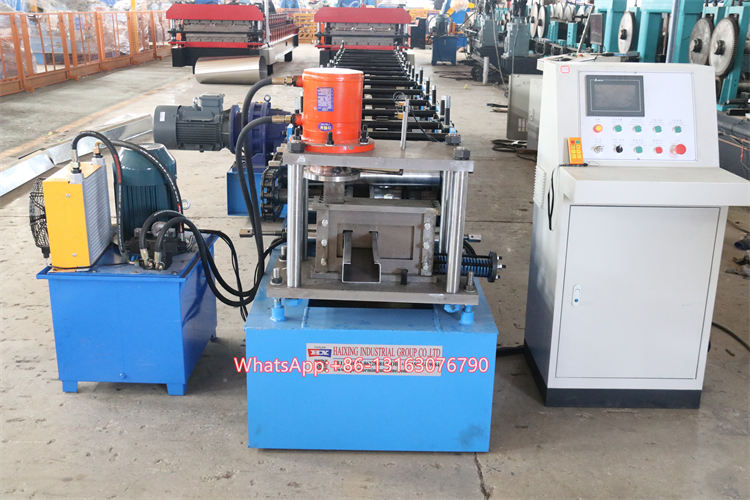

Photo of Channel rolling machine for reference

Parameter of Channel rolling machine

Name
c purlin machine
Suitable to process
Galvanized steel strips/cold rolled strips
Roller
16Rows
Dimensions
11*1.3*1.5m
Motor Power
11Kw*2
Pump Station Motor
7.5Kw.Lichao Brand
Thickness of the plate
1.0mm-3.0mm
Productivity
10-15m/min
Material of the cutting blade
Cr12MoV,Quenched treatment 58ºC-60ºC
Diameter of the roller
85mm
Weight
About 8500Kgs
Main structure of the machine
450 H Beams and arch structure
Voltage
380V 50Hz 3phases or as customer’s need
Control system
PLC control
Drive mode
Motor driver
Rolling materials
GCr15(bearing steel)hard chrome plated after heat treatment
Length Tolerance
±2mm
Type of cutting

Length-set cutting Guiding pipe

Hydraulic cutter

Each side one Oil cylinder

Advantage of Channel rolling machine

1.Efficient production: using advanced control systems to achieve automated production, greatly improving production efficiency and reducing labor costs.

2.Precision cutting: high-precision servo drive to ensure accurate cutting size, small error, and meet the requirements of various building standards.

3.Strong stability: high-quality raw materials and exquisite craftsmanship ensure long-term stable operation of the equipment and reduce the failure rate.

After-sales service of Channel rolling machine

1.24 month warranty

2.Free technical training is provided to ensure that operators are proficient in the use of equipment.

3.24-hour after-sales service is provided to promptly solve problems encountered by customers during use.

4.Regular return visits are made to collect customer feedback, continuously optimize products, and improve customer satisfaction.
