Furring channel roll forming machine
Furring channel roll forming machine Furring channel roll forming machine Furring channel roll forming machine Furring channel roll forming machine Furring channel roll forming machine

Furring channel roll forming machine

Product ID : HAIXING-furring channel 45
Product Attributes :

Develivery time:30-45 working days

Model:HAIXING-CU

Payment:30% T/T deposit,70% balance before shipping

Warranty :2 years for machinery warranty

Voltage:Standard 380V 50HZ 3Phase or customized.

Product Description

Furring channel roll forming machine

The thickness is normally can be formed at 0.25-1.2mm .We use servo cut with not stop cut, If you need to more efficiency then we recommend you adpot No-stop system . The Max. whole line speed can be reach at 40-60m/min.

The application of furring channel roll forming machine is

Interior Partitions:For constructing interior partitions, omega keels offer an excellent solution. They provide a robust framework for dividing spaces in both residential and commercial buildings.

Curved Architectural Features:Architects appreciate the flexibility of omega keels in creating curved walls and other unique architectural features. Their adaptable design allows for creative and customized construction.

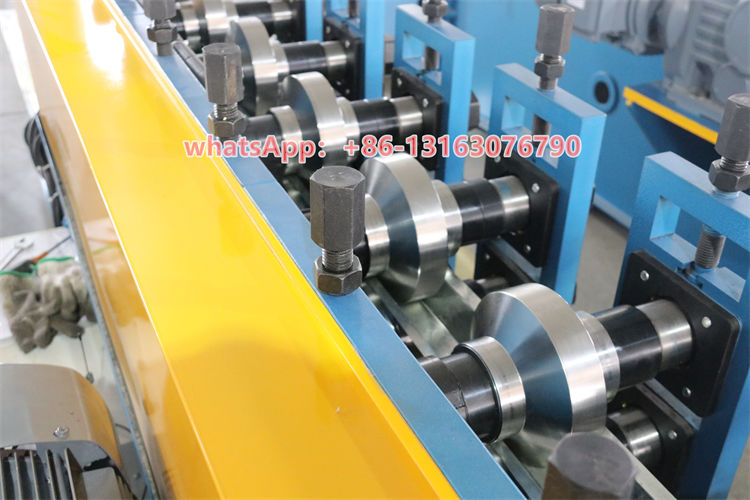

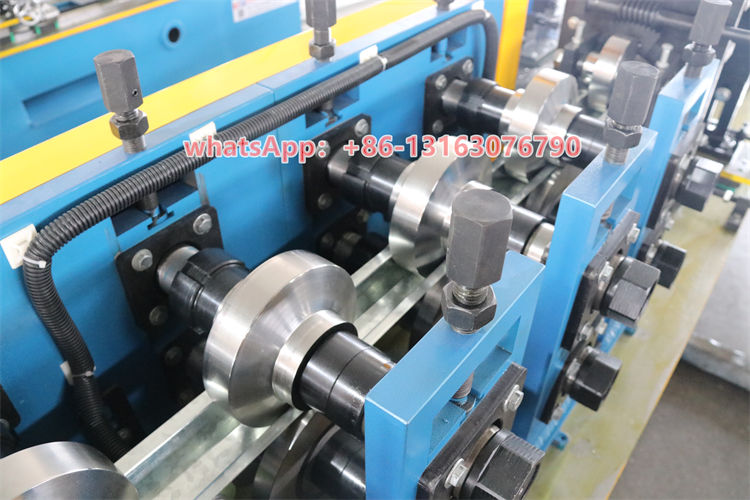

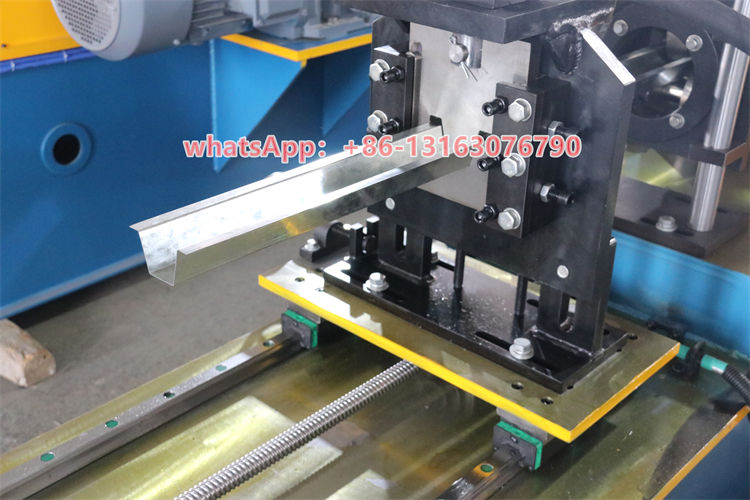

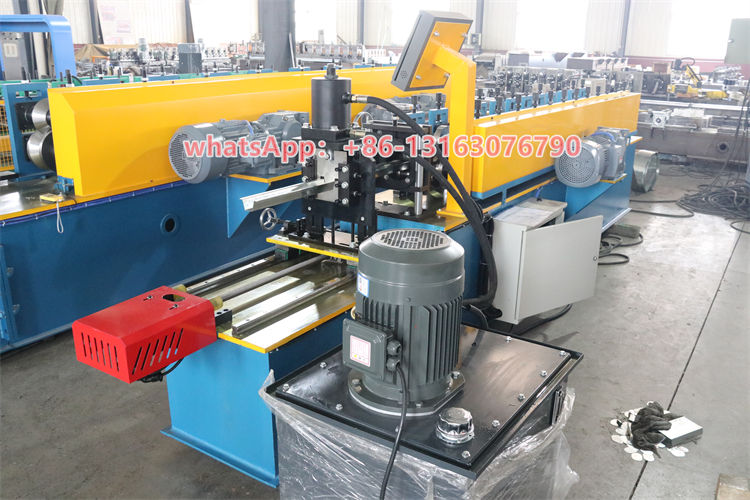

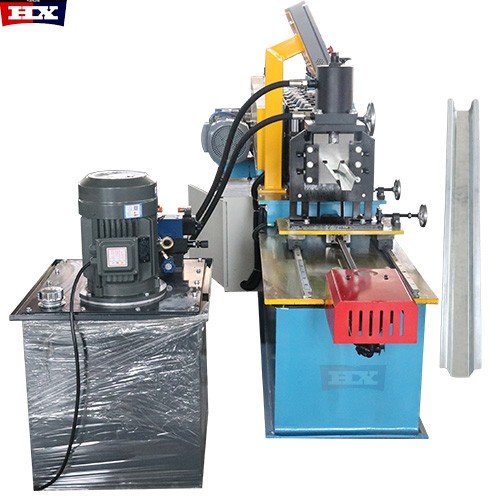

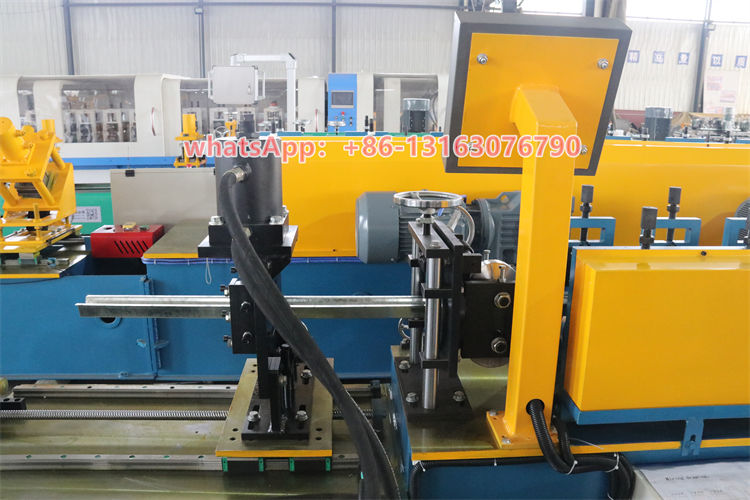

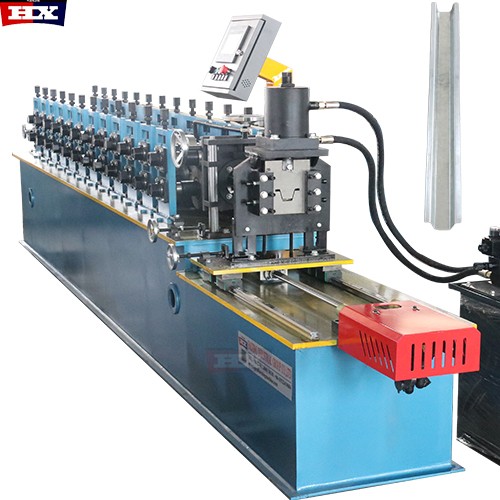

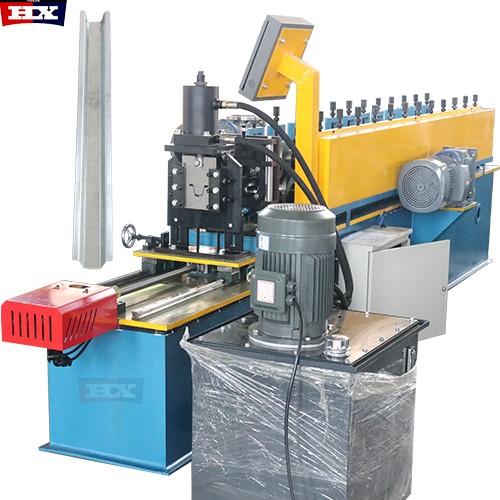

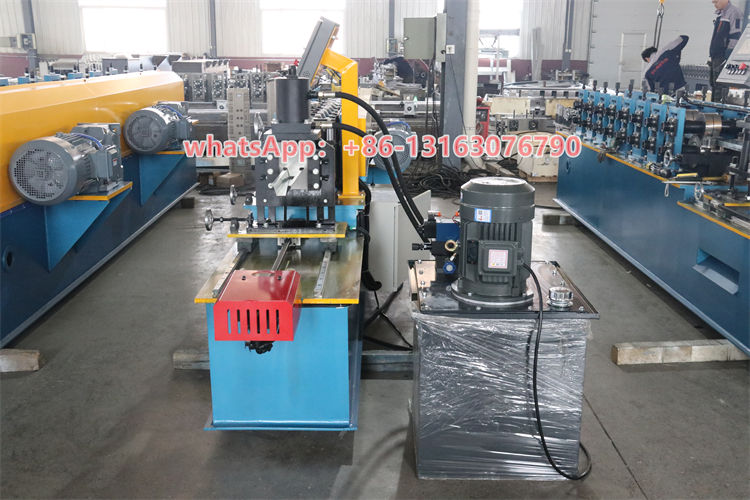

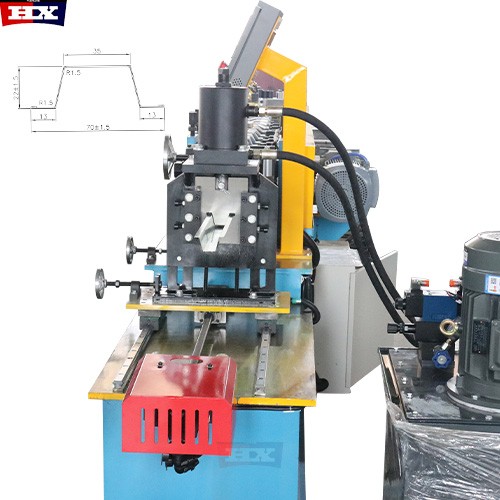

Furring channel roll forming machine photo for reference

Maine parameters of furring channel roll forming machine

Raw material Galvanized steel coil
Thickness standard 0.25-1.2 or other thickness also can do up to 1.5mm
Machine size around 5.8*1.1 *1.6m
Machine weight around 2.5ton
Rollers around 12-14 rollers, it depends on the profile drawing
Roller material CR12 Steel , Quenched treatment with high temperature
Maine motor 7.5kw
Pump motot 5.5kw
Shaft diameter 50mm
Maine structure Arch structure
Transmission Gear/ gear box
Control systerm PLC control
Punch hole it can do, it depend on customer need
Press word or logo it can do, it depend on customer need

Production Line composition of furring channel roll forming machine

it include decoiler machine 2.5Ton, roll forming machine, PLC, Touch screen, servo cut, output table 3meters

Export package of furring channel roll forming machine

Standard export packaging, nude packaing with plastic film wrapping , load in 20ft container

After sales services of furring channel roll forming machine

1. 24 Month warranty on BL date

2.Training Programs:We offer training programs to ensure that your operators are well-versed in the optimal use and maintenance of the furring channel roll forming machine . Knowledgeable operators contribute to the longevity of the equipment.

3.Prompt Replacement Parts Delivery:In the rare event that a component needs replacement, our efficient logistics ensure prompt delivery of genuine replacement parts to minimize any disruptions in your operations.
