Hat type battens machine
Hat type battens machine Hat type battens machine Hat type battens machine

Hat type battens machine

Product ID : HAIXING-furring channel 80
Product Attributes :

Develivery time:30-45 working days

Model:HAIXING-CU

Payment:30% T/T deposit,70% balance before shipping

Warranty :2 years for machinery warranty

Voltage:Standard 380V 50HZ 3Phase or customized.

Product Description

Hat type battens machine

The private service shearing Hat type battens machine may also have the following advantages:

Non-stop shearing: It can shear continuously during the operation of the machine, improving production efficiency.

High precision: The private service control system can achieve high-precision shearing to ensure the size and shape of the keel are accurate.

High degree of automation: Equipped with a fully automatic computer control system, it can complete the steps of forming, shearing, feeding, etc. by itself, reducing manual operations and improving production efficiency.

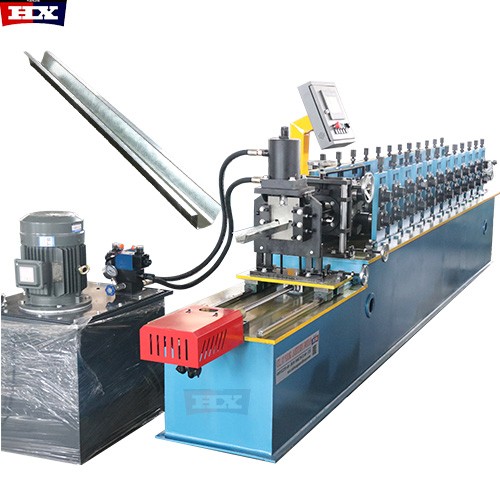

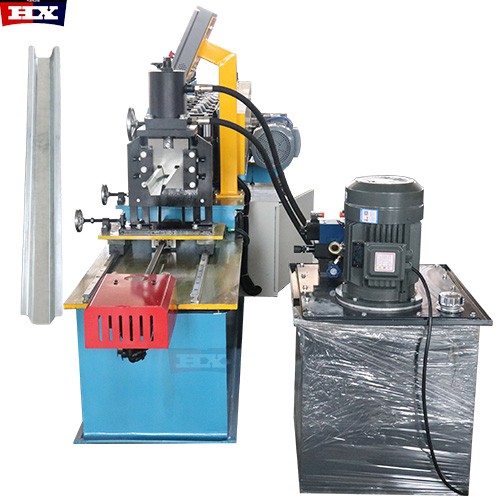

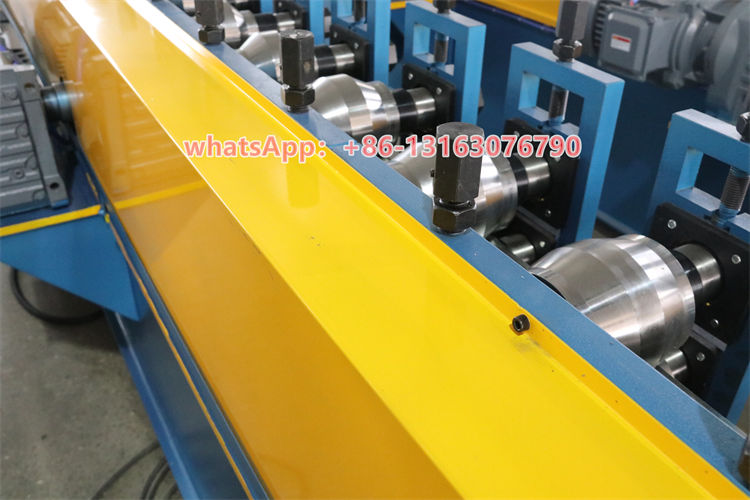

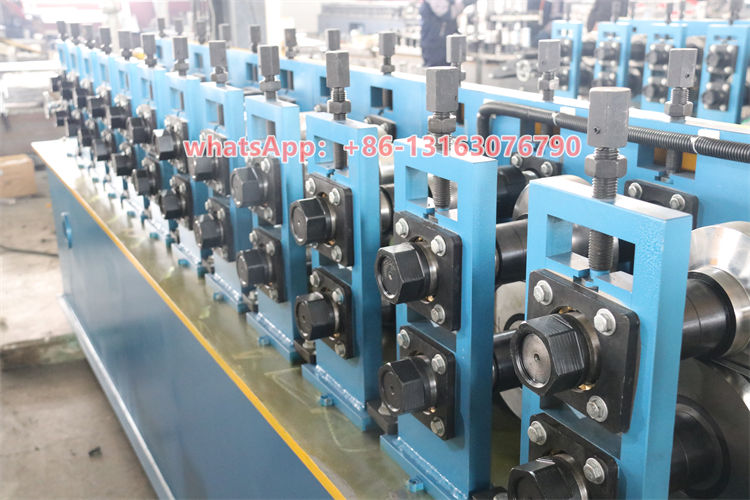

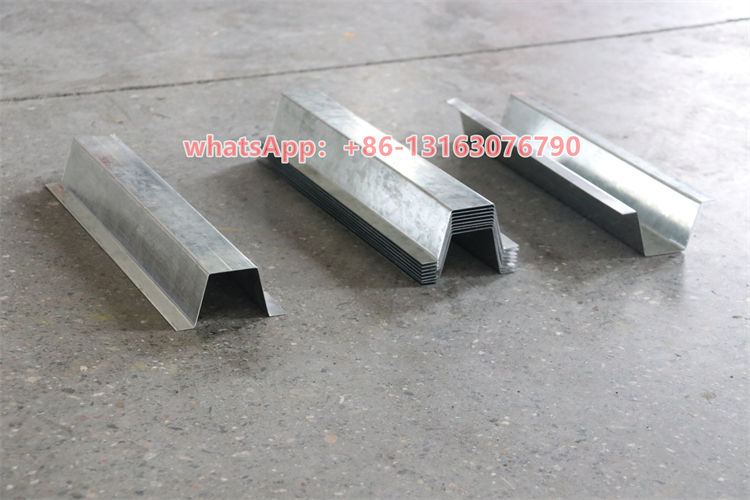

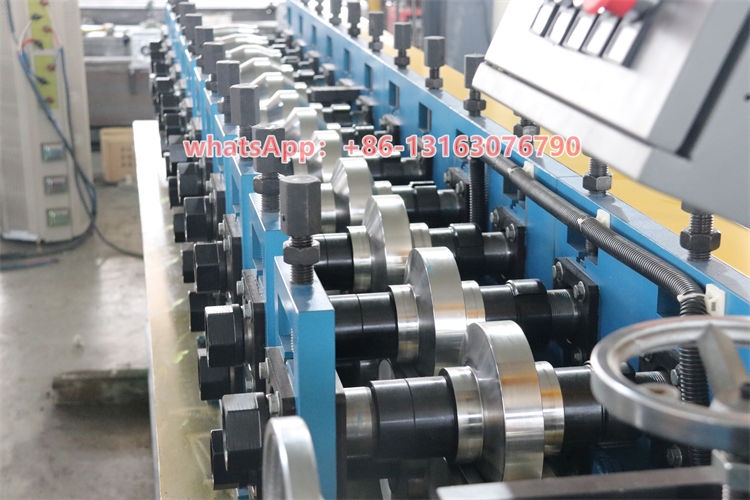

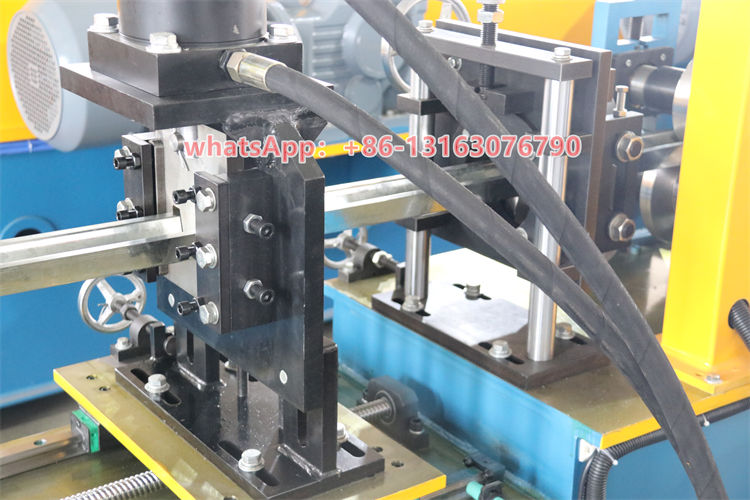

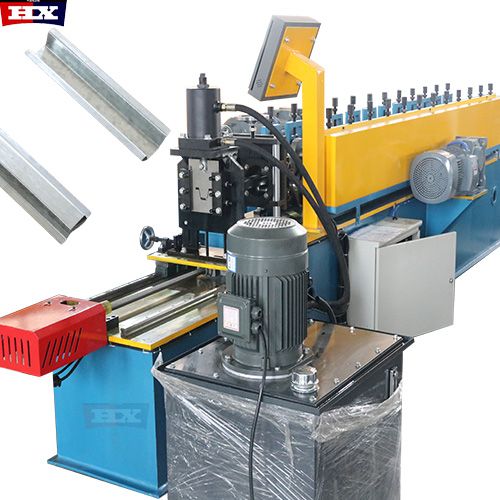

Hat type battens machine photo for reference

Maine parameters of Hat type battens machine

Raw material Galvanized steel coil
Thickness standard 0.2-1.2 or other thickness as you need
Machine size around 5.8*1.1 *1.6m
Machine weight around 3ton
Rollers around 12-14 rollers, it depends on the profile drawing
Roller material CR12 Steel , Quenched treatment with high temperature
Maine motor 7.5kw
Pump motot 4kw
Shaft diameter 50mm
Maine structure Arch structure
Transmission Gear/ gear box
Control systerm PLC control
Punch hole it can do as you operation



Export package of Hat type battens machine

1.Standard export package,and reinforce with strong rope in the 20ft container, one machine in one 20ft container, 2 machine in 40ft container

2. Plastic film package, and water proof package

After sales services of Hat type battens machine

1. 2 years warranty on BL date

2. Regular maintenance: Provide regular maintenance services, conduct comprehensive inspection, cleaning, lubrication and other maintenance work on the equipment to extend the service life of the equipment.

3. Technical support: Provide technical consultation and support to users at any time to answer problems encountered by users during use.
