Metal stud machine for sale
Develivery time:30-45 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
Metal stud machine for sale
The main features of the metal stud machine for sale include:
Rolling capacity of the unit: width ≤150mm, plate thickness 0.2-0.5mm. Production speed: 50 meters/minute. Total installed capacity: about 5.5 kilowatts. Production area: 15 meters long x 2.5 meters wide.
The equipment control usually adopts PLC control with multiple safety protections.

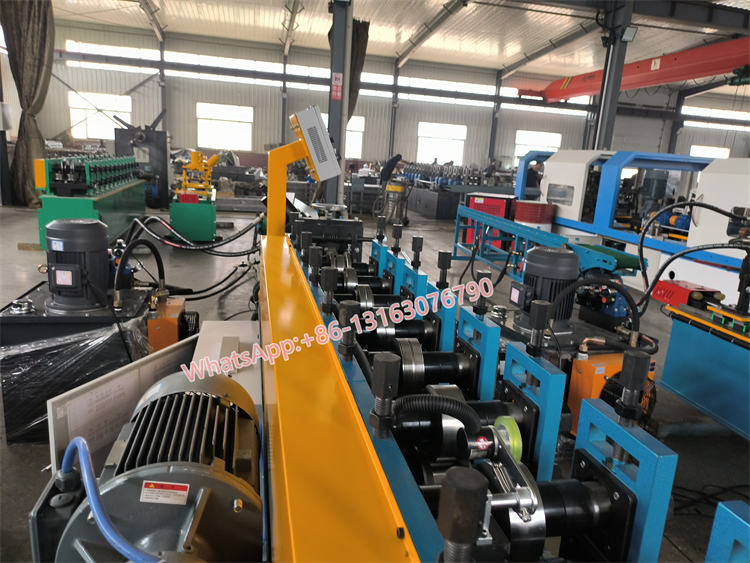

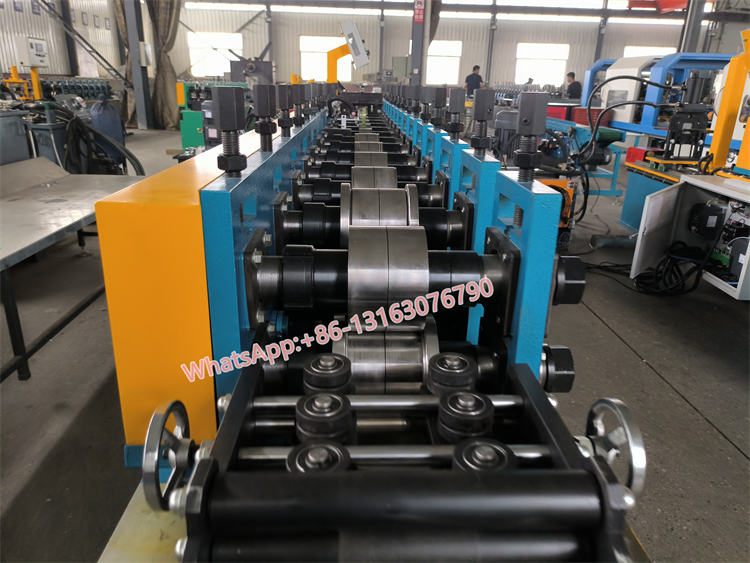

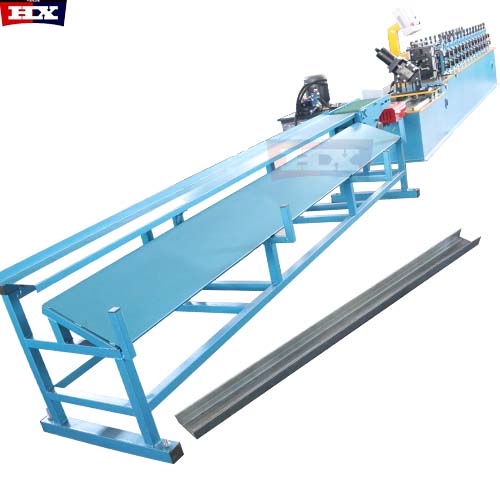

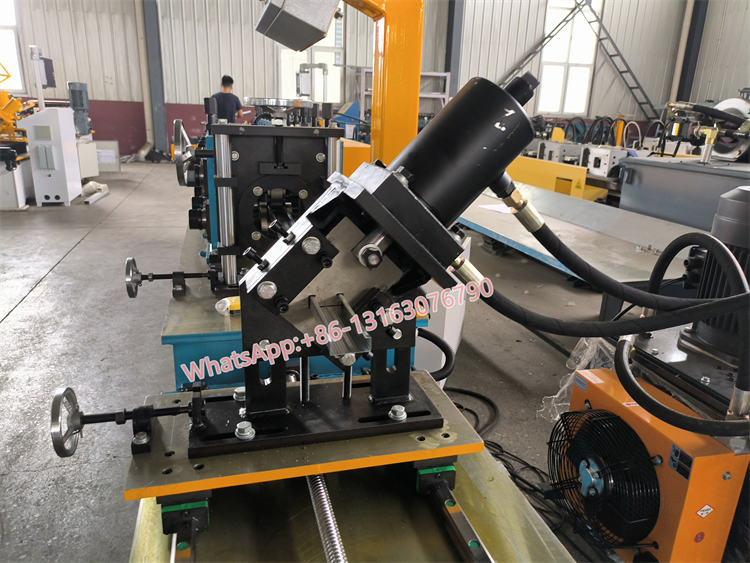

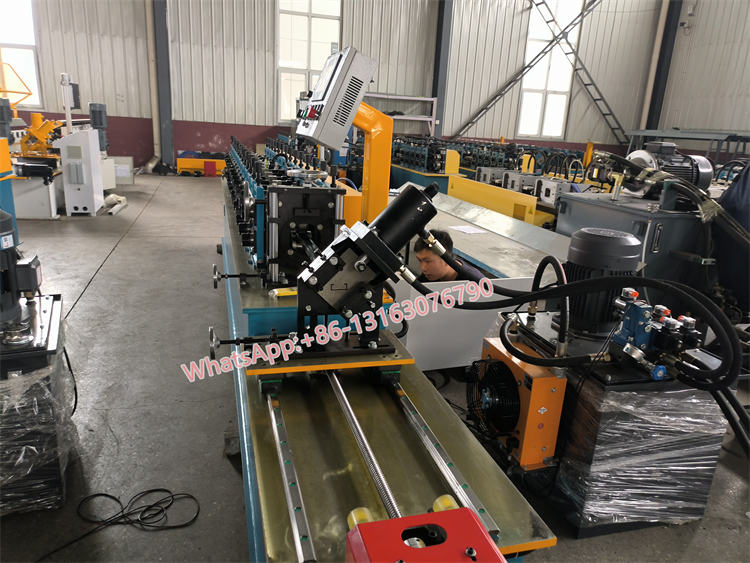

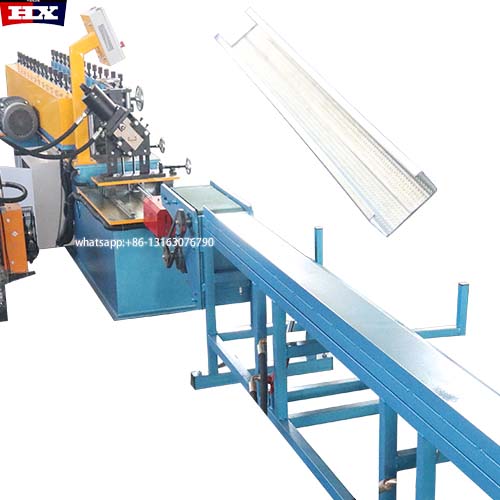

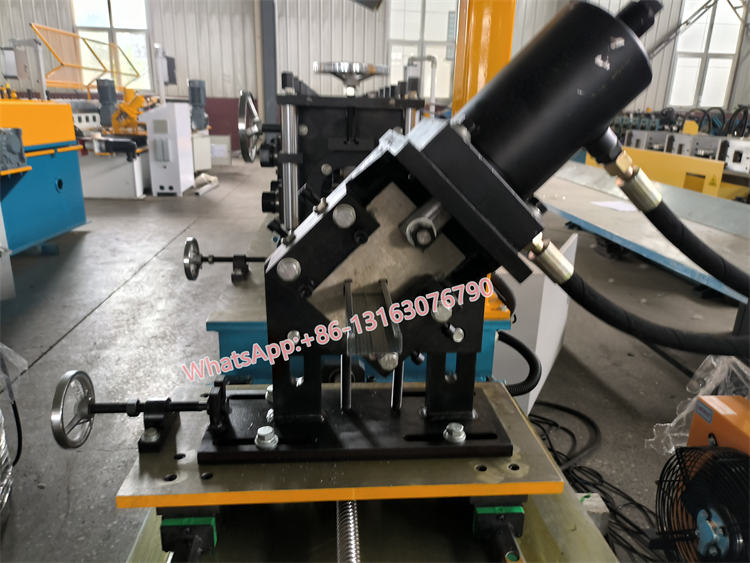

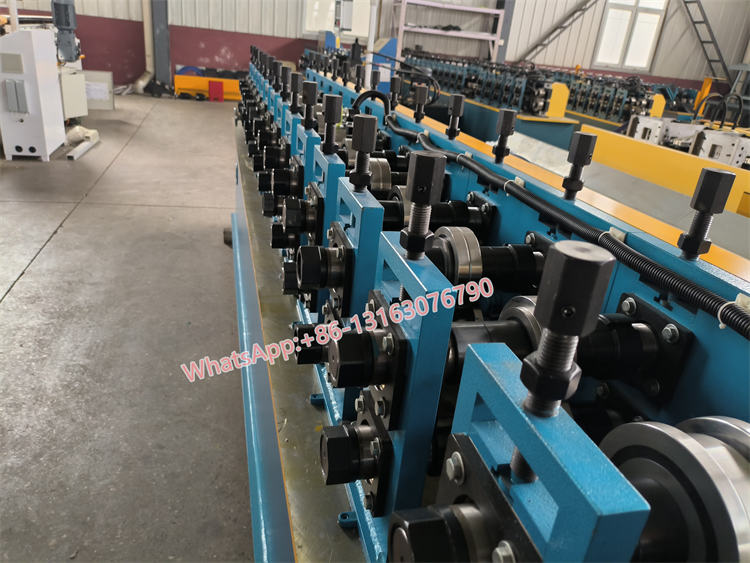

Metal stud machine for sale photo for reference
Maine parameters of metal stud machine for sale
| Machine size | Galvanized steel coil |
| Thickness | standard 0.2-0.5mm or other thickness as customer need over1mm |
| Rollers | around 12rollers, it depends on the profile drawing |
| Roller material | CR12 Steel , Quenched treatment with high temperature |
| Maine motor | 5.5kw |
| Pump motot | 5.5kw |
| Maine structure | Arch structure |
| Transmission | Gear |
| Control systerm | PLC control |
| Speed | 50-60m/min |
Production Line composition of metal stud machine for sale
Metal stud machine for sale include decoiler machine 2.5Ton, feeding device, roll forming machine, PLC, Touch screen, servo cut and punch, Motor, output table 3meters
Export package of metal stud machine for sale
Standard export machine packaging, nude packaing with plastic film wrapping , load in 20ft container
After sales services of metal stud machine for sale
24 months after-sale service from BL date
Customer return visits: Regularly conduct return visits to customers to understand equipment usage and customer satisfaction, so as to continuously improve the quality of after-sales service.
Our customer and abroad domestic exhibition
