Pop channel machine
Develivery time:30-45 working days
Model:HAIXING-C
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
Pop channel machine
Technical parameters and performance of pop channel machine: The technical parameters of the keel forming machine include rolling capacity, production speed, total installed capacity, etc. For example, the rolling capacity of a general unit is a width of ≤150mm, a plate thickness of 0.3-1.2mm, a production speed of up to 40-50 meters/minute, and a total installed capacity of about 5.5 kilowatts.
Control and safety system: Modern keel forming machines usually use a PLC control system with multiple safety protection measures to ensure the safety and stability of the production process

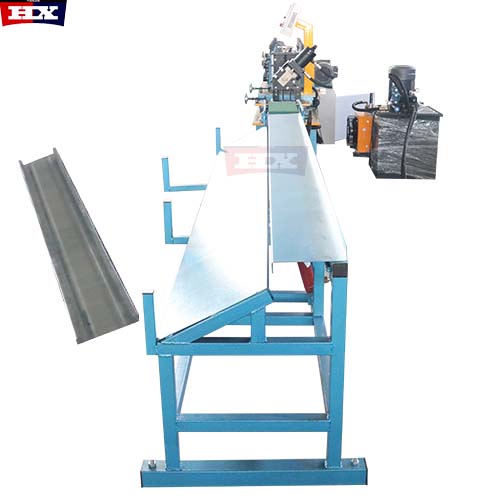

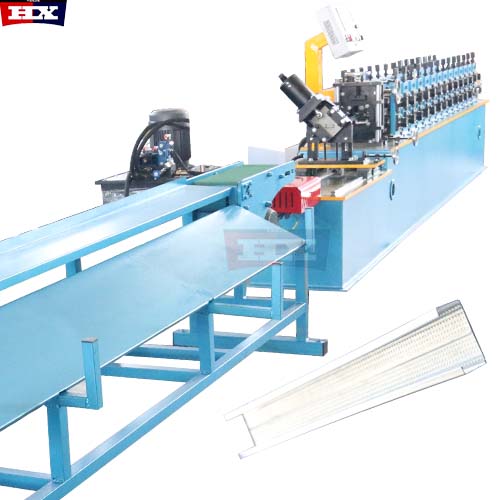

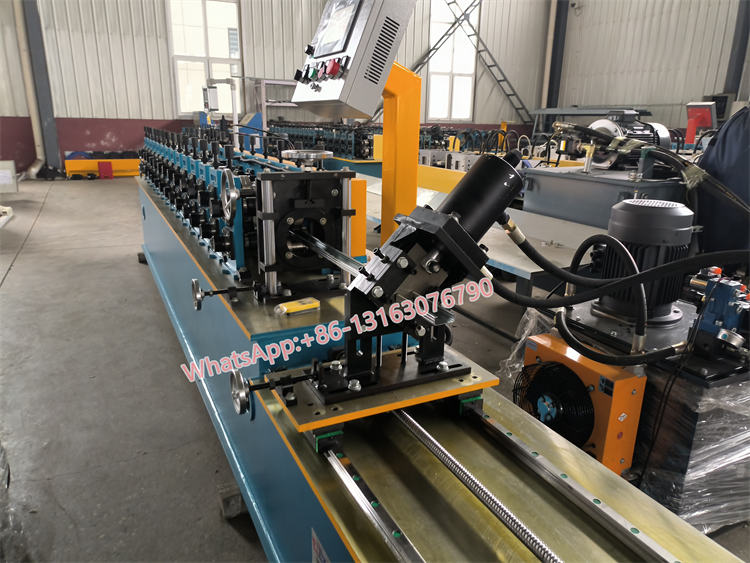

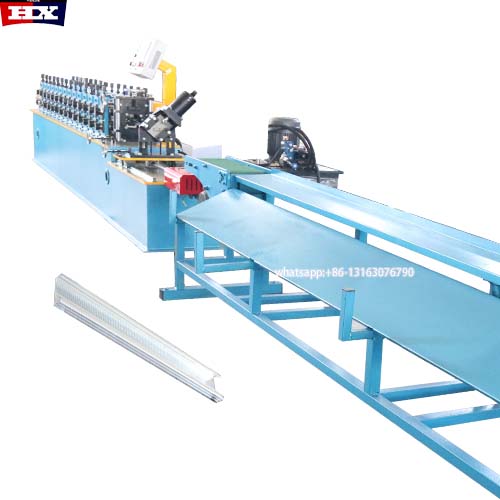

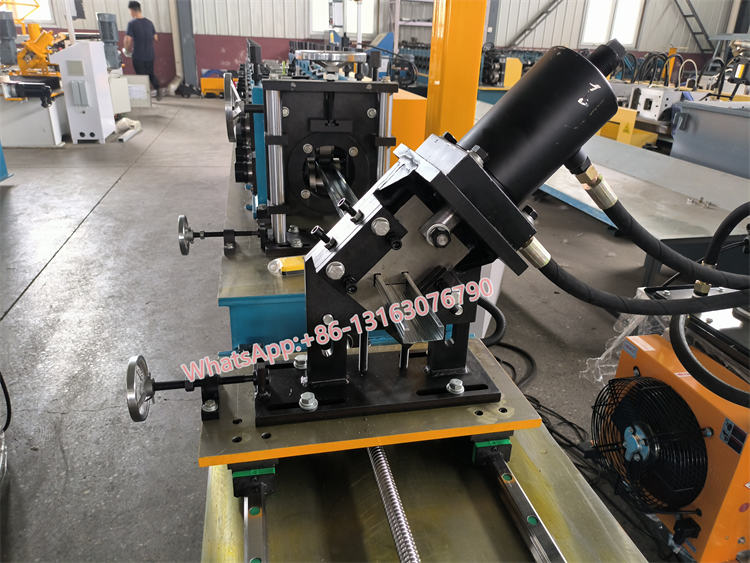

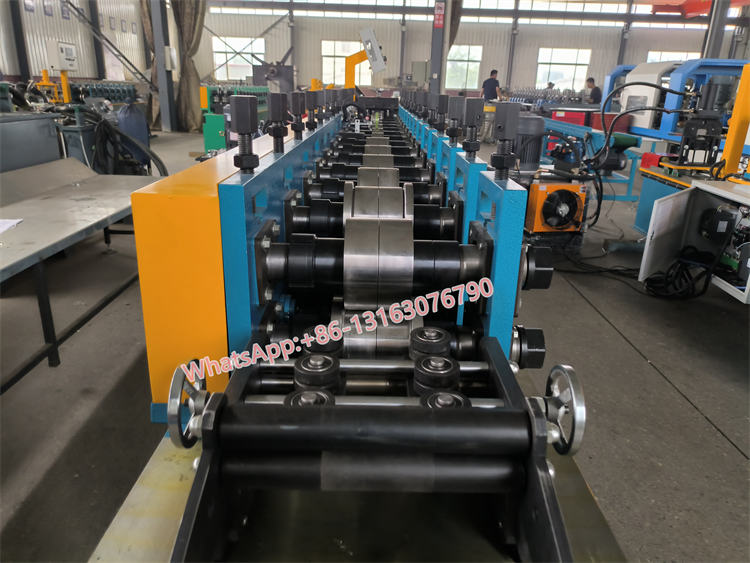

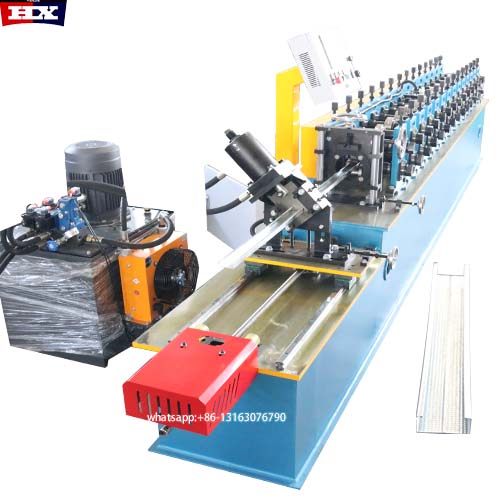

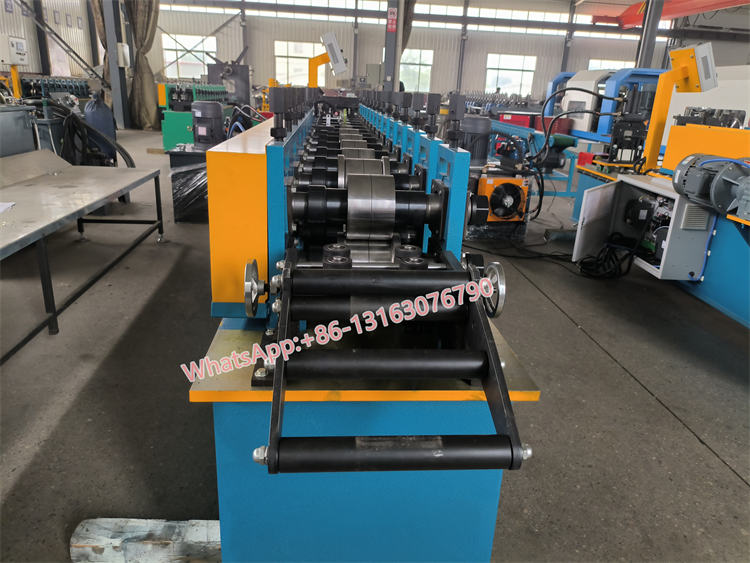

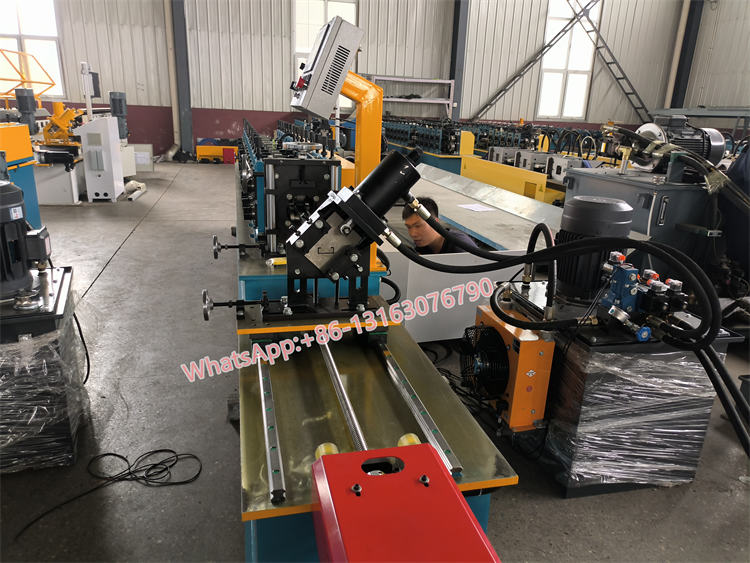

Pop channel machine photo for reference
Maine parameters of pop channel machine
| Machine size | Galvanized steel coil |
| Thickness | standard 0.3-1.2 mm |
| Rollers | around 10rollers, it depends on the profile drawing |
| Roller material | CR12 Steel , Quenched treatment with high temperature |
| Maine motor | 5.5kw |
| Pump motot | 4kw |
| Maine structure | Arch structure |
| Transmission | Gear/ gear box |
| Control systerm | PLC control |
| Speed | 50-60m/min |
| Out put table | 3 meters 1set |
Production Line composition of pop channel machine
it include decoiler machine, feeding device, roll forming machine, PLC, Main motor, punch motor, Touch screen, servo cut , output table 3meters
Our customer and abroad domestic exhibition
