T grid machine
Develivery time:50-60 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.

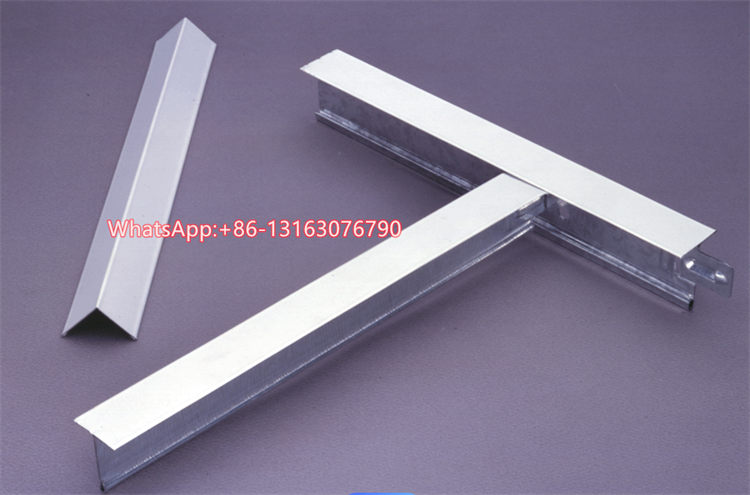

The T grid machine is a professional equipment for producing T-shaped keels, mainly used for the production of ceiling materials in building decoration. The whole machine include the main t grid machine, cross t grid machine, angle machine.
Equipment function: The T-shaped keel machine uses strip steel as raw material and produces various specifications of T-shaped keels through continuous cold rolling forming technology. It is suitable for the production of light steel keels, paint keels and other building profiles. Efficient production: The production speed can reach 40 meters/minute

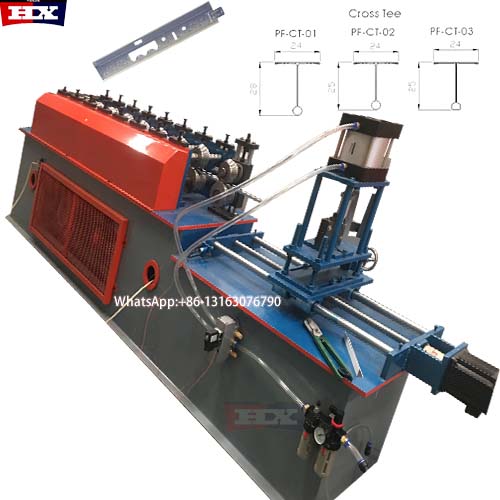

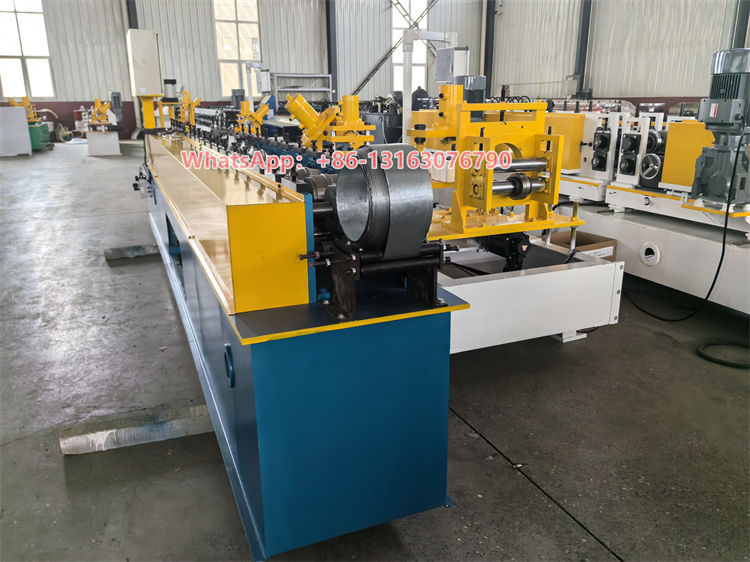

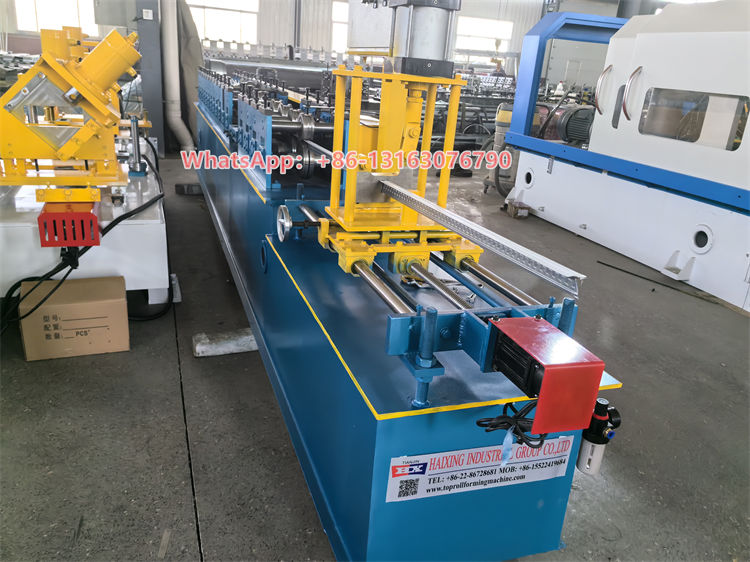

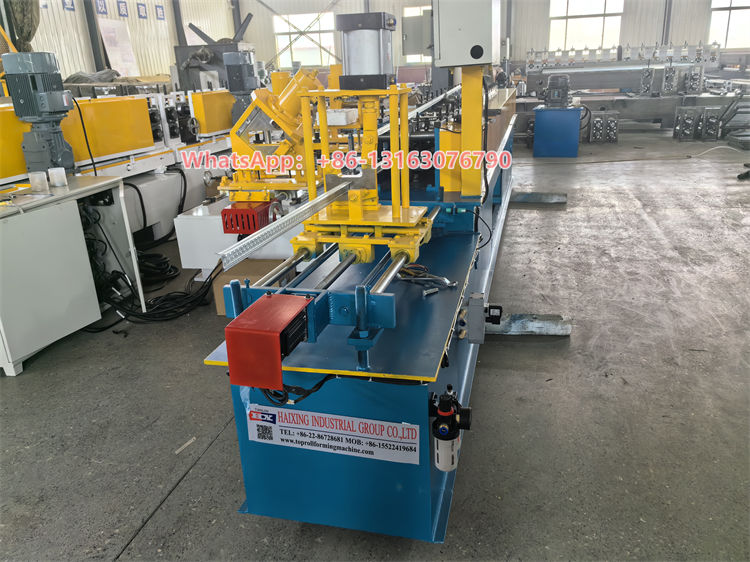

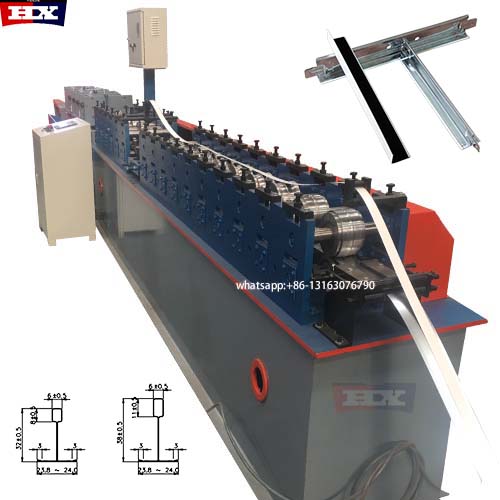

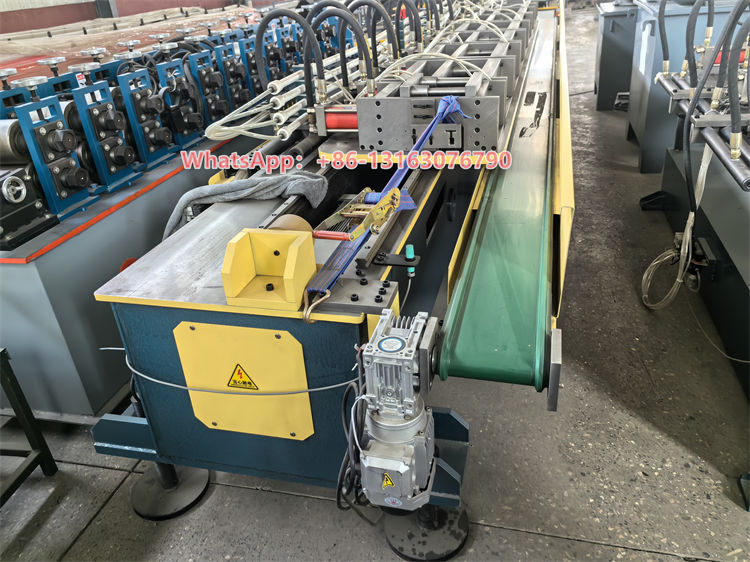

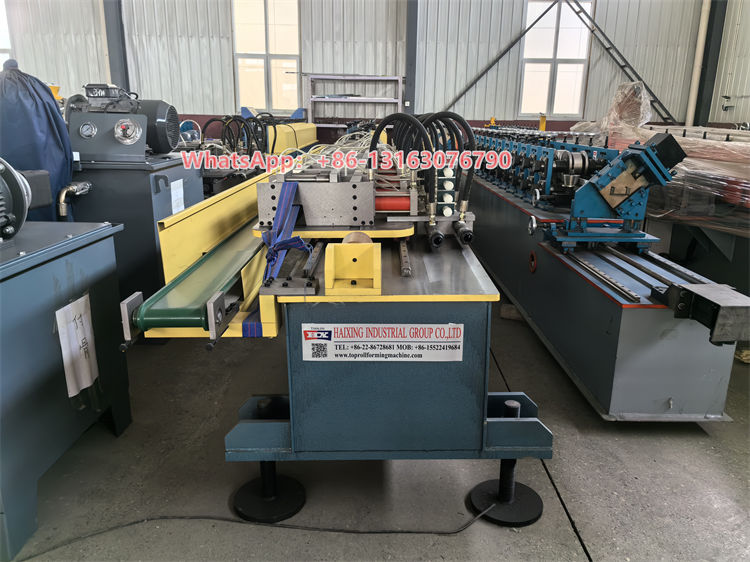

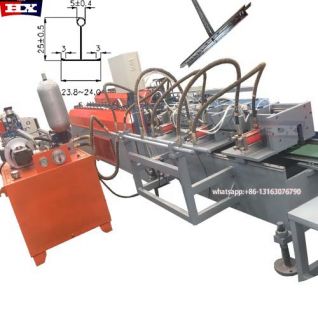

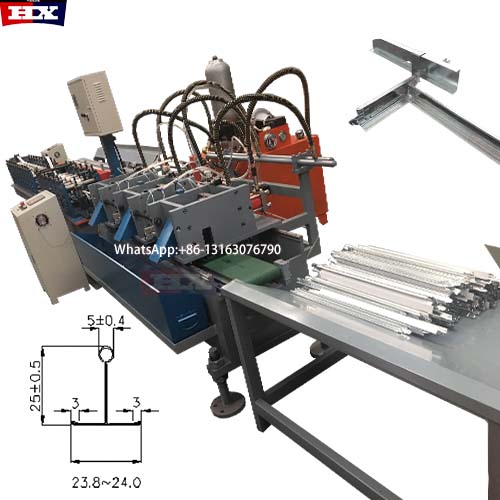

Photo of T grid machine for reference
Parameter of T grid machine
|
Name |
Specification |
|
Decoiler |
2set, manual decoiler, loading 1.5Ton |
|
Roller |
18 Rows Material:Cr12 |
|
Transmission |
5.5kw main motor with K reducer.Gear transmission |
|
Side Plate |
Thickness 25mm, grinding six-sided, high-precision boring from processing |
|
PLC |
PLC programming controller, with the touch screen automatic control system. |
|
Stamp Die |
Material:10 Sets，SKD11,heat treatment hardness:HRC56-58 |
|
Hydraulic motor power |
15KW |
|
Output table |
1 set |
|
Guidance |
3, Precision guidance |
|
Ball screw |
2, Precision guidance |
|
Servo motor |
1 15KW Servo Motor |
|
Total Power |
20.5KW |
|
Speed |
Around 40m/min |
Advantage of T grid machine
1.Efficient production: using advanced control systems to achieve automated production, greatly improving production efficiency and reducing labor costs.
2.Precision cutting: high-precision servo drive to ensure accurate cutting size, small error, and meet the requirements of various building standards.
3.Strong stability: high-quality raw materials and exquisite craftsmanship ensure long-term stable operation of the t grid machine and reduce the failure rate.
After-sales service of T grid machine
1.24 month warranty
2. Installation and debugging: Professional technicians will go to the site to install and debug the equipment to ensure that the t grid machine can operate normally.
3. Regular maintenance: Provide regular maintenance services, conduct comprehensive inspection, cleaning, lubrication and other maintenance work on the equipment to extend the service life of the t grid machine .
Our customer
