T grid roll forming machine
Develivery time:50-60 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
T grid roll forming machine factory in Haixing, we are professional machine manufacture. Regarding the specifications and sizes of T-shaped keels, the common ones are:

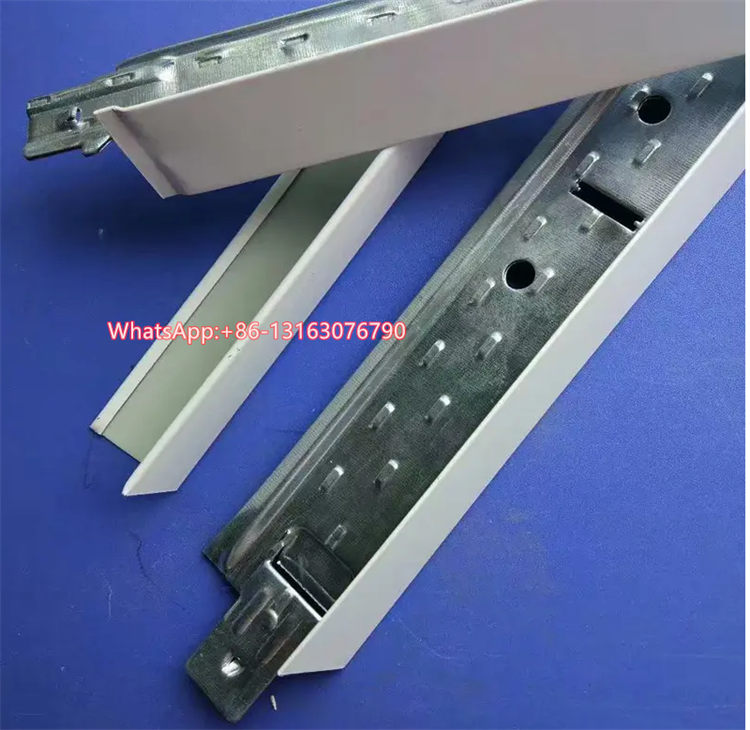

Steel T-shaped keels: specifications such as 38x24x3600mm, 32x24x3600mm, 26x24x3600mm, etc.
Aluminum T-shaped keels: specifications are similar to steel, also 38x24x3600mm, 32x24x3600mm, 26x24x3600mm, etc.

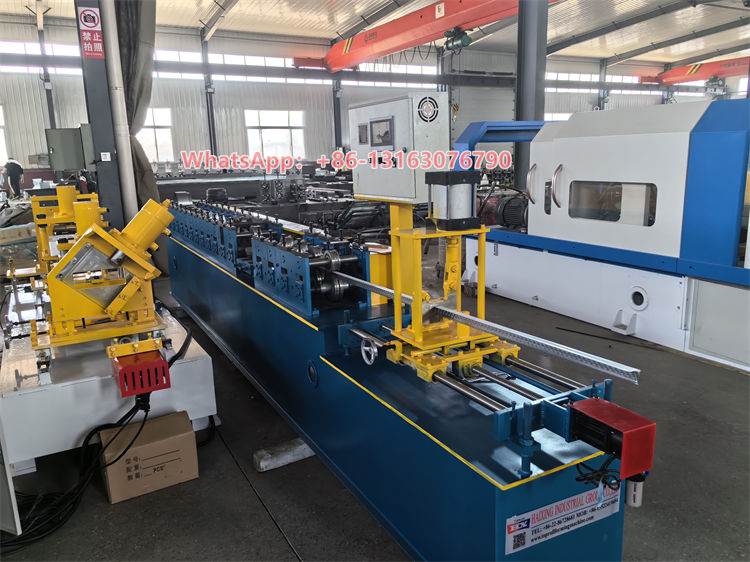

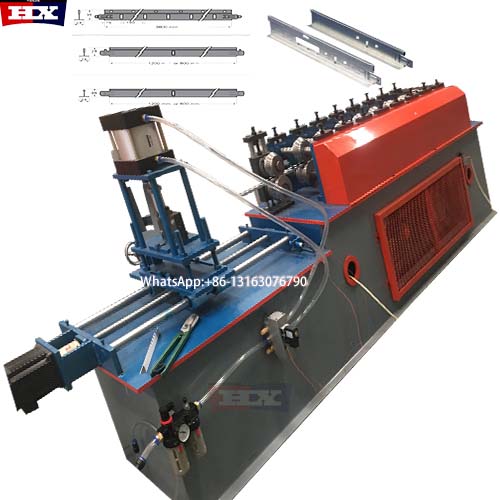

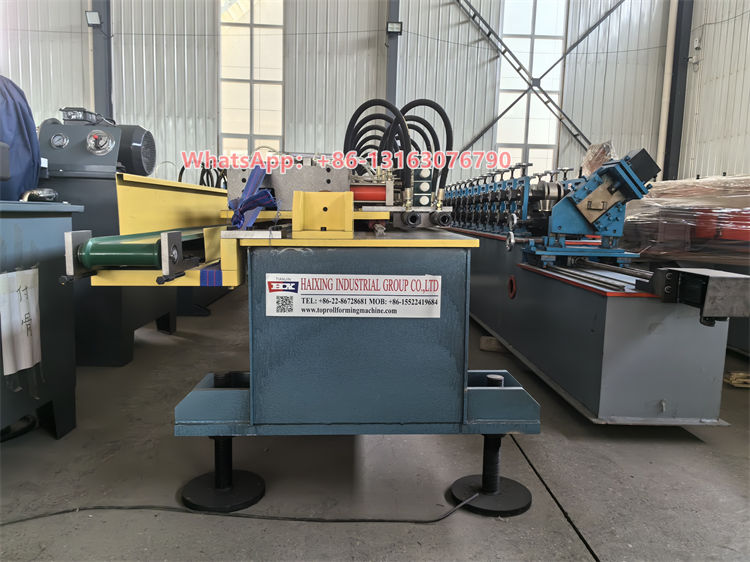

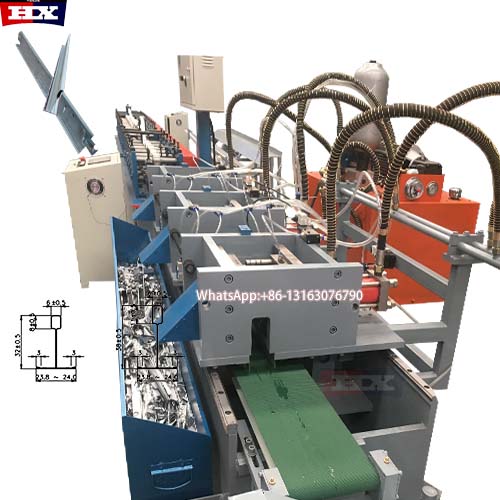

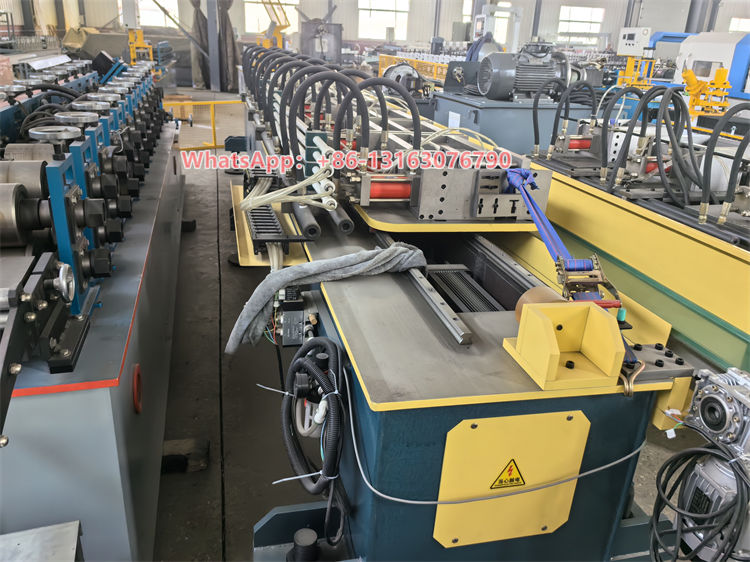

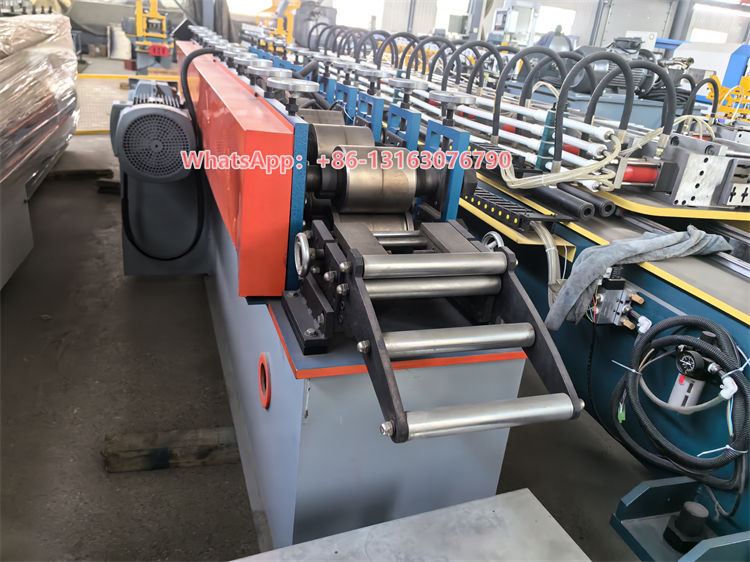

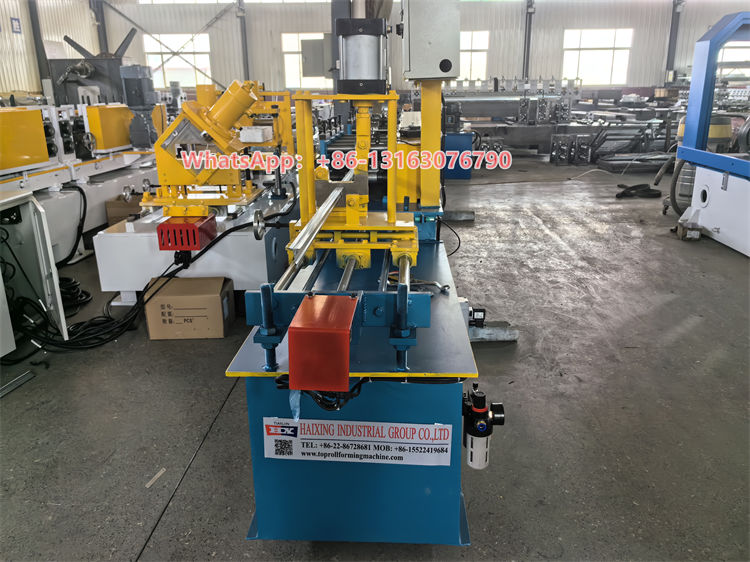

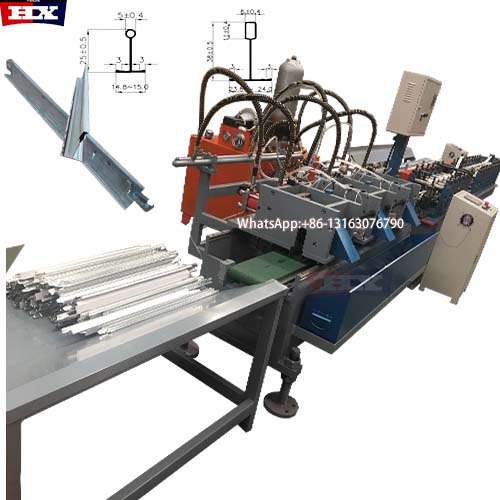

Photo of t grid roll forming machine for reference
Parameter of t grid roll forming machine
|
Name |
Maine T grid roll forming machine Specification |
|
Decoiler |
2set, manual decoiler, loading 1.5Ton |
|
Roller |
18 Rows Material:Cr12 |
|
Transmission |
5.5kw main motor with K reducer. |
|
Side Plate |
Thickness 25mm, grinding six-sided, high-precision boring from processing |
|
PLC |
PLC programming controller, with the touch screen automatic control system. |
|
Hydraulic motor power |
15KW |
|
Output table |
1 set |
|
Guidance |
3, Precision guidance |
|
Servo motor |
1 15KW Servo Motor |
|
Total Power |
20.5KW |
|
Speed |
Around 40m/min |
Advantage of t grid roll forming machine
1.Quality Assurance: Made of imported high-precision computer controller and high-quality materials, the T-shaped keel is accurate in size and stable in quality.
2.Customized Service: Provide customized solutions according to customer needs to meet the production needs of different specifications and models.
After-sales service of t grid roll forming machine
1.Technical support: Provide technical consultation and support to users at any time to answer problems encountered by users during use.
2.Professional after-sale group who can speak English, Spanish and Chinese.
3. Remote assistance: Utilize modern communication technology to provide customers with remote fault diagnosis and assistance in solving problems when necessary.
4.2 years warranty of the T grid roll forming machine
Our customer
