Ibr roll forming machine south africa
Delivery time:25-35 days

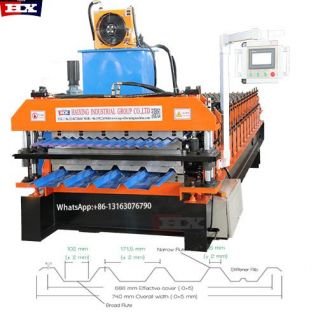

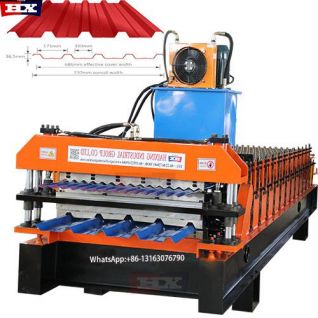

Model: IBR686 and Corrugated 762
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.

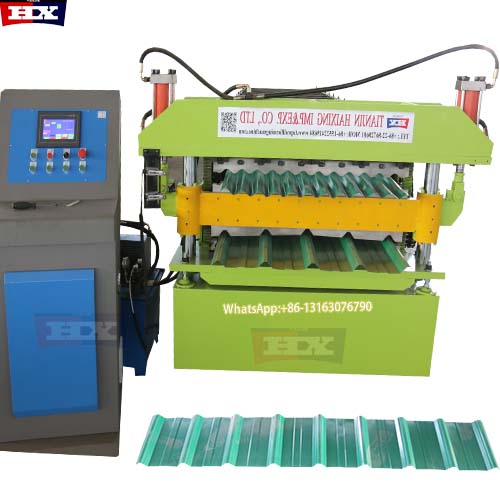

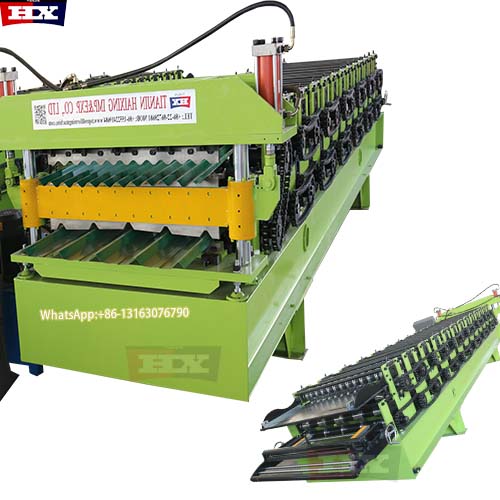

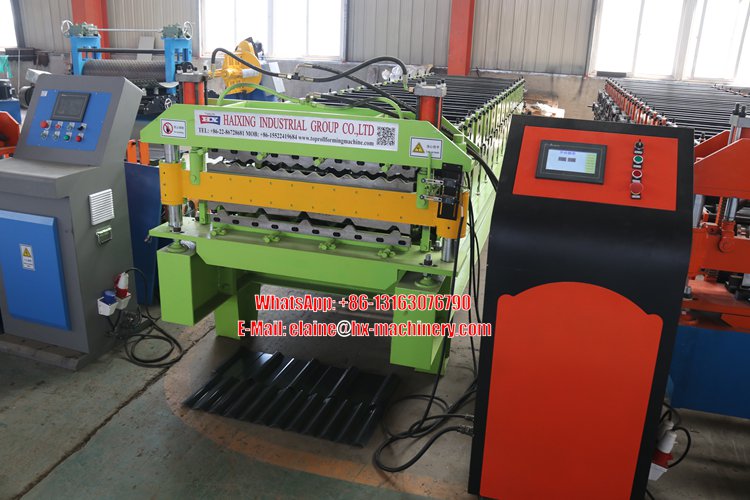

ibr roll forming machine south africa ibr chromadek roofing forming machine
Tianjin Haixing ibr chromadek roofing roll forming machine south Africa is high degree of automation: It adopts advanced PLC control system and human-machine interface, which is simple and convenient to operate. The operator only needs to set relevant parameters on the touch screen, such as the size, shape, thickness, etc. of the tiles, and the tile press can automatically complete the entire production process, reducing the technical requirements for the operator.
Main parameters of ibr chromadek roofing roll forming machine south africa
| Raw material | Color steel coil, aluminum steel coil, galvanized steel coil |
| Thickness | standard 0.3-0.8 mm |
| Raw material feeding width | 925mm |
| Machine size, weight | around 9*1.5 *1.8m, around 5ton |
| Rollers | around 18 rollers, it depends on the profile drawing |
| Roller material | 45 steel |
| Maine motor | 5.5kw +4kw |
| Shaft diameter | 75mm |
| Maine structure | Middle plate |
| Transmission | Chain drive |
| Control systerm | PLC control, automatic produce |
| Decoiler | 7ton manual decoiler for free. And hydraulic decoiler is your option |
| Out put table | 3meter no power out put table for free. Auto stacker is your option |

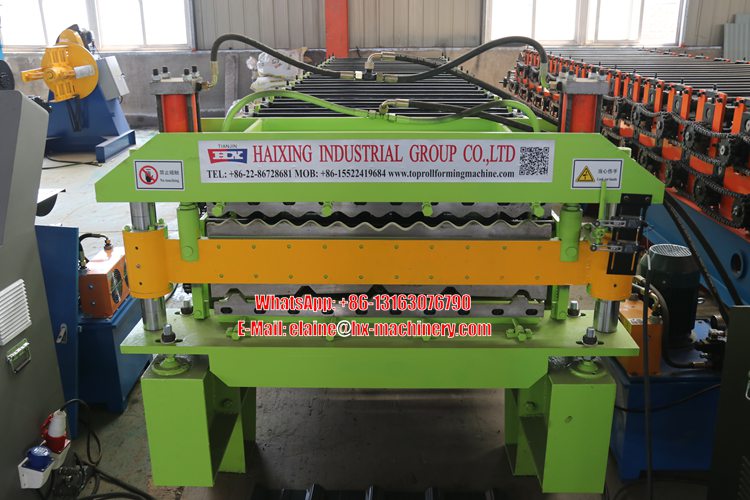

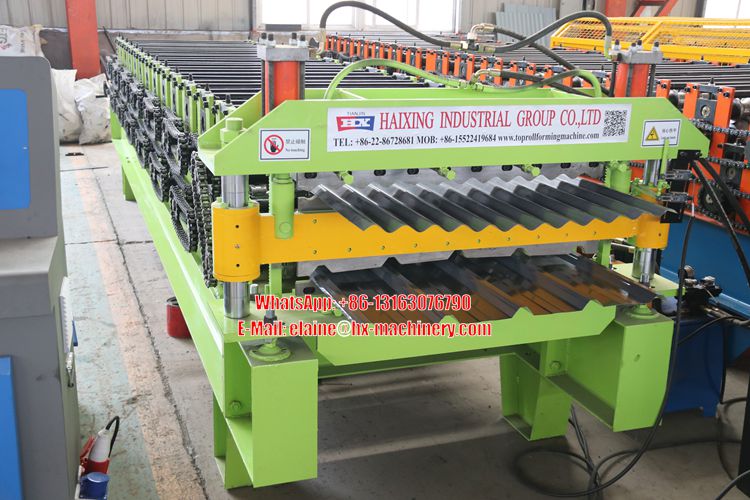

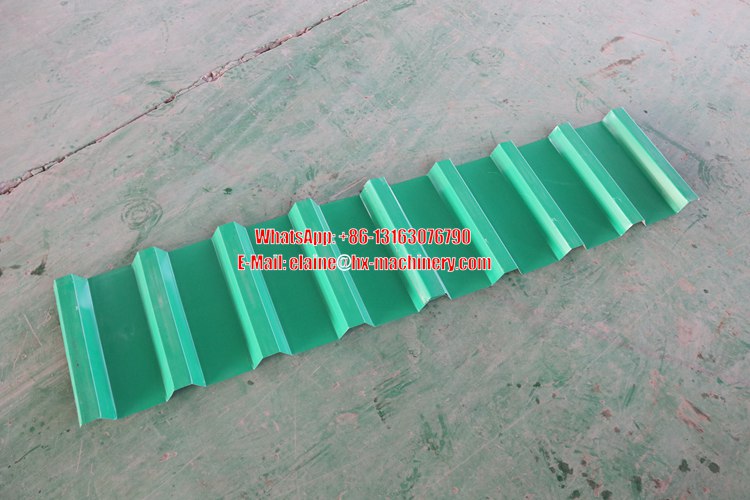

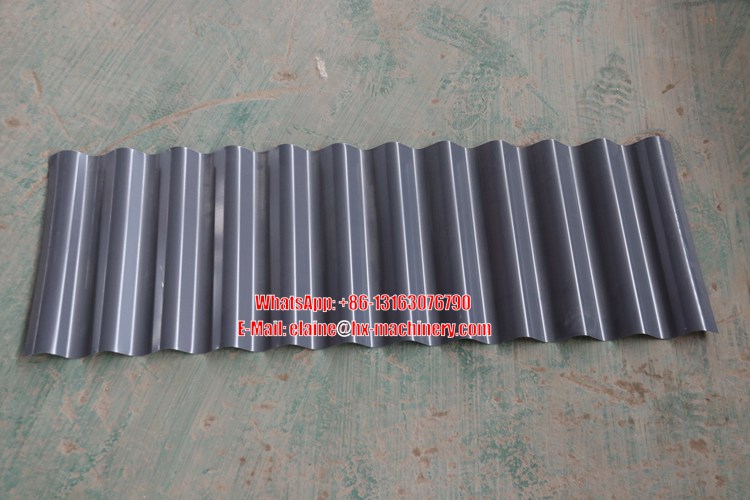

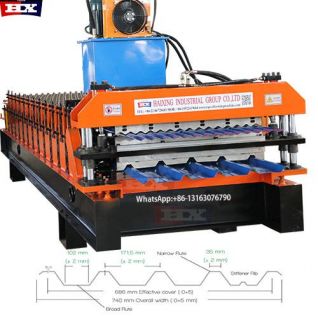

ibr chromadek roofing roll forming machine south africa for reference
Package of ibr chromadek roofing roll forming machine south africa
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
