Ibr roof sheet making machine for sale in south africa
Delivery time:25-35 days

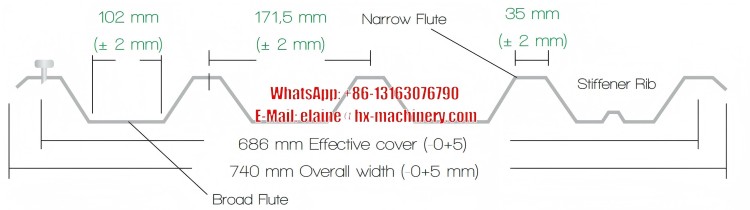

Model: IBR686 and Corrugated 762
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Ibr roof sheet making machine for sale in south africa
Efficient production capacity: the Ibr roof sheet making machine for sale in south africa normal speed is 10-15 meter per minutes, there is also 25meter or 40 meter speed. It can quickly and stably produce a large number of IBR roof panels that meet the standards, greatly improving production efficiency and meeting the large demand for roofing materials in construction projects.
in the construction of large industrial plants, its efficient production capacity can ensure the timely supply of roofing materials and speed up the progress of the project.
Main parameters of Ibr roof sheet making machine for sale in south africa
| Raw material | Color steel coil, aluminum steel coil, galvanized steel coil |
| Thickness and width | standard 0.3-0.8 mm, 925mm |
| Machine size | around 9*1.5 *1.8m |
| Machine weight | around 5ton |

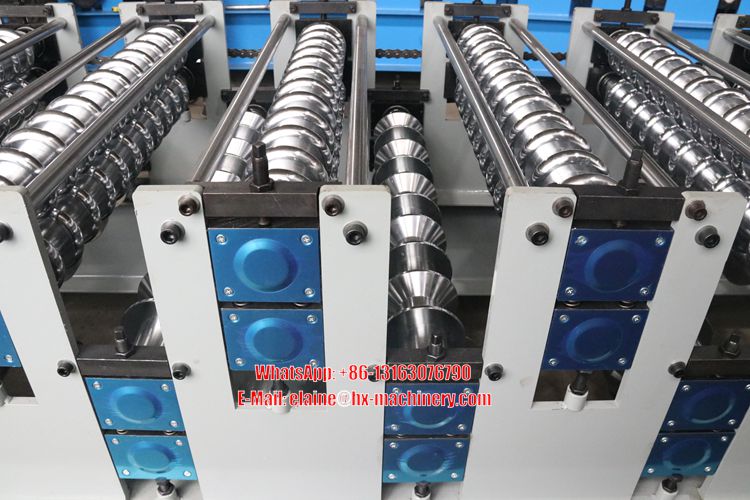

| Rollers | around 18 rollers, it depends on the profile drawing |
| Roller material | number 45 steel |
| Maine motor | 5.5kw |
| Pump motot | 4kw |
| Shaft diameter | 70mm |
| Maine structure | Middle plate |
| Frame | 350H steel |
| Control systerm | PLC control, automatic produce |
| Decoiler | 7ton manual decoiler for free. And hydraulic decoiler is your option |
| Out put table | 3meter no power out put table for free. Auto stacker is your option |

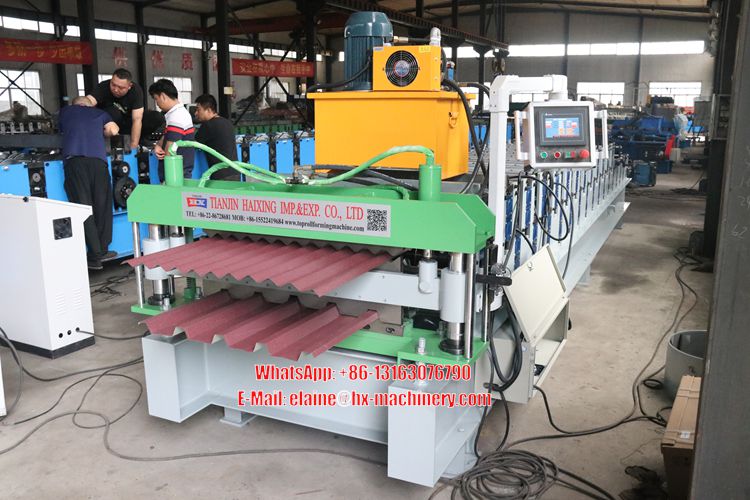

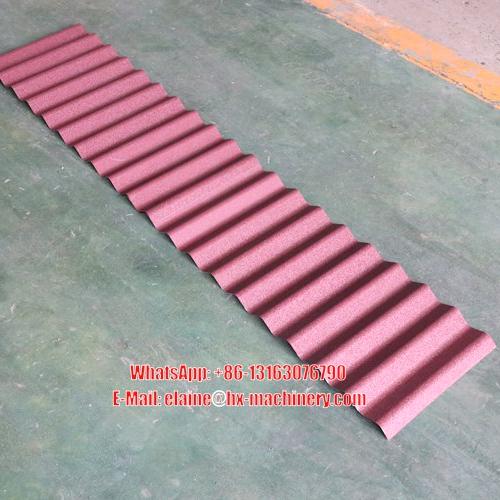

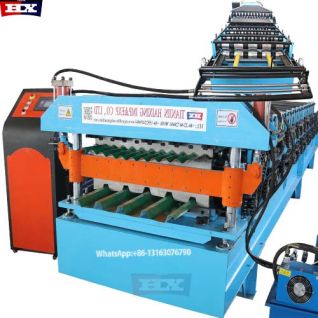

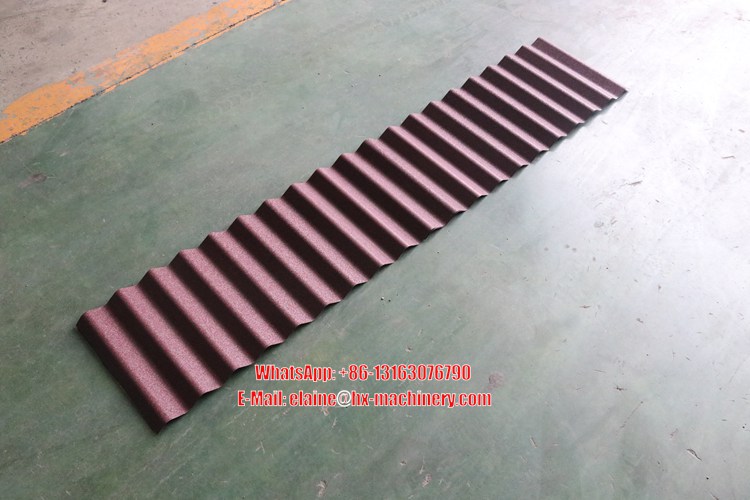

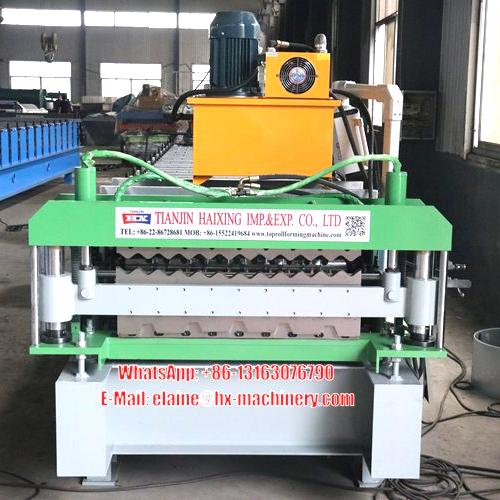

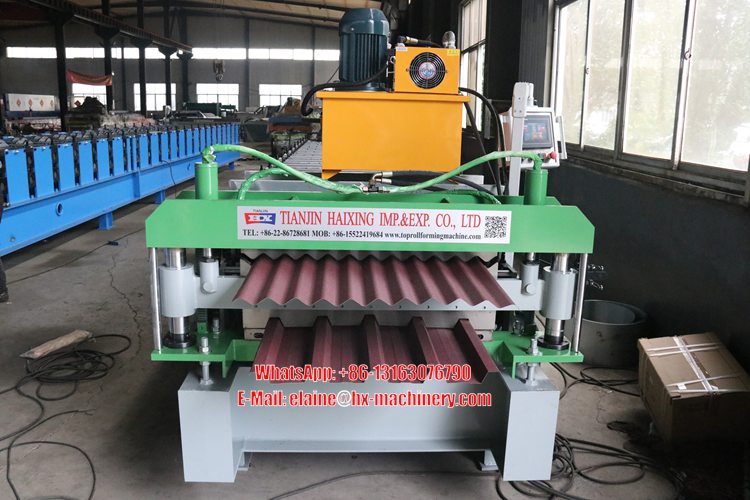

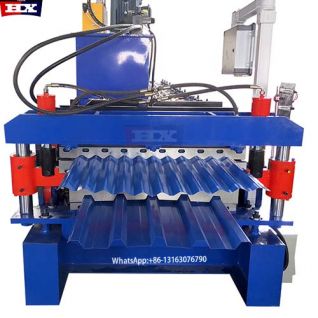

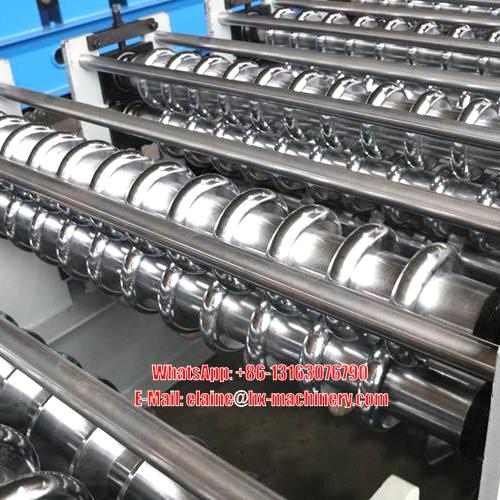

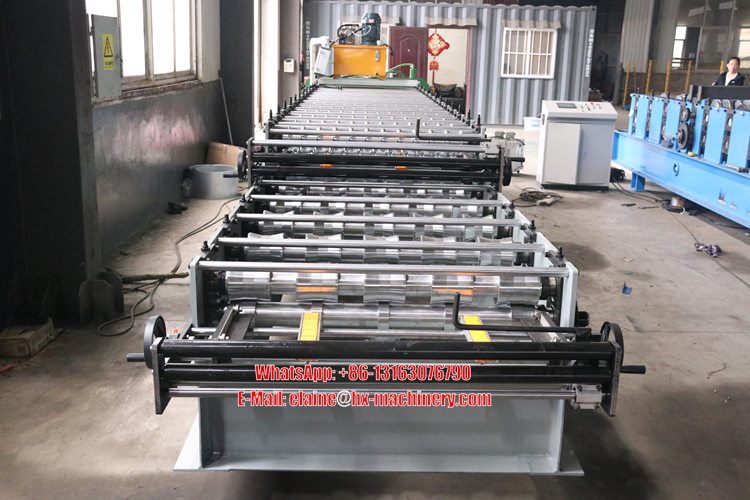

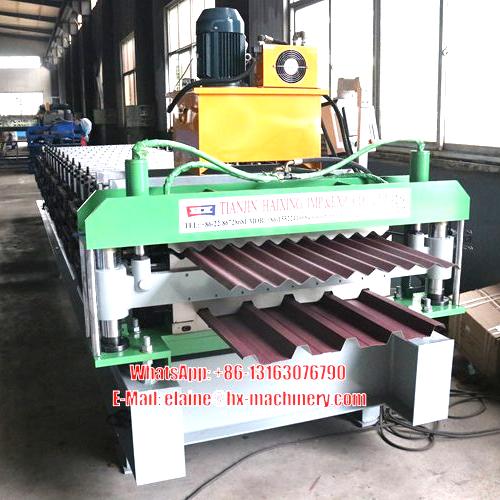

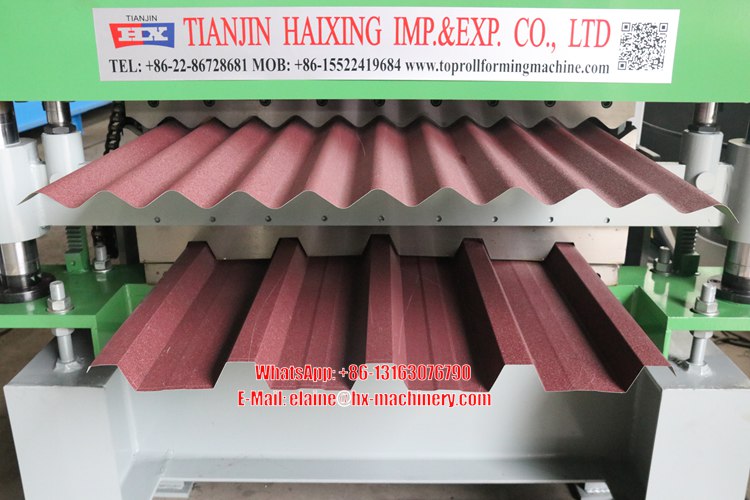

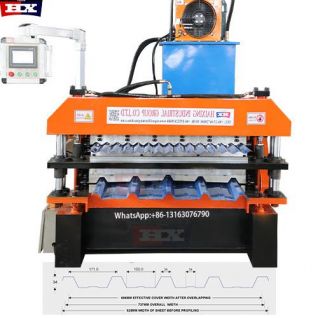

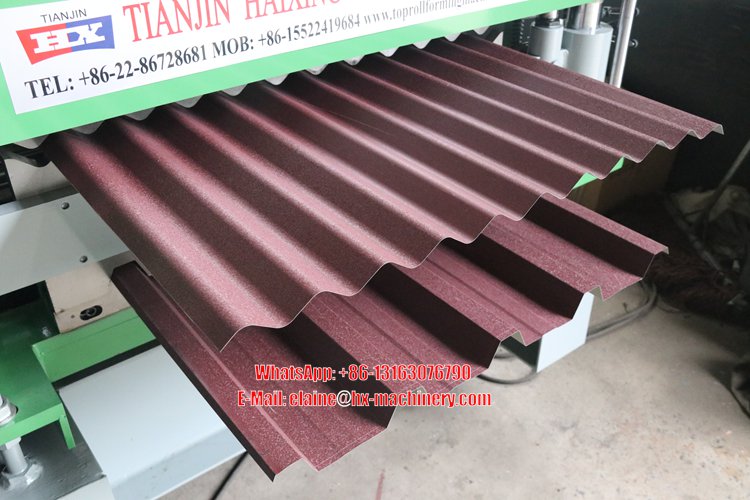

Ibr roof sheet making machine for sale in south africa photo for reference
Composition of Ibr roof sheet making machine for sale in south africa
It include decoiler machine 7Ton, roll forming machine, PLC, Touch screen, servo cut, electric control system, output table 3meters
with waterproof.
After sales services of Ibr roof sheet making machine for sale in south africa
24 months limited warranty , During the warranty period, we provide free repair or replacement services for equipment failures caused by quality problems. At the same time, we should continue to provide customers with maintenance and technical support outside the warranty period to establish a long-term cooperative relationship.
