Ibr roll forming machine and corrugated iron making machine
Delivery time:25-35 days

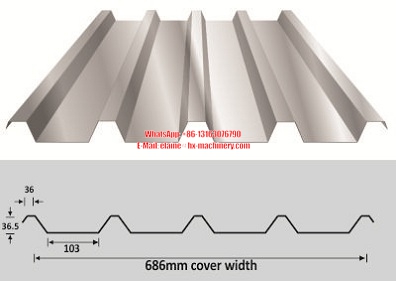

Model: IBR686 and Corrugated 762
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Ibr roll forming machine and corrugated iron making machine
we also call it ibr sheet making machine
Main parameters of roof sheet making machine south africa price
| Raw material | Color steel coil, aluminum steel coil, galvanized steel coil |
| Thickness | standard 0.3-0.8 mm |
| Raw material feeding width | 925mm |
| Machine size | around 9*1.5 *1.8m |
| Machine weight | around 5ton |
| Rollers | around 18 rollers, it depends on the profile drawing |
| Maine motor | 5.5kw |
| Pump motot | 4kw |
| Shaft diameter | 70mm |
| Maine structure | Middle plate 16mm |

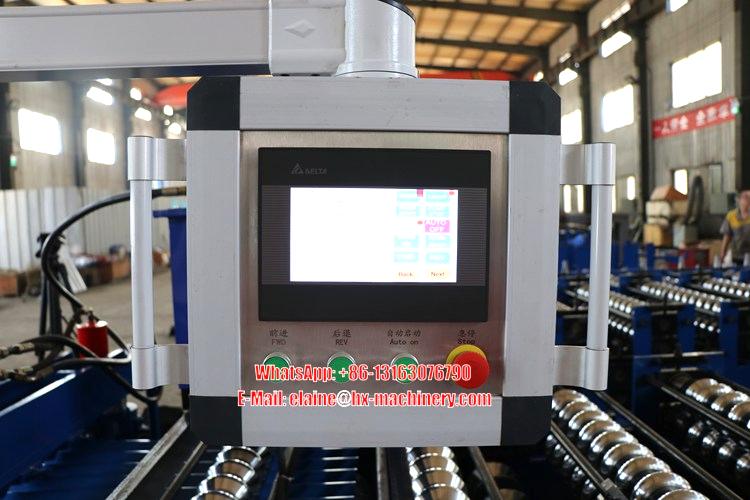

| Control systerm | PLC control, automatic produce |
| Decoiler | 7ton manual decoiler for free. And hydraulic decoiler is your option |
| Out put table | 3meter no power out put table for free. Auto stacker is your option |

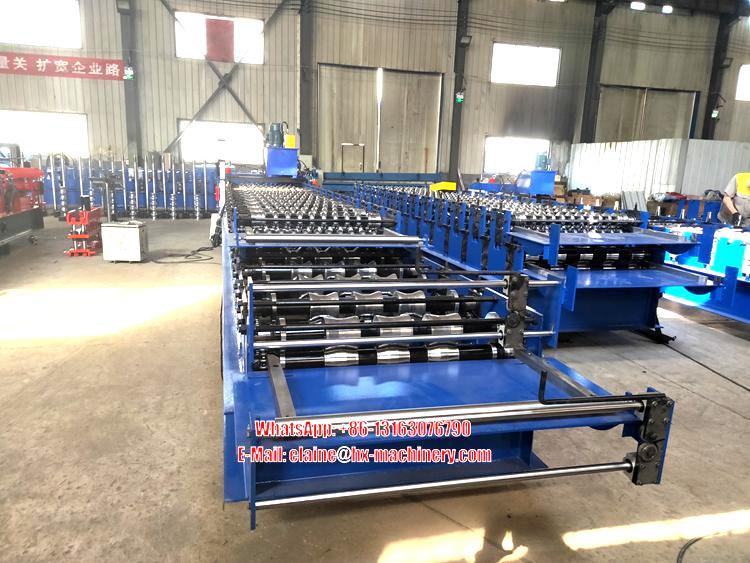

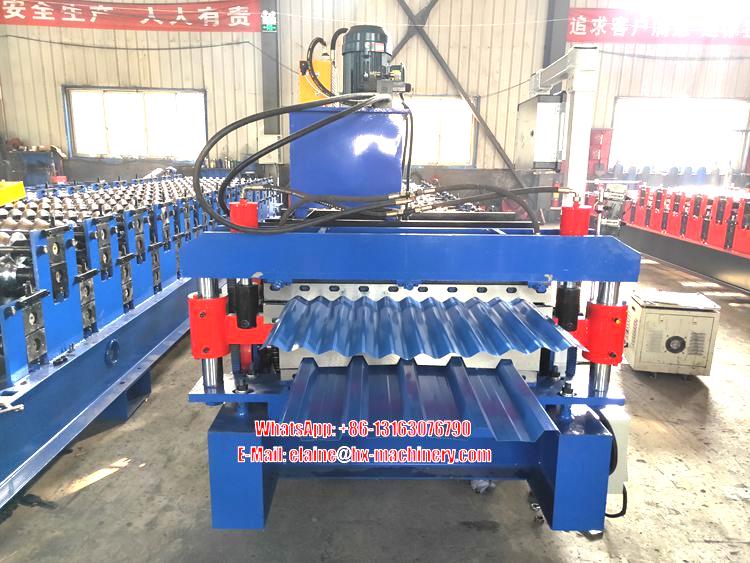

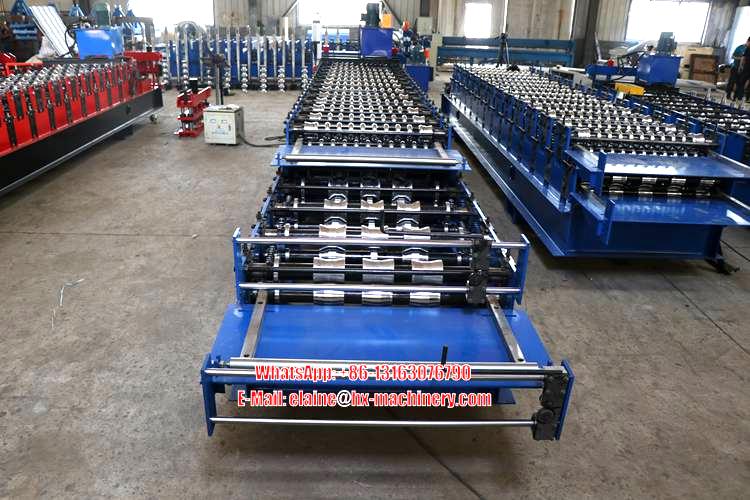

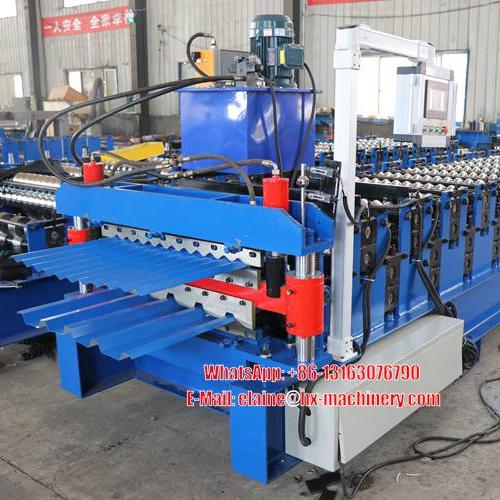

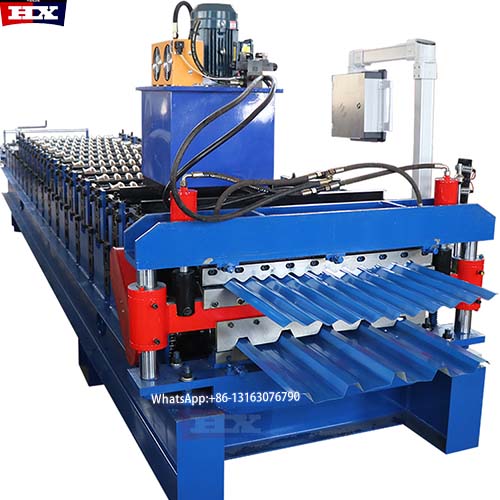

Roof sheet making machine South Africa photo for reference
Composition of roof sheet making machine south africa price
It consists of a decoiler machine with a capacity of 7 tons, a roll forming machine, a Programmable Logic Controller (PLC), a touch screen, a hydraulic cutting device, an electric control system, and an output table that measures 3 meters in length.
Package of roof sheet making machine south africa price
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
After sales services of roof sheet making machine south africa price
24 months limited warranty . In the event that any issues are detected with the machine within two year of purchase, rest assured that we will provide free repair services. Our experienced technicians will diagnose the problem accurately and take all necessary measures to get your machine back up and running smoothly, minimizing any disruptions to your production or usage.
