Roof sheet making machine south africa price
Delivery time:25-35 days
Model: IBR686 and Corrugated 762
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Roof sheet making machine South Africa price for Ibr 686 and corrugated 762
Haixing IBR roof sheet making machine is hot sell in South Africa, This one machine is two use, it can produce two roof sheet, It can produce ibr 686 and corrugated 762
Haixing machine is solid shaft, big roller, good brand electric parts, Good machine quality is your good choice, and automatic roof machine save your labor cost.
Main parameters of roof sheet making machine south africa price
| Raw material | Color steel coil, aluminum steel coil, galvanized steel coil |
| Thickness | standard 0.3-0.8 mm |
| Raw material feeding width | 925mm |
| Machine size | around 9*1.5 *1.8m |
| Machine weight | around 5ton |

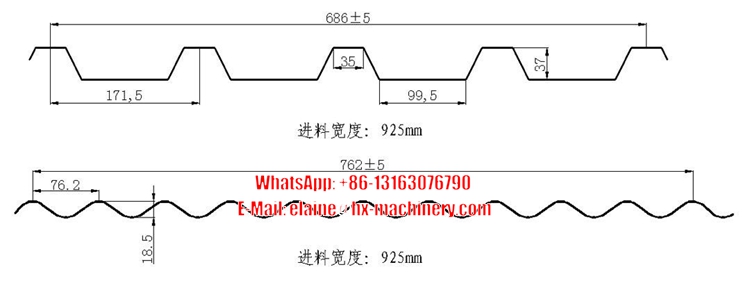

| Rollers | around 18 rollers, it depends on the profile drawing |
| Roller material | number 45 steel |
| Maine motor | 5.5kw |
| Pump motot | 4kw |
| Shaft diameter | 75mm |
| Maine structure | Middle plate |
| Transmission | Chain drive |
| Control systerm | PLC control, automatic produce |
| Decoiler | 7ton manual decoiler for free. And hydraulic decoiler is your option |
| Out put table | 3meter no power out put table for free. Auto stacker is your option |

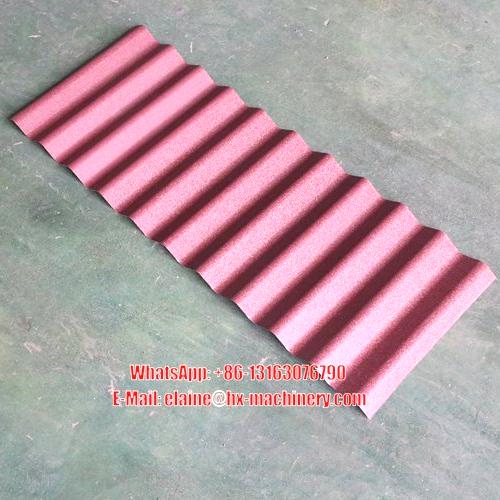

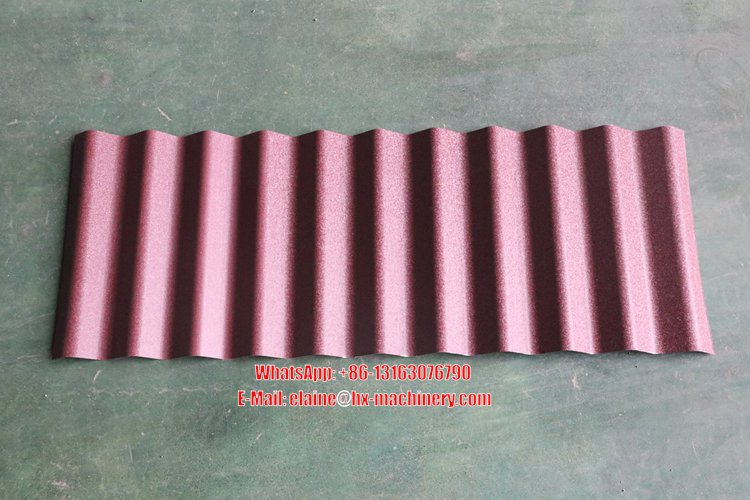

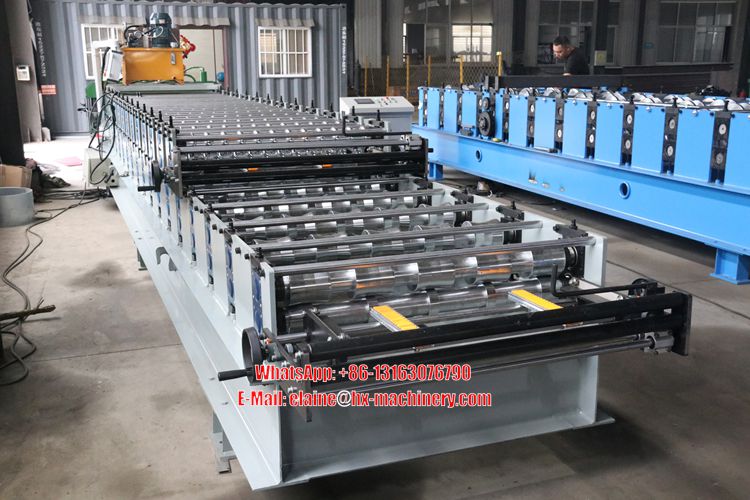

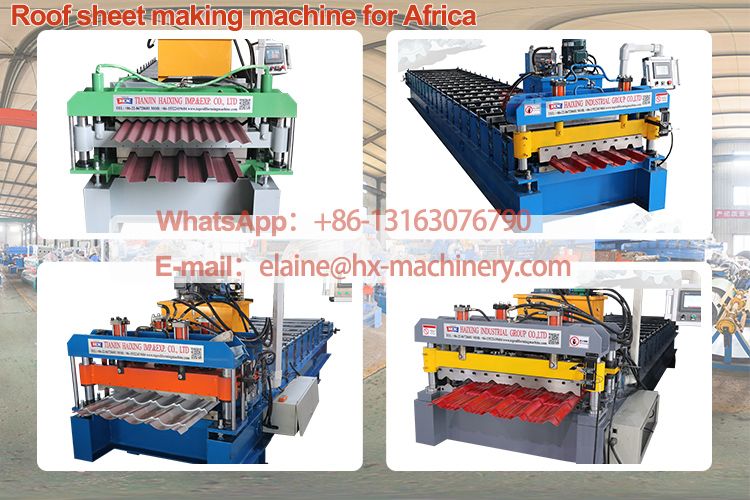

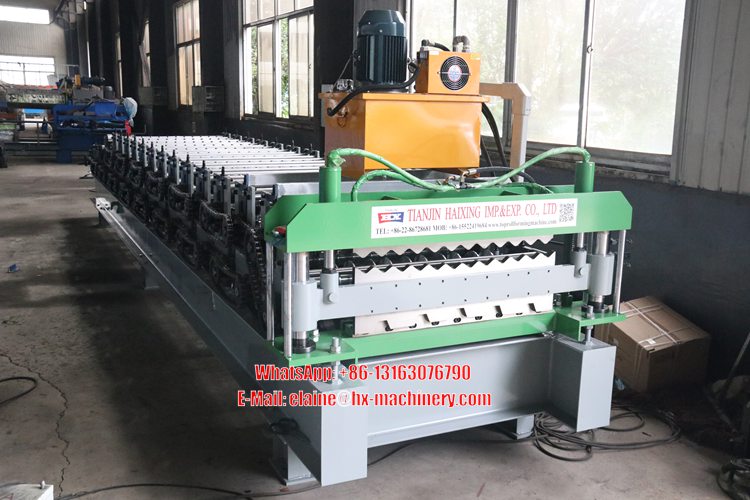

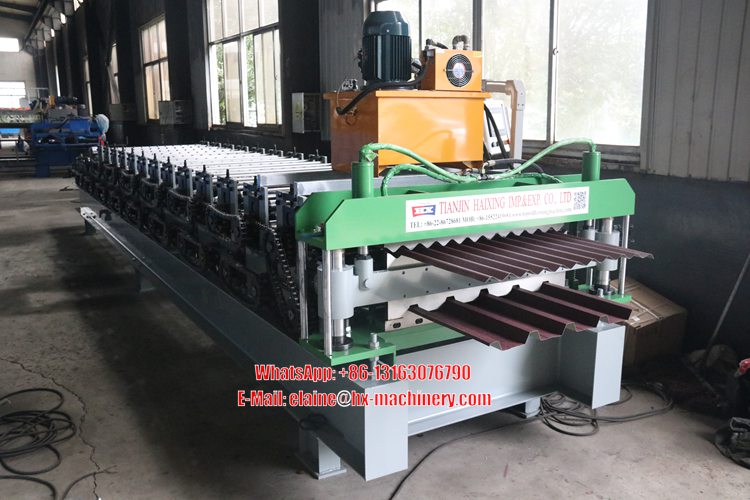

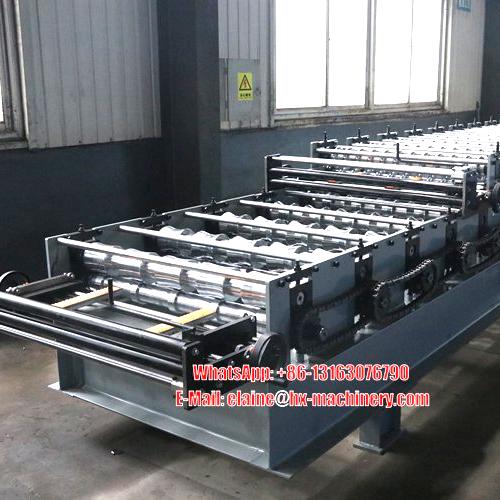

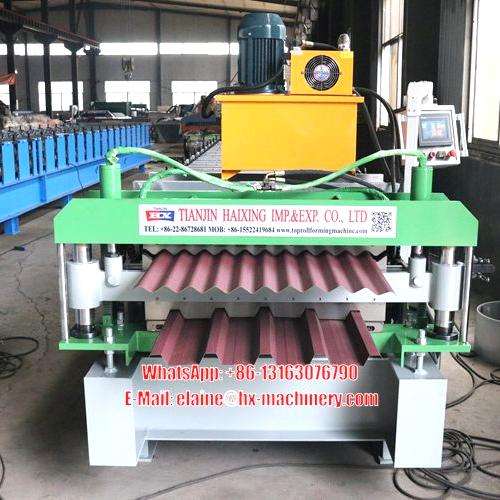

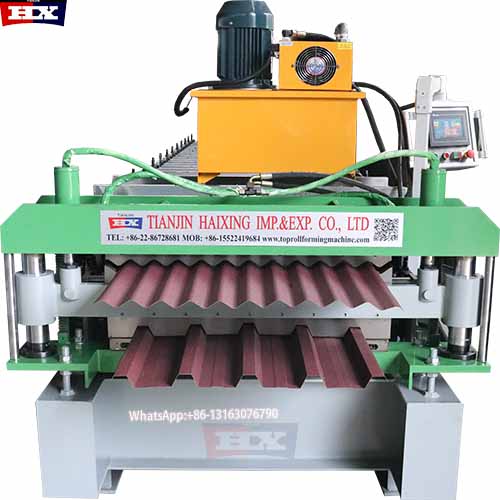

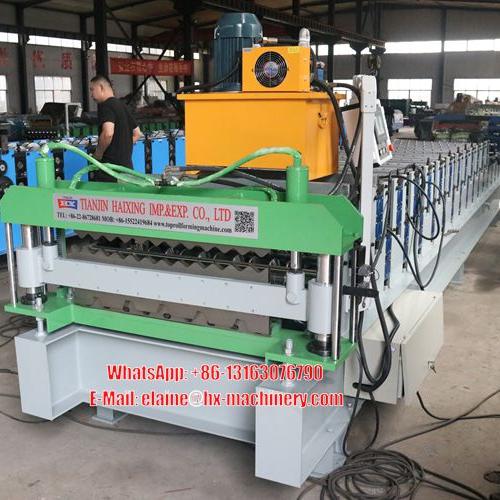

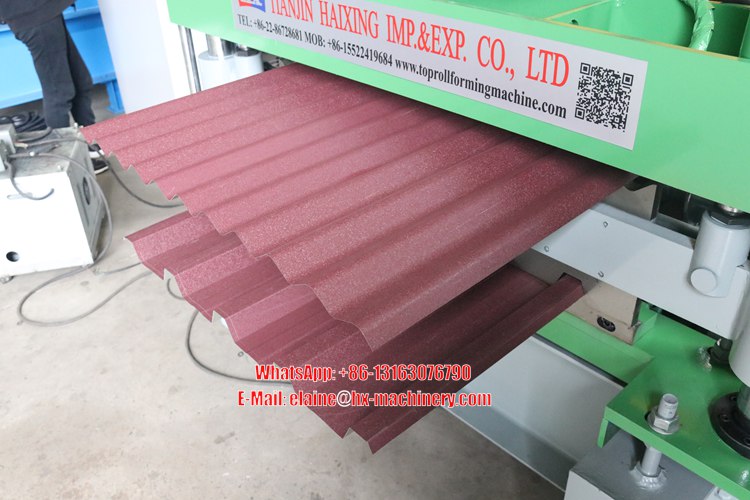

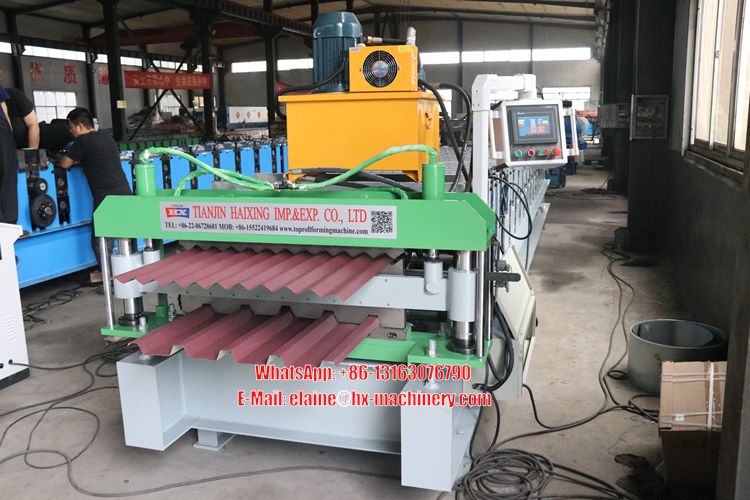

Roof sheet making machine South Africa photo for reference
Composition of roof sheet making machine south africa price
It include decoiler machine 7Ton, roll forming machine, PLC, Touch screen, servo cut, electric control system, output table 3meters
Package of roof sheet making machine south africa price
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
After sales services of roof sheet making machine south africa price
Warranty:24 months limited warranty ,Components and parts are free during warranty.
