Ibr manufacturing machine roof sheet making machine in south africa
Delivery time:25-35 days

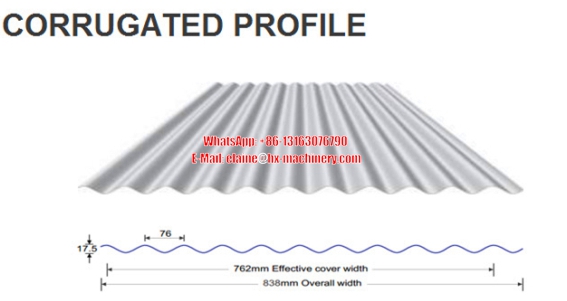

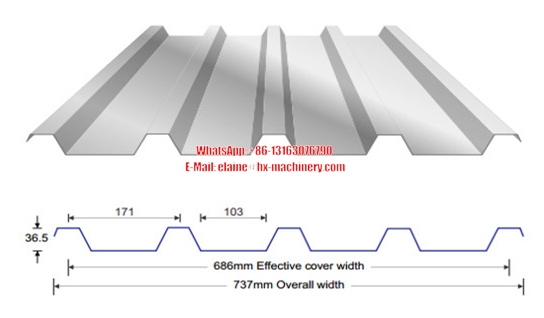

Model: IBR686 and Corrugated 762
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Ibr manufacturing machine roof sheet making machine in South Africa
Haixing ibr manufacturing machine components include: complete roll forming machine, PLC computer control system, hydraulic pump station system, fully automatic post-shearing system.
Equipment features: This color steel plate equipment adopts high-level automatic control software to realize production information management. The entire unit automatic control system adopts a highly integrated network to make the automatic system performance more superior.
Parameters of Ibr manufacturing machine roof sheet making machine in south africa
| Raw material | Color steel coil, aluminum steel coil, galvanized steel coil |
| Thickness | standard 0.3-0.8 mm |
| Raw material feeding width | 925mm |
| Machine size | around 9*1.5 *1.8m |
| Machine weight | around 5ton |
| Rollers | around 18 rollers, it depends on the profile drawing |
| Roller material | number 45 steel |
| Maine motor | 5.5kw |
| Pump motot | 4kw |
| Maine structure | Middle plate |
| Control systerm | PLC control, automatic produce |
| Decoiler | 7ton manual decoiler for free. And hydraulic decoiler is your option |
| Out put table | 3meter no power out put table for free. Auto stacker is your option |

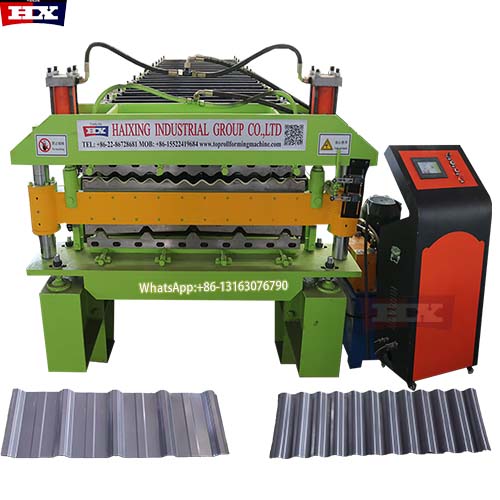

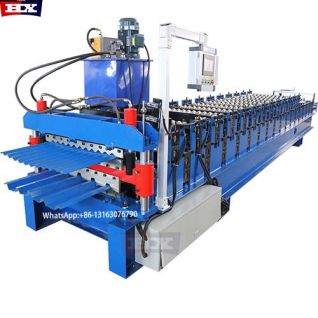

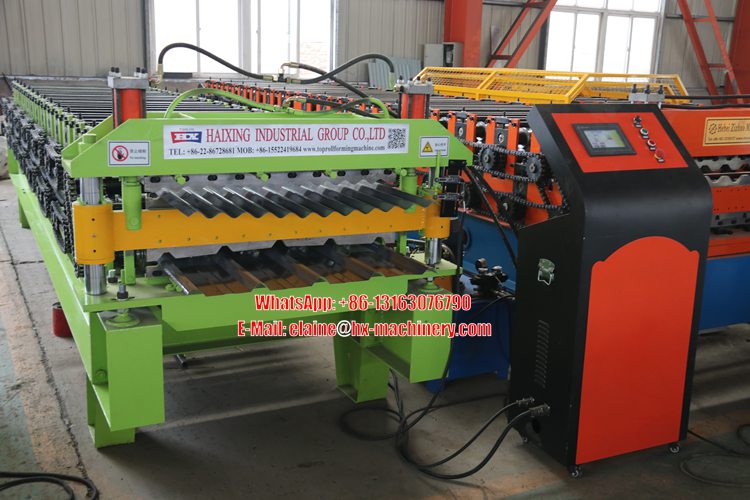

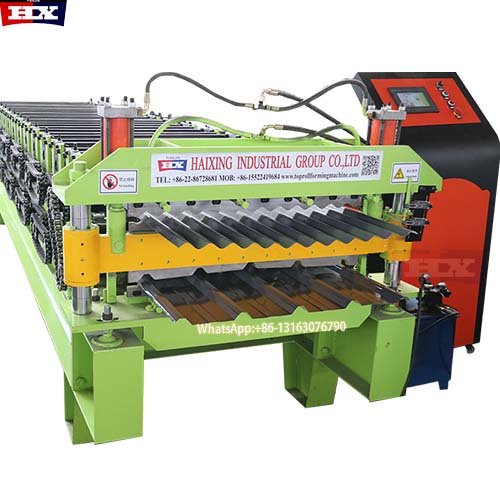

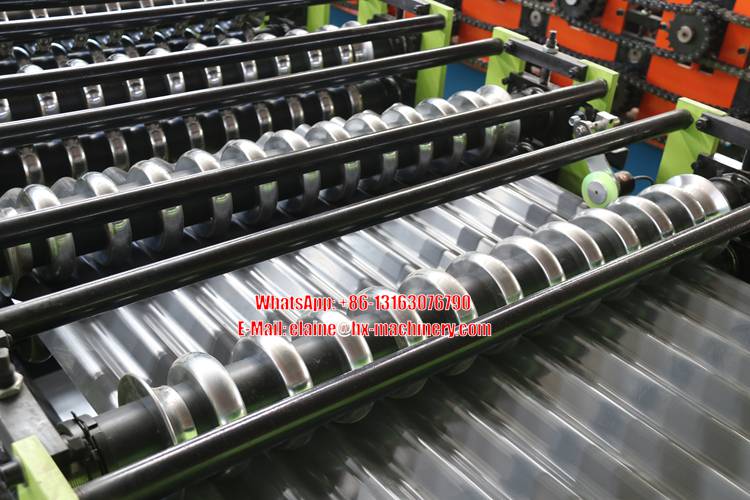

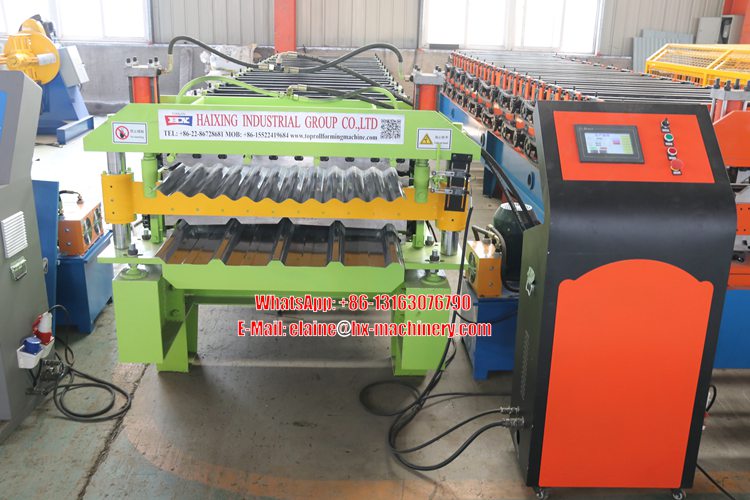

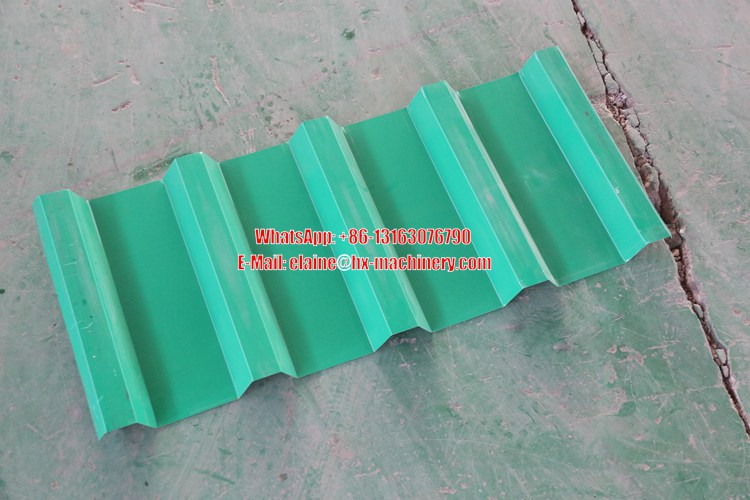

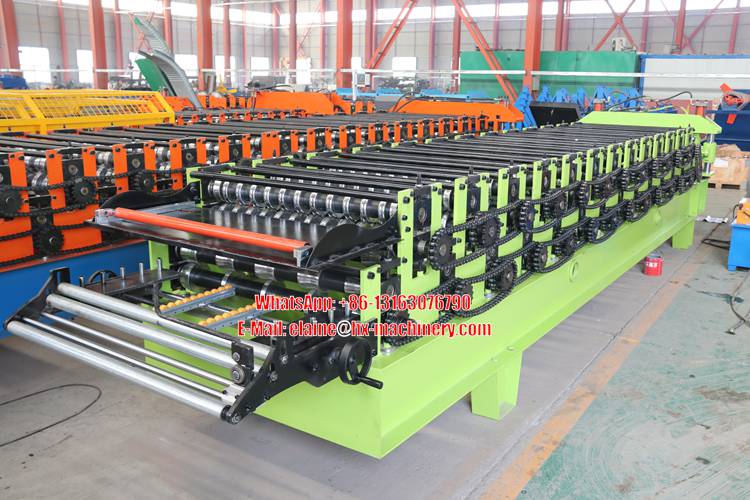

Ibr manufacturing machine roof sheet making machine in south africa photo for reference
Composition for Ibr manufacturing machine roof sheet making machine in south africa

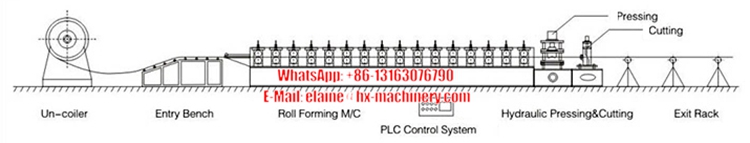

The ibr manufacturing machine include decoiler machine 7Ton, roll forming machine, PLC, Touch screen, servo cut, electric control system, output table 3meters
After sales services for Ibr manufacturing machine roof sheet making machine in south africa
