Delivery time:25-35 days

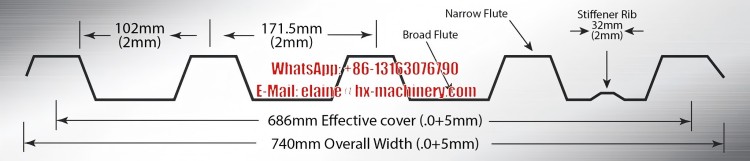

Model: IBR686 and Corrugated 762
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.

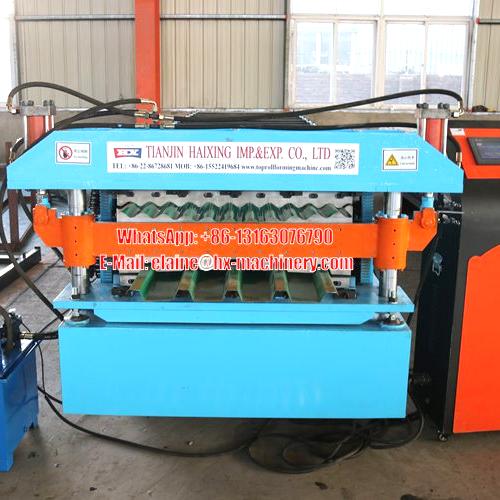

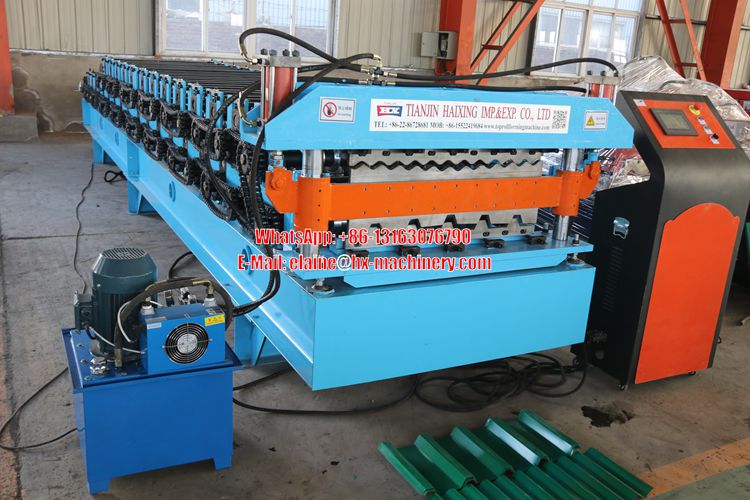

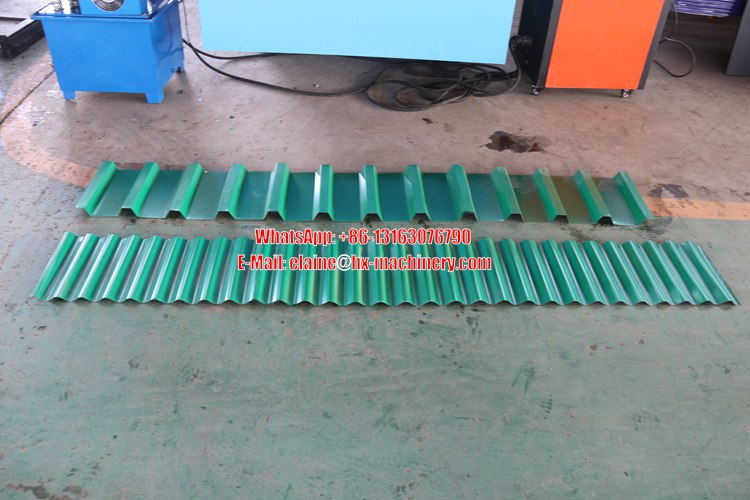

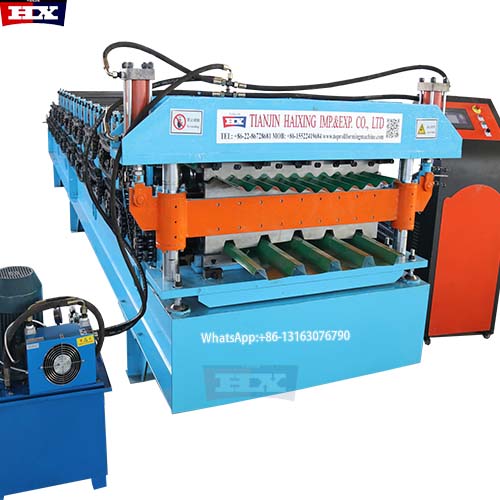

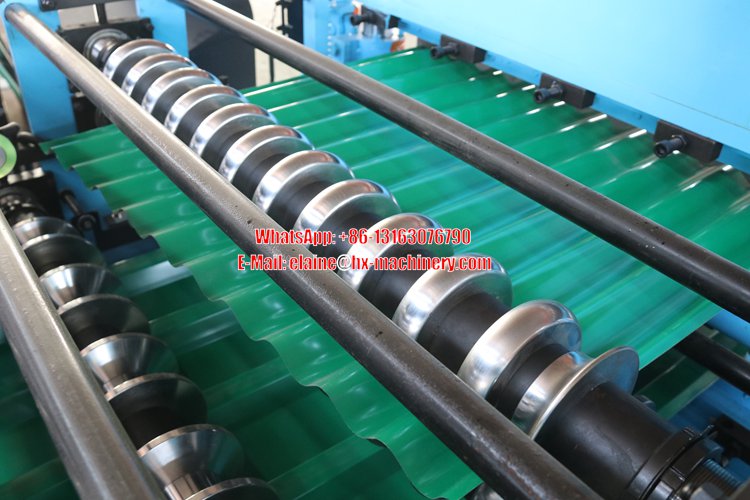

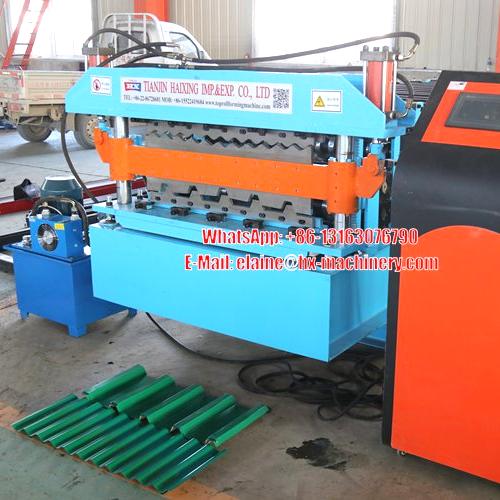

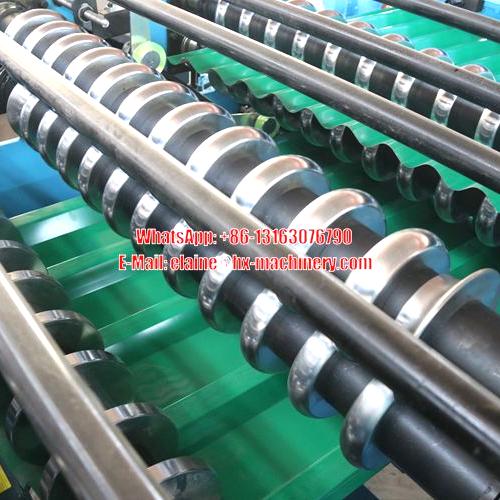

Haixing is professional roof roll forming machine factory in China, we have ibr roof sheeting machine for sale south Africa and corrugated iron making machine in south Africa, and we also have double layer roof machine for produce both IBR roof sheet and corrugated iron sheet, this machine is more cost and with high quality.
Raw material | Color steel coil, aluminum steel coil, galvanized steel coil |
Thickness | standard 0.3-0.8 mm |
Raw material feeding width | 925mm |
Machine size | around 9*1.5 *1.8m |
Machine weight | around 5ton |
Rollers | around 18 rollers, it depends on the profile drawing |
Roller material | number 45 steel |
Maine motor | 5.5kw |
Pump motot | 4kw |
Shaft diameter | 75mm |
Maine structure | Middle plate |

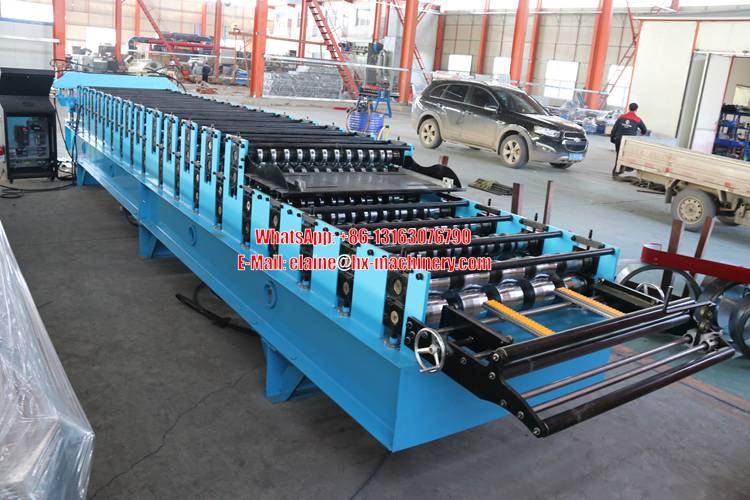

Transmission | Chain drive |
Control systerm | PLC control, automatic produce |
Decoiler | 7ton manual decoiler for free. And hydraulic decoiler is your option |
Out put table | 3meter no power out put table for free. Auto stacker is your option |

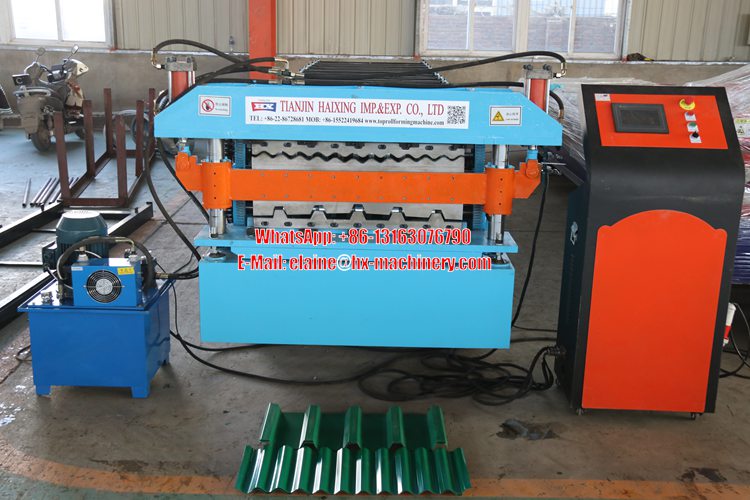

It include decoiler machine 7Ton, roll forming machine, PLC, Touch screen, servo cut, electric control system, output table 3meters
