ibr making machine price
Delivery time:25-35 days
Model: IBR686 and Corrugated 762
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Ibr making machine price，tianjin Haixing is professional ibr profile roof sheet roll forming machine factory in China with over 20 years. this machine is our hot machine model in South Africa,Zimbabwe.
We produce roof&wall roll forming machine, also produce light steel keel roll forming machine, purlin roll forming machine, leveling slitting and shearing machine, floor deck roll forming machine, bending shearing machine, and decoiler machine and downspout&rain gutter roll forming machine
To know more about ibr making machine price, welcome contact Elaine to know more of 686 ibr roof sheet machine.
Main parameters of ibr making machine price
| Raw material | Color steel coil, aluminum steel coil, galvanized steel coil |
| Thickness | standard 0.3-0.8 mm for 686 ibr roof sheet machine |
| Raw material feeding width | 925mm |
| Machine size | around 9*1.5 *1.8m |
| Machine weight | around 5ton |

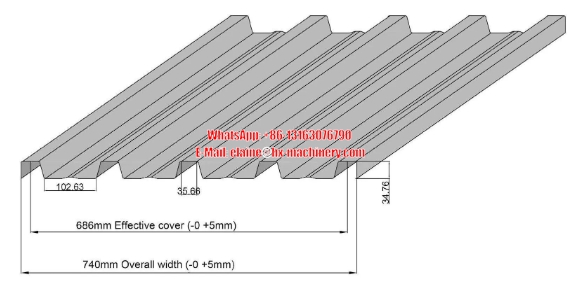

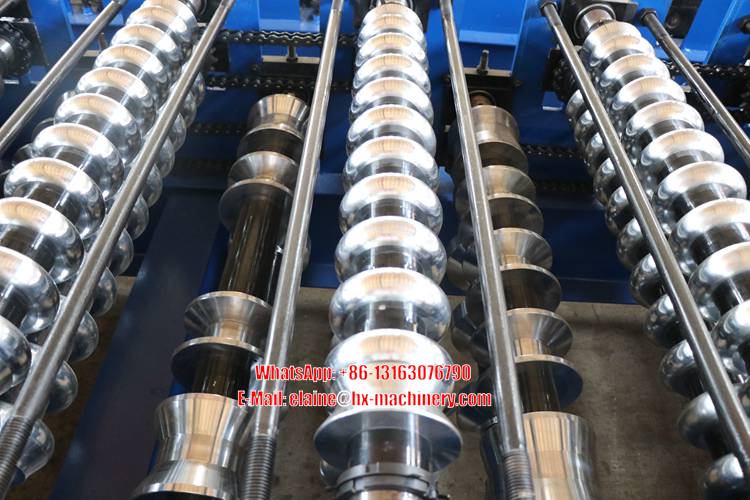

| Rollers | around 18 rollers, it depends on the profile drawing |
| Maine motor | 5.5kw |
| Pump motot | 4kw |
| Shaft diameter | 70mm |
| Maine structure | Middle plate 16mm |
| Control systerm | PLC control, automatic produce |

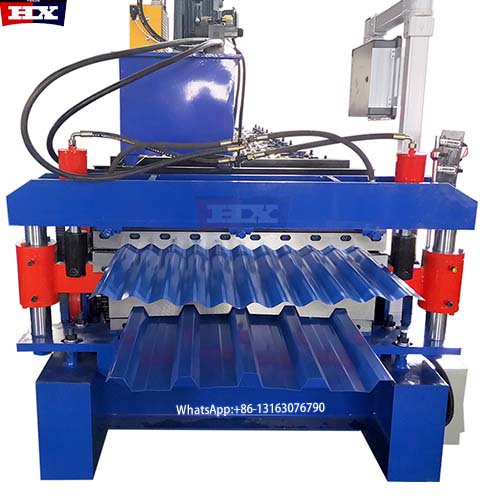

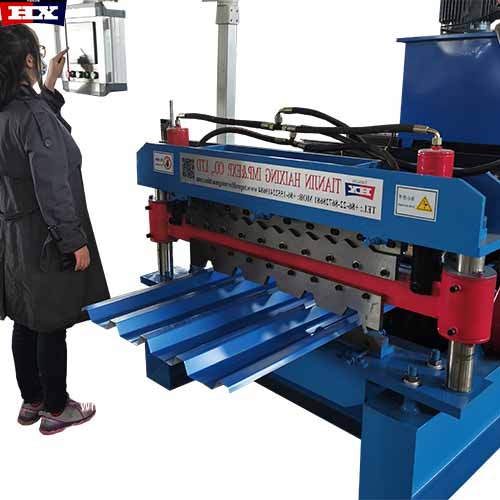

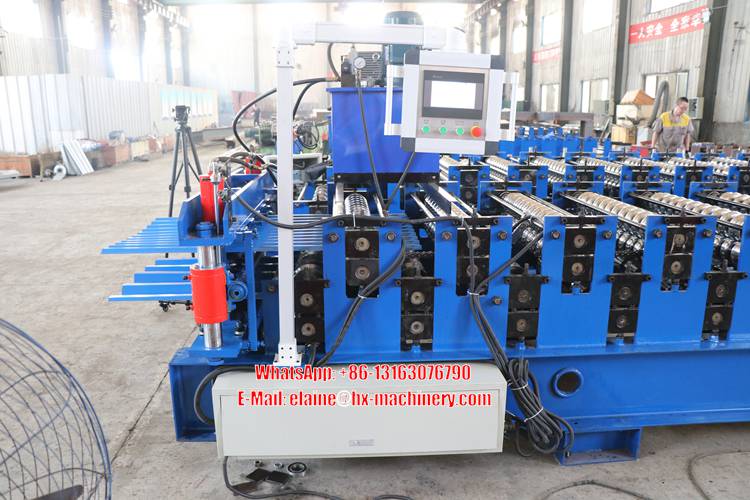

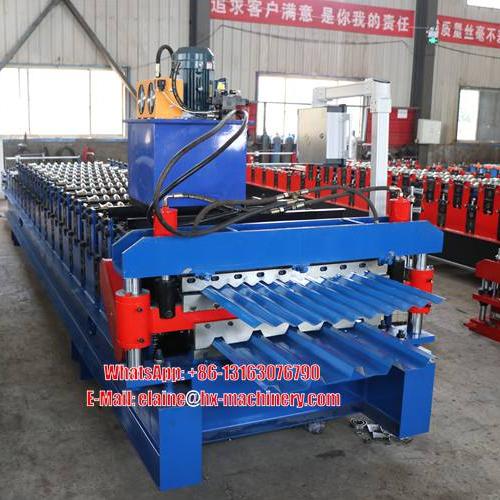

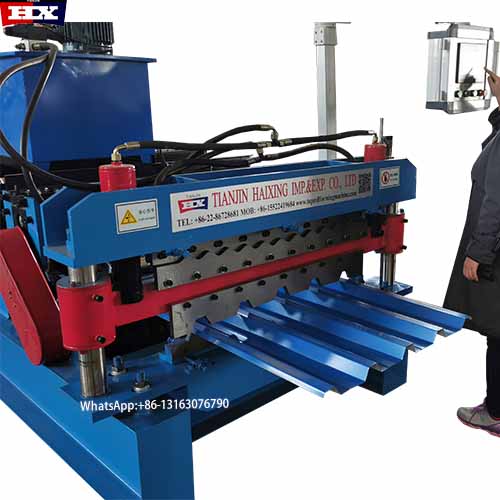

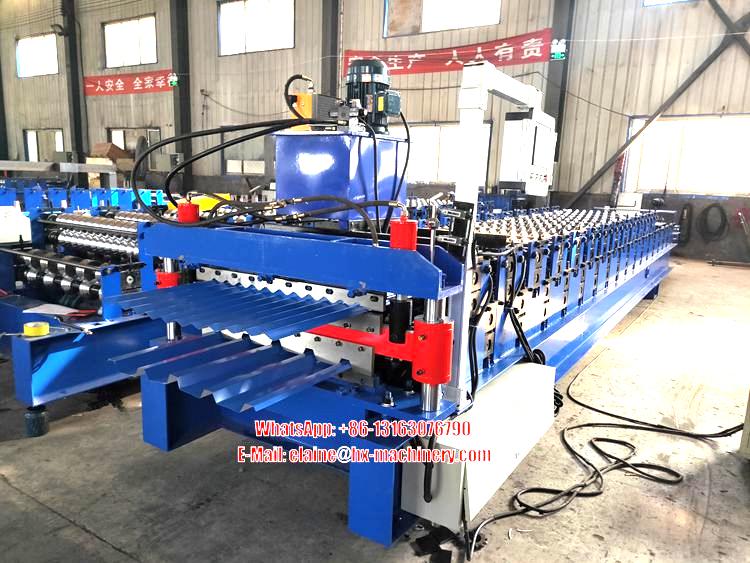

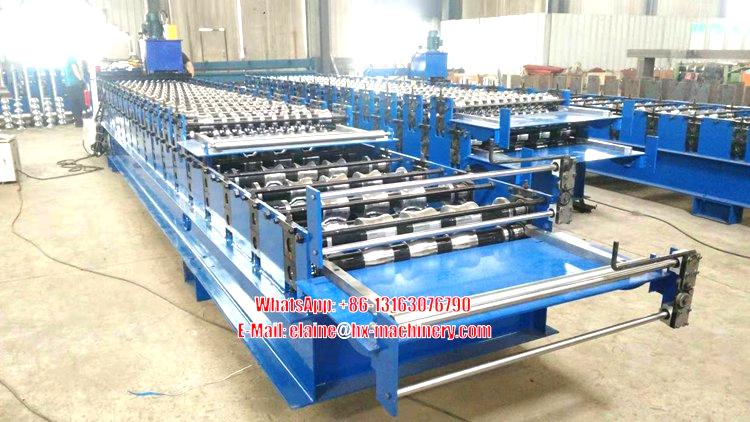

ibr making machine price photo for reference
Composition of ibr making machine price
It include decoiler machine 7Ton, roll forming machine, PLC control systerm, Touch screen, Hydraulic cut, electric control system, output table 3meters
Package of ibr making machine price
ibr making machine are usually provided with nude packing as the standard option. Additionally, they will be wrapped with waterproof plastic to protect the equipment during transportation and storage.
After sales services of ibr making machine price
