Steel stud roll forming machine for drywall
Steel stud roll forming machine for drywall Steel stud roll forming machine for drywall Steel stud roll forming machine for drywall

Steel stud roll forming machine for drywall

Product ID : HAIXING-stud 60
Product Attributes :

Develivery time:30-45 working days


Payment:30% T/T deposit,70% balance before shipping

Warranty :2 years for machinery warranty

Voltage:Standard 380V 50HZ 3Phase or customized.

Product Description

Steel stud roll forming machine

Classification of steel stud roll forming machine :

Keel machines, essential in the realm of construction, come in various classifications tailored to meet diverse structural needs. The primary categories include:

Light Gauge Steel Roll Forming Machines: Ideal for crafting lightweight steel structures.

Commonly used in drywall systems, ceiling systems, and floor systems.

Suited for materials like cold-rolled steel, galvanized steel, and PPGI.

C/U Channel Roll Forming Machines:

Specialized in forming C and U-shaped channels for diverse applications.

Used in constructing frames, supports, and various structural elements.

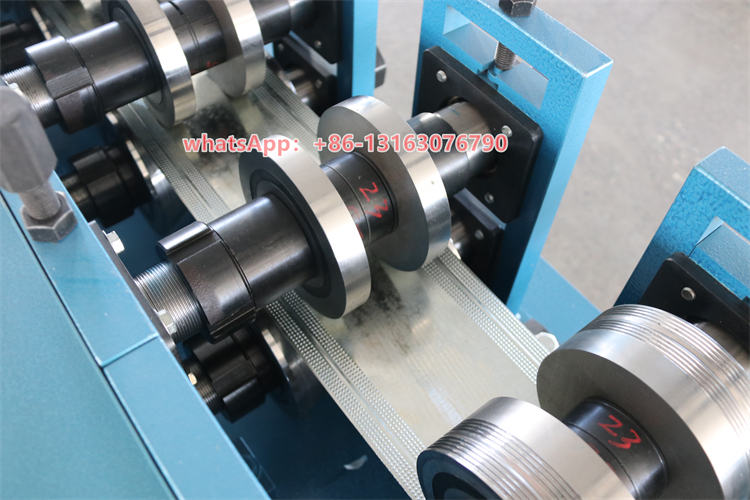

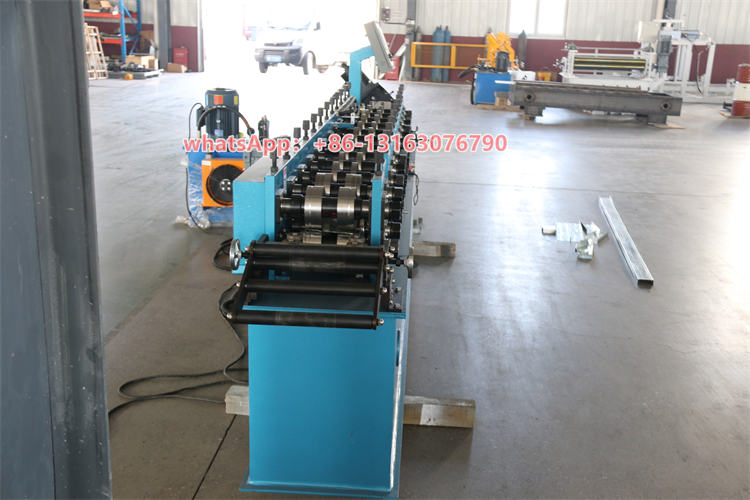

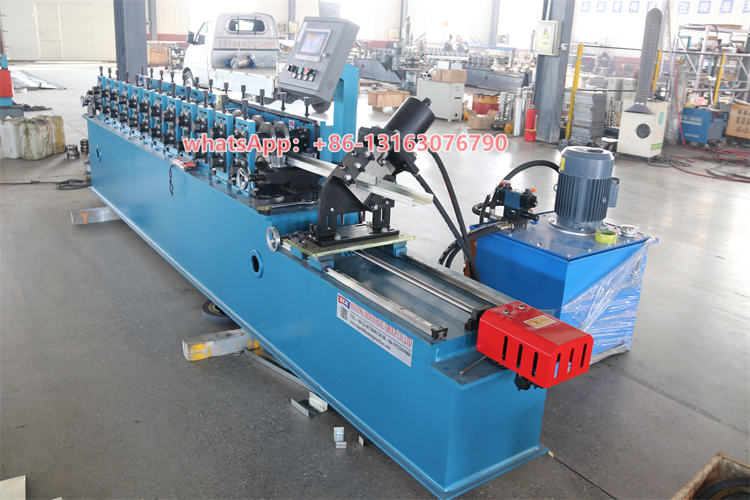

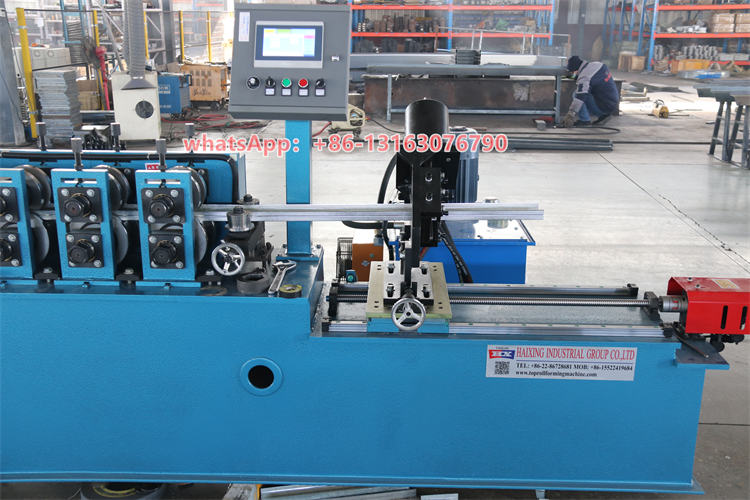

Metal stud and track roll forming machine photo for reference

Main parameters of steel stud roll forming machine

Raw material GI GL PPGI PPGL steel coil
Thickness standard 0.5mm or other thickness as customer need
Machine size around 6*1.2 *1.6m
Machine weight around 2.5 ton
Rollers 14 rollers, it depends on the profile drawing
Roller material CR12 Steel ,Quenched treatment
Maine motor 5.5kw
Pump motot 4kw
Shaft diameter 50mm
Maine structure Arch structure
Transmission Gear/ gear box
Control systerm PLC control
Production 50 meters/minutes
Press word or logo it depend on customer need
Punch hole it depend on customer need

Production Line composition of steel stud roll forming machine

1.Decoiler machine 2.5Ton: manual decoiler/ hydraulic decoiler for operation

2.Steel stud roll forming machine body

3.PLC, Touch screen

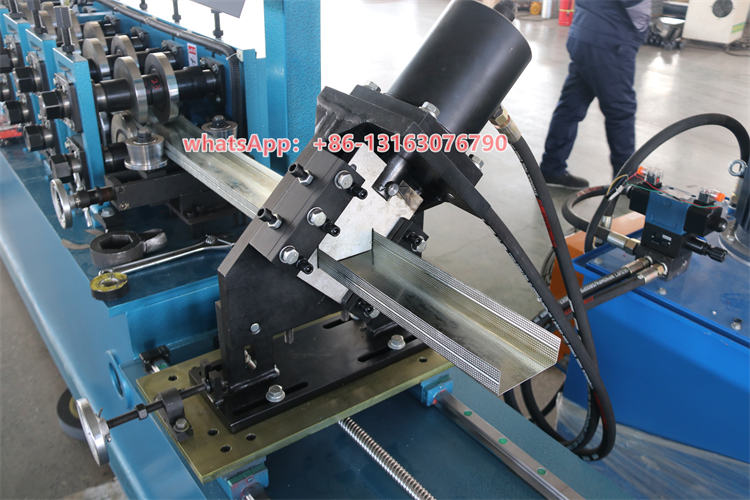

4.Servo cut, motor

5.Output table 3meters: manual output table/ electric out put table for operation

Application of steel stud roll forming machine

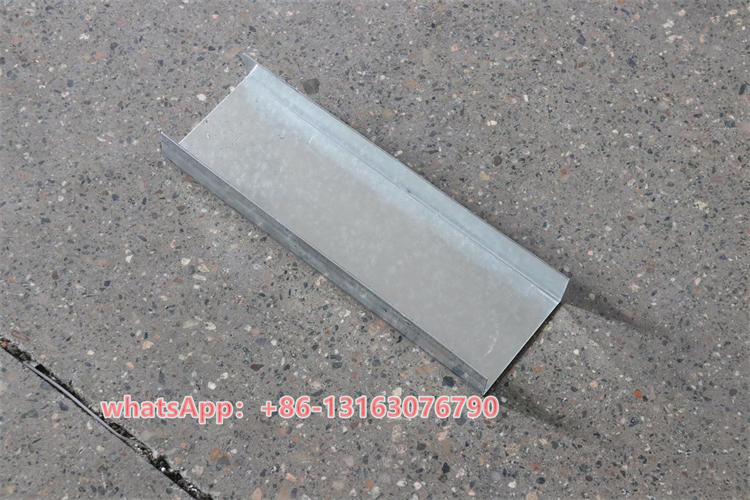

C U channel studs play a crucial role in modern steel framing systems, offering versatile solutions for various construction applications.

Interior Partitions:C U channel studs are widely used in constructing interior partitions, providing a sturdy framework for dividing spaces in residential, commercial, and industrial buildings.

Ceilings and Suspended Systems:For suspended ceilings and overhead structures, C U channel studs offer a reliable and flexible support system. They ensure the stability and durability of ceiling installations.

After sales services of steel stud roll forming machine

At Tianjin Haixing, our commitment to customer satisfaction extends beyond the point of purchase. Our comprehensive after-sales service is designed to provide you with the support and assistance you need, ensuring the optimal performance and longevity of your steel stud roll forming machine .

Two-Year Warranty:Yoursteel stud roll forming machine  is covered by a two-year warranty period, providing peace of mind and assurance in the rare event of manufacturing defects.

Lifetime Technical Support:We offer lifetime technical support for yoursteel stud roll forming machine . Our team of experts is ready to assist you with any queries, troubleshooting, or guidance needed to maximize the efficiency of your equipment.
