c purlin roll forming machine price
Develivery time:50-60 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
Our c purlin roll forming machine price is very nice and quality is higher standard, they are widely used in steel structure buildings, factories, warehouses, large public places and other fields to meet the needs of various buildings.
Our c purlin roll forming machine are energy-saving and environmentally friendly: optimized design, reduced energy consumption, reduced waste emissions, and helped the development of the green building industry.
Easy to operate and maintain: humanized design, easy operation, convenient maintenance, and reduced employee training costs.
For more of c purlin roll forming machine price, please contact us!

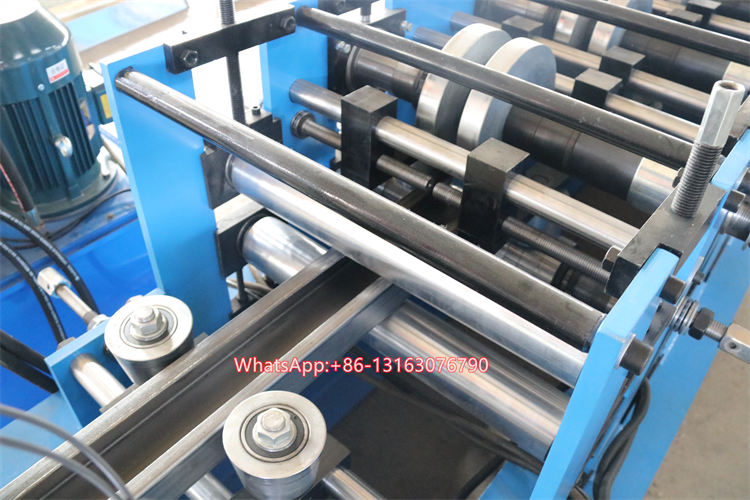

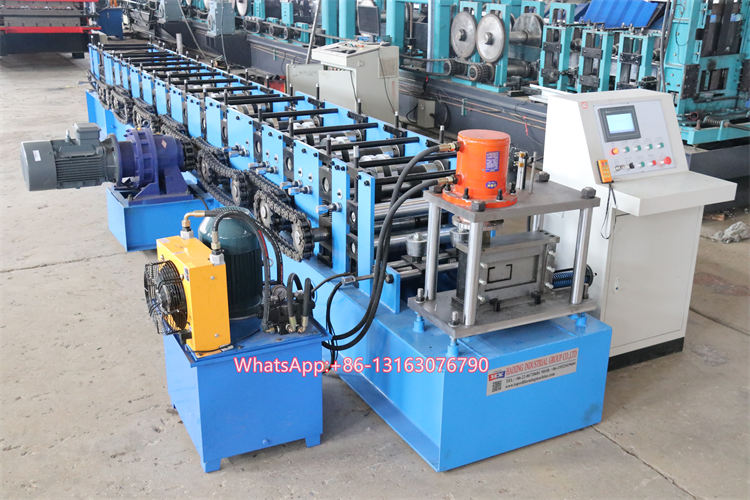

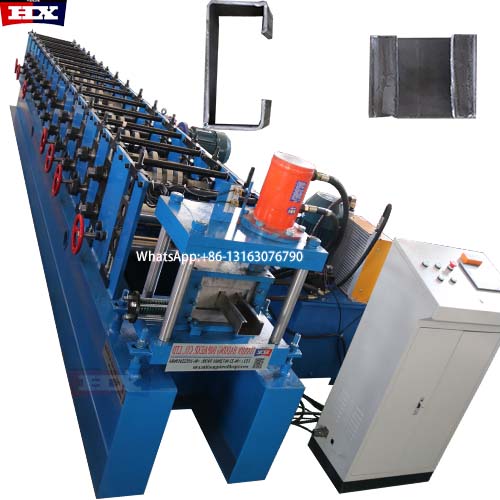

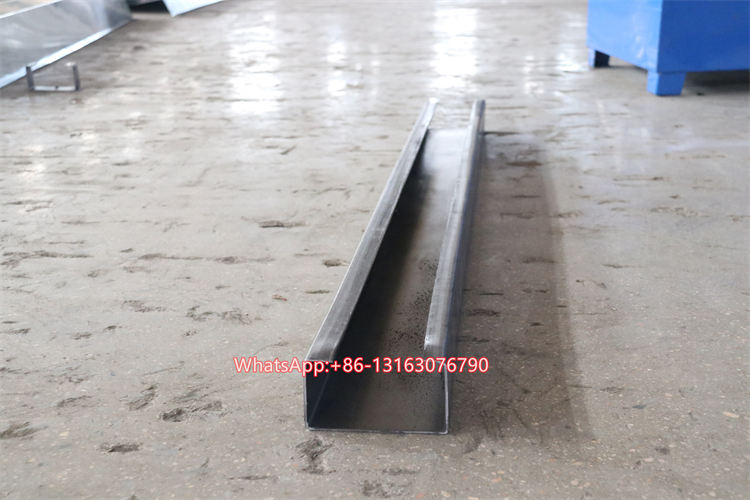

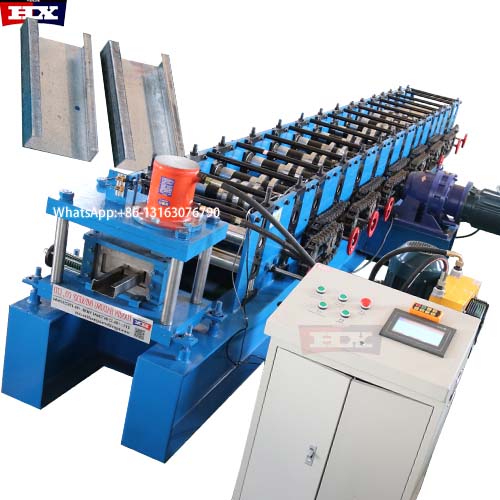

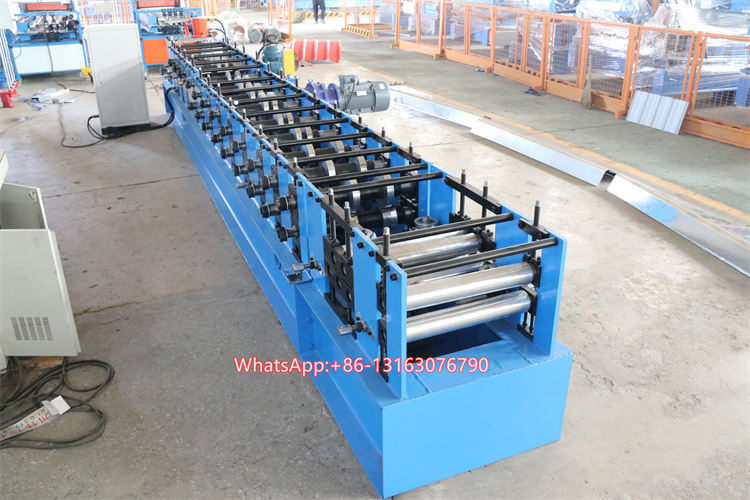

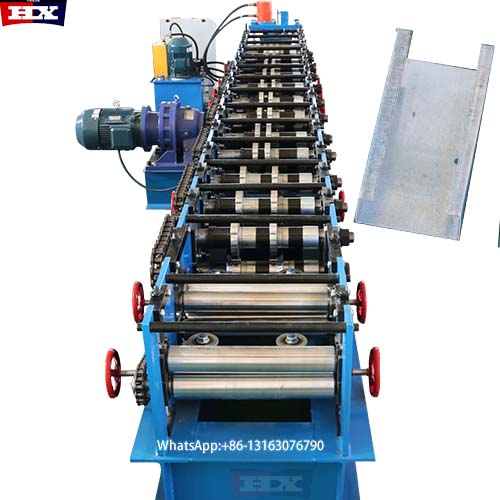

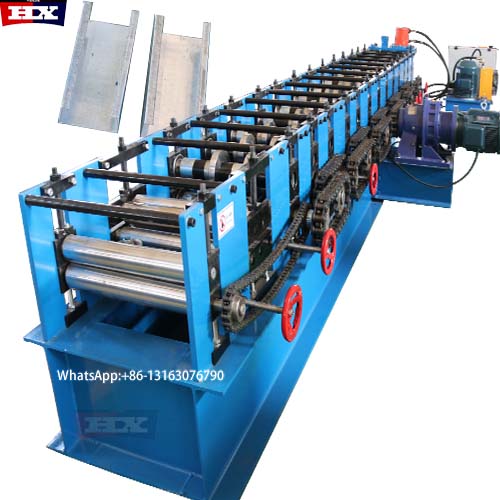

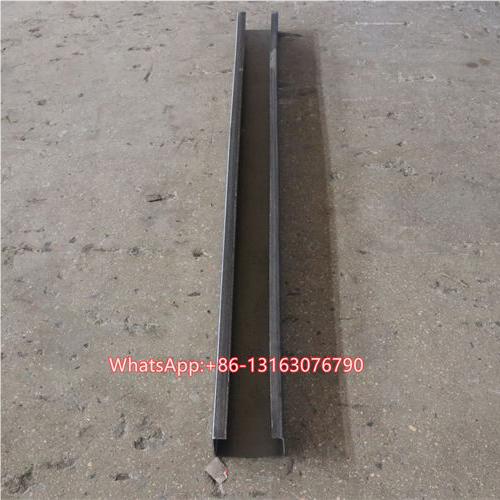

Photo of c purlin roll forming machine for reference
Parameter of c purlin roll forming machine
|
Name
|
c purlin roll forming machine price
|
|
Suitable to process
|
Galvanized steel strips/cold rolled strips
|
|
Roller
|
12Rows
|
|
Dimensions
|
6*1.3*1.5m
|
|
Motor Power
|
5.5kw
|
|
Pump Station Motor
|
5.5Kw.Lichao Brand
|
|
Thickness of the plate
|
1.0mm-3.0mm
|
|
Productivity
|
10-15m/min
|
|
Side wall
|
20mm
|
|
Material of the cutting blade
|
Cr12MoV,Quenched treatment 58ºC-60ºC
|
|
Diameter of the roller
|
80mm
|
|
Weight
|
About 5000Kgs
|
|
Main structure of the machine
|
450 H steel
|
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
Control system
|
PLC control
|
|
Drive mode
|
Motor driver
|
|
Rolling materials
|
GCr15(bearing steel)hard chrome plated after heat treatment
|
|
Length Tolerance
|
±2mm
|
|
Type of cutting
|
Length-set cutting Guiding pipe Hydraulic cutter Each side one Oil cylinder |
Advantage of c purlin roll forming machine
- Efficient production - Fully automatic operation greatly improves production efficiency and shortens engineering cycle. Intelligent control system simplifies operation process and one-button start.
- Precise cutting - High-precision cutting technology ensures that the size of each keel is accurate and error-free. Powerful cutting ability to adapt to various materials and size requirements.
- Durable and reliable - High-quality raw materials are used, which is durable and reduces maintenance costs. Precision technology ensures long-term stable operation of the equipment and reduces the failure rate.
After-sales service of c purlin roll forming machine
Multi-language support makes communication smoother;
Regular cross-border return visits show sincerity;
Remote video guidance is convenient and fast;
Feedback channels help improve services;
Training exchanges enhance customer experience, etc.
