Roller shutter machine for sale
Develivery time:30-45 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.

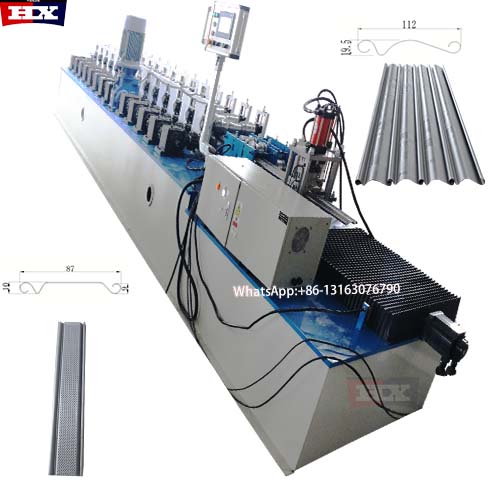

Roller shutter machine for sale- HAIXING SUPPLY
The roller shutter machine for sale , the process includes: unwinding, punching, feeding, forming, cutting, and collecting.

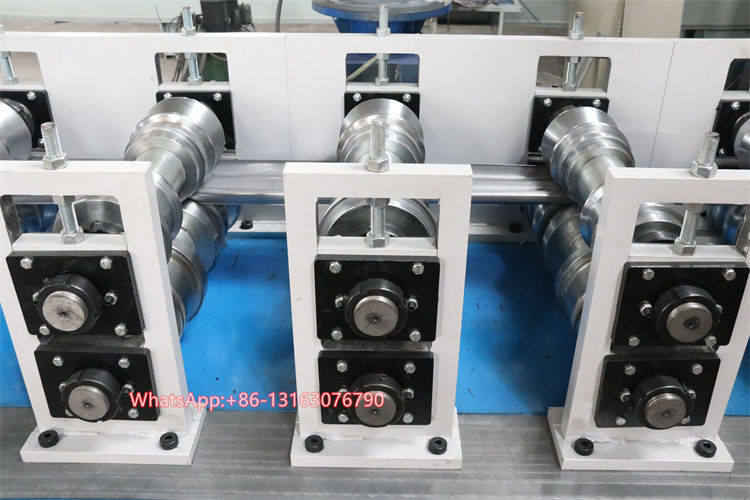

Technical parameters: 14 forming rows, shaft material is 45# steel, diameter is 70mm, and the rotation mode is gearbox rotation.
The forming speed can reach 30m/min.
It can be automatically controlled by PLC.
Provide 2-year warranty and lifetime technical support

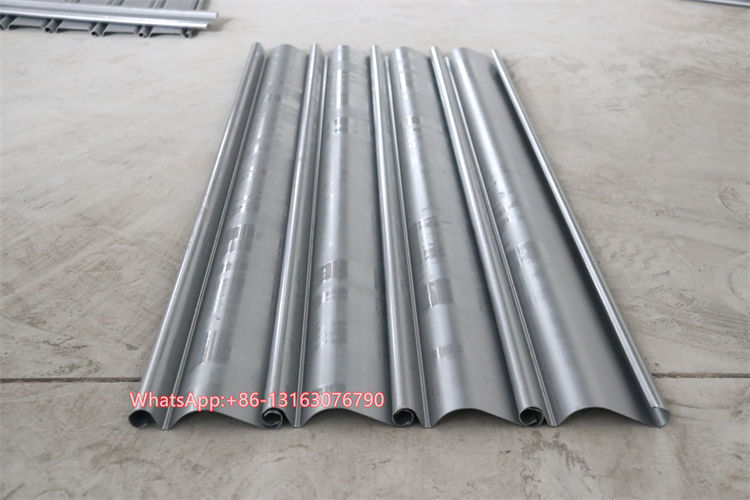

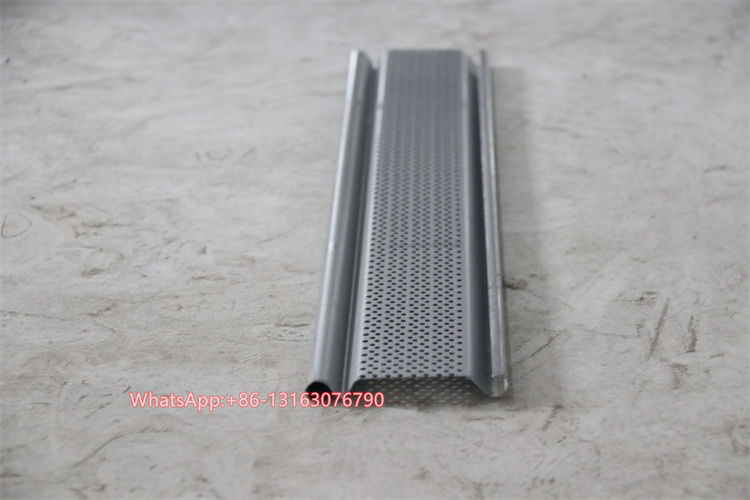

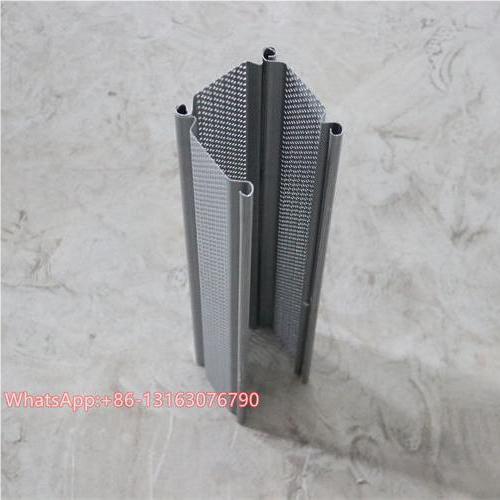

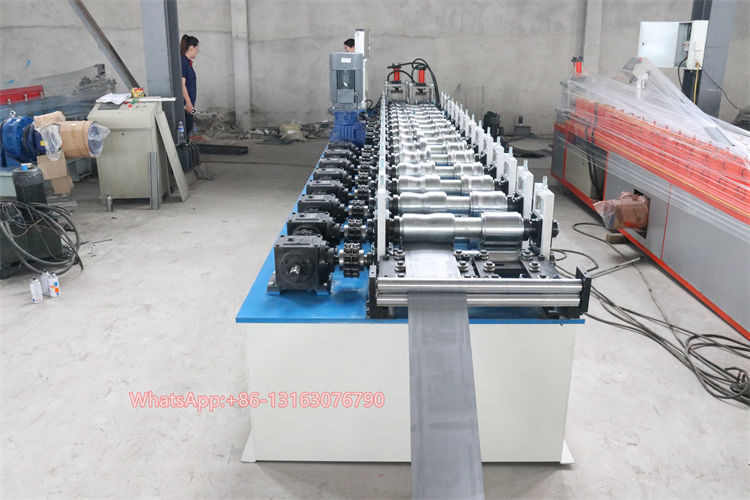

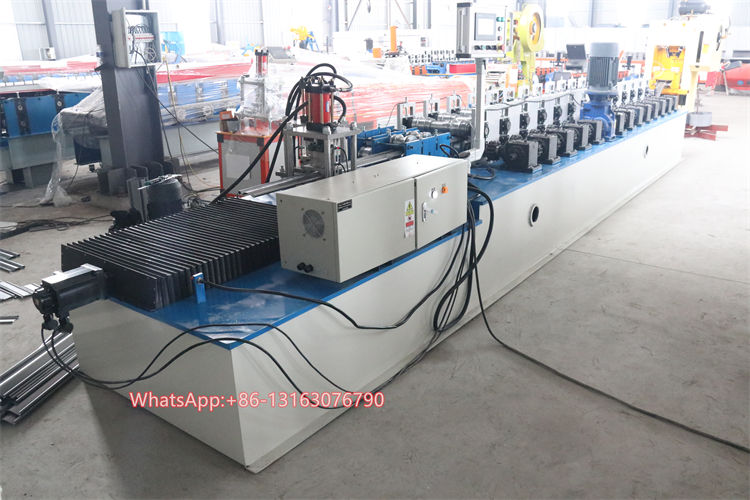

Roller shutter machine for sale photo for reference

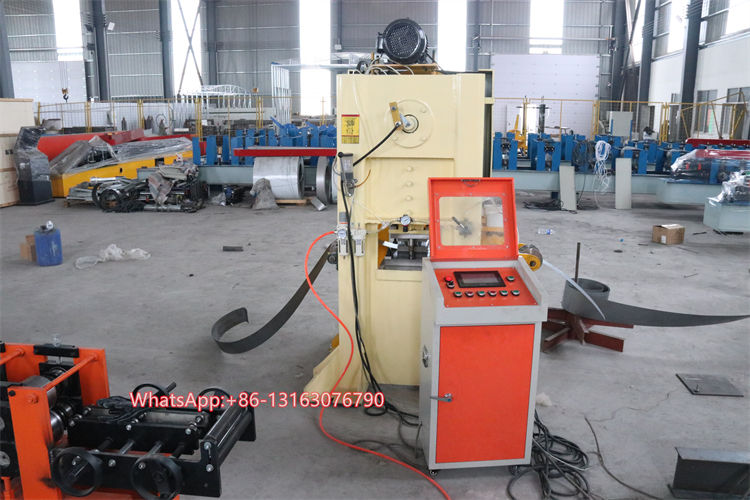

Punch machine
Roller shutter machine for sale machine parameters
| Raw material | GI GL PPGI PPGL |
| Thickness | standard 0.7-1.5 or other thickness as you need |
| Machine size | around 6.5*1.6 *1.6m |
| Machine weight | around 2ton |
| Rollers | around 14 rollers, it depends on the profile drawing, CR12 Steel |
| Cut | servo tracking cut |
| Maine motor | 7.5kw |
| Pump motot | 3kw |
| Shaft diameter | 70mm |
| Maine structure | Arch structure |
| Transmission | Gear box or chain |
| Control systerm | PLC control |
| Punch hole | High speed punch machine |
| Out put table | 3 meter, we have manual one and Pneumatic one |

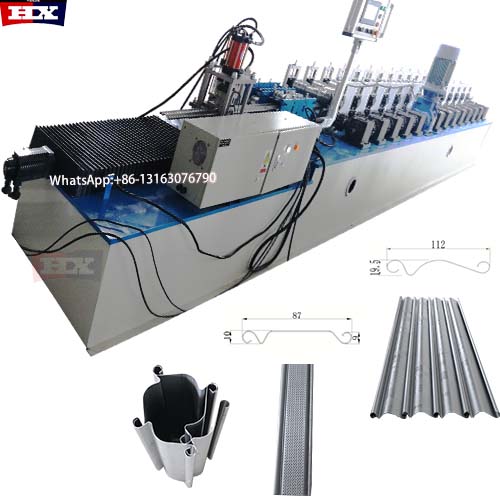

Roller shutter machine for sale production Line composition
It include decoiler machine 2 Ton, punch machine, roll forming machine, PLC control, Touch screen, servo tracking cut, output table 3 meters.
Roller shutter machine for sale after sales services
Customer follow-up: After the sale, the manufacturer will follow up with the customer regularly to ensure that the equipment is operating normally and solve any problems that may arise in a timely manner.
Repair service: 2-year warranty, after the warranty period ends, repair service is usually provided
