Shutter door machine
Develivery time:30-45 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
Roller shutter machine
Gearbox shutter door machine is a professional equipment for the production of rolling doors, which is widely used in industrial and commercial places. We have one line shutter door machine which can produce one shape , also have two line shutter door machine which can produce two shape together, It will save place for you.
HXAIXING shutter door machine:
Technical parameters include: unwinder 2 tons, main machine forming 14 rollers, hydraulic cutting, PLC automatic control system, roller discharge table.
The main machine power is 7.5KW, and the hydraulic power is 3KW.
The transmission mode is gearbox transmission.
The feed plate thickness range is 0.7-1.5mm

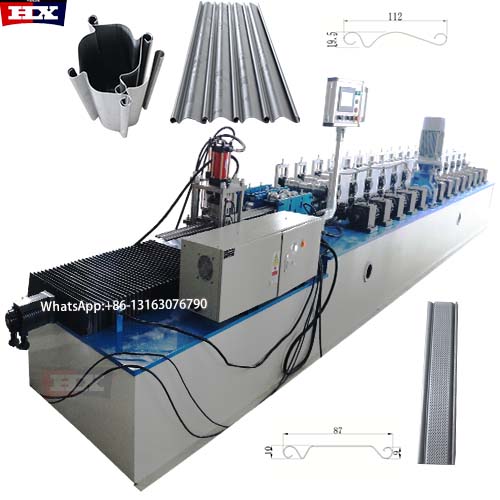

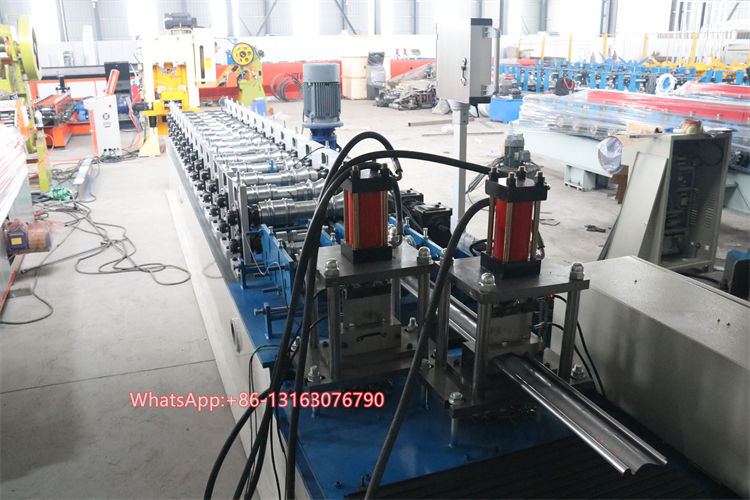

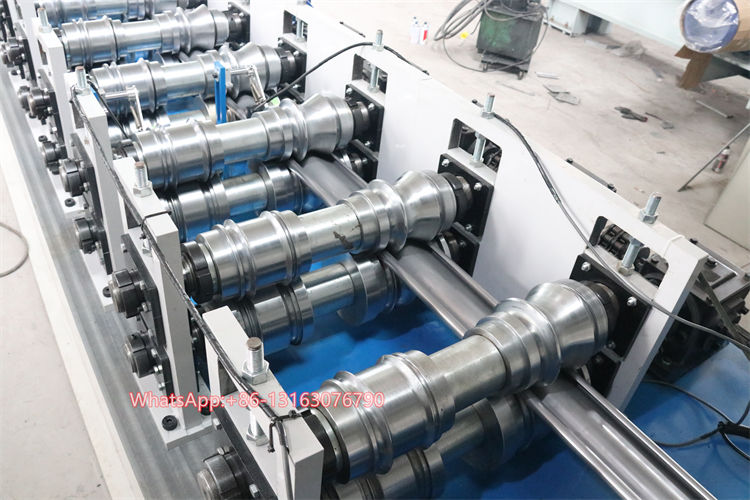

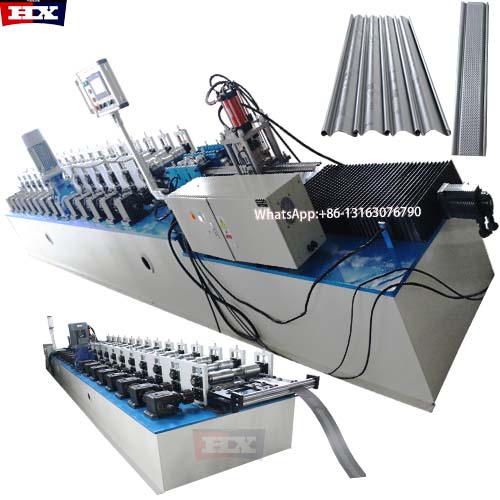

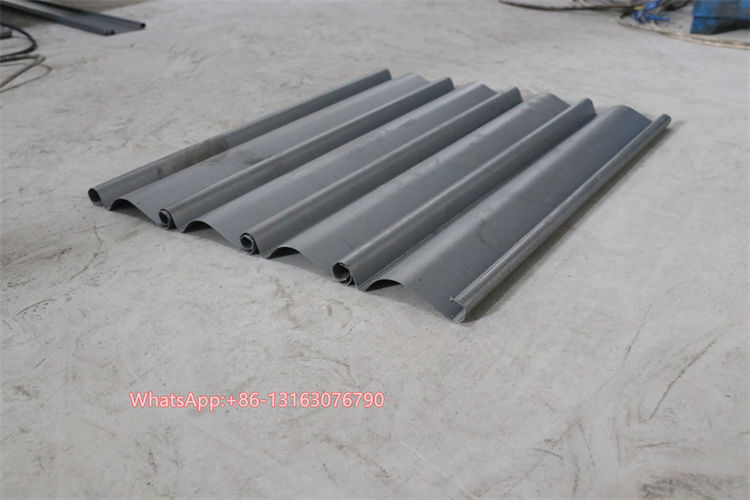

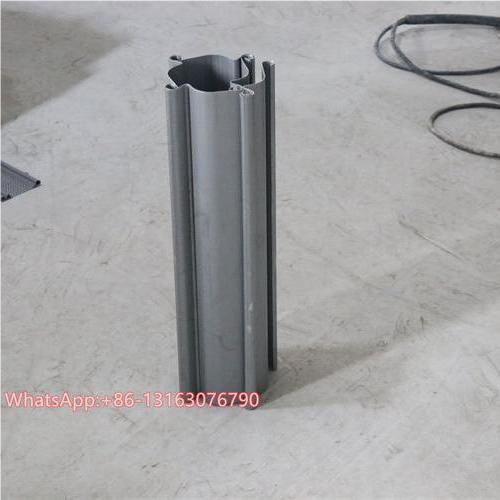

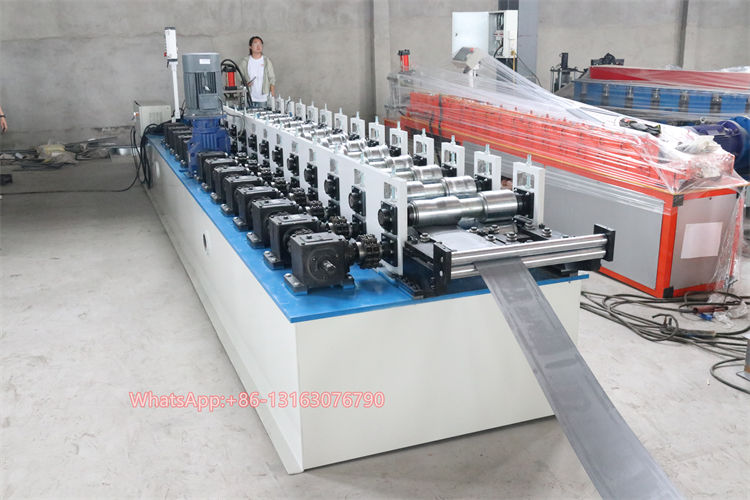

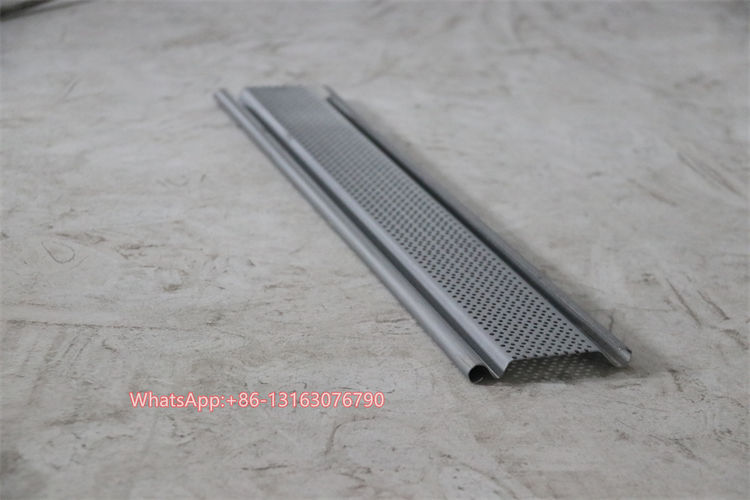

Shutter door machine photo for reference
Shutter door machine parameters
| Raw material | GI GL PPGI PPGL |
| Thickness | standard 0.7-1.2 or other thickness as you need |
| Machine size | around 6.5*1.6 *1.6m |
| Machine weight | around 2ton |
| Rollers | around 14 rollers, it depends on the profile drawing, CR12 Steel |
| Cut | servo tracking cut |
| Maine motor | 7.5kw |
| Pump motot | 3kw |
| Shaft diameter | 70mm |
| Maine structure | Arch structure |
| Transmission | Gear box |
| Control systerm | PLC control |
| Punch hole | High speed punch machine |
| Out put table | 3 meter, we have manual one and Pneumatic one |
Shutter door machine production Line composition
It include decoiler machine 2Ton, punch machine, roll forming machine, PLC control, Touch screen, servo tracking cut, output table 3 meters.
Shutter door machine after sales services
The after-sales service of the gearbox shutter door machine usually includes the following aspects:
Warranty period: 2 years warranty period is provided. And lifetime technical support is provided during this period.
Technical support provides lifetime technical support, and also dispatches engineers to help with installation and train workers
