Shutter profile making machine
Develivery time:30-45 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.

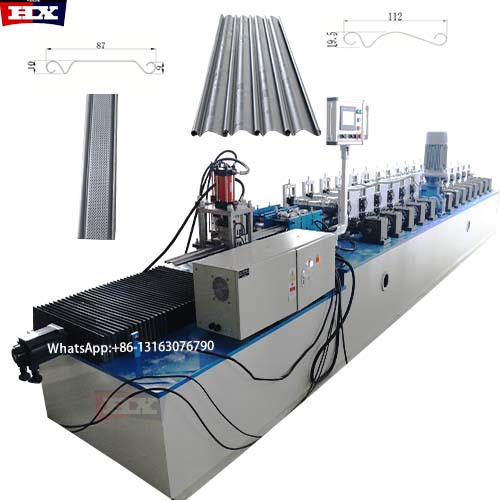

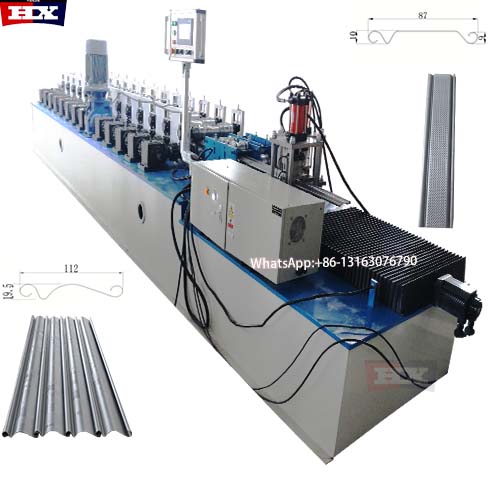

Shutter profile making machine
Haixing shutter profile making machine is high standard quality, two line shutter profile making machine can produce two shape with two cut head, it's durability: The molding machine adopts high-quality materials and precision manufacturing technology, with strong durability and low failure rate.
Good safety performance: Equipped with safety protection devices to ensure the safety of operators.
Space saving: The molding machine has a compact design and small footprint, suitable for factories and production environments of different sizes

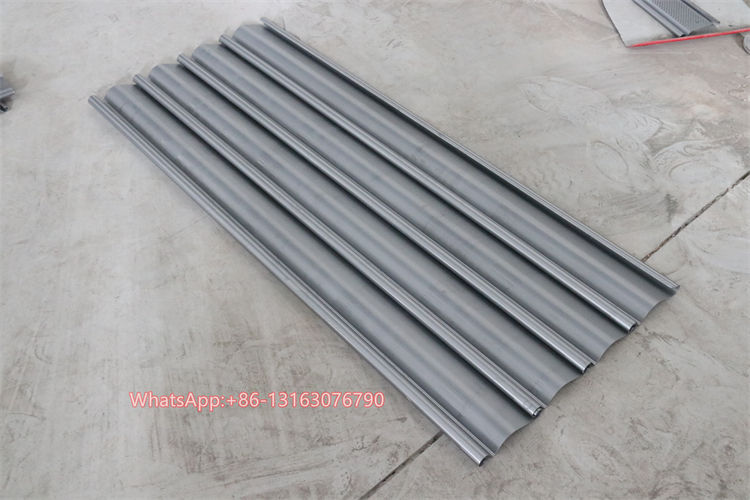

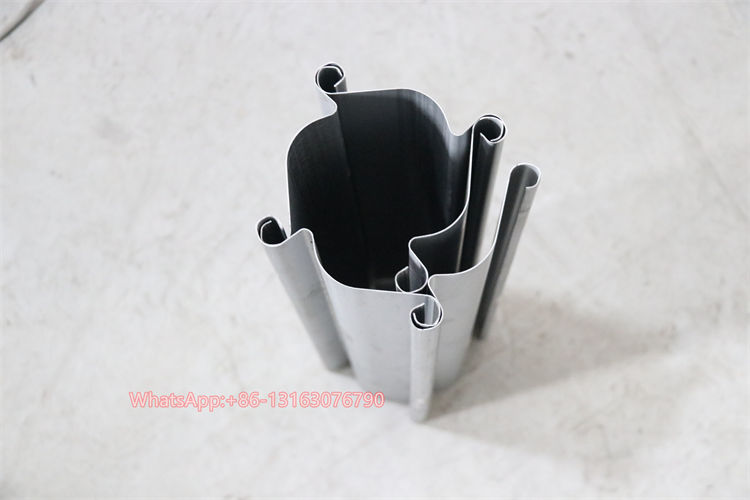

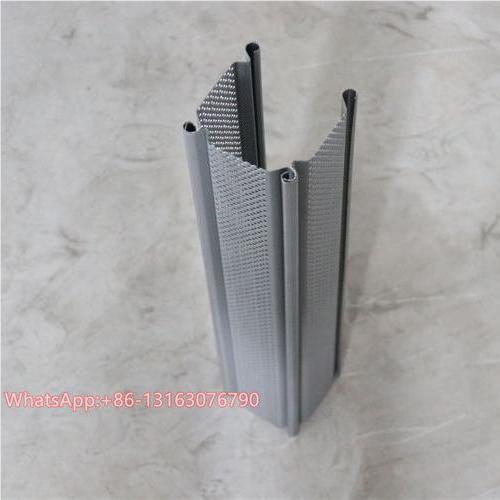

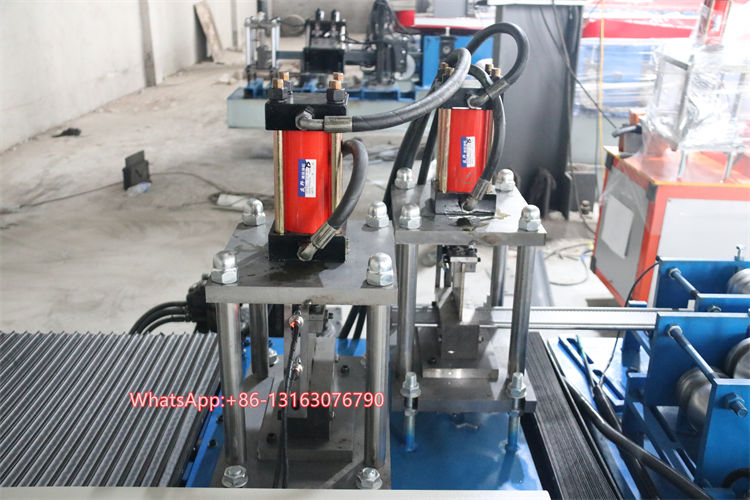

Shutter profile making machine for reference
Shutter profile making machine parameters
| Raw material | GI GL PPGI PPGL |
| Thickness | standard 0.7-1.5 or other thickness as you need |
| Machine size | around 6.5*1.5 *1.6m |
| Machine weight | around 2-3ton |

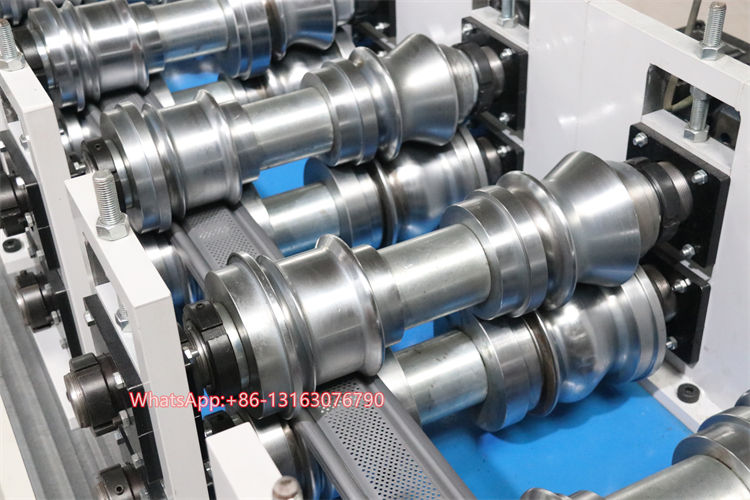

| Rollers | around 14 rollers, it depends on the profile drawing, CR12 Steel |
| Cut | servo tracking cut |
| Maine motor | 7.5kw |
| Pump motot | 3kw |
| Shaft diameter | 70mm |
| Maine structure | Arch structure |

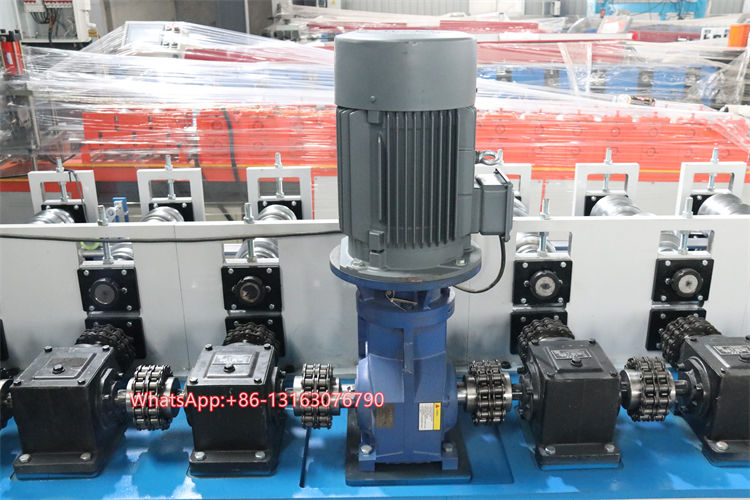

| Transmission | Gear box or chain drive |
| Control systerm | PLC control |
| Punch hole | High speed punch machine |
| Out put table | 3 meter, we have manual one and Pneumatic one |
Shutter profile making machine production Line composition
automatic rolling shutter machine include decoiler machine 2 Ton, High speed punch machine, feeding device, roll forming machine, PLC control, Touch screen, servo tracking cut, Pneumatic output table 3 meters.
Shutter profile making machine after sales services
Lifetime service support: Provide technical support for the entire service life of the machine.
2-year warranty: Free replacement parts are provided for damaged parts caused by quality problems.
Overseas service optional: Technicians can be dispatched to the customer's factory for installation and worker training at an additional cost
