Double line rolling shutter machine price
Develivery time:30-45 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.

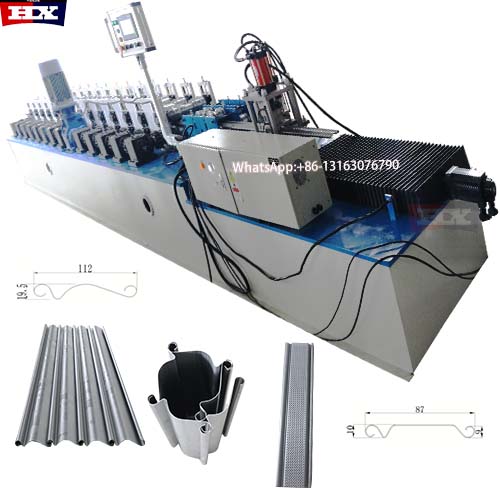

Roller shutter machine price-double line machine

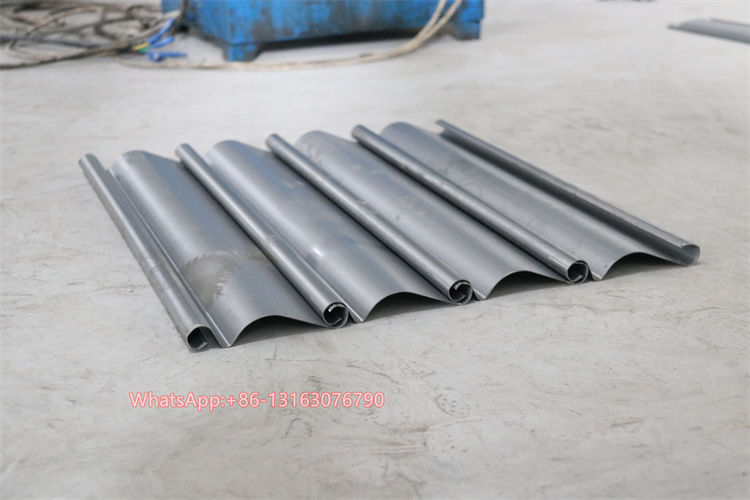

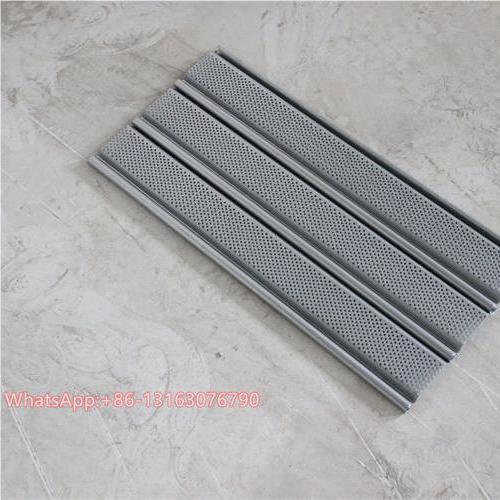

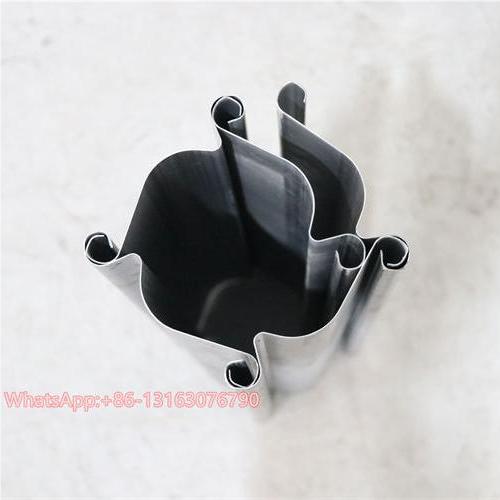

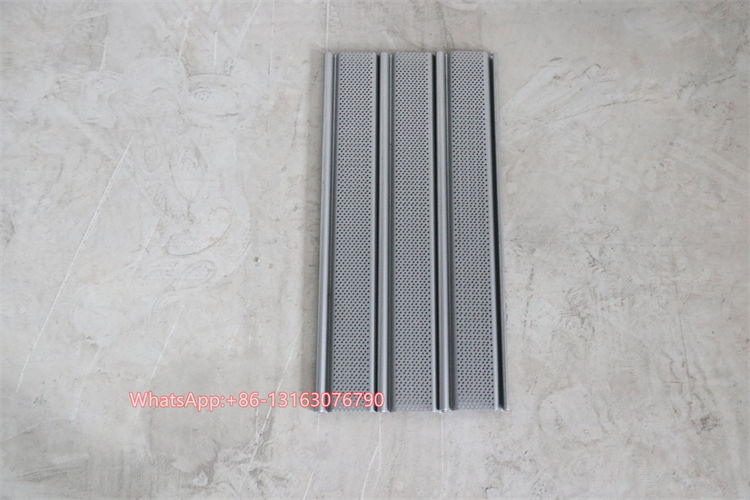

Haixing double line rolling shutter machine price is reasonable and hot sell in Saudi Arabia, one machine can produce two shape of shutter door, it can punch hole and no punch hole, both ok. And with gearbox drive and arch structure with high speed of 30m/min
The advantages of the rolling shutter door automatic forming machine are mainly reflected in the following aspects:
1.High degree of automation: The automatic molding machine greatly improves production efficiency and reduces the need for manual operations through computer control and automated processes.
2.Improved production efficiency: Compared with traditional manual or semi-automatic production methods, automatic molding machines can complete the production of rolling shutter doors more quickly and significantly increase output.
3.Improved accuracy and quality: The automatic molding machine adopts a precise control system to ensure the accuracy of rolling shutter door molding and improve the overall quality of the product.

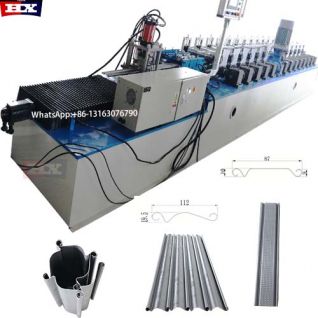

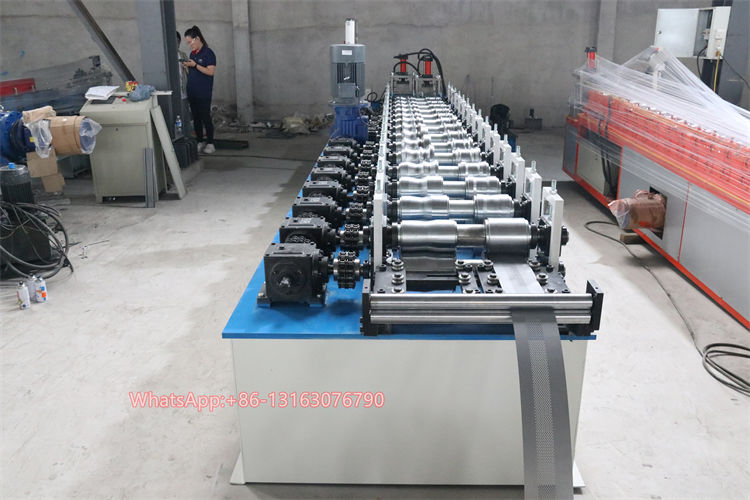

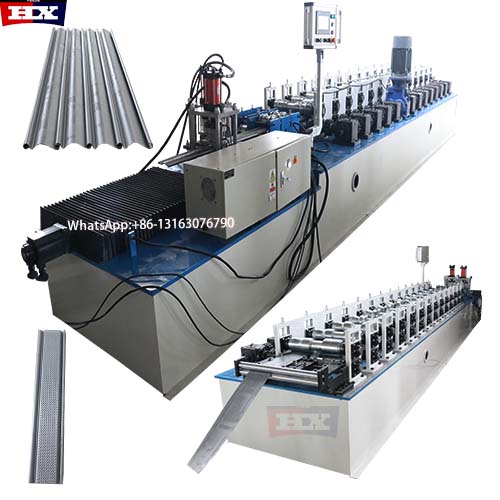

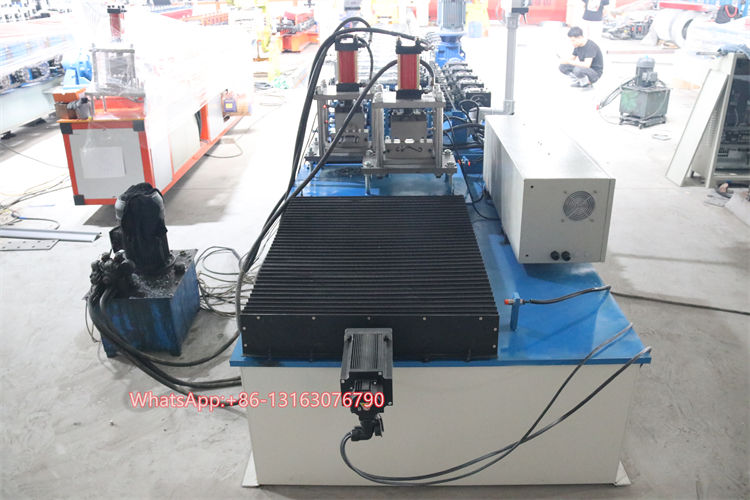

Double line rolling shutter machine photo for reference

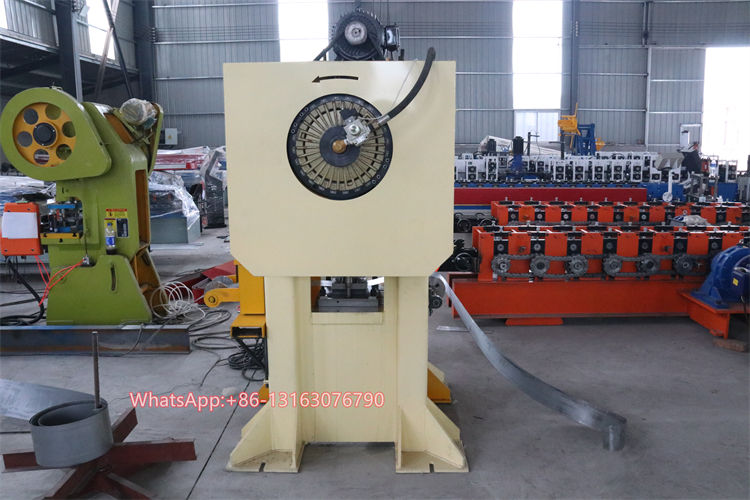

Punch machine
Double line rolling shutter machine parameters
| Raw material | GI GL PPGI PPGL |
| Thickness | standard 0.7-1.2 or other thickness as you need |
| Machine size | around 6.5*1.6 *1.6m |
| Machine weight | around 2ton |
| Rollers | around 14 rollers, it depends on the profile drawing, CR12 Steel |
| Cut | servo tracking cut |
| Maine motor | 7.5kw |
| Pump motot | 3kw |
| Shaft diameter | 70mm |
| Maine structure | Arch structure |
| Transmission | Gear box |
| Control systerm | PLC control |
| Punch hole | High speed punch machine |
| Out put table | 3 meter, we have manual one and Pneumatic one |
Double line rolling shutter production Line composition
It include decoiler machine 2Ton, punch machine, roll forming machine, PLC control, Touch screen, servo tracking cut, output table 3 meters.
Double line rolling shutter after sales services
1. 2 years warranty on BL date.
2. Our dedicated team of technical experts is available 24/7 to provide assistance, answer queries, and address any concerns you may have regarding the operation of your steel framing machine.
