Shutter rolling machine price
Shutter rolling machine price Shutter rolling machine price Shutter rolling machine price Shutter rolling machine price Shutter rolling machine price

Shutter rolling machine price

Product ID : HAIXING-Shutter door 85
Product Attributes :

Develivery time:30-45 working days

Model:HAIXING-CU

Payment:30% T/T deposit,70% balance before shipping

Warranty :2 years for machinery warranty

Voltage:Standard 380V 50HZ 3Phase or customized.

Product Description

Shutter rolling machine price

Haixing shutter rolling machine price is resonable with high level standard quality, our shutter rolling machine is Environmentally friendly: Low energy consumption and little environmental pollution during the production process. To know more of shutter rolling machine price, please contact us.

High return on investment: Although the initial investment is relatively high, due to its efficient and stable production capacity, the return on investment is high in the long run.

These advantages of the gearbox rolling door forming machine make it an ideal choice for rolling door manufacturers, which helps to improve the market competitiveness and economic benefits of enterprises.

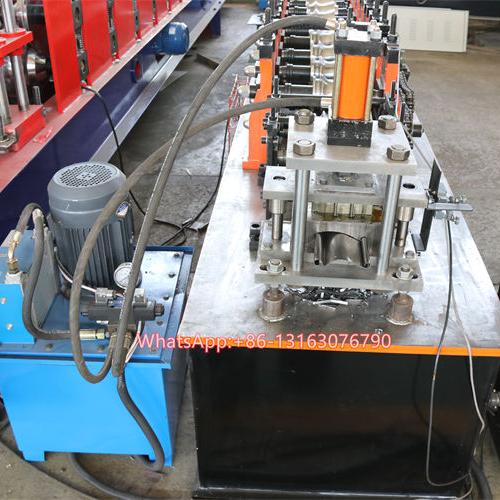

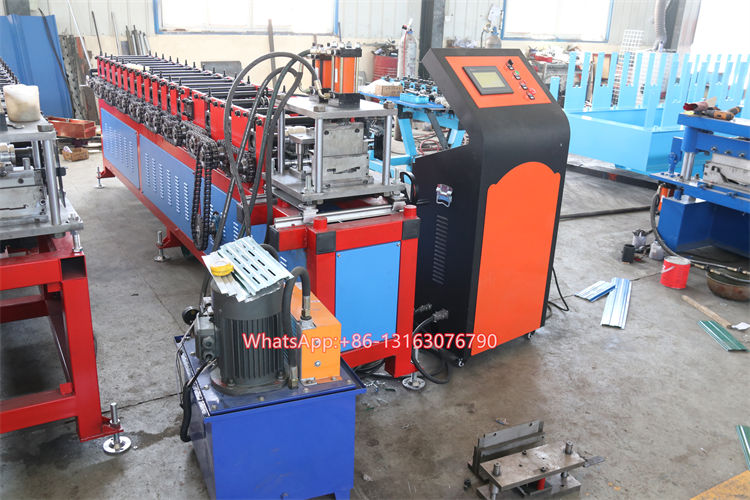

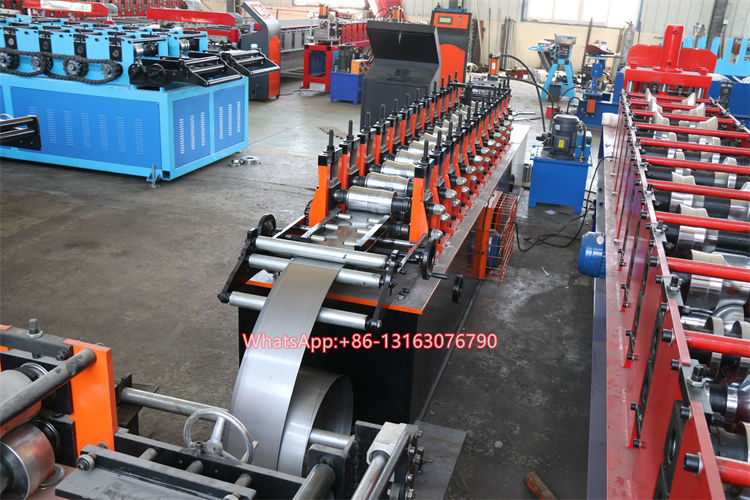

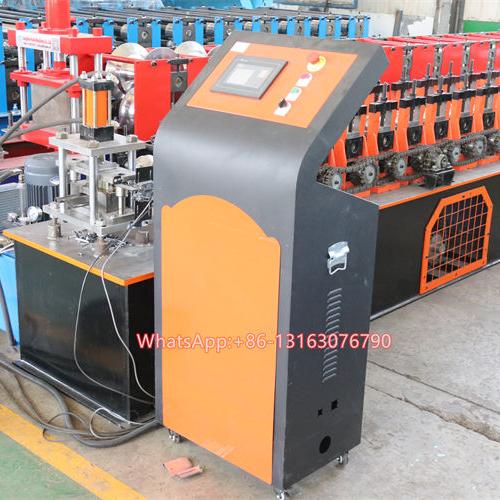

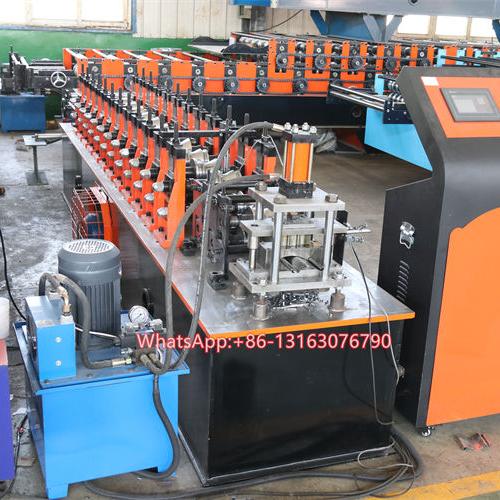

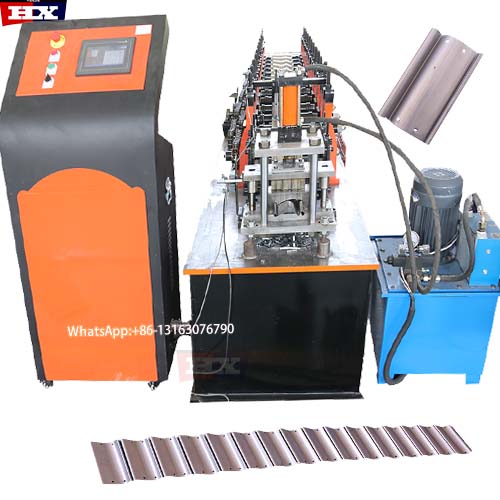

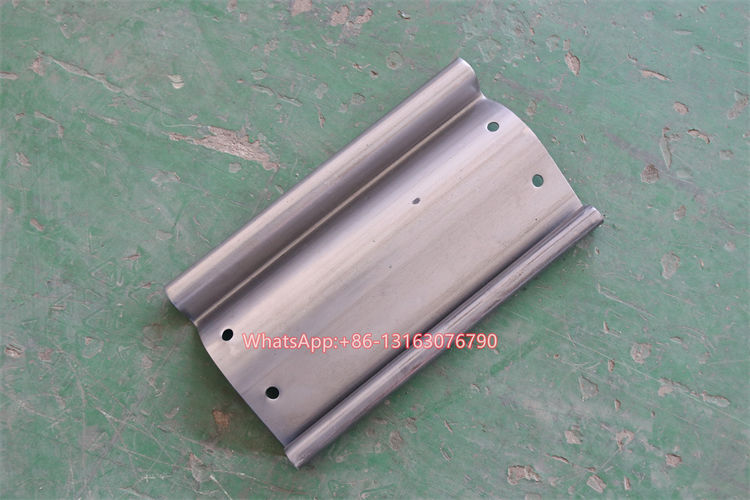

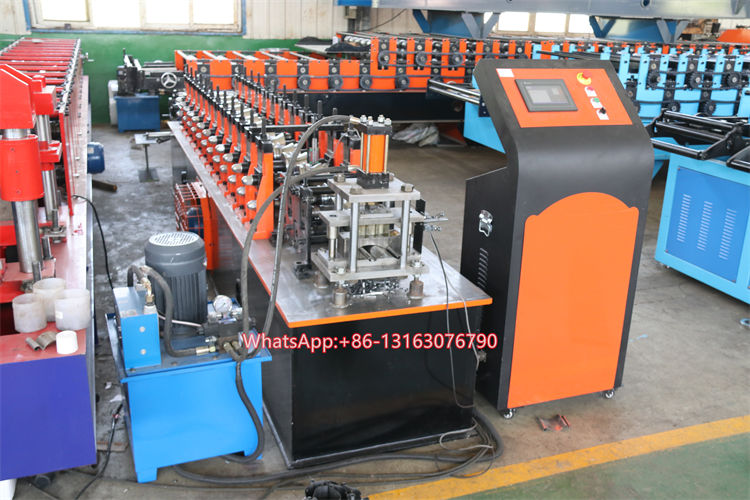

Shutter rolling machine price photo for reference





Shutter rolling machine price parameters

Raw material GI GL PPGI PPGL
Thickness standard 0.4-1 or other thickness as you need
Machine size around 5.8*0.7 *1.5m
Machine weight around 3ton

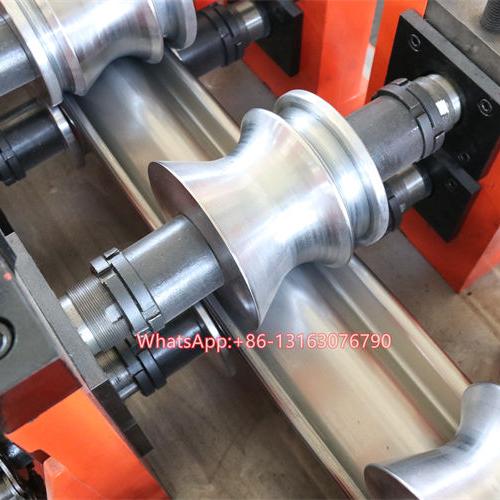

Rollers around 14 rollers, it depends on the profile drawing, CR12 Steel

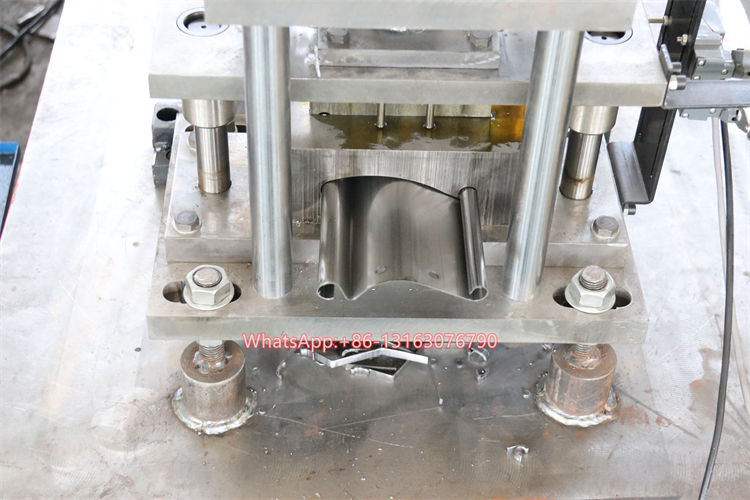

Cut Hydraulic cut
Maine motor 4kw
Pump motot 4kw
Shaft diameter 70mm

Side middle plate

18mm
Transmission Chain
Control systerm PLC control
Speed 15m/min
Out put table 3 meter,  manual / Pneumatic to choose

Shutter rolling machine price production Line composition

It include decoiler machine 3Ton, feeding device, roll forming machine, PLC control, Touch screen, Hydraulic cut, output table 3 meters.

Shutter rolling machine price after sales services

1. 2 years warranty on BL date.

2. Product customization: The profile can be designed according to customer needs.

3.Transportation and packaging: Provide export standard packaging to ensure safe transportation of products.

4.Overseas after-sales service technical support, spare parts supply and on-site maintenance of rolling door forming machines, etc.

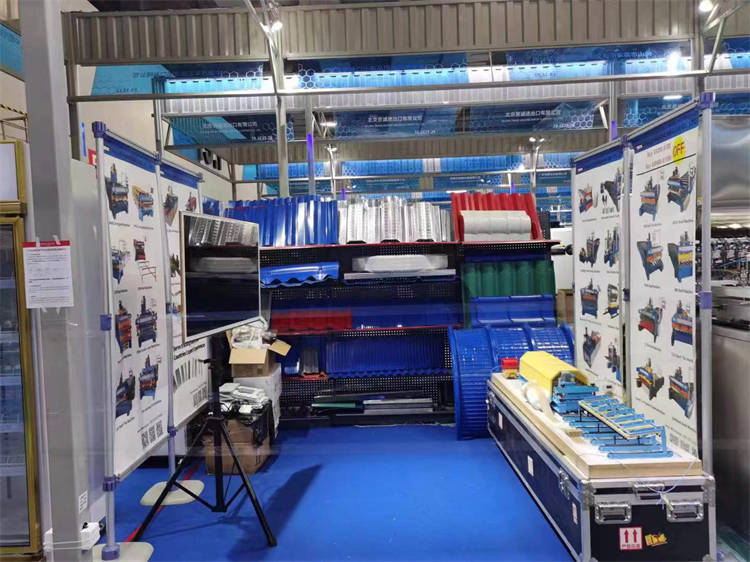

Our Exhibition

Every year we attend lots domestic and abroad exhibition, for example, every year we attend 2 times Canton Fair in China and 2 times abroad construction machine exhibition
