Roller shutter machine
Develivery time:30-45 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
Roller shutter machine
Haixing roller shutter machine adopt gear box drive, and stch structure which made the machine very stable when running high speed, the speed can be 30meters/ minutes. It can punch hole and not punch hole as customer choose. This machine we sold well to Saudi Arabia and other countries.
Basic composition of roller shutter machine: Rolling door forming machine usually consists of unloading machine, feeding platform, forming host, forming shearing device, hydraulic station, computer control system and other parts. These parts work together to complete the automatic production process of rolling door.
The rolling door forming machine greatly improves production efficiency and product quality through its highly automated and precise control characteristics, and is an indispensable equipment in modern industrial production.

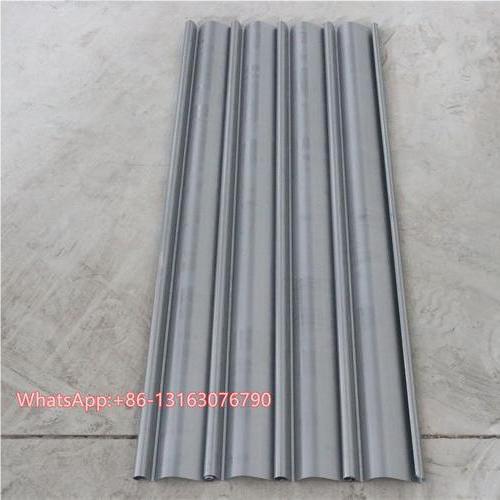

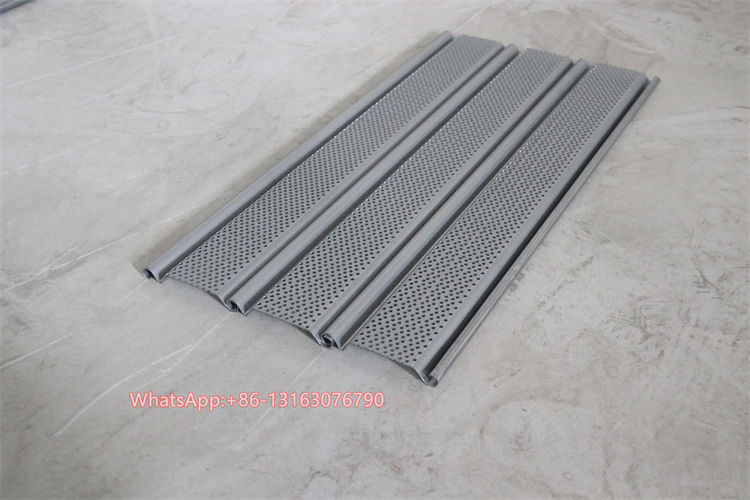

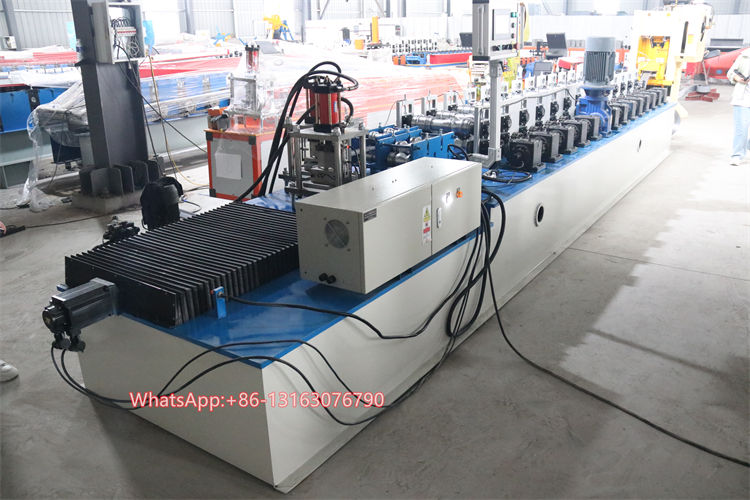

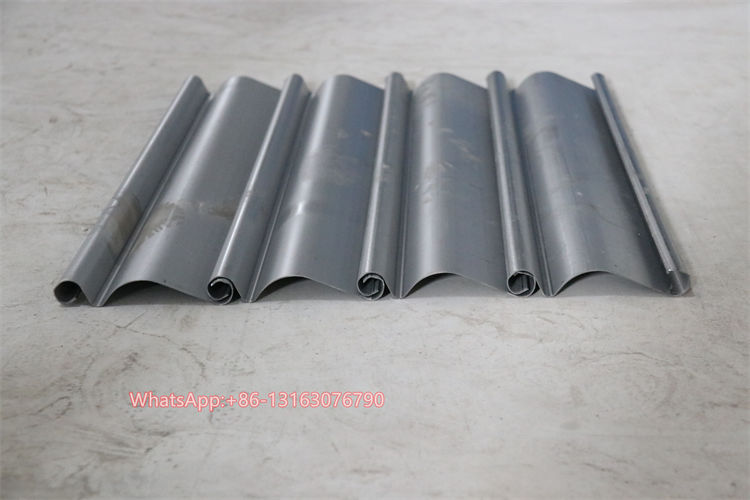

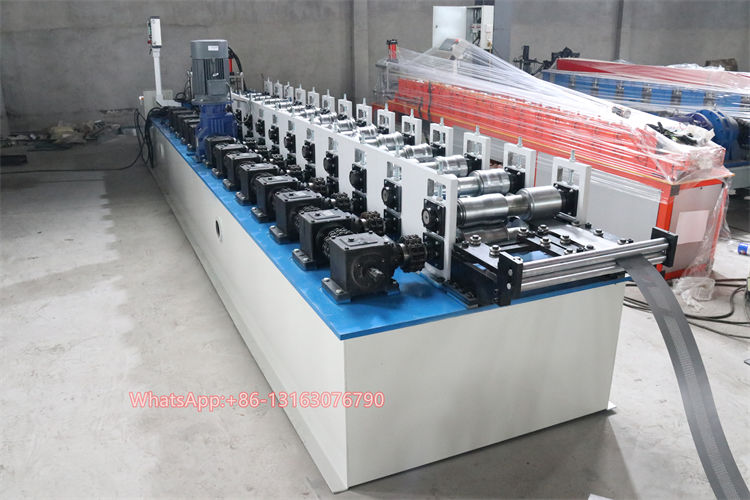

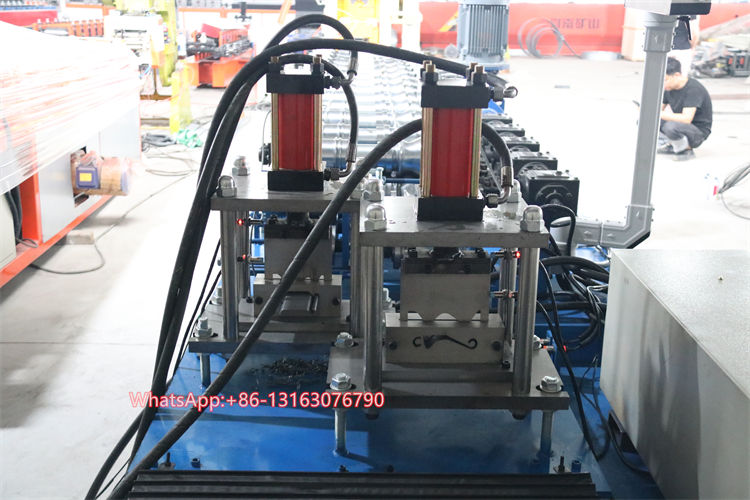

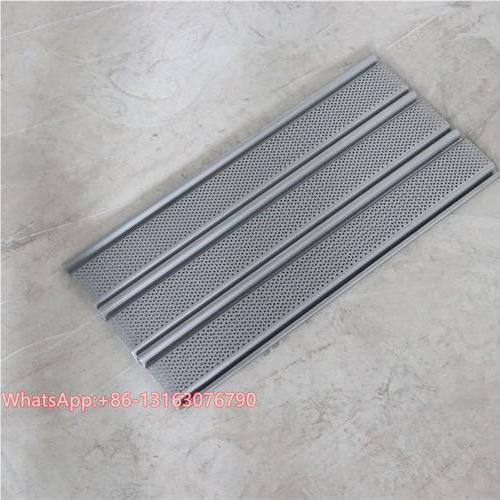

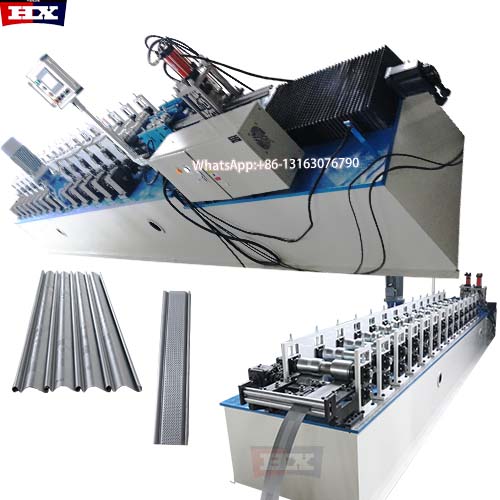

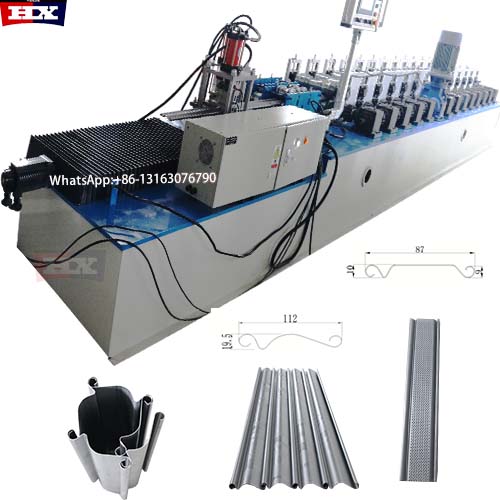

Roller shutter machine photo for reference

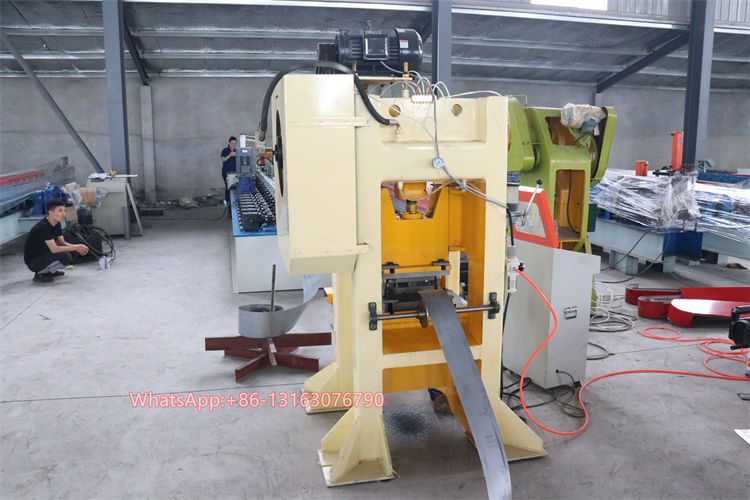

Punch machine
Roller shutter machine parameters
| Raw material | GI GL PPGI PPGL |
| Thickness | standard 0.7-1.2 or other thickness as you need |
| Machine size | around 6.5*1.2 *1.6m |
| Machine weight | around 2ton |
| Rollers | around 14 rollers, it depends on the profile drawing |
| Roller material | CR12 Steel |
| Maine motor | 7.5kw |
| Pump motot | 3kw |
| Shaft diameter | 70mm |
| Maine structure | Arch structure |
| Transmission | Gear box |
| Control systerm | PLC control |
| Punch hole | High speed punch machine |
| Out put table | 3 meter, we have manual one and Pneumatic one |
Roller shutter machine production Line composition
It include decoiler machine 2Ton, punch machine, roll forming machine, PLC, Touch screen, servo cut, output table 3meters

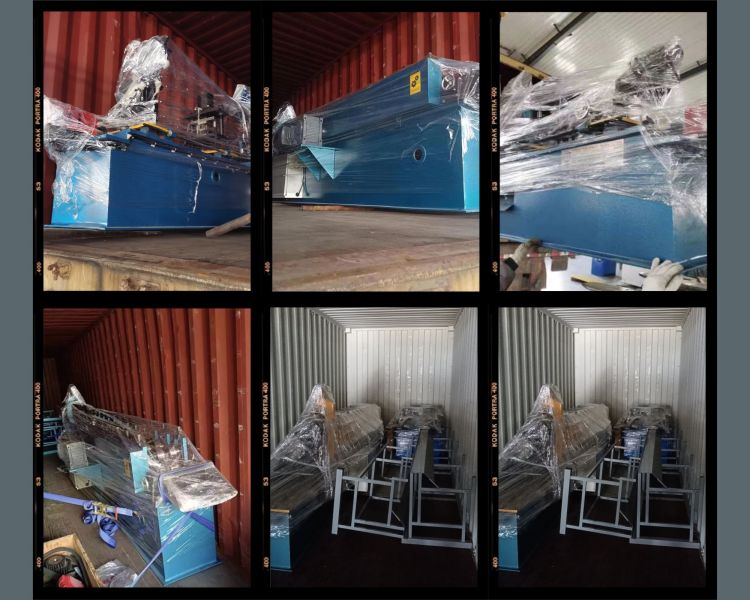

Roller shutter machine package
The roller shutter machine is firmly secured within a 40-foot container using durable straps to prevent movement and ensure stability during transportation.
Protection for Control Systems:The imported computer control system is specially protected with waterproof material and placed in a separate compartment to avoid damage.
Roller shutter machine after sales services
1. 2 years warranty on BL date.
2. 24 hours on line technology support and service.
3. Free easy-wear parts supply.
