ibr roof sheet forming machine
Delivery time:25-35 days
Model: IBR686 and Corrugated 762
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
ibr roof sheet forming machine
ibr roofing sheet making roll forming machine,In China, there are factories manufacturing IBR roofing sheet roll forming machines. Among them, the roof roll forming machines from Tianjin Haixing have gained popularity globally. Tianjin Haixing offers high-quality machines with a feeding width of 925mm and a steel coil thickness ranging from 0.3mm to 0.8mm. Our machines are customizable to meet your specific requirements. If you have any need for such machines, don't hesitate to get in touch with us.
Main parameters of ibr roof sheet forming machine
| Raw material | Color steel coil, aluminum steel coil, galvanized steel coil |
| Thickness | standard 0.3-0.8 mm |
| Raw material feeding width | 925mm |
| Machine size | around 9*1.5 *1.8m |
| Machine weight | around 5ton |
| Rollers | around 18 rollers, it depends on the profile drawing |
| Roller material | number 45 steel |
| Maine motor | 5.5kw |
| Maine structure | Middle plate 16mm |
| Transmission | Chain drive |
| Control systerm | PLC control, automatic produce |

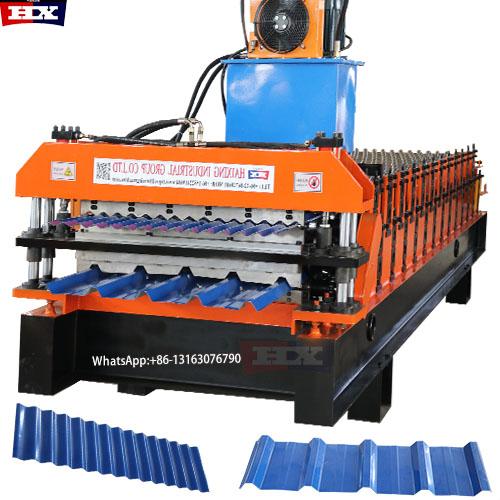

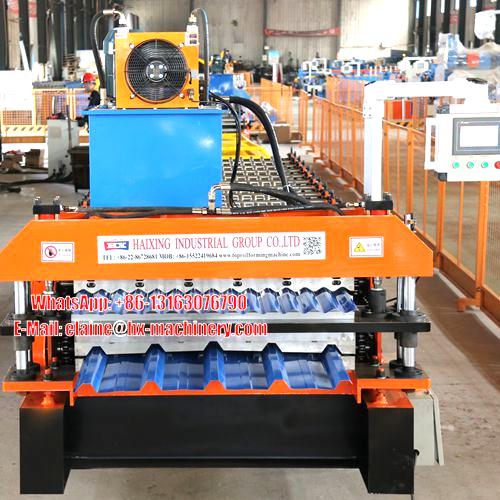

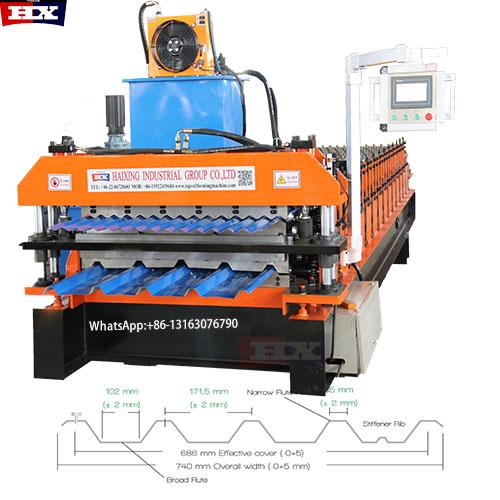

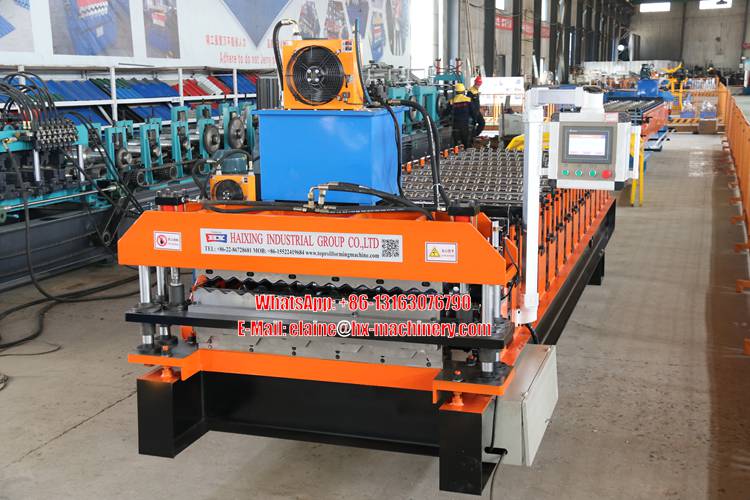

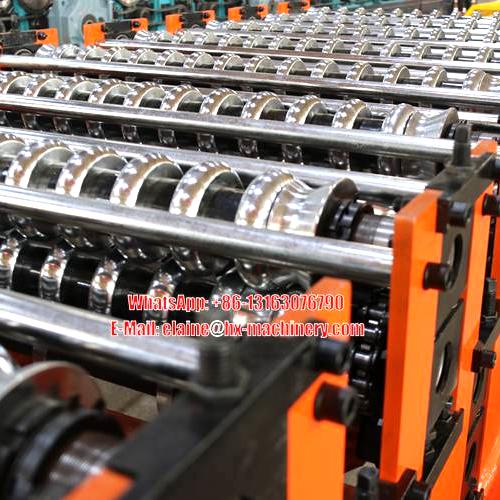

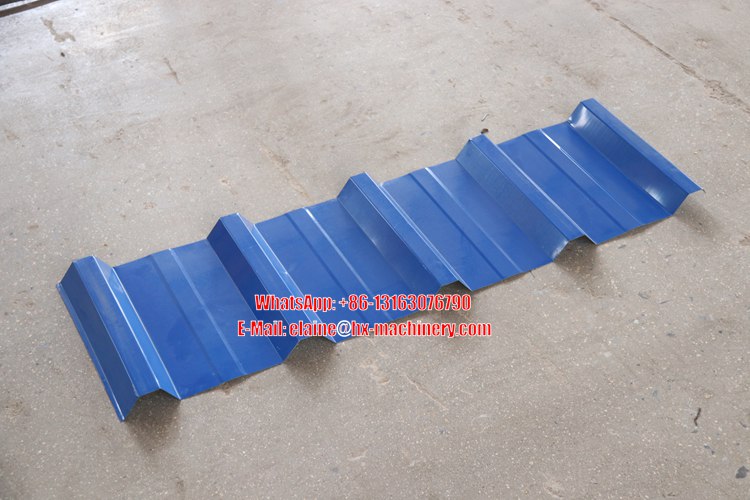

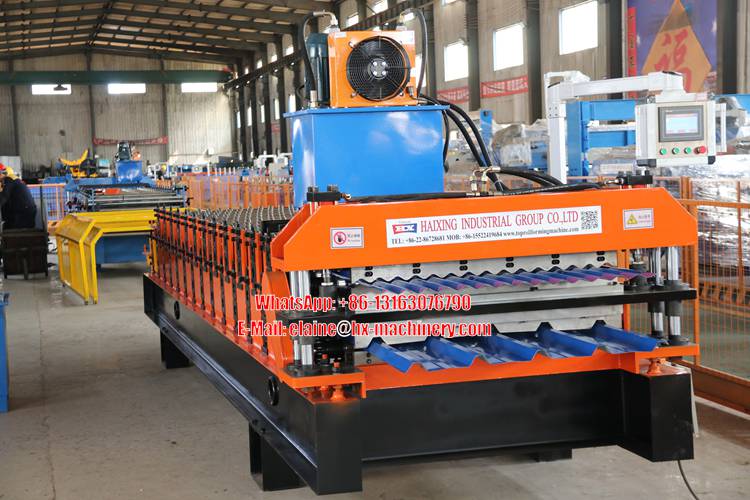

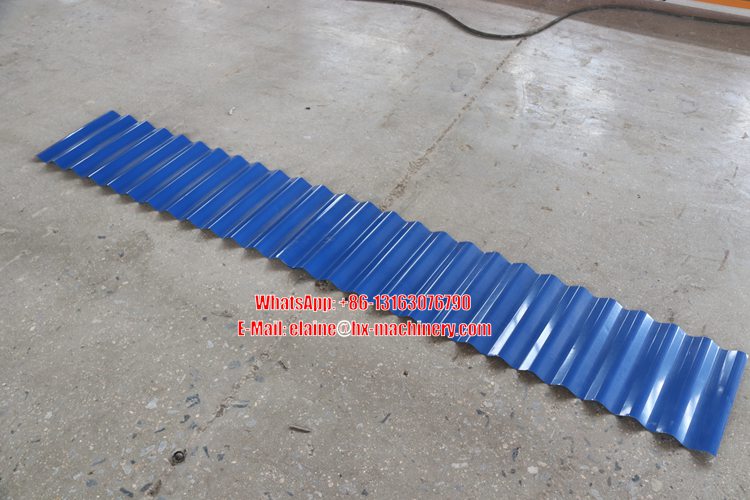

ibr roof sheet forming machine photo for reference
Composition of ibr roof sheet forming machine
It include decoiler machine 7Ton, roll forming machine, PLC control systerm, Touch screen, Hydraulic cut, electric control system, output table 3meters
After sales services of ibr roof sheet forming machine
1. Maintenance support: When equipment fails, promptly respond to customers' repair requests, dispatch technicians to perform rapid repairs, and restore normal operation of the equipment.
2. Spare parts supply: Ensure sufficient inventory of original spare parts to provide customers with replacement parts in a timely manner.
3. two years warranty of the ibr roofing sheet making roll forming machine
