Ibr making machine roll forming machine for sale
Delivery time:25-35 days

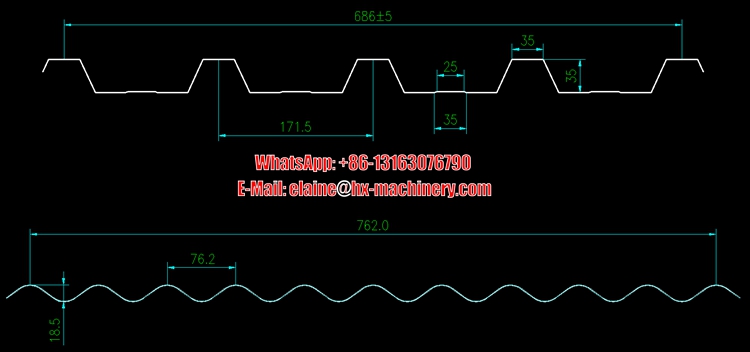

Model: IBR686 and Corrugated 762
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.

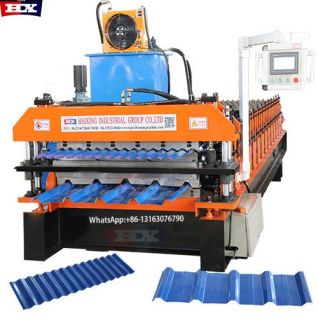

Ibr making machine roll forming machine for sale
The Ibr making machine roll forming machine consists of unloading, roll forming, and auto cutting. the ibr roll forming machine for sale, which is hot sell in the world, especially in Africa.
The products produced have a smooth and beautiful appearance, uniform paint pattern, high strength, and durability. They are widely used in industrial and civil buildings, such as factories, warehouses, engine depots, hangars, gymnasiums, exhibition halls, theaters, and other rooms and walls.
Main parameters of Ibr making machine roll forming machine for sale
| Raw material | Color steel coil, aluminum steel coil, galvanized steel coil |
| Thickness | standard 0.3-0.8 mm |
| Raw material feeding width | 925mm |
| Machine size | around 9*1.5 *1.8m |
| Machine weight | around 5ton |
| Rollers | around 18 rollers, it depends on the profile drawing |
| Roller material | number 45 steel |
| Maine motor | 5.5kw |
| Pump motot | 4kw |
| Shaft diameter | 75mm |
| Maine structure | Middle plate |
| Transmission | Chain drive |
| Control systerm | PLC control, automatic produce |
| Decoiler | 7ton manual decoiler for free. And hydraulic decoiler is your option |
| Out put table | 3meter no power out put table for free. Auto stacker is your option |

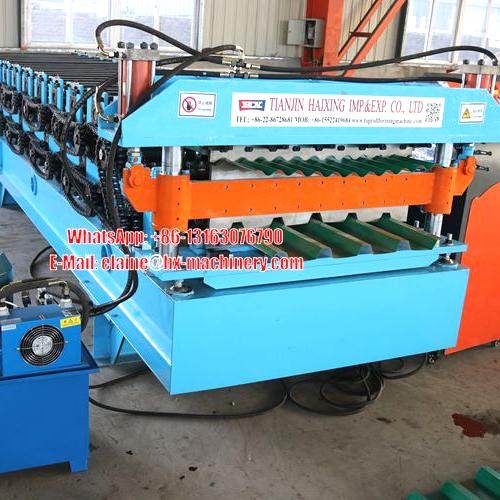

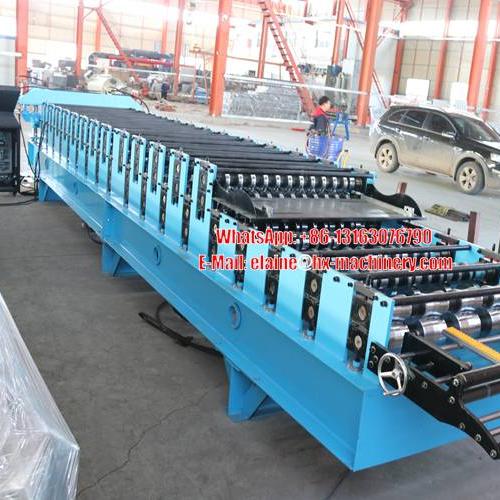

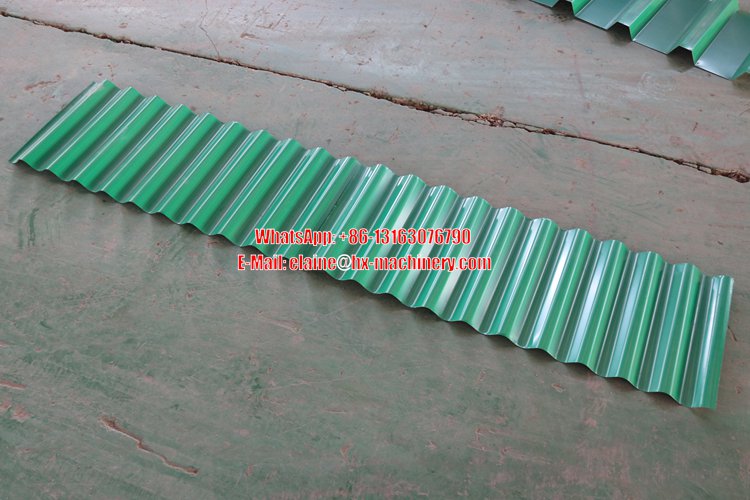

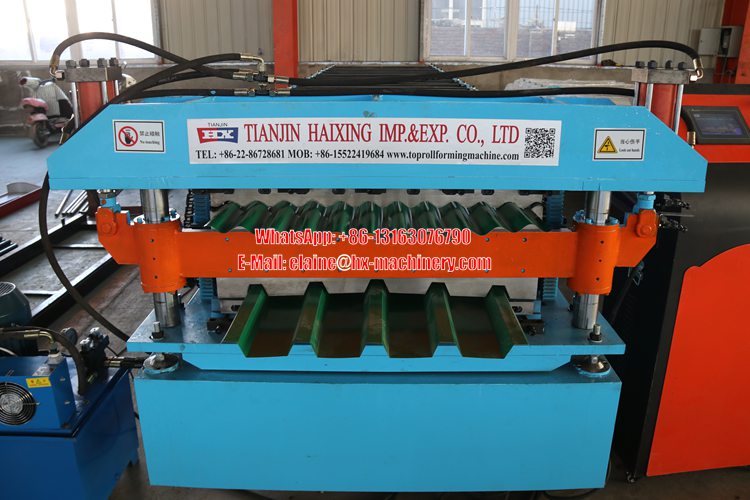

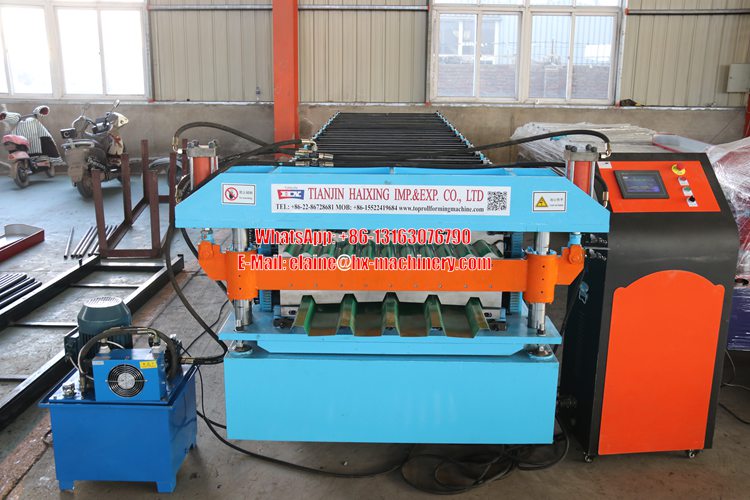

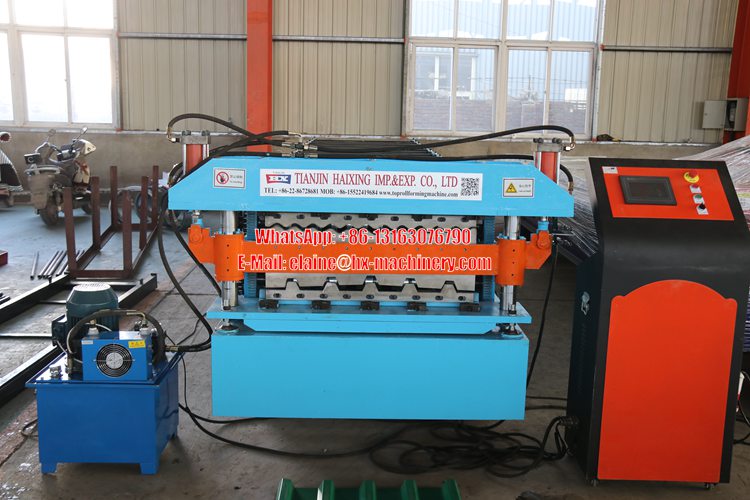

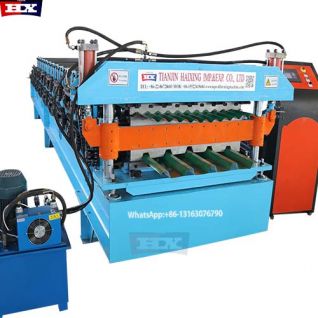

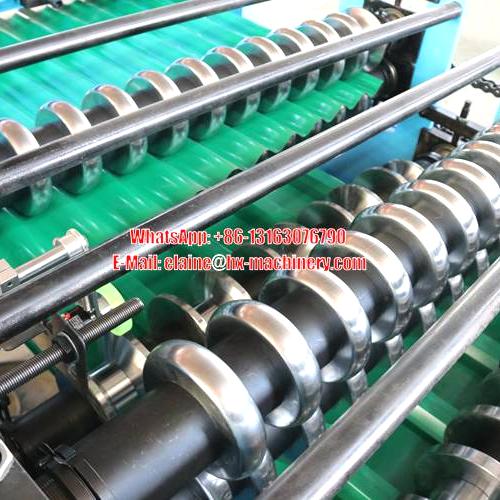

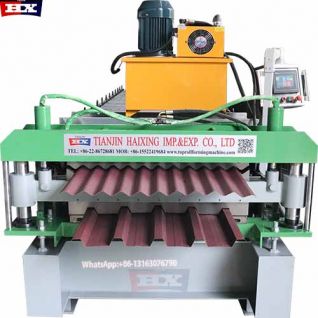

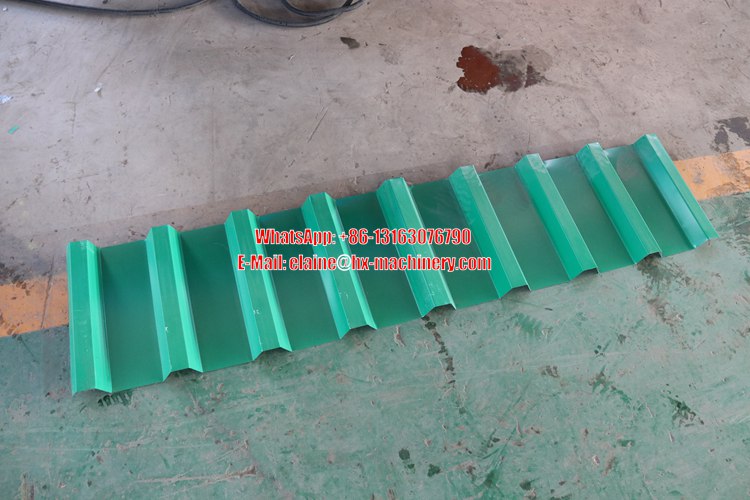

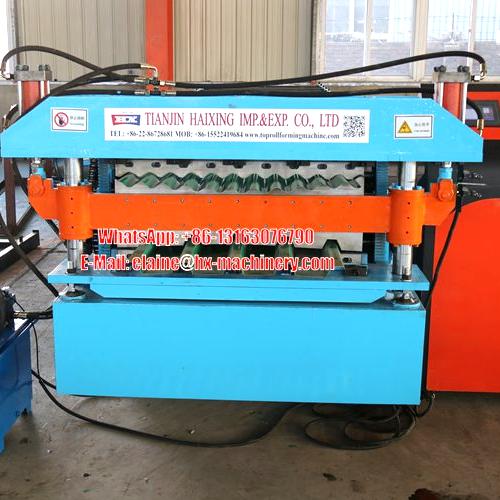

Ibr making machine roll forming machine for sale photo for reference

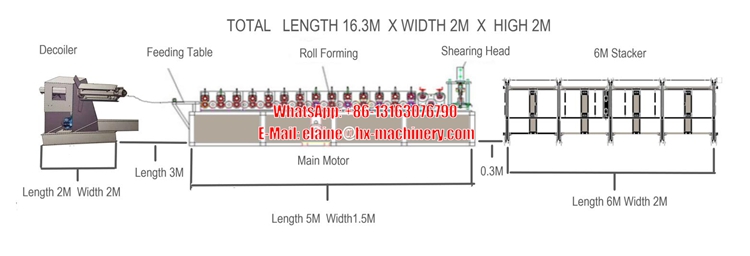

Composition for Ibr making machine roll forming machine for sale
it include decoiler machine 7Ton, roll forming machine, PLC, Touch screen, Hydraulic cut, output table 3meters
Package for Ibr making machine roll forming machine for sale
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
