Ibr roofing sheet making machine factory
Delivery time:25-35 days
Model: IBR686 and Corrugated 762
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Ibr roofing sheet making machine roll forming machine factory

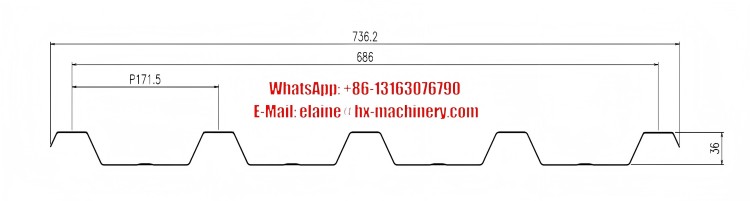

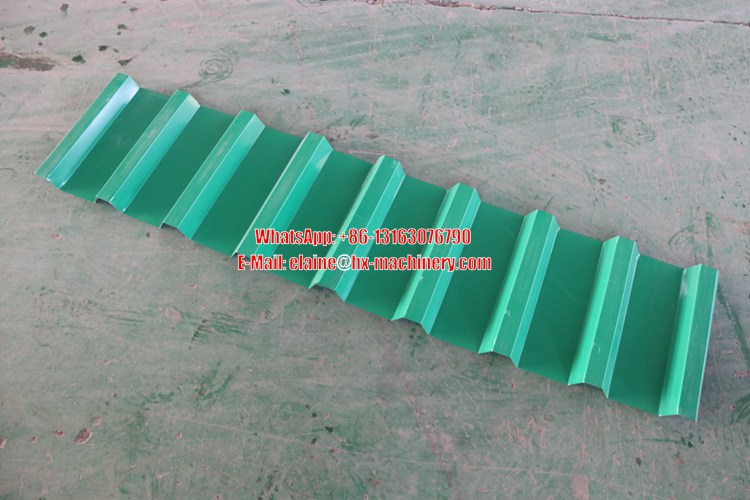

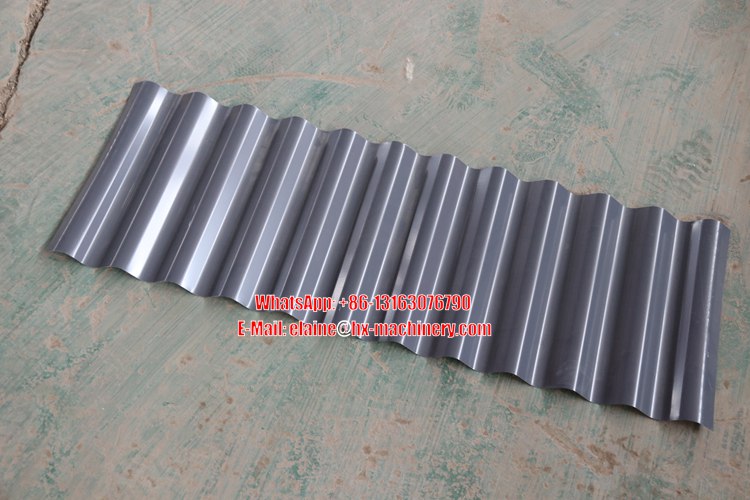

The Haixing IBR roof sheet making machine is selling well in South Africa. This machine has a dual function as it can produce two types of roof sheets, namely IBR 686 and corrugated 762. Moreover, the IBR can also be produced along with Q tile.
Main parameters of ibr roofing sheet making machine roll forming machine factory
| Raw material | Color steel coil, aluminum steel coil, galvanized steel coil |
| Thickness | standard 0.3-0.8 mm |
| Raw material feeding width | 925mm |
| Machine size | around 9*1.5 *1.8m |
| Machine weight | around 5ton |
| Rollers | around 18 rollers, it depends on the profile drawing |
| Roller material | 45 steel |
| Maine motor | 5.5kw |
| Pump motot | 4kw |
| Shaft diameter | 75mm |
| Frame | 350 H steel |
| Transmission | Chain drive |
| Control systerm | PLC control, automatic produce |
| Decoiler | 7ton manual decoiler for free. And hydraulic decoiler is your option |
| Out put table | 3meter no power out put table for free. Auto stacker is your option |

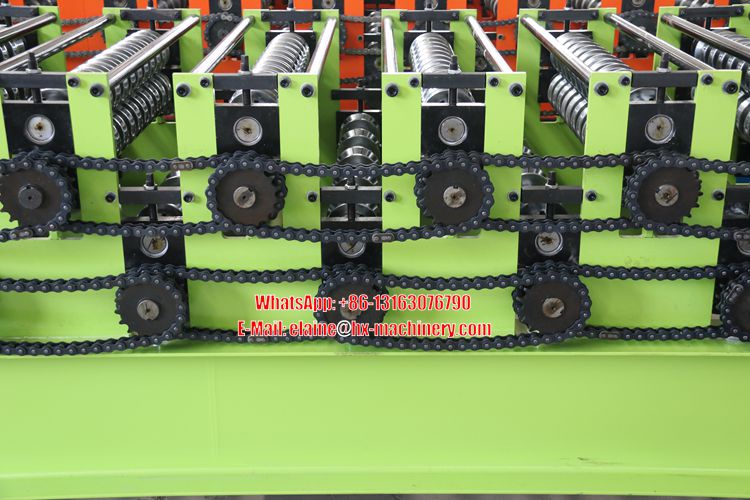

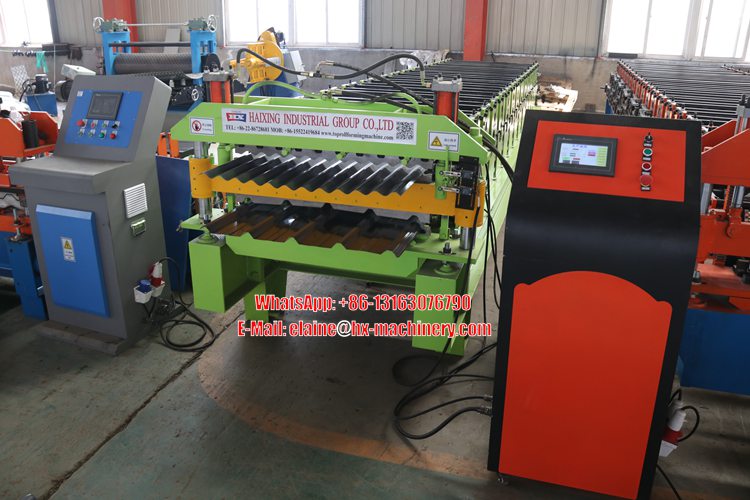

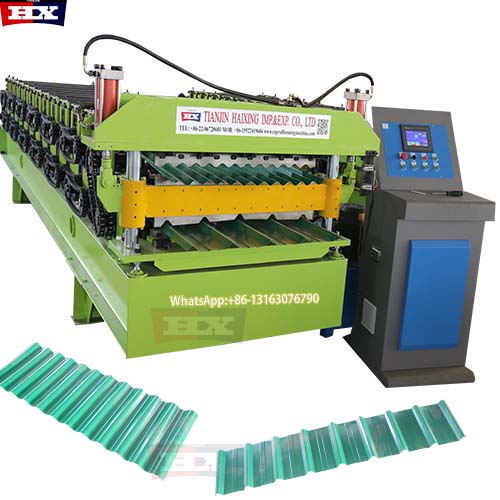

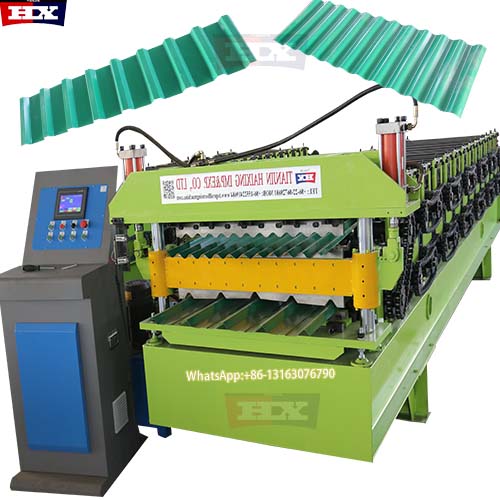

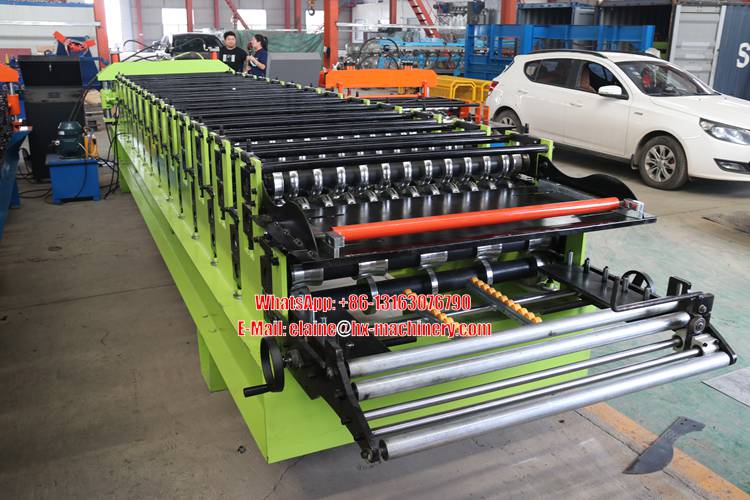

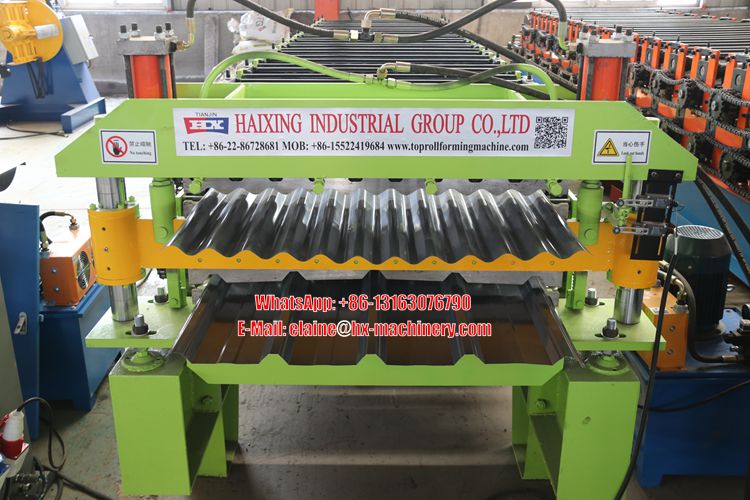

ibr roofing sheet making machine roll forming machine factory photo for reference
Composition of ibr roofing sheet making machine roll forming machine factory
It consists of a 7-ton decoiler machine, a roll forming machine, a PLC (Programmable Logic Controller), a touch screen, a servo cutting device, an electric control system and a 3-meter output table.
Package of ibr roofing sheet making machine roll forming machine factory
It is packed nude in a 40-foot container and fixed firmly with oil ropes. The control cabinet and all the accessories are made waterproof.
After sales services of ibr roofing sheet making machine roll forming machine factory
Warranty Term: A 24-month limited warranty is provided. During this period, all components and parts will be replaced free of charge.
