Delivery time:25-35 days

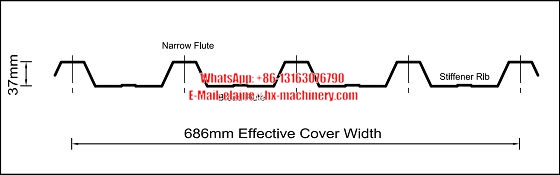

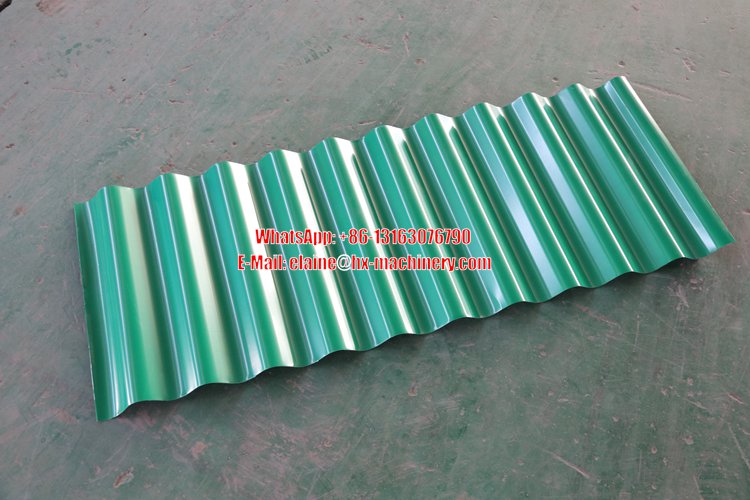

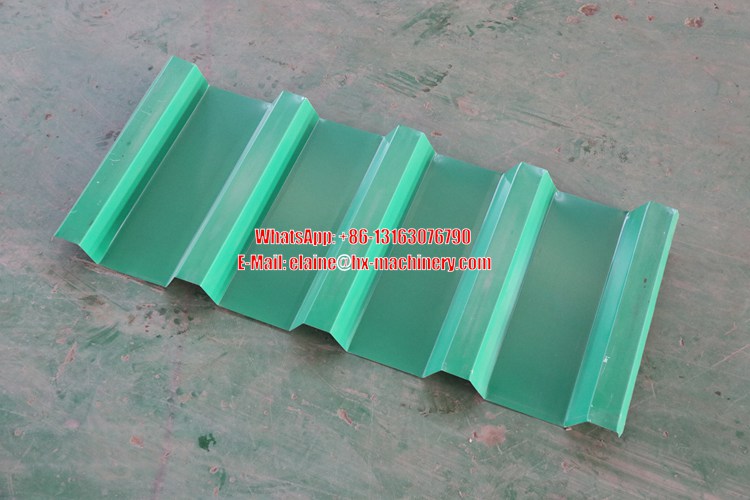

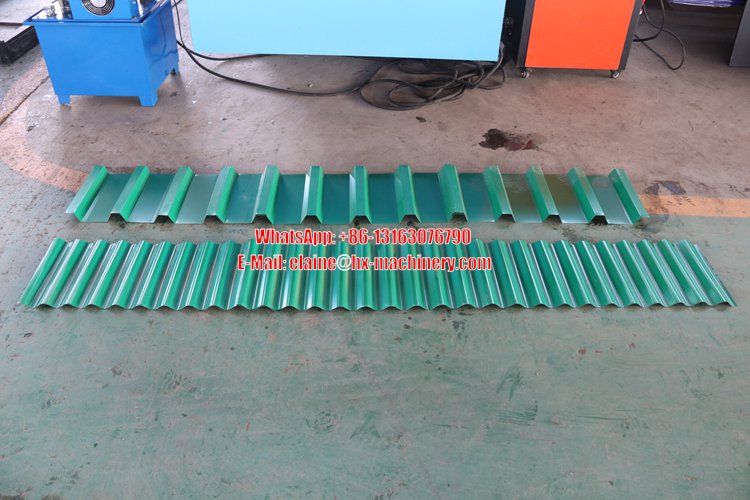

Model: IBR686 and Corrugated 762
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.

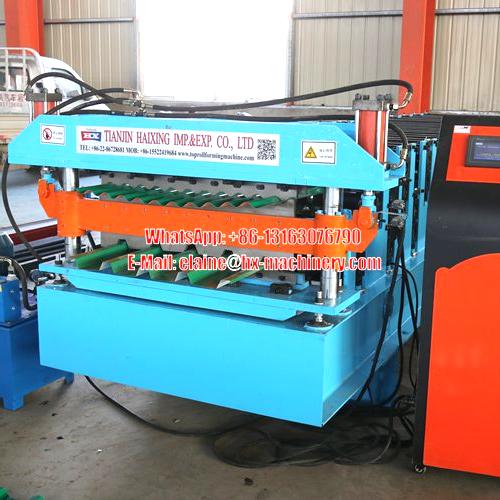

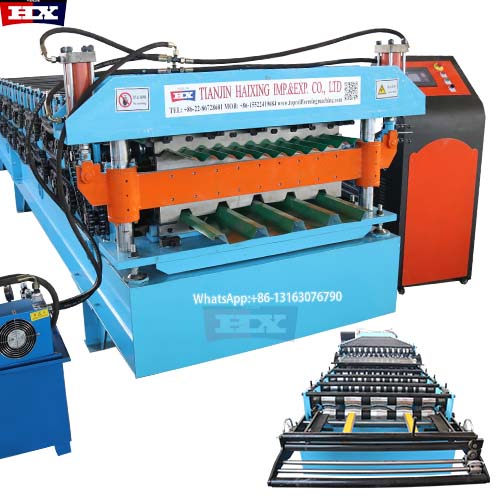

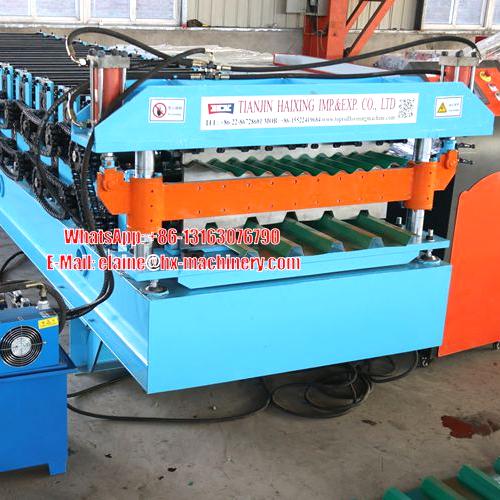

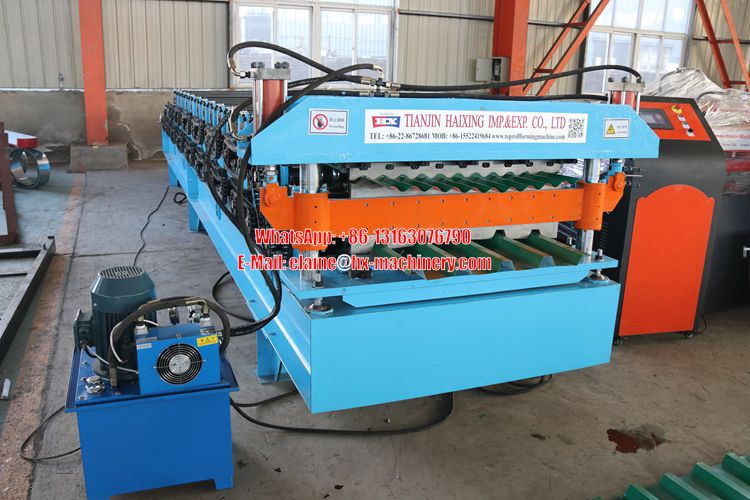

ibr roofing sheet roll forming machine factory in China, the roof roll forming machine is more popular in the world, Tianjin Haixing supply you good quality machine, the machine feeding width is 925mm, the steel coil thickness is 0.3-0.8mm , our machine is customized, for any of the machine do you need , please feel free to contact us.
Raw material | Color steel coil, aluminum steel coil, galvanized steel coil |
Thickness | standard 0.3-0.8 mm for ibr roofing sheet roll forming machine |
Raw material feeding width | 925mm |
Machine size | around 9*1.5 *1.8m |
Machine weight | around 5ton |

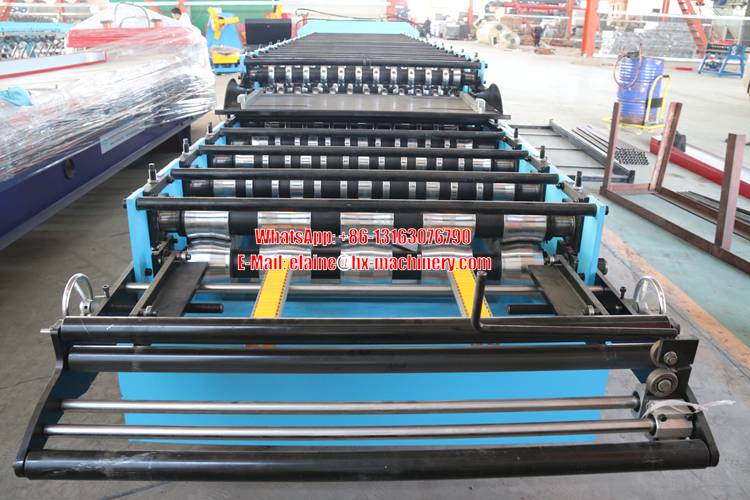

Rollers | around 18 rollers, it depends on the profile drawing |
Maine motor | 5.5kw |
Pump motot | 4kw |
Shaft diameter | 70mm |
Maine structure | Middle plate 16mm |
Control systerm | PLC control, automatic produce for ibr roofing sheet roll forming machine |
It include decoiler machine 7Ton, roll forming machine, PLC control systerm, Touch screen, Hydraulic cut, electric control system, output table 3meters
For the ibr roofing sheet roll forming machine, they will be provided with nude packing as the standard option and pack them with waterproof plastic to safeguard the equipment during transportation and storage.
