Automatic rolling shutter machine
Develivery time:30-45 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
Automatic rolling shutter machine
HX automatic rolling shutter machine is strong durability: The structural design of the gearbox rolling shutter door is strong and durable, and can withstand frequent use and certain external impacts.
Save manpower: The high degree of automation reduces the dependence on operators and saves human resources.
Strong adaptability: It can produce rolling shutter doors of various specifications and types to meet the needs of different customers and markets.
Easy maintenance: The design of the molding machine takes into account the convenience of maintenance, which is convenient for daily cleaning and maintenance.

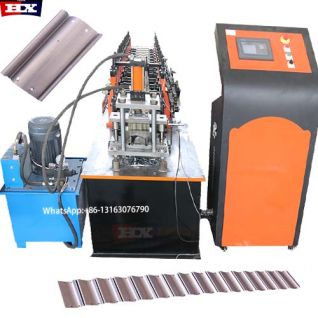

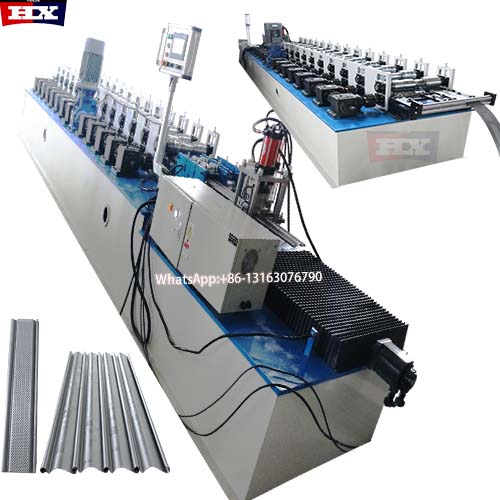

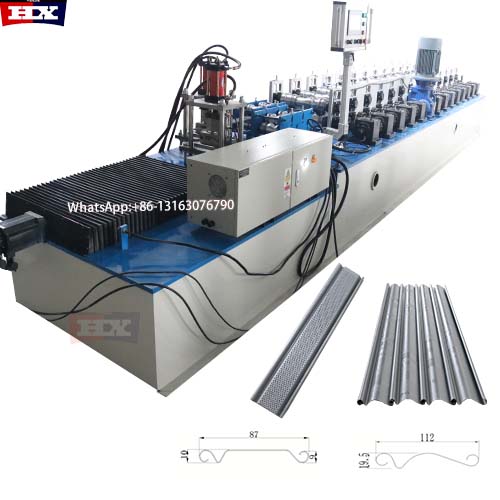

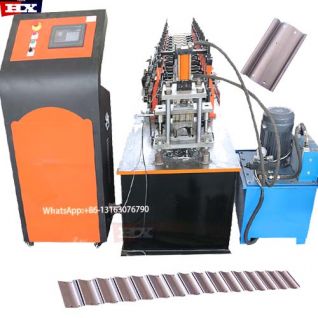

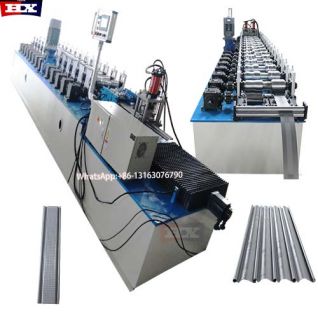

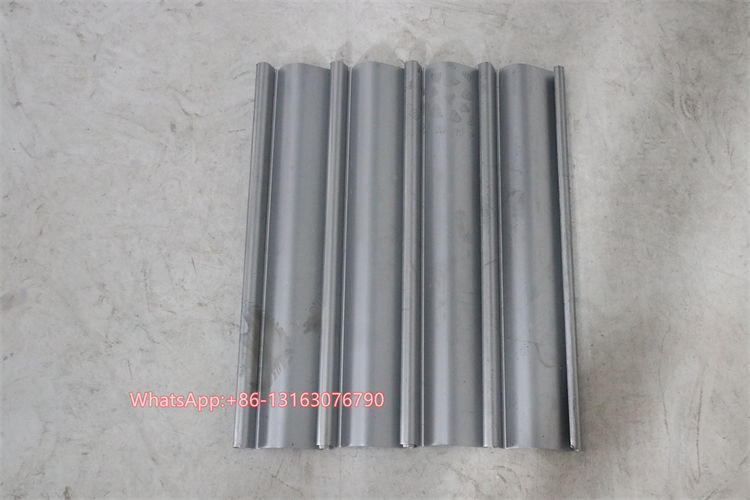

Automatic rolling shutter machine for reference

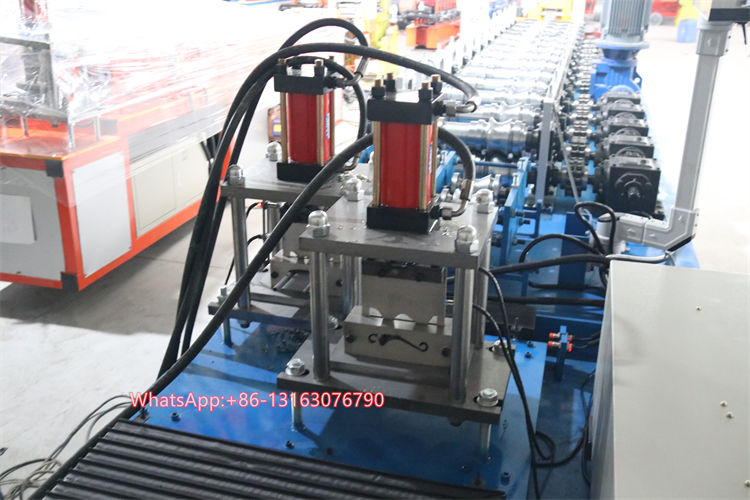

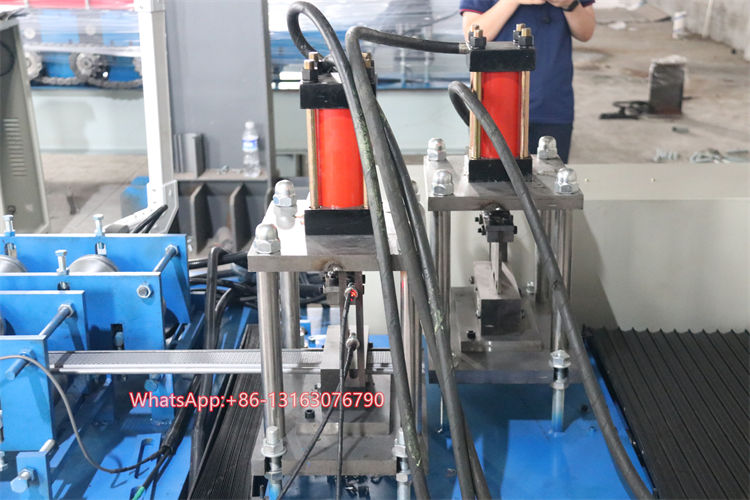

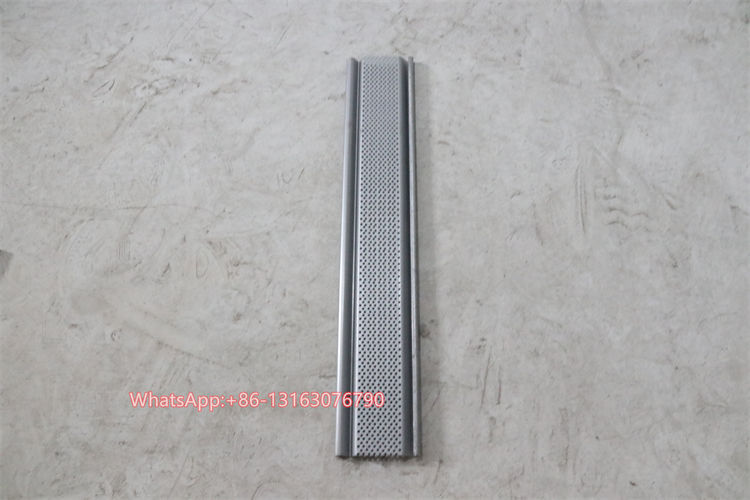

Punch device
Automatic rolling shutter machine parameters
| Raw material | GI GL PPGI PPGL |
| Thickness | standard 0.7-1.5 or other thickness as you need |
| Machine size | around 6.5*1.5 *1.6m |
| Machine weight | around 2-3ton |
| Rollers | around 14 rollers, it depends on the profile drawing, CR12 Steel |
| Cut | servo tracking cut |
| Maine motor | 7.5kw |
| Pump motot | 3kw |
| Shaft diameter | 70mm |
| Maine structure | Arch structure |
| Transmission | Gear box or chain drive |
| Control systerm | PLC control |

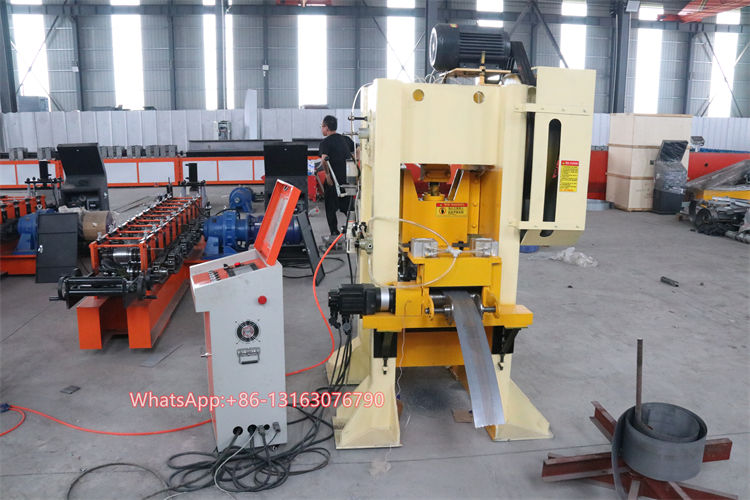

| Punch hole | High speed punch machine |
| Out put table | 3 meter, we have manual one and Pneumatic one |
Automatic rolling shutter machine production Line composition
automatic rolling shutter machine include decoiler machine 2 Ton, High speed punch machine, feeding device, roll forming machine, PLC control, Touch screen, servo tracking cut, Pneumatic output table 3 meters.
Automatic rolling shutter machine after sales services
automatic rolling shutter machine is provided with a warranty period of 2 years. If there are any problems during use, you can contact them by phone or email, they will provide technical support and may provide free accessories
