Shutter door roll forming machine
Develivery time:30-45 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
Shutter door roll forming machine
HAIXING shutter door roll forming machine Mainly composed of unloading machine, feeding platform, roll forming, cut device, hydraulic station, computer control system, etc.
Applied to the production of rolling shutter doors in various industrial plants, warehouses, supermarkets and shopping malls.

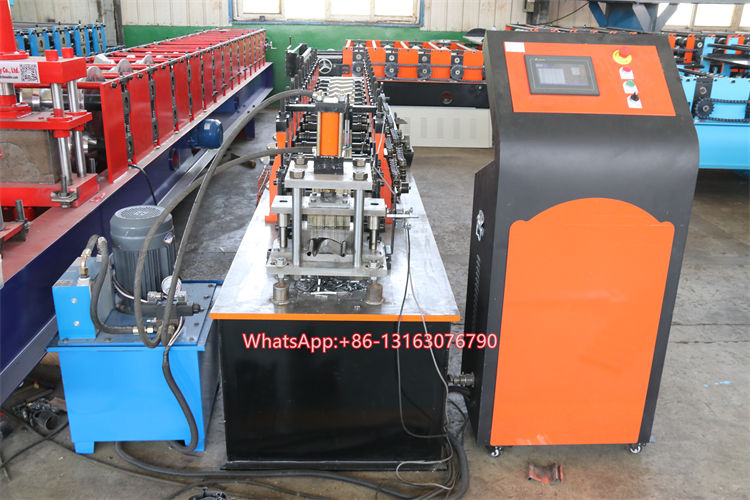

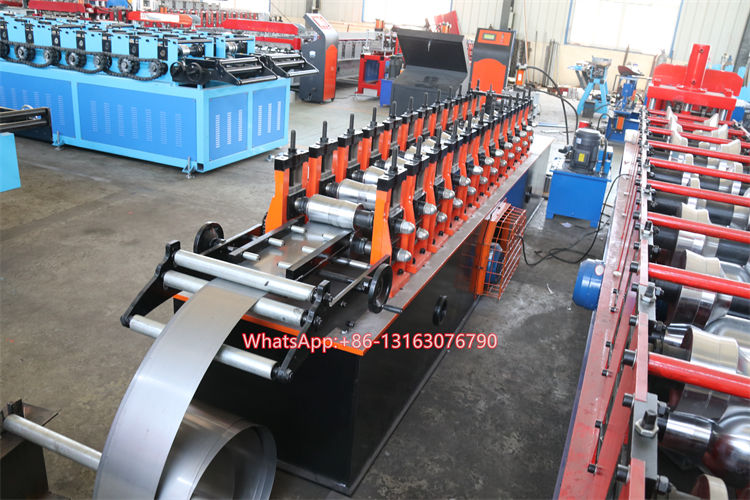

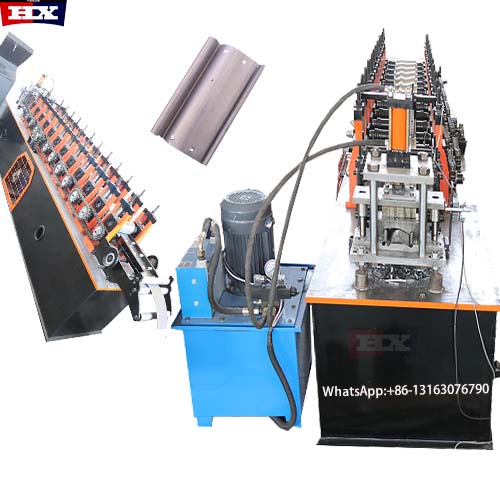

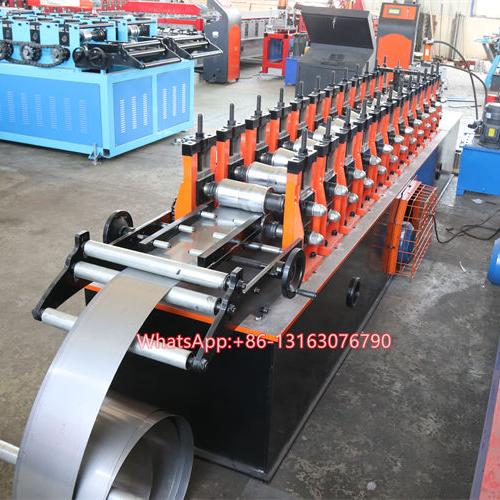

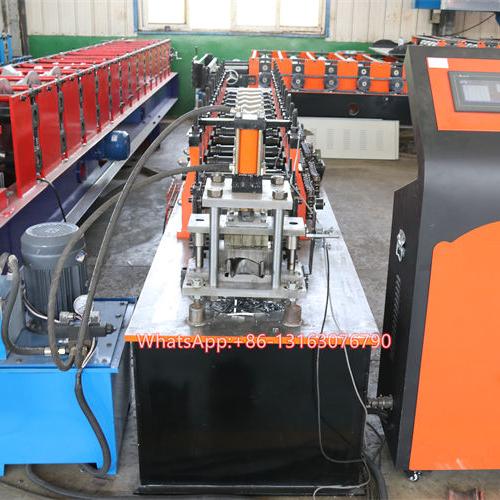

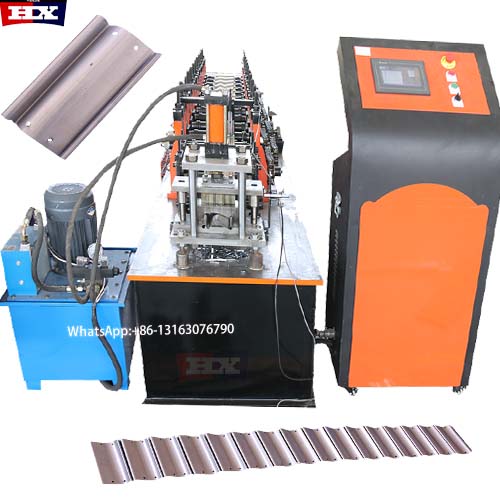

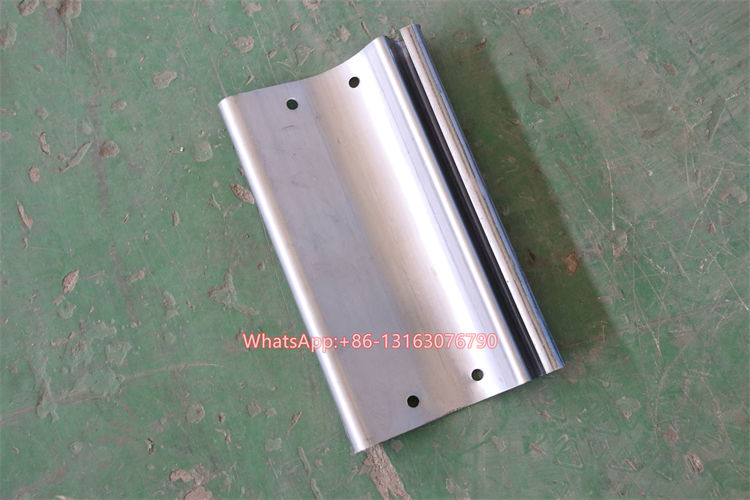

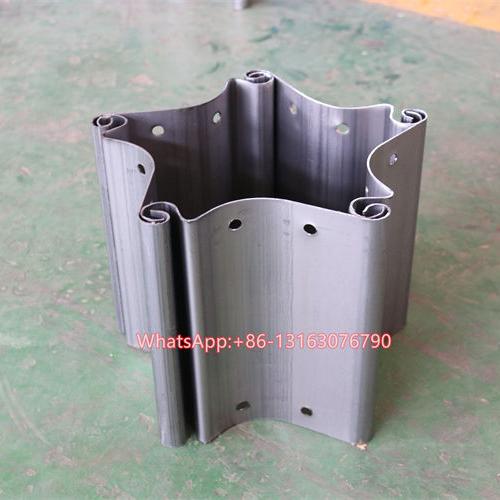

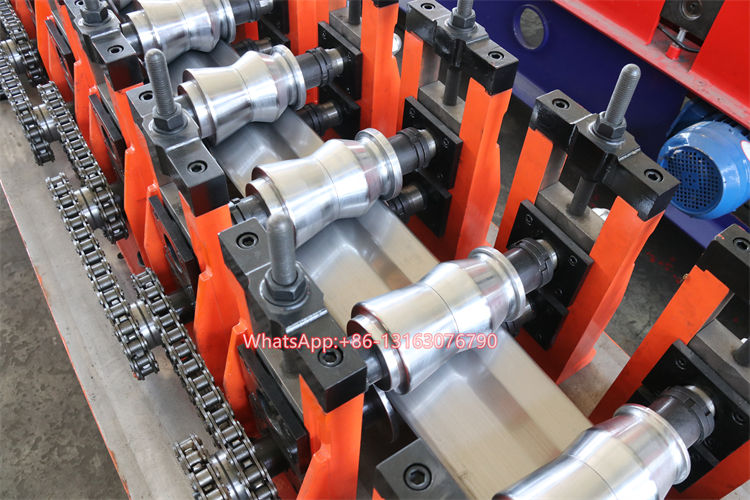

Shutter door roll forming machine photo for reference
Shutter door roll forming machine parameters
| Raw material | GI GL PPGI PPGL |
| Thickness | standard 0.4-1 or other thickness as you need |
| Machine size | around 5.8*0.7 *1.5m |
| Machine weight | around 3ton |
| Rollers | around 14 rollers, it depends on the profile drawing, CR12 Steel |
| Cut | Hydraulic cut |
| Maine motor | 4kw |
| Pump motot | 4kw |
| Shaft diameter | 70mm |
|
Side middle plate |
18mm |
| Transmission | Chain |
| Control systerm | PLC control |
| Speed | 15m/min |
| Out put table | 3 meter, manual / Pneumatic to choose |
Shutter door roll forming machine production Line composition
It include decoiler machine 3Ton, feeding, roll forming machine, PLC control, Touch screen, Hydraulic cut, output table 3 meters.
Shutter door roll forming machine after sales services
1. 2 years warranty on BL date.
2. Free wearing parts are provided at the time of delivery so that parts can be replaced in time when the equipment needs repair
Our customers
