c and z purlin machine
Develivery time:50-60 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
Haixing c and z purlin machine is hot sell model, we could produce c automatic purlin machine and CZ automatic purlin machine
The advantages and features of c and z purlin machine mainly include the following aspects:
High efficiency: Compared with traditional manual production, the working efficiency of purlin forming machines is increased by 10-15 times.
Easy operation: These machines are relatively simple to operate, which is convenient for users to get started quickly.
Easy maintenance: The structural design of the purlin forming machine makes maintenance more convenient and quick.

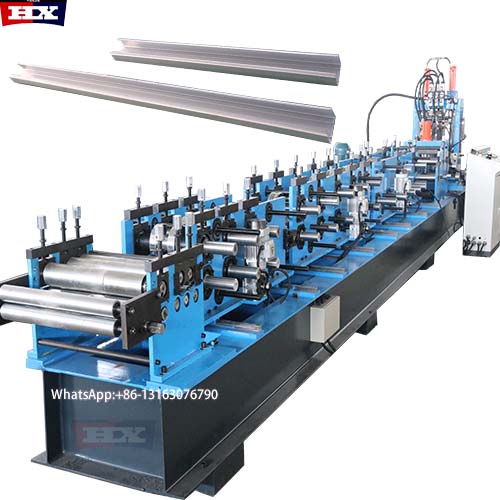

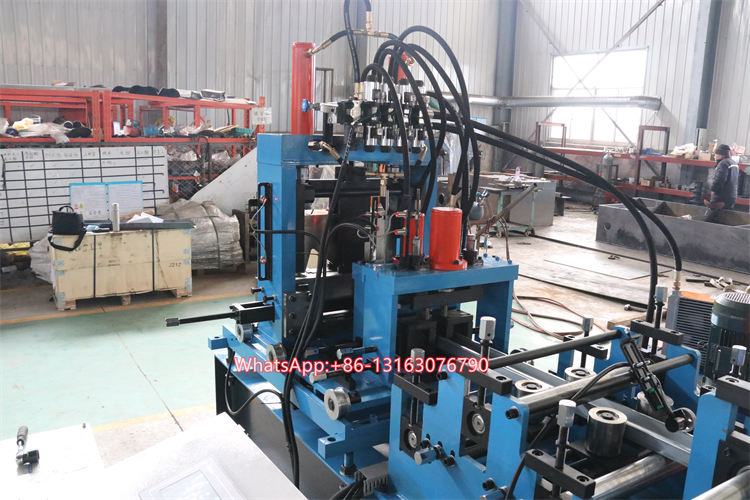

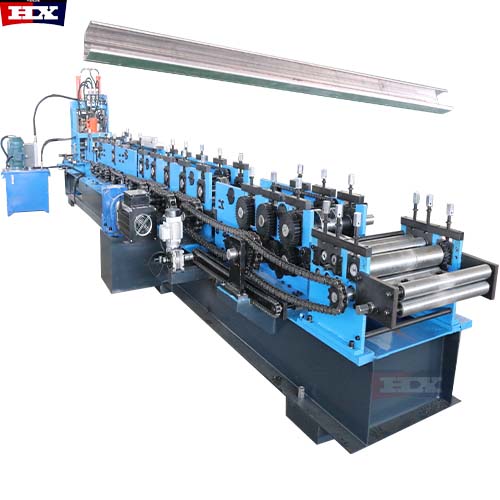

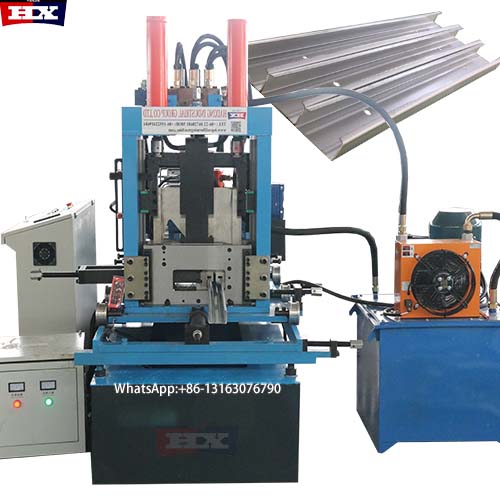

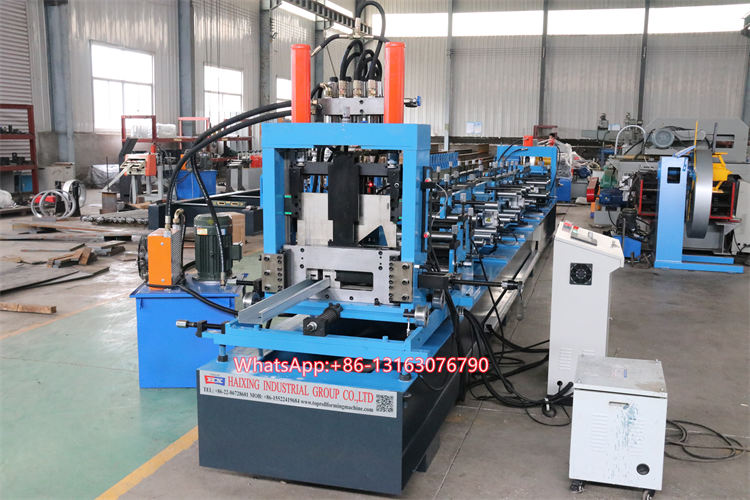

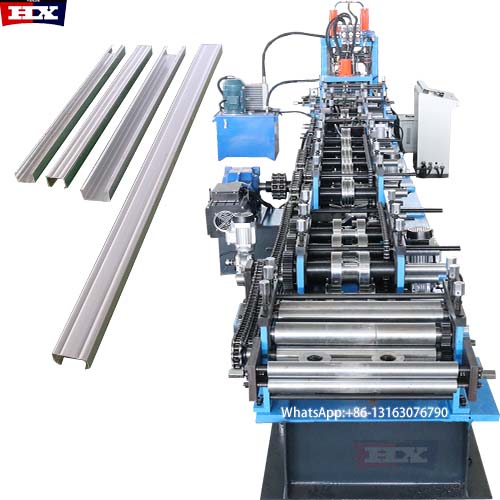

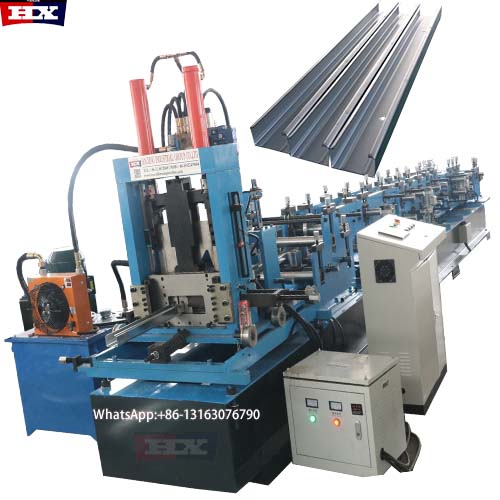

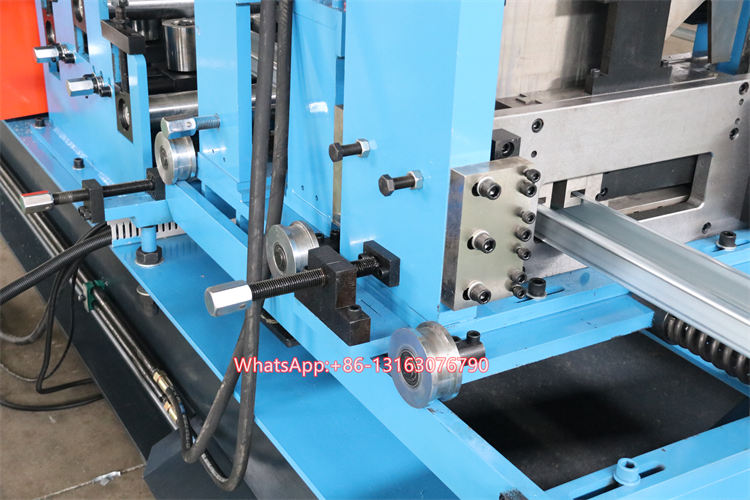

Photo of c and z purlin machine for reference
Parameter of c and z purlin machine
|
Name
|
c and z purlin machine
|
|
Suitable to process
|
Galvanized steel strips/cold rolled strips
|
|
Roller
|
16-18Rows
|
|
Dimensions
|
11*1.3*1.5m
|
|
Motor Power
|
11Kw*2
|
|
Pump Station Motor
|
7.5Kw.Lichao Brand
|
|
Thickness of the plate
|
1.0mm-3.0mm
|
|
Productivity
|
10-15m/min
|
|
Material of the cutting blade
|
Cr12MoV,Quenched treatment 58ºC-60ºC
|
|
Diameter of the roller
|
85mm
|
|
Weight
|
About 8500Kgs
|
|
Main structure of the machine
|
450 H Beams and arch structure
|
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
Control system
|
PLC control
|
|
Drive mode
|
Motor driver
|
|
Rolling materials
|
GCr15(bearing steel)hard chrome plated after heat treatment
|
|
Length Tolerance
|
±2mm
|
|
Type of cutting
|
Length-set cutting Guiding pipe Hydraulic cutter Each side one Oil cylinder |

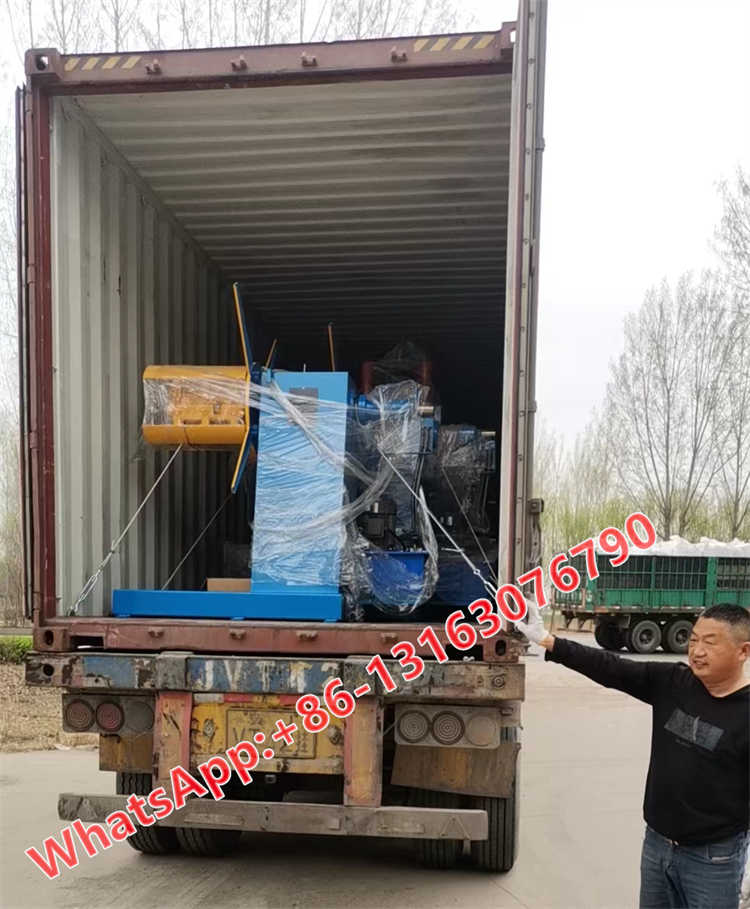

Package of c and z purlin machine
Standard export package with plastic film package, load in to 40ft container, reinforcement in with rope in the container.

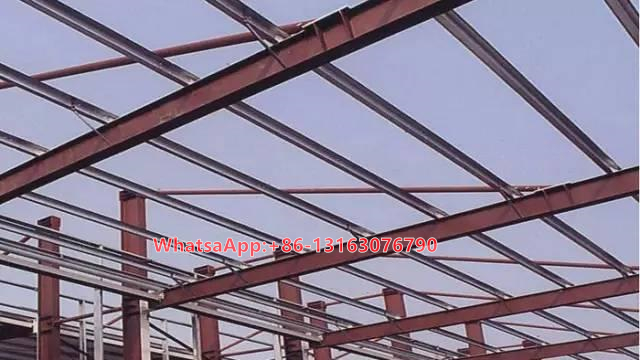

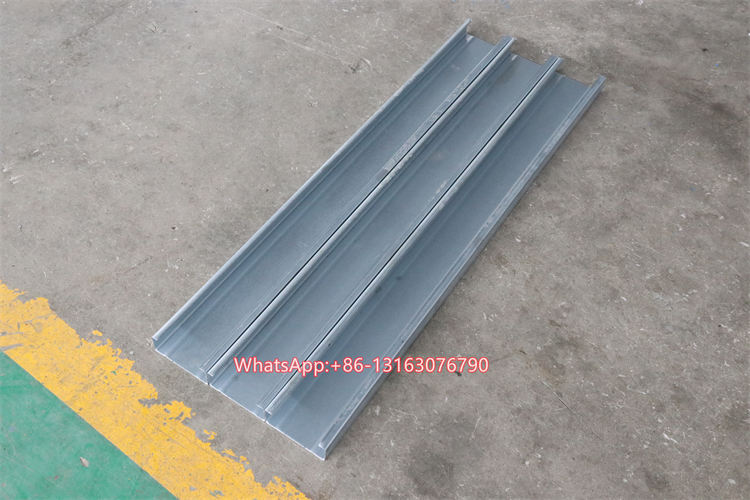

Finished product application of c and z purlin machine
After-sales service of c and z purlin machine
1.24 month warranty, free replacement of accessories during the warranty period
2.WeChat or WhatsApp 24-hour remote after-sales support or video after-sales
3.On-site installation and commissioning: Some manufacturers will provide on-site installation and commissioning services for equipment to ensure that the equipment can operate normally and efficiently.
4.Repair and maintenance services: This may include regular inspections, repairs, and replacement of parts to ensure long-term stable operation of the equipment.
