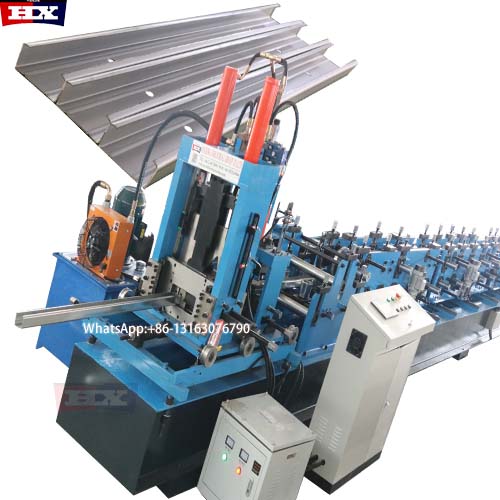

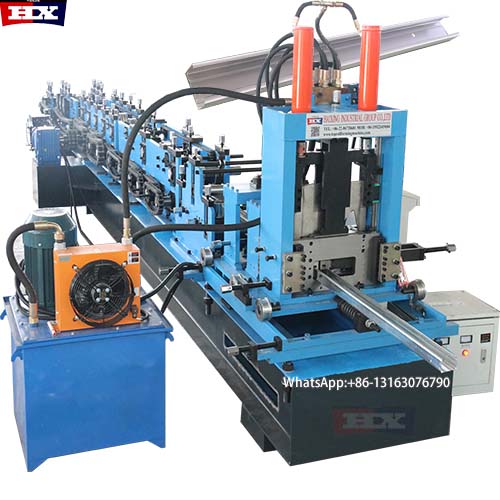

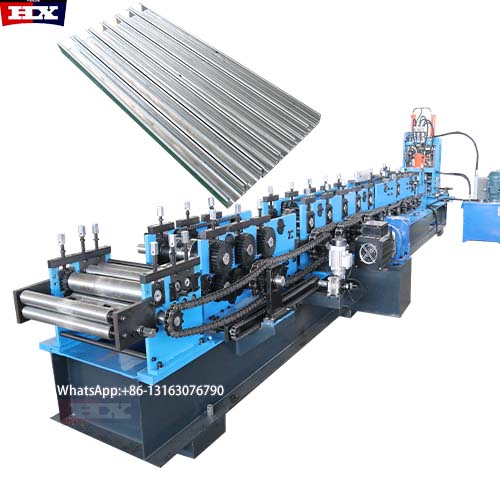

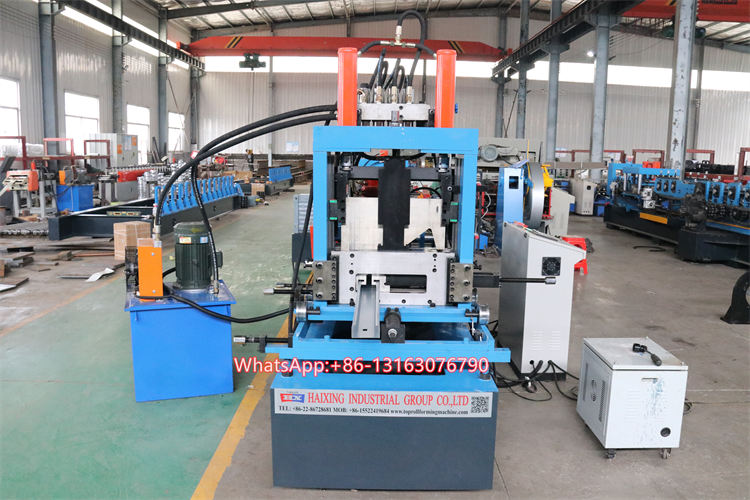

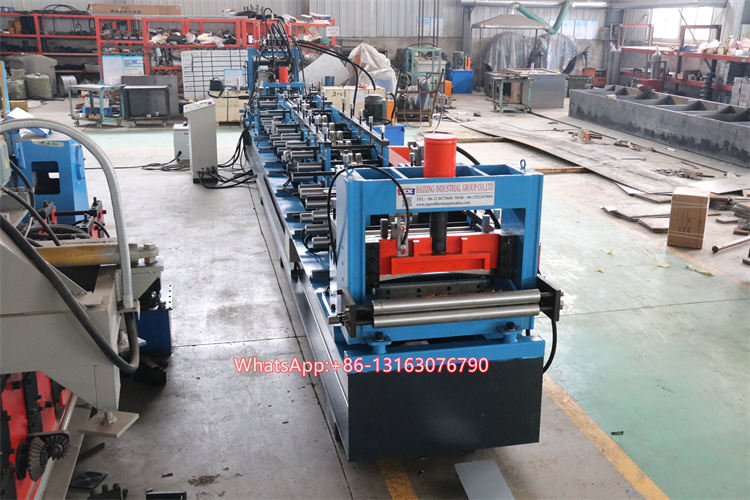

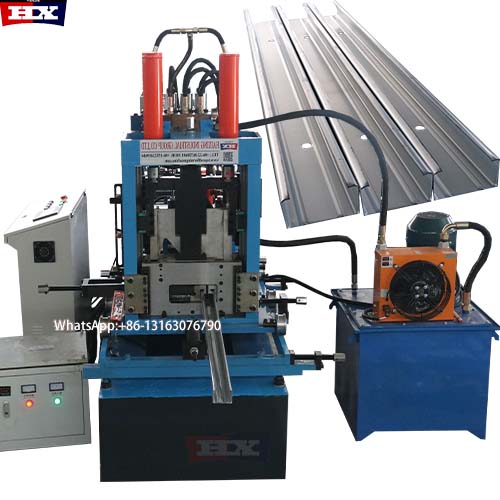

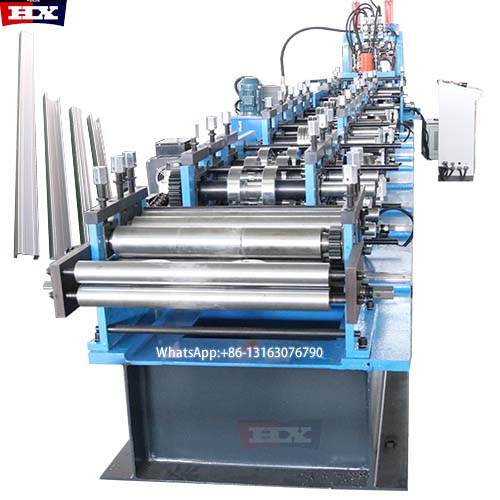

Purlin machine for sale
Develivery time:50-60 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
Purlin machine for sale, Intelligent operation: Purlin forming machines are usually equipped with intelligent operating systems, which can realize automatic mold changing, feeding, measuring, punching, cutting and other functions, greatly improving production efficiency.
When choosing a purlin forming machine, the following factors should also be considered: specification matching, durability, energy saving and environmental protection, simple maintenance, flexibility, automation, cost-effectiveness, manufacturer reputation and technology updates
Parameter of purlin machine for sale
|
Name
|
purlin machine for sale
|
|
Suitable to process
|
Galvanized steel strips/cold rolled strips
|
|

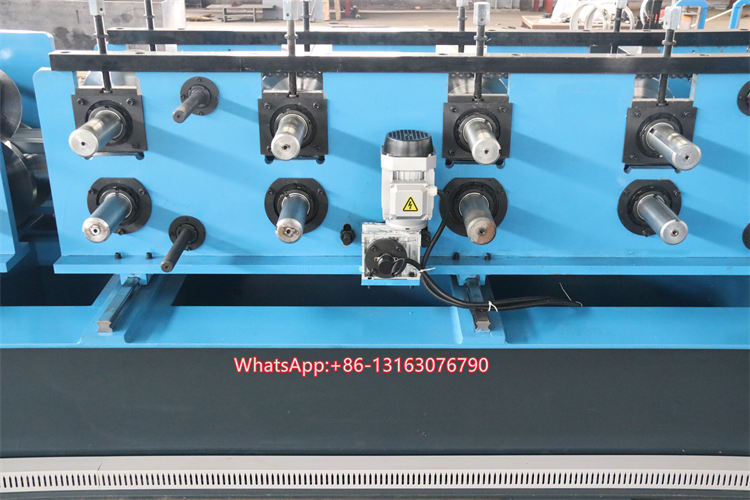

Roller
|
16-18Rows
|
|
Dimensions
|
11*1.3*1.5m
|
|
Motor Power
|
11Kw*2
|
|
Pump Station Motor
|
7.5Kw.Lichao Brand
|
|
Thickness of the plate
|
1.0mm-3.0mm
|
|
Productivity
|
10-15m/min
|
|
Material of the cutting blade
|
Cr12MoV,Quenched treatment 58ºC-60ºC
|
|
Diameter of the roller
|
85mm
|
|
Weight
|
About 8500Kgs
|
|
Main structure of the machine
|
450 H Beams and arch structure
|
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
Control system
|
PLC control (Delta) or as customer’s need
|
|
Drive mode
|
Motor driver
|
|
Touch screen
|
Delta or as customer’s need
|
|
Rolling materials
|
GCr15(bearing steel)hard chrome plated after heat treatment
|
|
Length Tolerance
|
±2mm
|
|
Type of cutting
|
Length-set cutting Guiding pipe Hydraulic cutter Each side one Oil cylinder |
Package of purlin machine for sale

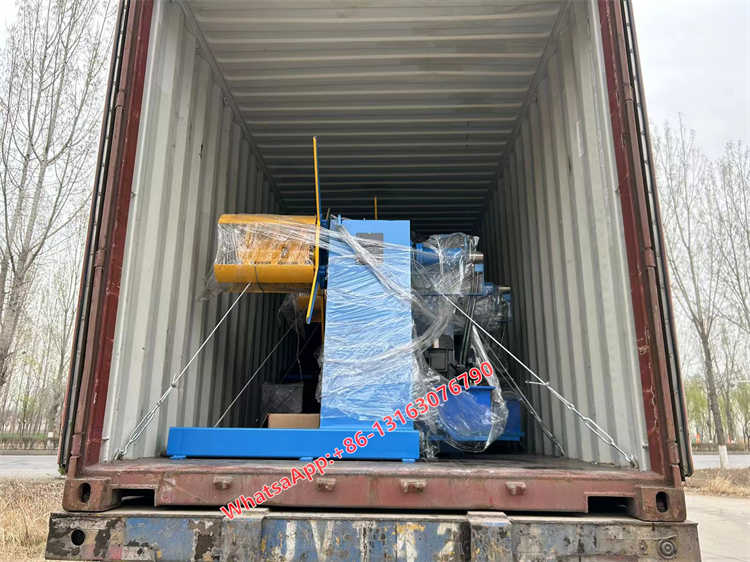

Standard export package with plastic film package, load in to 40ft container, reinforcement in with rope in the container. This is our loading machine photo.

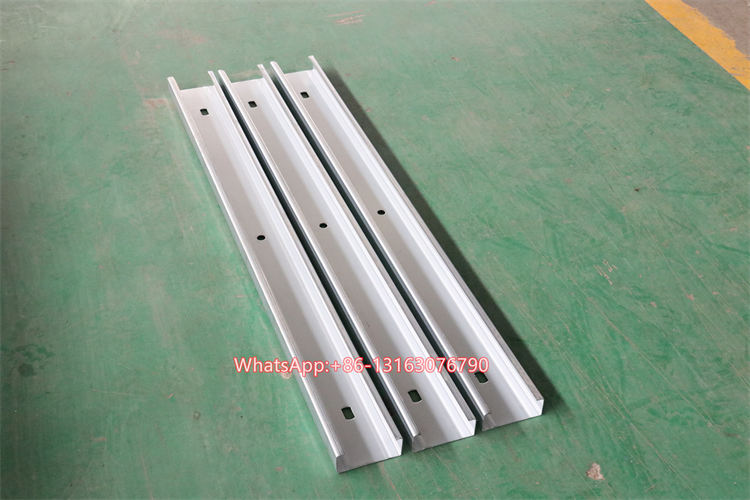

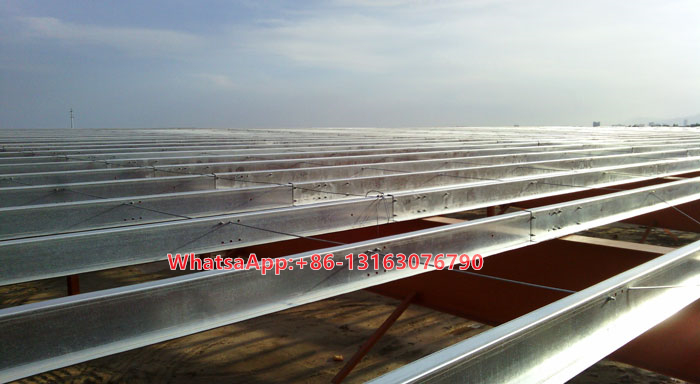

Finished product application of purlin machine for sale
