CZ purlin roll forming machine
Develivery time:50-60 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.

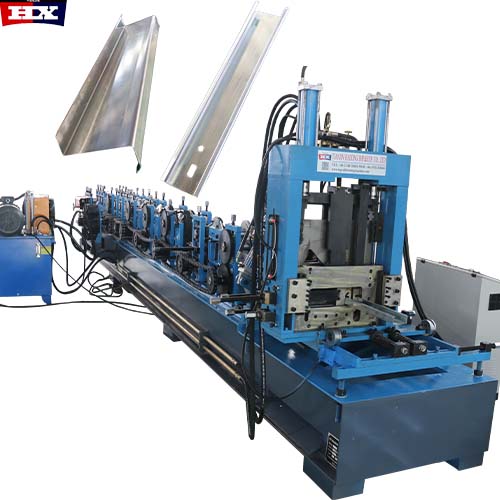

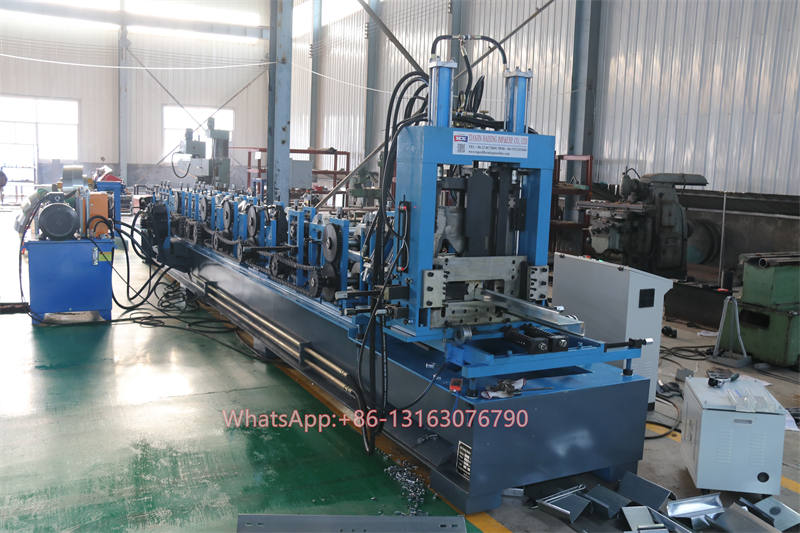

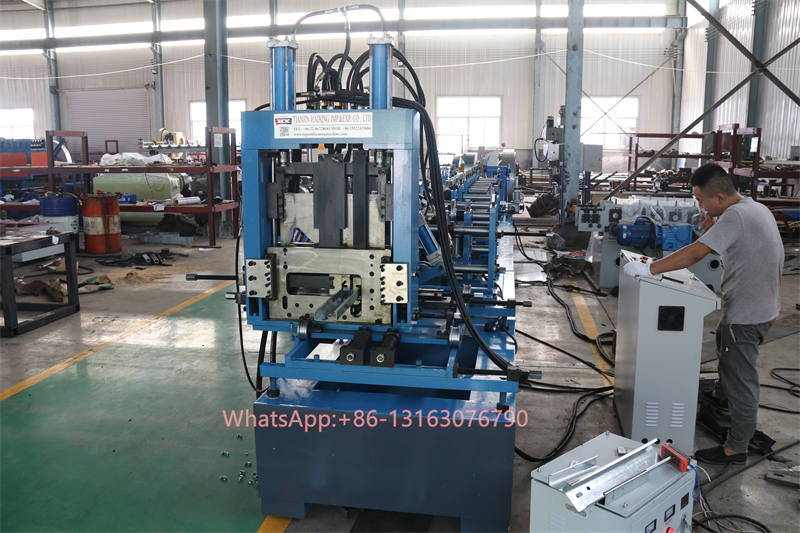

HAIXING CZ purlin roll forming machine is an automatic change shape machine, which can produce C and Z , it can interchange automatically, we adopt arch structure which let me machine more stable when running, following is our machine advantage:
1. Flexible and changeable, saving production time
2.Multiple specifications and large plate types
3. Digital automatic type change, one-button automatic type change, high practicality, simple operation
Parameter of CZ purlin roll forming machine
|
Name
|
C and z purlin machine
|
|
Suitable to process
|
Galvanized steel strips/cold rolled strips
|
|

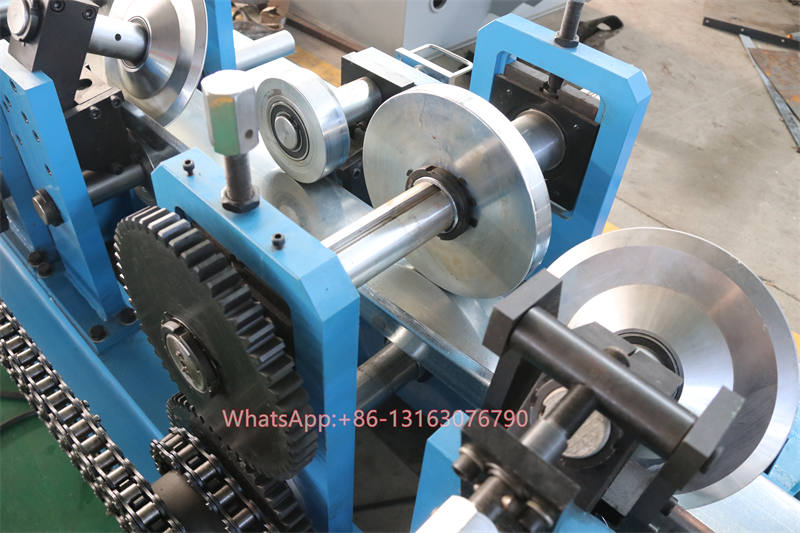

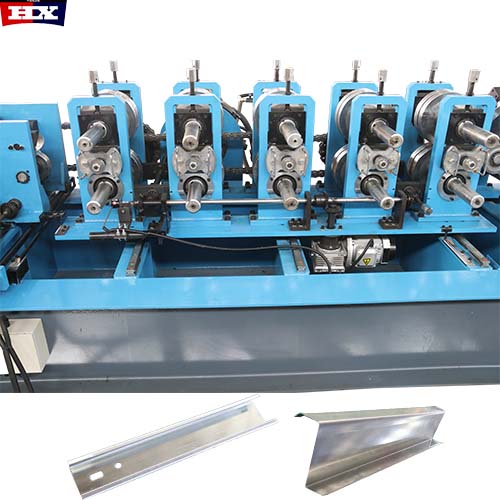

Roller
|
16-18Rows
|
|
Dimensions
|
11*1.3*1.5m
|
|
Motor Power
|
11Kw*2
|
|
Pump Station Motor
|
7.5Kw.Lichao Brand
|
|
Thickness of the plate
|
1.0mm-3.0mm
|
|
Productivity
|
10-15m/min
|
|
Material of the cutting blade
|
Cr12MoV,Quenched treatment 58ºC-60ºC
|
|
Diameter of the roller
|
85mm
|
|
Weight
|
About 8500Kgs
|
|
Main structure of the machine
|
450 H Beams and arch structure
|
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
Control system
|
PLC control (Delta) or as customer’s need
|
|
Drive mode
|
Motor driver
|
|
Touch screen
|
Delta or as customer’s need
|
|
Rolling materials
|
GCr15(bearing steel)hard chrome plated after heat treatment
|
|
Length Tolerance
|
±2mm
|
|

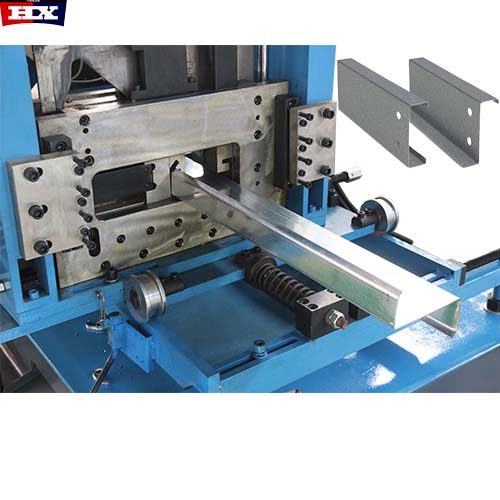

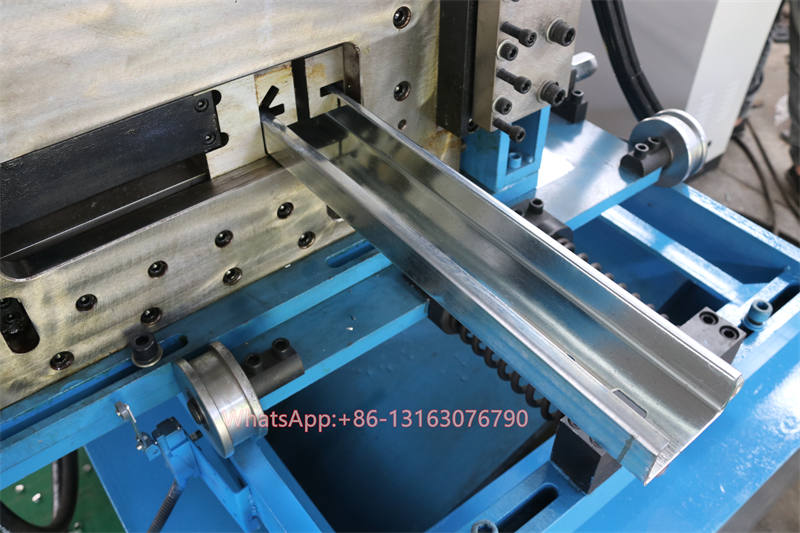

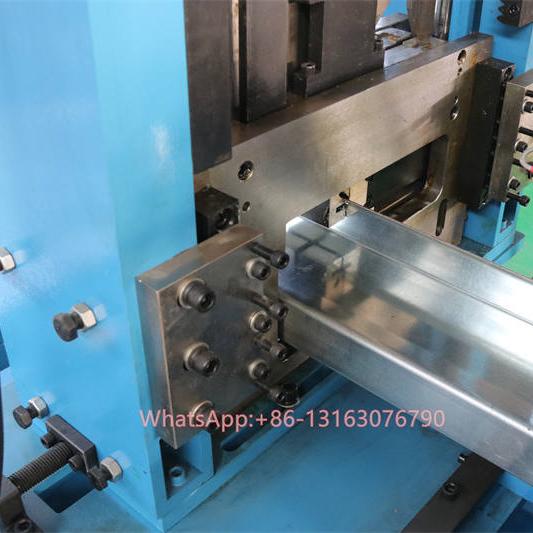

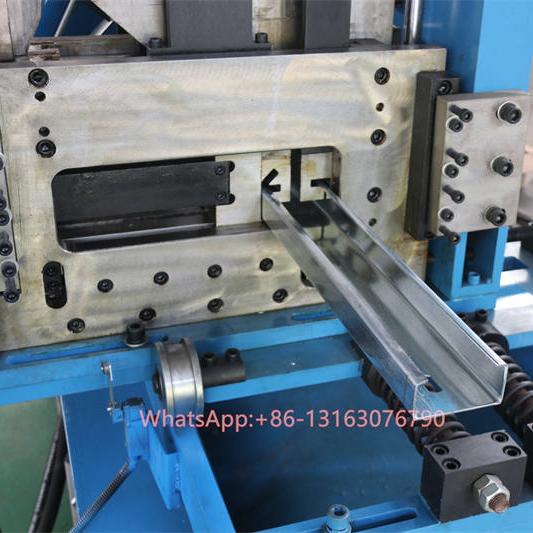

Type of cutting
|
Length-set cutting Guiding pipe Hydraulic cutter Each side one Oil cylinder |

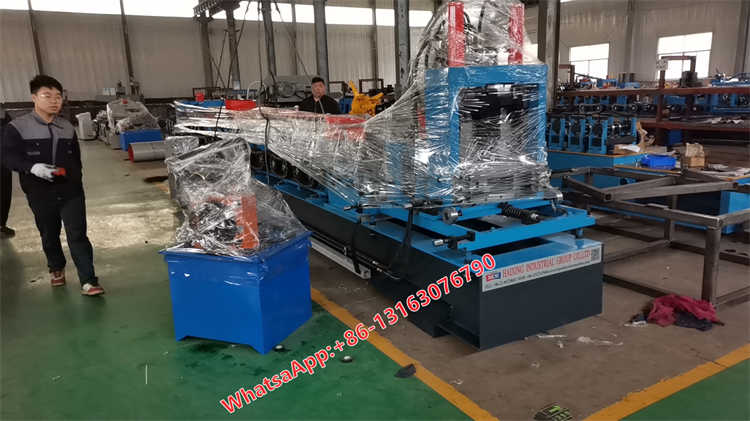

Package of CZ purlin roll forming machine
Standard export package with plastic film package, load in to 40ft container, reinforcement in with rope in the container.

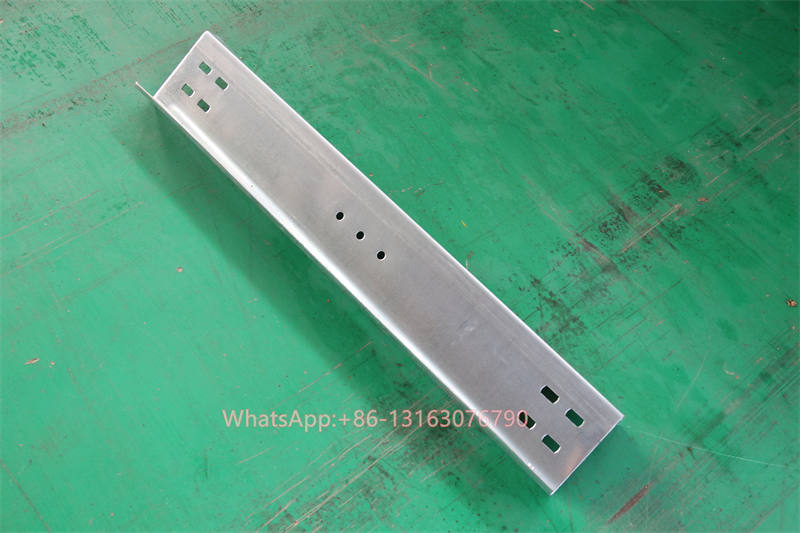

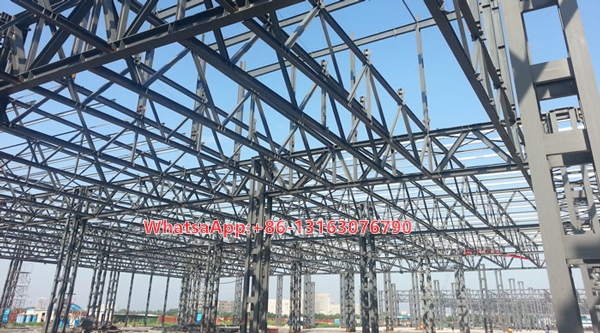

Finished product application of CZ purlin roll forming machine
