c purlin machine
Develivery time:50-60 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
c purlin machine is an automatic roll forming machine, it can produce c pulin different size automatically, just one bottom on the touch screen, it can change shape automatically, it will save the labor cost very much. And fully automatic purlin machine also uses advanced technologies, such as automated welding technology and laser cutting technology, to improve production efficiency and product quality. Automated welding technology enables precise welding of structural parts to prevent corrosion and fatigue damage; while laser cutting technology improves the precision and quality level of solar panel manufacturing.

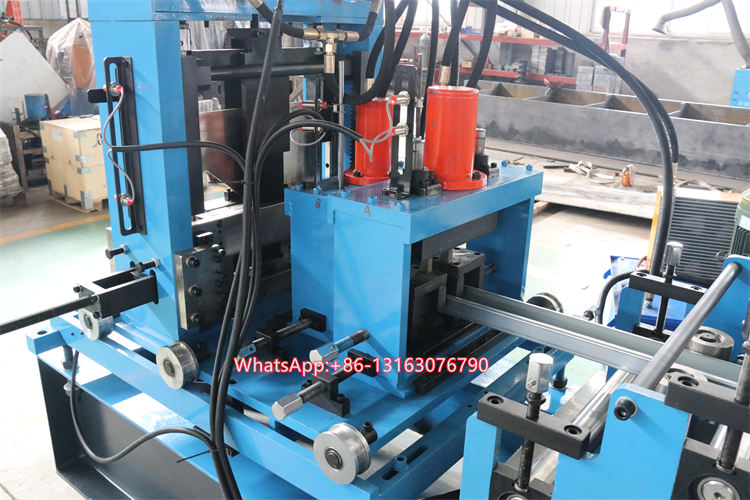

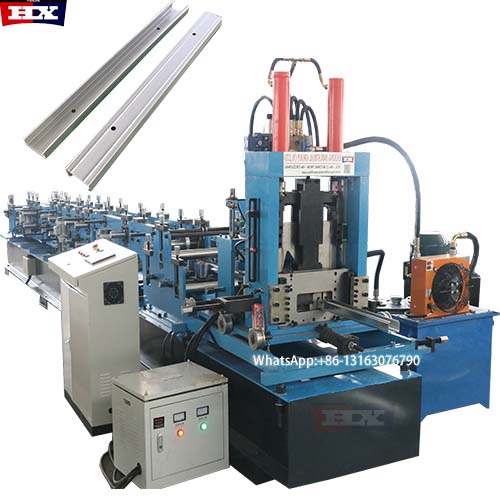

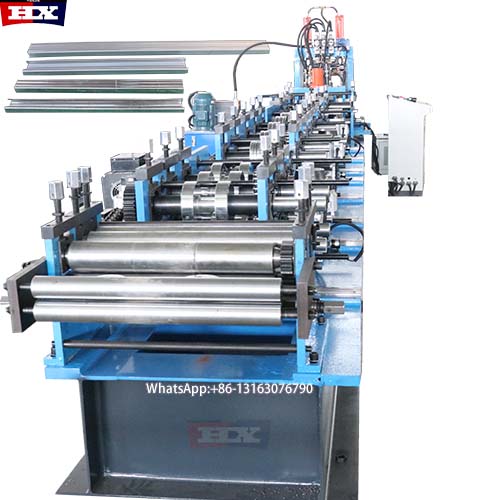

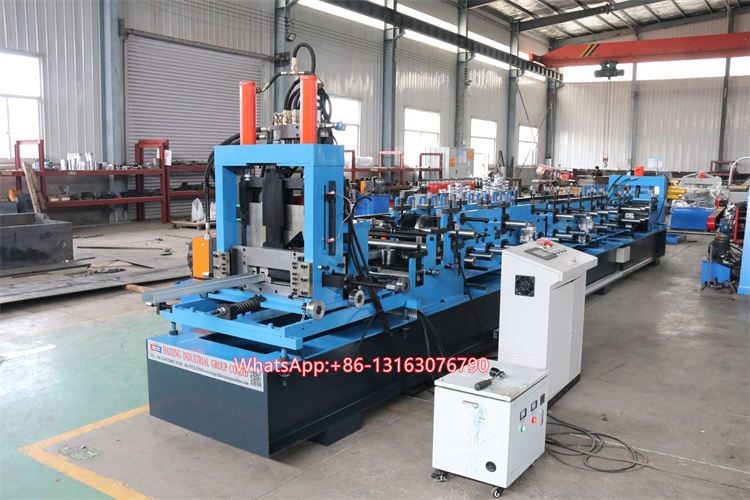

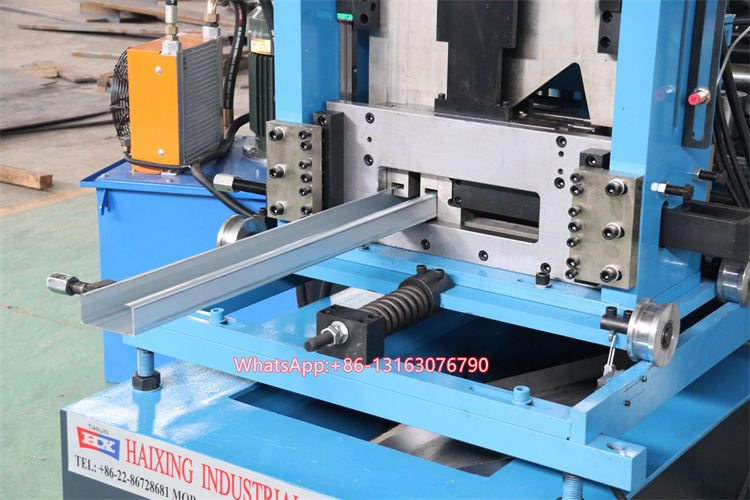

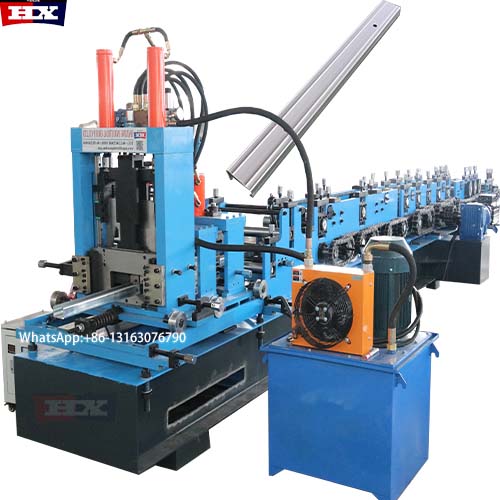

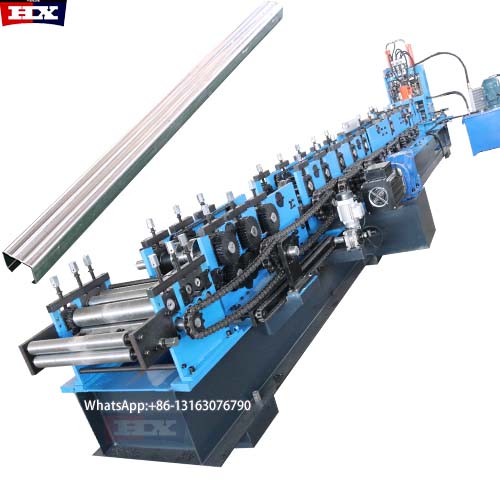

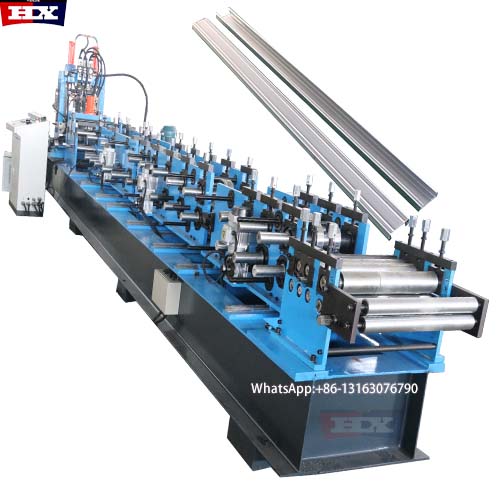

Photo of c purlin machine for reference
Parameter of c purlin machine
|
Name
|
c purlin machine
|
|
Suitable to process
|
Galvanized steel strips/cold rolled strips
|
|
Roller
|
16Rows
|
|
Dimensions
|
11*1.3*1.5m
|
|
Motor Power
|
11Kw*2
|
|
Pump Station Motor
|
7.5Kw.Lichao Brand
|
|
Thickness of the plate
|
1.0mm-3.0mm
|
|
Productivity
|
10-15m/min
|
|
Material of the cutting blade
|
Cr12MoV,Quenched treatment 58ºC-60ºC
|
|
Diameter of the roller
|
85mm
|
|
Weight
|
About 8500Kgs
|
|
Main structure of the machine
|
450 H Beams and arch structure
|
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
Control system
|
PLC control
|
|
Drive mode
|
Motor driver
|
|
Rolling materials
|
GCr15(bearing steel)hard chrome plated after heat treatment
|
|
Length Tolerance
|
±2mm
|
|
Type of cutting
|
Length-set cutting Guiding pipe Hydraulic cutter Each side one Oil cylinder |

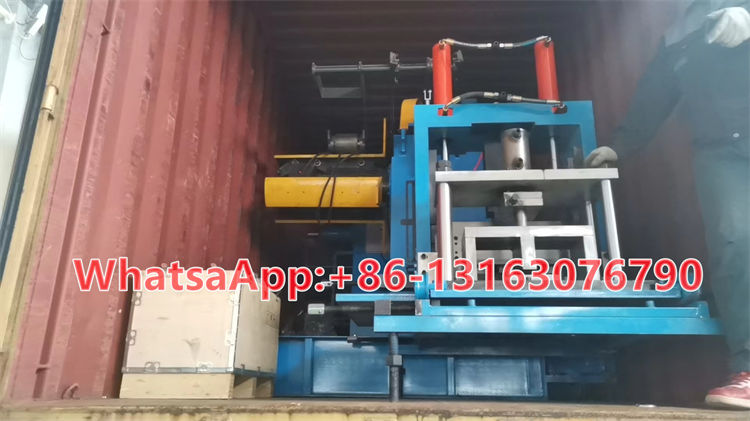

Package of c purlin machine
Standard export package , nacked package，plastic film package to the electric control box , load in to 40ft container, reinforcement in with rope in the container.

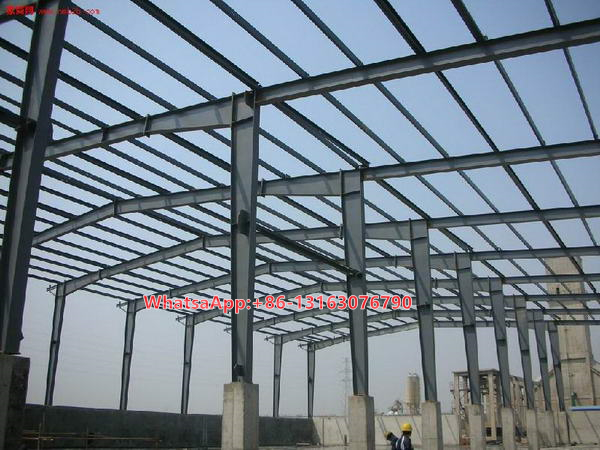

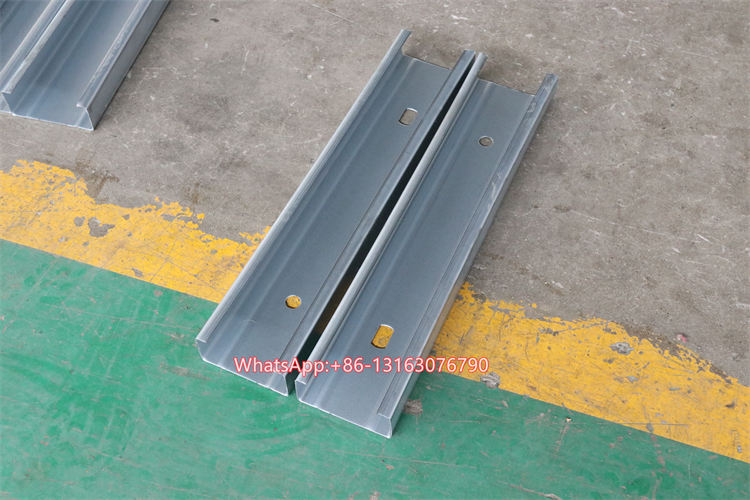

Finished product application of c purlin machine
After-sales service of purlin roll forming machine
1.24 month warranty, free replacement of accessories during the warranty period
2.Regular international return visits: Arrange special personnel to make regular return visits to important foreign customers to understand the equipment usage and customer satisfaction.
3.Culturally adaptable services: Considering the cultural differences of different countries and regions, provide after-sales service methods that conform to local customs and requirements.
4.Online training courses: Provide online equipment operation and maintenance training courses for foreign customers, so that customers can learn at any time.
