Purlin machine C 80-300
Develivery time:50-60 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
Purlin Roll Forming Machines:Tailored for crafting purlins, horizontal support members in a structure. Offers versatility in meeting different dimensional requirements. it can produce different size as you need, the thickness can use 1.2-3mm,
International quality standard machine , our machine has sold sell in the world, we have export to over 100 countries.

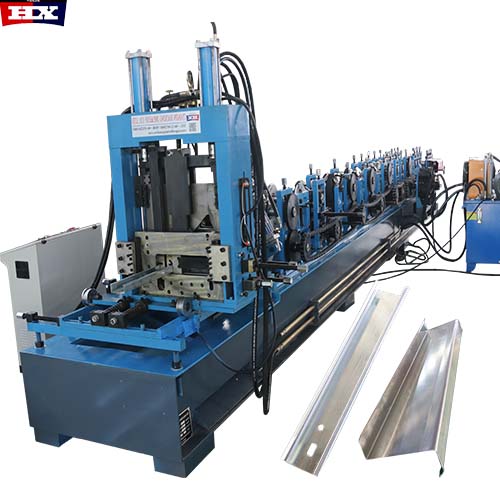

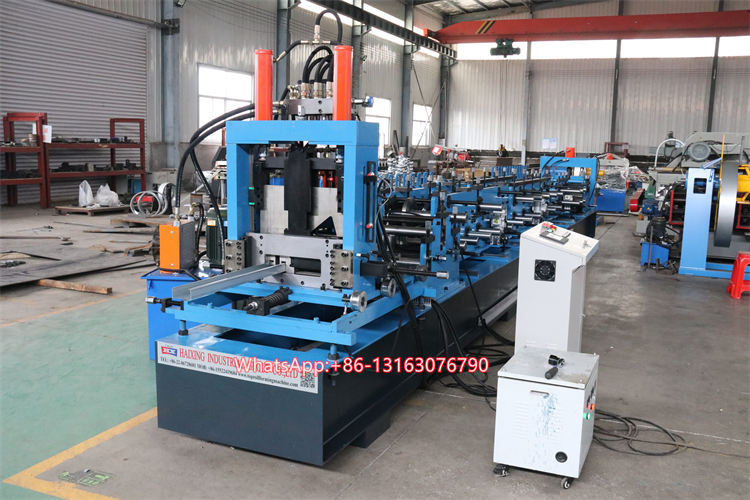

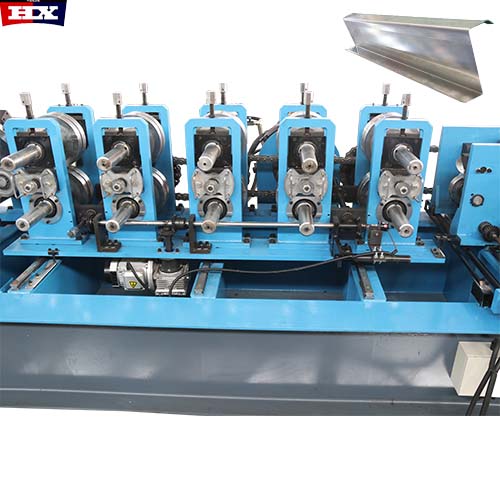

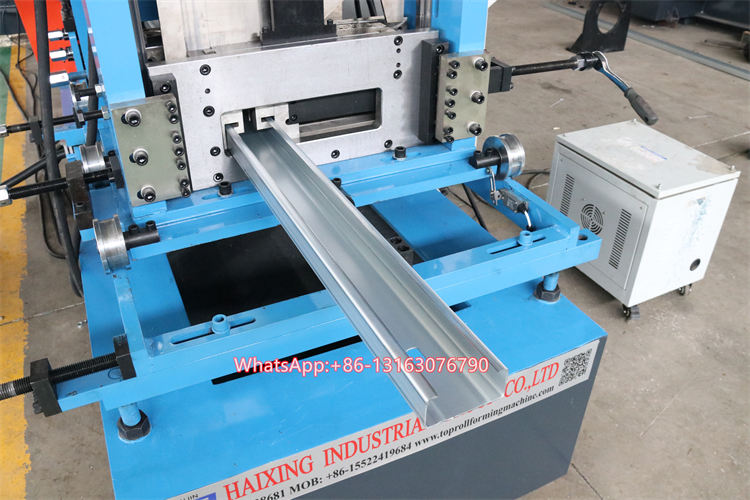

Photo of cz purlin machine for reference
Parameter of CZ purlin roll forming machine
|
Name
|
C and z purlin machine
|
|
Suitable to process
|
Galvanized steel strips/cold rolled strips
|
|

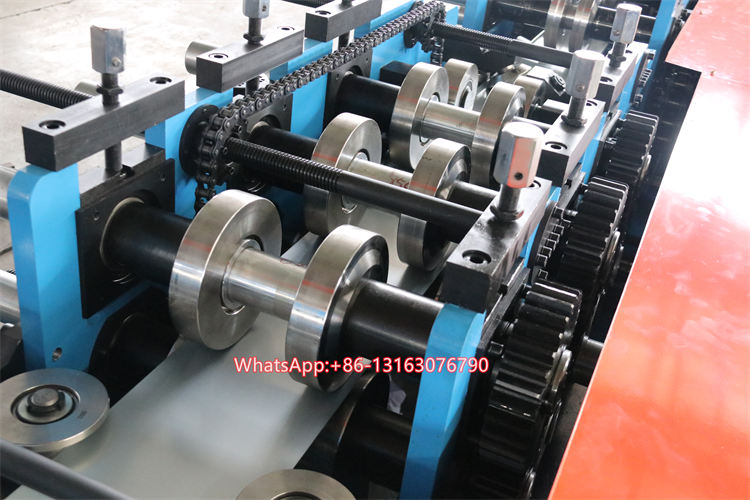

Roller
|
16-18Rows
|
|
Dimensions
|
11*1.3*1.5m
|
|
Motor Power
|
11Kw*2
|
|
Pump Station Motor
|
7.5Kw.Lichao Brand
|
|
Thickness of the plate
|
1.0mm-3.0mm
|
|
Productivity
|
10-15m/min
|
|
Material of the cutting blade
|
Cr12MoV,Quenched treatment 58ºC-60ºC
|
|
Diameter of the roller
|
85mm
|
|
Weight
|
About 8500Kgs
|
|
Main structure of the machine
|
450 H Beams and arch structure
|
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
Control system
|
PLC control (Delta) or as customer’s need
|
|
Drive mode
|
Motor driver
|
|
Touch screen
|
Delta or as customer’s need
|
|
Rolling materials
|
GCr15(bearing steel)hard chrome plated after heat treatment
|
|
Length Tolerance
|
±2mm
|
|

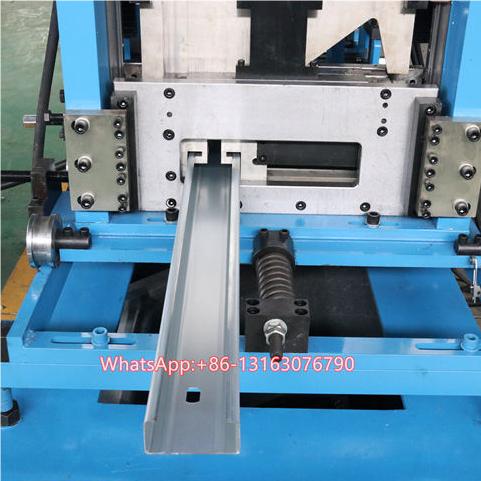

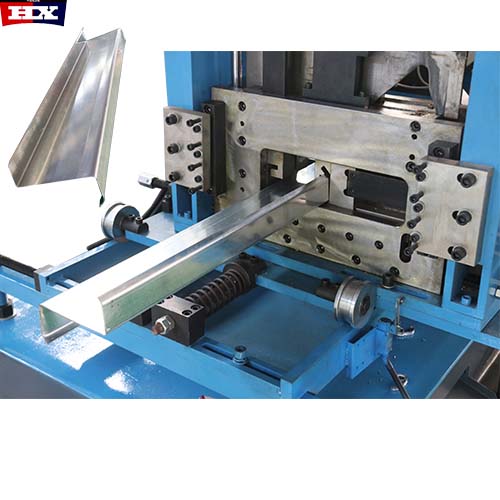

Type of cutting
|
Length-set cutting Guiding pipe Hydraulic cutter Each side one Oil cylinder |

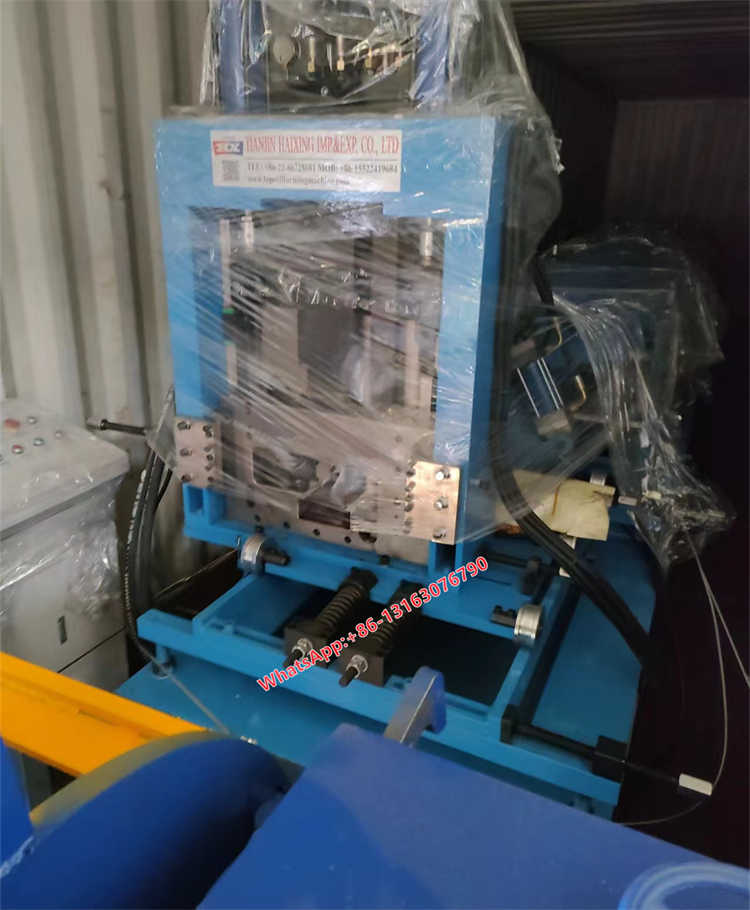

Package of CZ purlin roll forming machine
Standard export package with plastic film package, load in to 40ft container, reinforcement in with rope in the container.

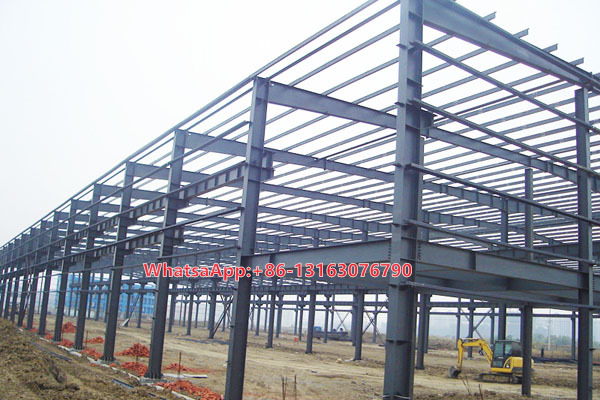

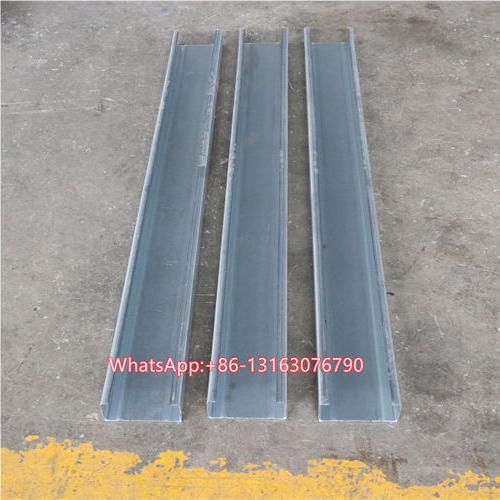

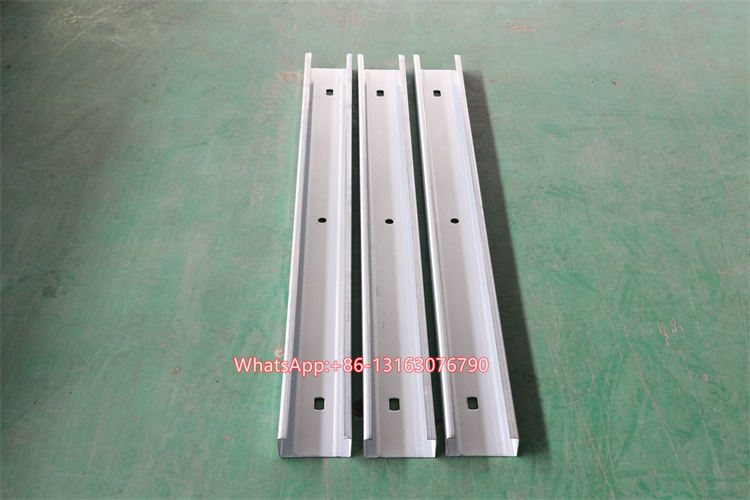

Finished product application of CZ purlin roll forming machine
After-sales service of cz purlin machine
1.24 month warranty, free replacement of accessories during the warranty period
2.Maintenance service: When equipment fails, respond promptly and arrange maintenance personnel to perform maintenance and restore the normal operation of the equipment as soon as possible. Repairs may include replacing parts, fixing faults, etc.
3.Regular maintenance: Provide regular maintenance services, conduct comprehensive inspection, cleaning, lubrication and other maintenance work on the equipment to extend the service life of the equipment.
