cz purlin machine
Develivery time:50-60 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.

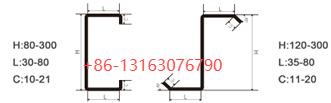

CZ purlin machine is Haixing star produce, this machine can produce C 80-300mm and Z 120-300mm , the shape can interchange automatically, we adopt arch structure and motor and chain drive ,when machine running it's more table and fast, following is our machine advantage:
1. Domestic high-end advanced servo motor brand
2. Increase production efficiency by more than 30%
3. Intelligent fast input software

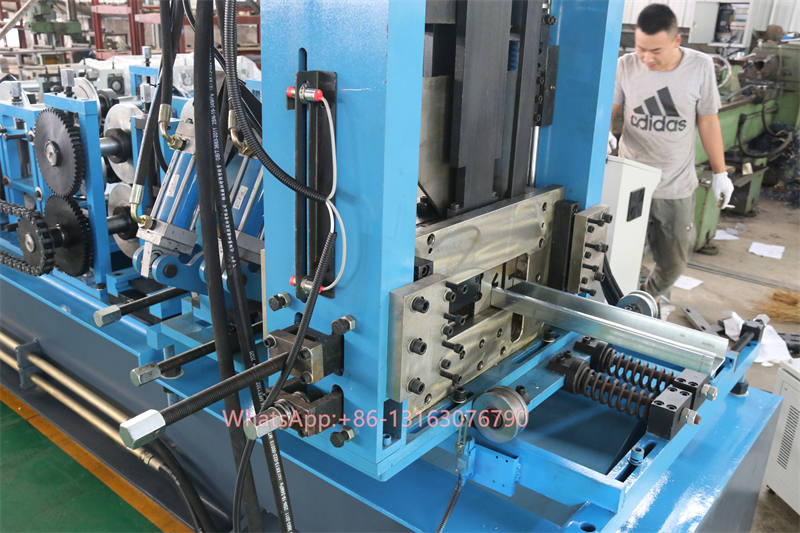

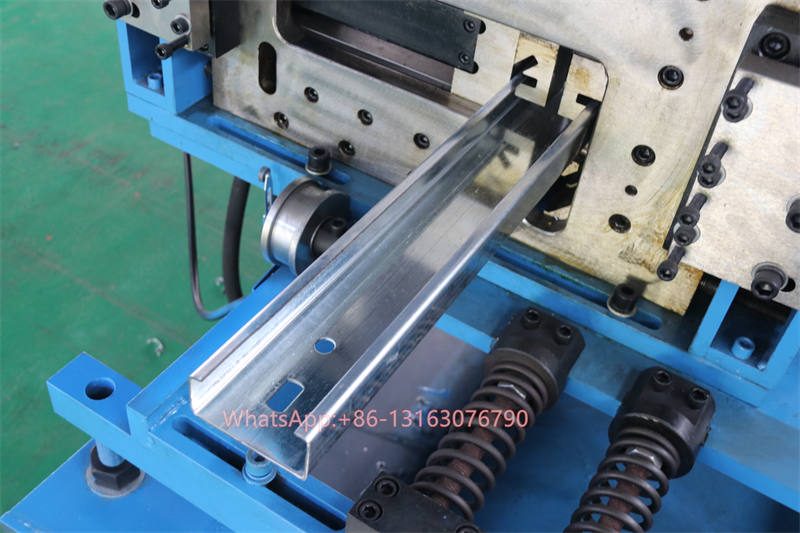

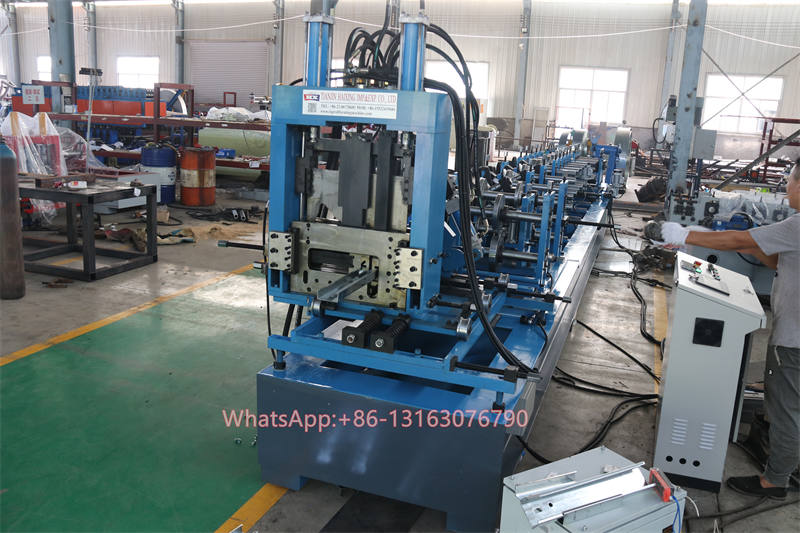

Photo of cz purlin machine for reference
Parameter of CZ purlin roll forming machine
|
Name
|
C and z purlin machine
|
|
Suitable to process
|
Galvanized steel strips/cold rolled strips
|
|
Roller
|
16-18Rows
|
|
Dimensions
|
11*1.3*1.5m
|
|
Motor Power
|
11Kw*2
|
|
Pump Station Motor
|
7.5Kw.Lichao Brand
|
|
Thickness of the plate
|
1.0mm-3.0mm
|
|
Productivity
|
10-15m/min
|
|
Material of the cutting blade
|
Cr12MoV,Quenched treatment 58ºC-60ºC
|
|
Diameter of the roller
|
85mm
|
|
Weight
|
About 8500Kgs
|
|
Main structure of the machine
|
450 H Beams and arch structure
|
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
Control system
|
PLC control (Delta) or as customer’s need
|
|
Drive mode
|
Motor driver
|
|
Touch screen
|
Delta or as customer’s need
|
|
Rolling materials
|
GCr15(bearing steel)hard chrome plated after heat treatment
|
|
Length Tolerance
|
±2mm
|
|
Type of cutting
|
Length-set cutting Guiding pipe Hydraulic cutter Each side one Oil cylinder |

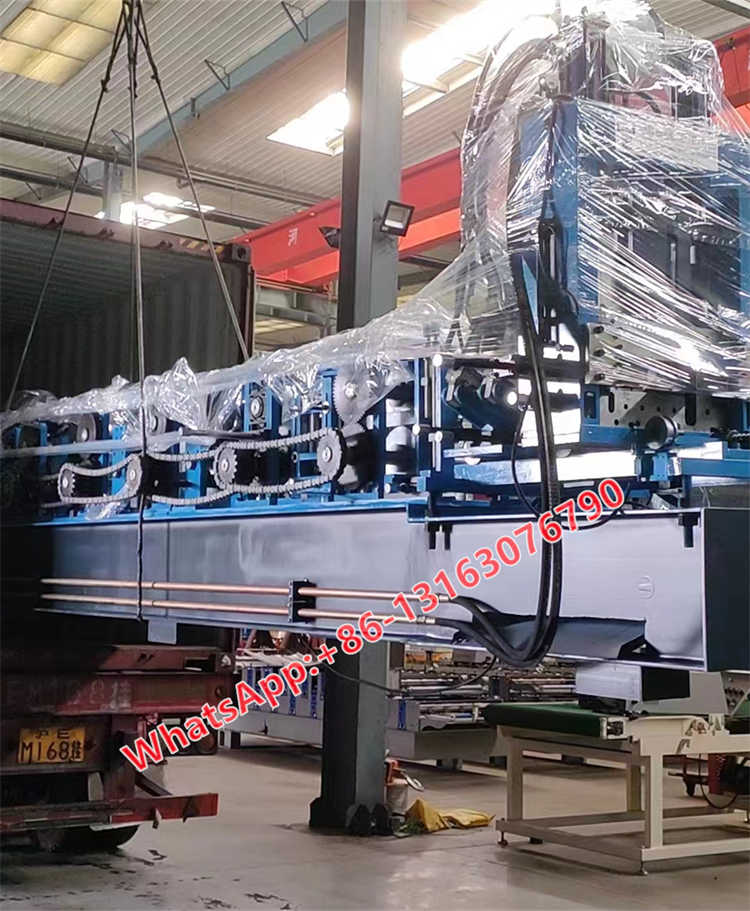

Package of CZ purlin roll forming machine
Standard export package with plastic film package, load in to 40ft container, reinforcement in with rope in the container.

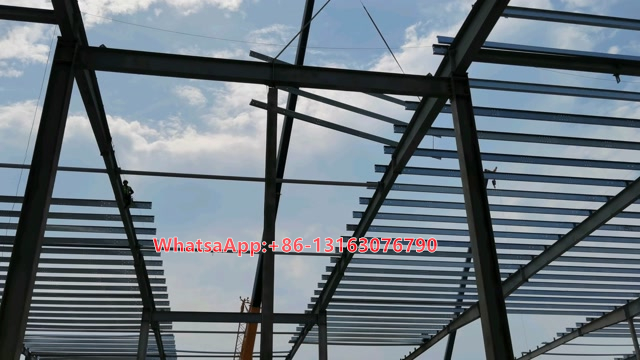

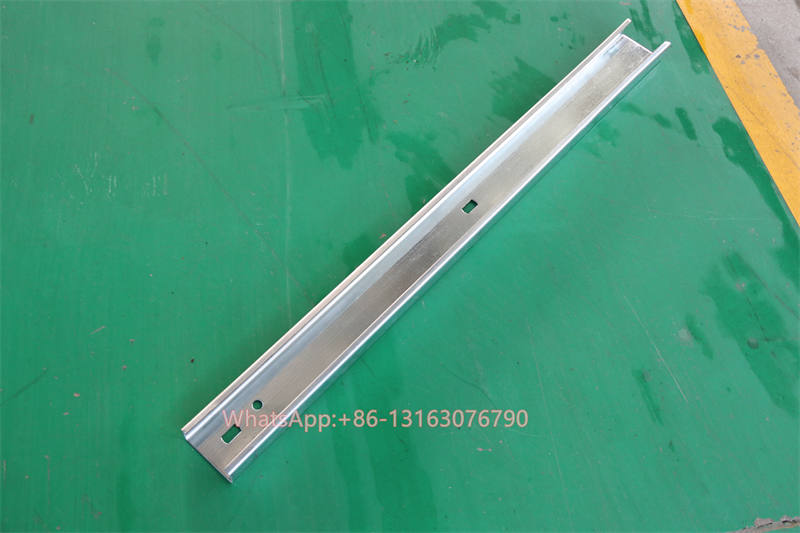

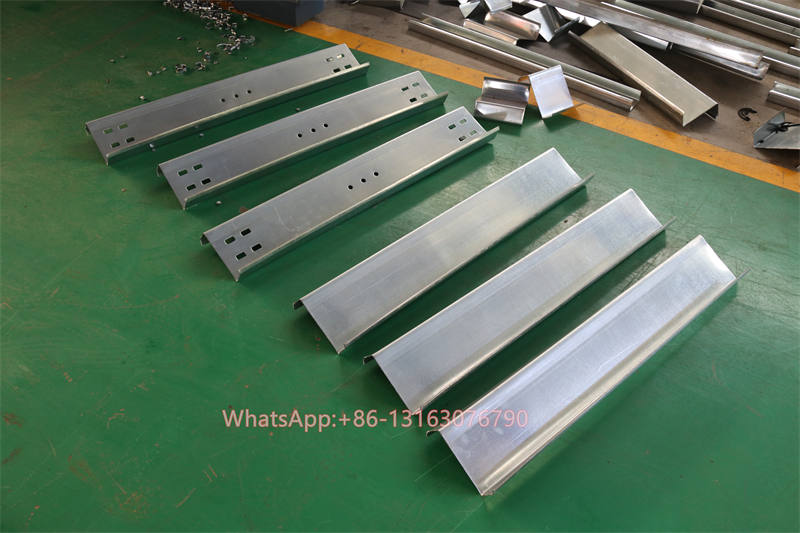

Finished product application of CZ purlin roll forming machine
After-sales service of cz purlin machine
1.2-year warranty, free replacement of accessories during the warranty period
2.Remote technical support: Provide real-time fault diagnosis and technical guidance to foreign customers through video calls, remote control, etc.
3.Transnational accessories delivery: timely send the required accessories to customers across borders to ensure the progress of repairs.
4.Multilingual service: Provide after-sales communication and services in multiple languages to facilitate foreign customers to understand and communicate.
