C purlin roll forming machine
Develivery time:50-60 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
The fully automatic c purlin roll forming machine has a wide range of applications, especially in the construction engineering purlin industry and the field of solar power generation purlins. It can meet the needs of different customers and provide efficient production processes and flexible operating methods. This equipment not only improves work efficiency, but also ensures the accuracy of the production process and product quality. At the same time, it provides a complete after-sales service system, including installation and commissioning, technical training and troubleshooting, etc.

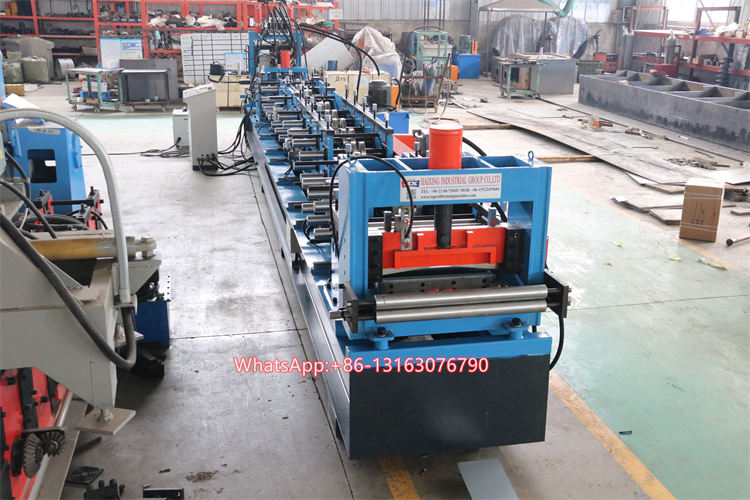

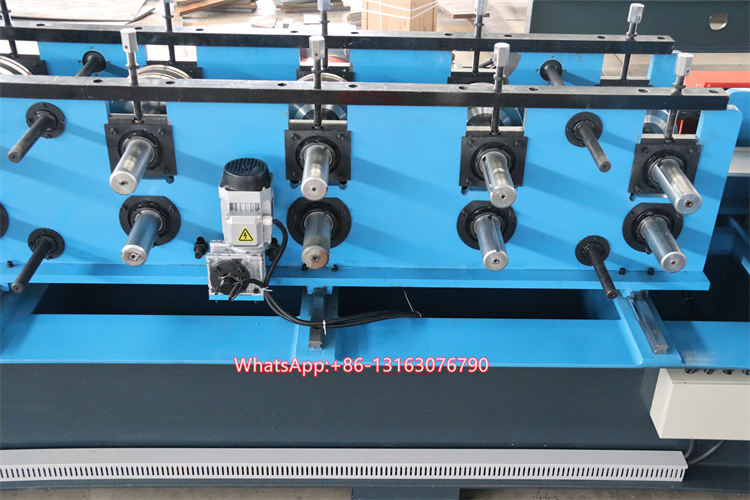

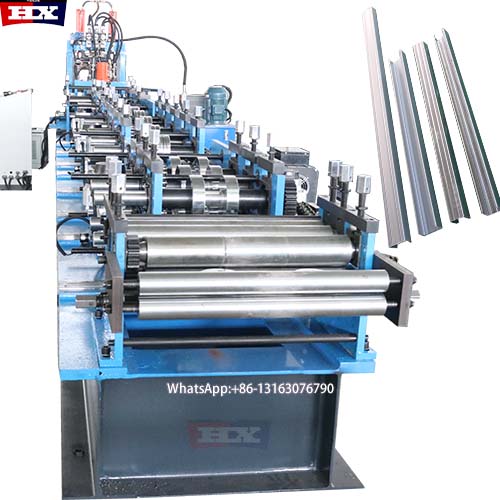

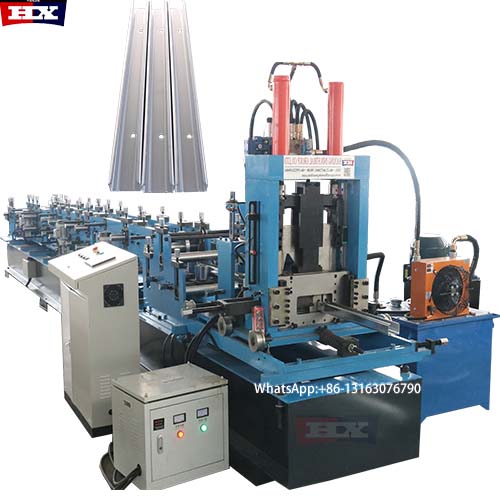

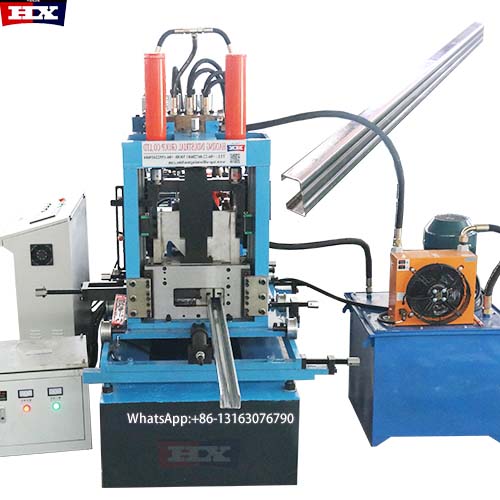

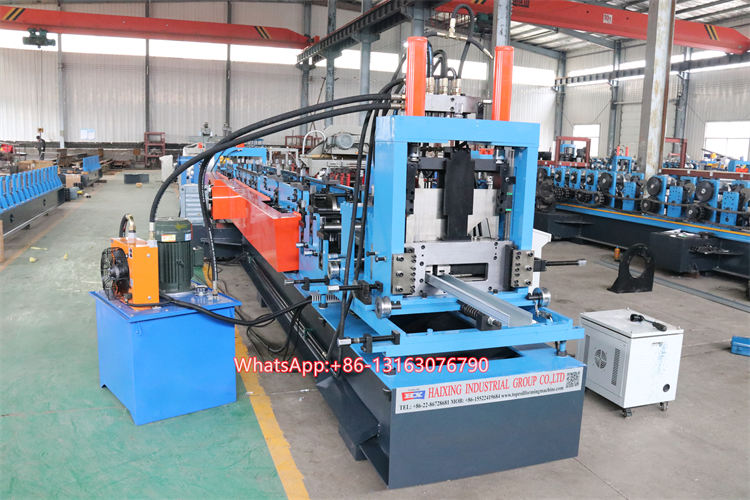

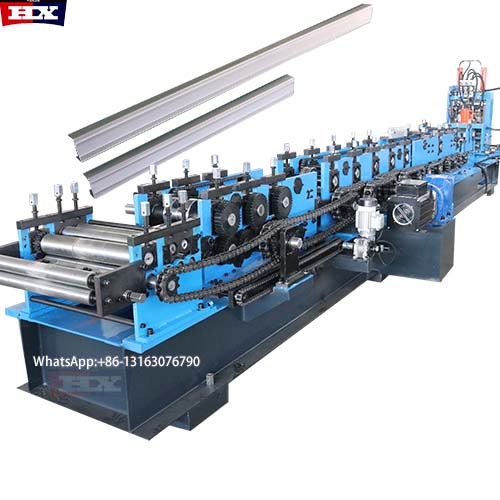

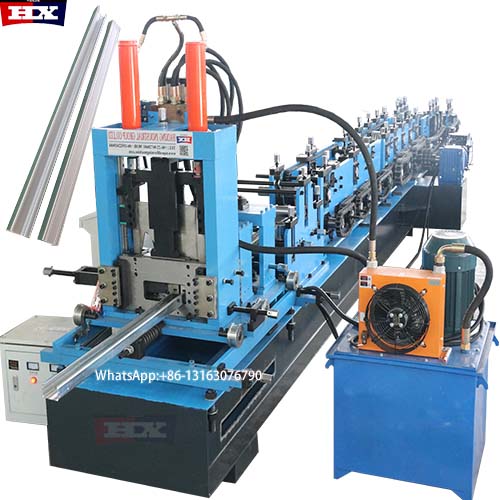

Photo of c purlin roll forming machine for reference
Parameter of c purlin roll forming machine
|
Name
|
purlin roll forming machine
|
|
Suitable to process
|
Galvanized steel strips/cold rolled strips
|
|
Roller
|
16-18Rows
|
|
Dimensions
|
11*1.3*1.5m
|
|
Motor Power
|
11Kw*2
|
|
Pump Station Motor
|
7.5Kw.Lichao Brand
|
|
Thickness of the plate
|
1.0mm-3.0mm
|
|
Productivity
|
10-15m/min
|
|
Material of the cutting blade
|
Cr12MoV,Quenched treatment 58ºC-60ºC
|
|
Diameter of the roller
|
85mm
|
|
Weight
|
About 8500Kgs
|
|
Main structure of the machine
|
450 H Beams and arch structure
|
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
Control system
|
PLC control
|
|
Drive mode
|
Motor driver
|
|
Rolling materials
|
GCr15(bearing steel)hard chrome plated after heat treatment
|
|
Length Tolerance
|
±2mm
|
|
Type of cutting
|
Length-set cutting Guiding pipe Hydraulic cutter Each side one Oil cylinder |

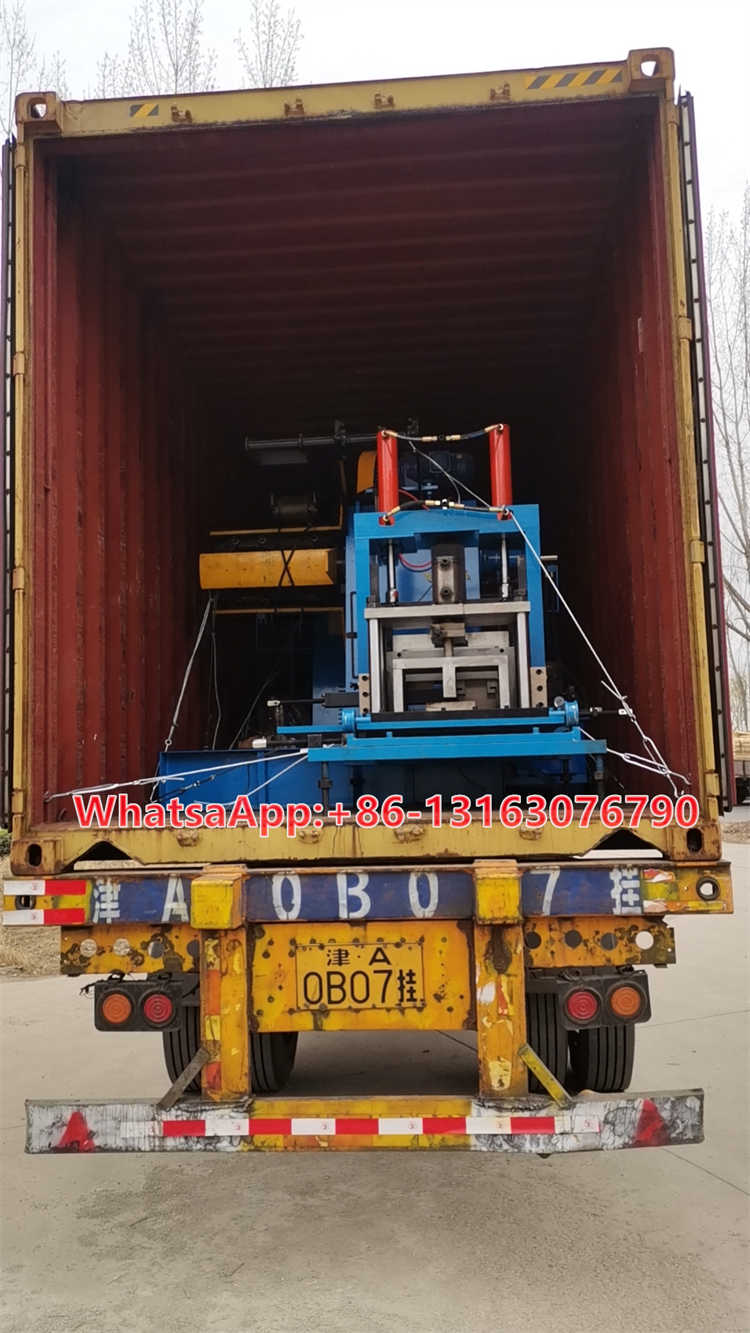

Package of c purlin roll forming machine
Standard export package with plastic film package, load in to 40ft container, reinforcement in with rope in the container.

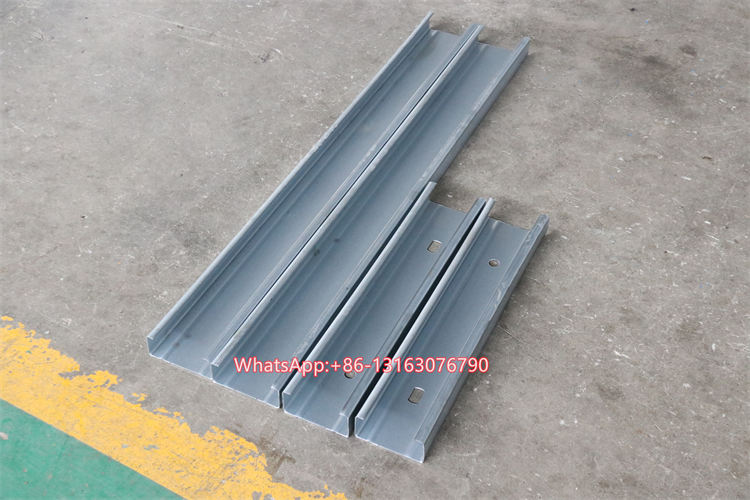

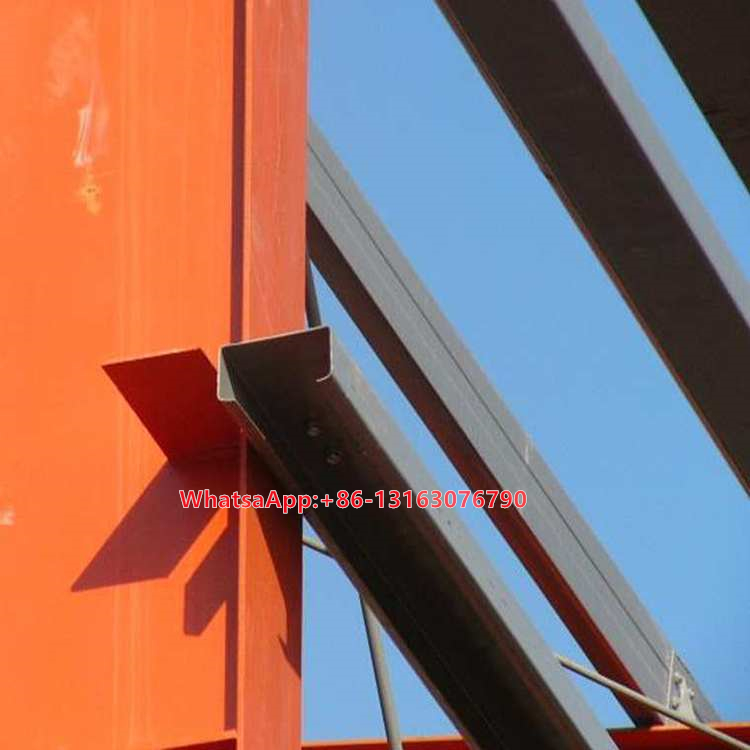

Finished product application of c purlin roll forming machine
After-sales service of c purlin roll forming machine
1.24 month warranty, free replacement of accessories during the warranty period
2.Remote monitoring and diagnosis: Real-time understanding of the equipment operation status through the remote monitoring system, timely fault diagnosis and treatment suggestions.
3.Software upgrade service: Continuously provide customers with equipment software upgrade services to improve equipment performance and functions.
4.Assist in equipment migration: Provide professional assistance and guidance when customers need to migrate equipment.
