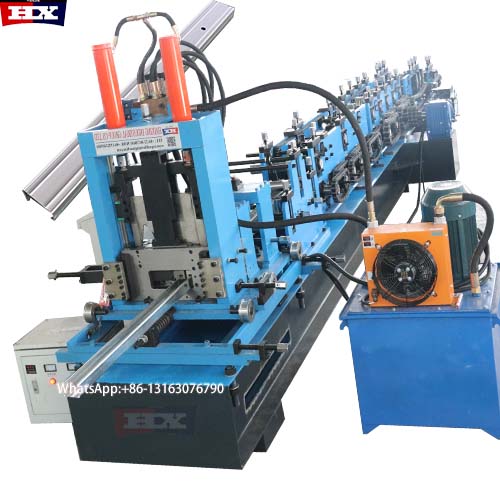

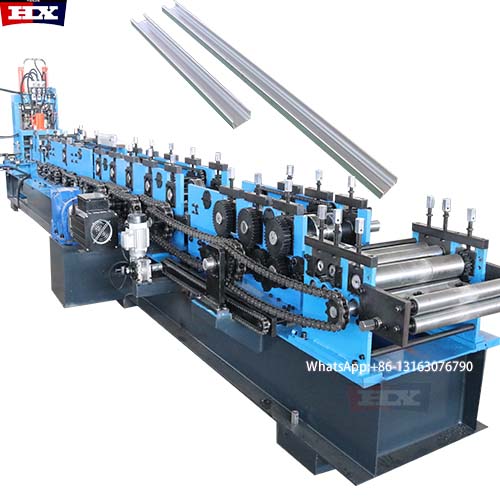

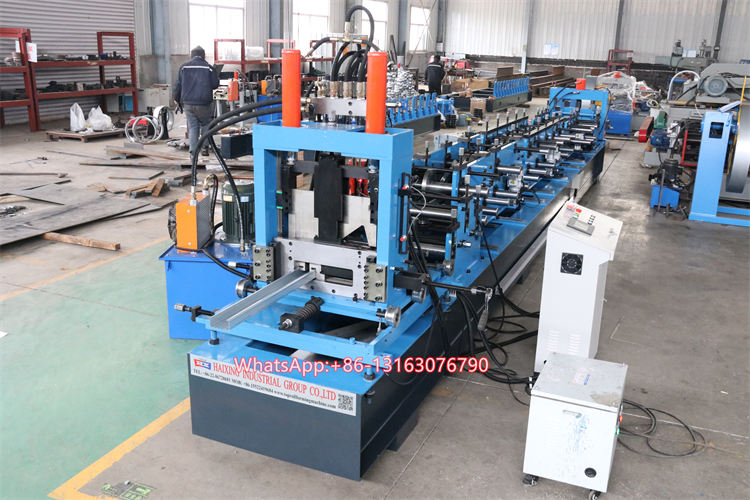

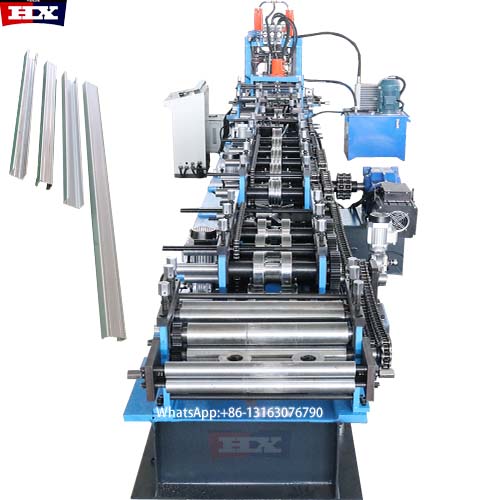

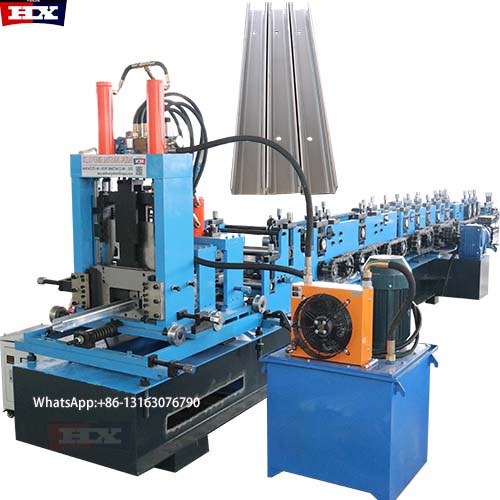

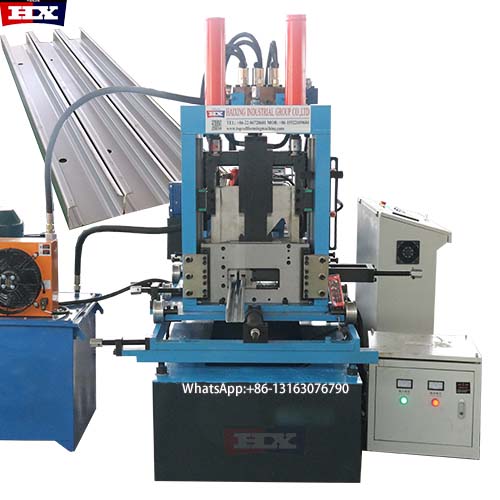

c&z purlin forming machine
Develivery time:50-60 working days
Model:HAIXING-CU
Payment:30% T/T deposit,70% balance before shipping
Warranty :2 years for machinery warranty
Voltage:Standard 380V 50HZ 3Phase or customized.
C&Z purlin forming machine, one machine can produce c and z, with different size and thickness from 1.5mm to 3mm. Strong customization ability: Purlins of various models and sizes can be designed and produced according to different needs.
Wide application: Purlins produced by purlin forming machines are widely used in vegetable greenhouses, grape racks, orchards, livestock farms, flower planting sheds and other occasions.
Durability and stability: These machines are made of high-strength materials, durable and stable, ensuring long-term reliability.
Environmental protection and energy saving: These machines are more environmentally friendly during operation and can effectively save energy
Parameter of c&z purlin forming machine
|
Name
|
c&z purlin forming machine
|
|
Suitable to process
|
Galvanized steel strips/cold rolled strips
|
|
Roller
|
16-18Rows
|
|
Dimensions
|
11*1.3*1.5m
|
|
Motor Power
|
11Kw*2
|
|
Pump Station Motor
|
7.5Kw.Lichao Brand
|
|
Thickness of the plate
|
1.0mm-3.0mm
|
|
Productivity
|
10-15m/min
|
|
Material of the cutting blade
|
Cr12MoV,Quenched treatment 58ºC-60ºC
|
|
Diameter of the roller
|
85mm
|
|
Weight
|
About 8500Kgs
|
|
Main structure of the machine
|
450 H Beams and arch structure
|
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
Control system
|
PLC control (Delta) or as customer’s need
|
|
Drive mode
|
Motor driver
|
|
Touch screen
|
Delta or as customer’s need
|
|
Rolling materials
|
GCr15(bearing steel)hard chrome plated after heat treatment
|
|
Length Tolerance
|
±2mm
|
|

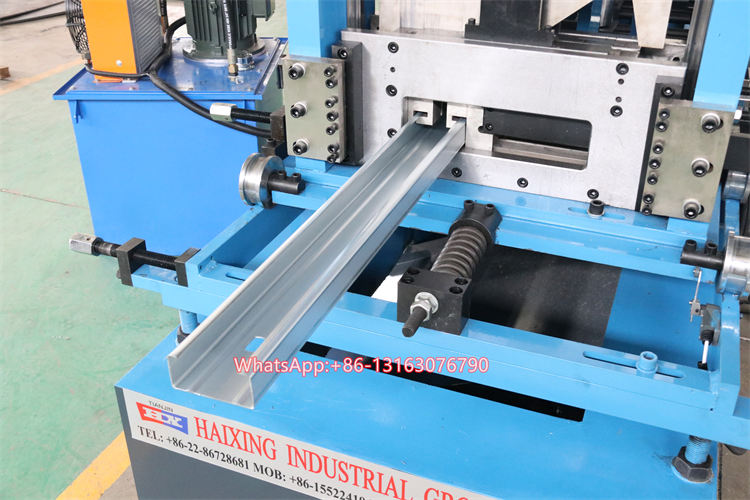

Type of cutting
|
Length-set cutting Guiding pipe Hydraulic cutter Each side one Oil cylinder |

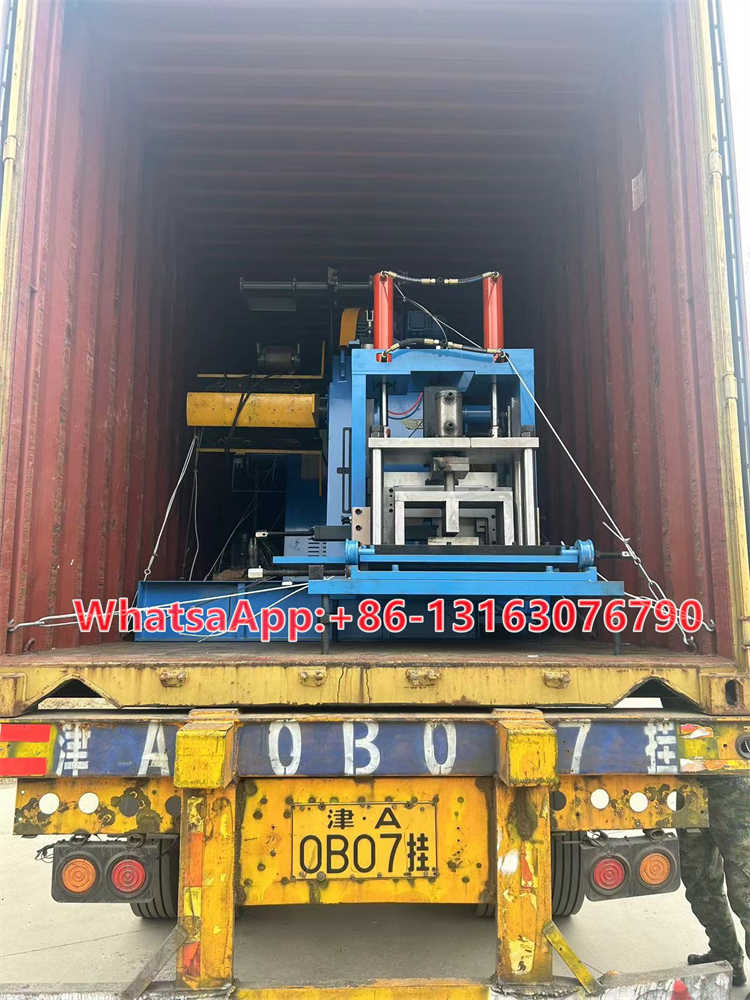

Package of c&z purlin forming machine
Standard export package with plastic film package, load in to 40ft container, reinforcement in with rope in the container.

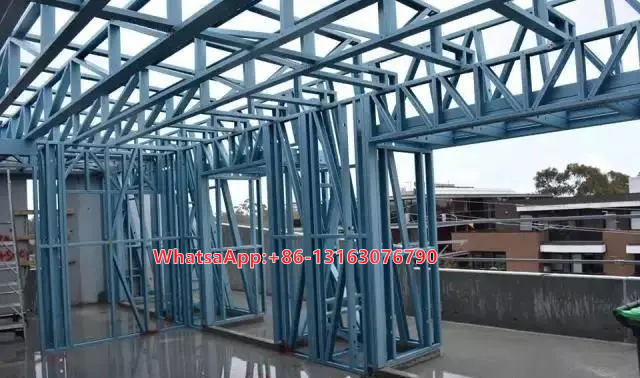

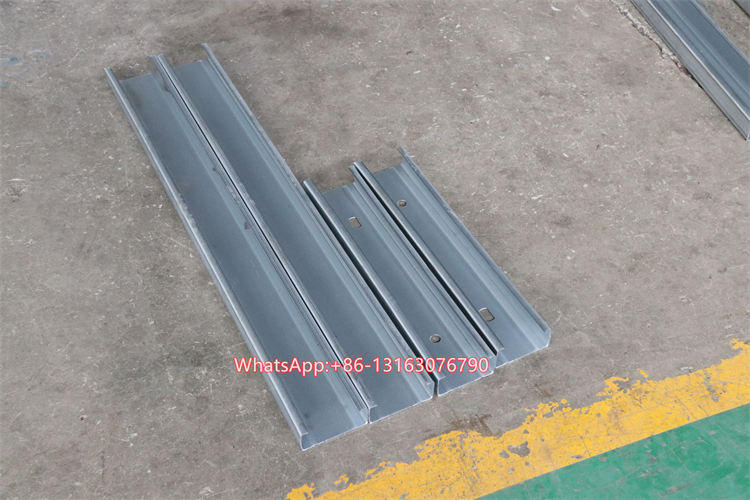

Finished product application of c&z purlin forming machine
